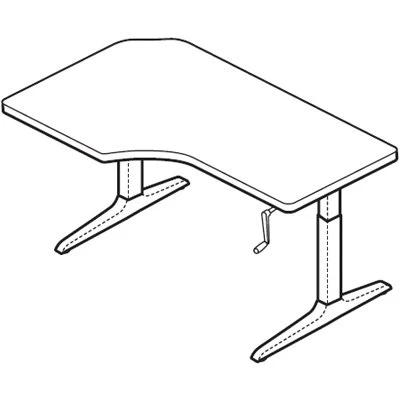

Workrite Sierra HXL Crank Offset Corner 2 Legs Workcenter

A great alternative for the healthy workforce. The Workrite Sierra
HXL Crank is engineered to enable manual adjustability requiring minimal
amounts of human force, making it a good alternative for the healthy
workforce or for areas where frequent adjustments are not required.

The HXL Crank adjusts from 25.5″-43″ and will accommodate the average
male or female worker, making it a good solution for companies seeking
limited height adjustability. It adjusts at a rate of 5.6 turns per inch
even with more than 125 pounds of equipment on the worksurface.

Sierra HXL Crank is available in silver with two foot design options
that can be selected to build the best work center for each specific
application.

Dimensions

Workcenter Features

• Frame options: 2-leg frames

• 24″ or 30″ depths

• Widths from 36″ to 72″ depending on shape

• Finish options: Silver, Black, White

• Height Range: 25.5″ to 43″

• Payload Capacity: 125 pounds

• Travel Speed: 1 inch = 5.6 turns

• Front or top mounted crank

Flat Foot Kit

• Low profile design allows most mobile pedestals to set over
  foot

• Sold in pairs

• Silver, black, or white, powder coated steel construction

• Select worksurface depth of 24″, 30″ or dual depth

Option 1 and 2: Desk Top Position and Surface Dimensions

Option 3: Laminate Top Colors

Option 4: Base Frame Color

Option 5: Crank Handle

Option 6: Foot Type

Option 7: Casters – Wheels

Workcenter Ordering Information

Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1″ of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.

Worksurfaces are pre-drilled with mounting location for frame sets or bases.

Joining kits are provided with all two piece worksurfaces.

Standard lead time for our laminated worksurfaces is 20 business days
for quantities of 10 or less. Lead times for larger product orders will
be provided upon receipt of the order.

Important Notes:

• Workcenters ship unassembled and require simple hand tools to install.

• If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.

• If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.

• All workcenters have adjustable glides providing 0.5″ of adjustment.

• Mobile pedestals may limit lower height range.
