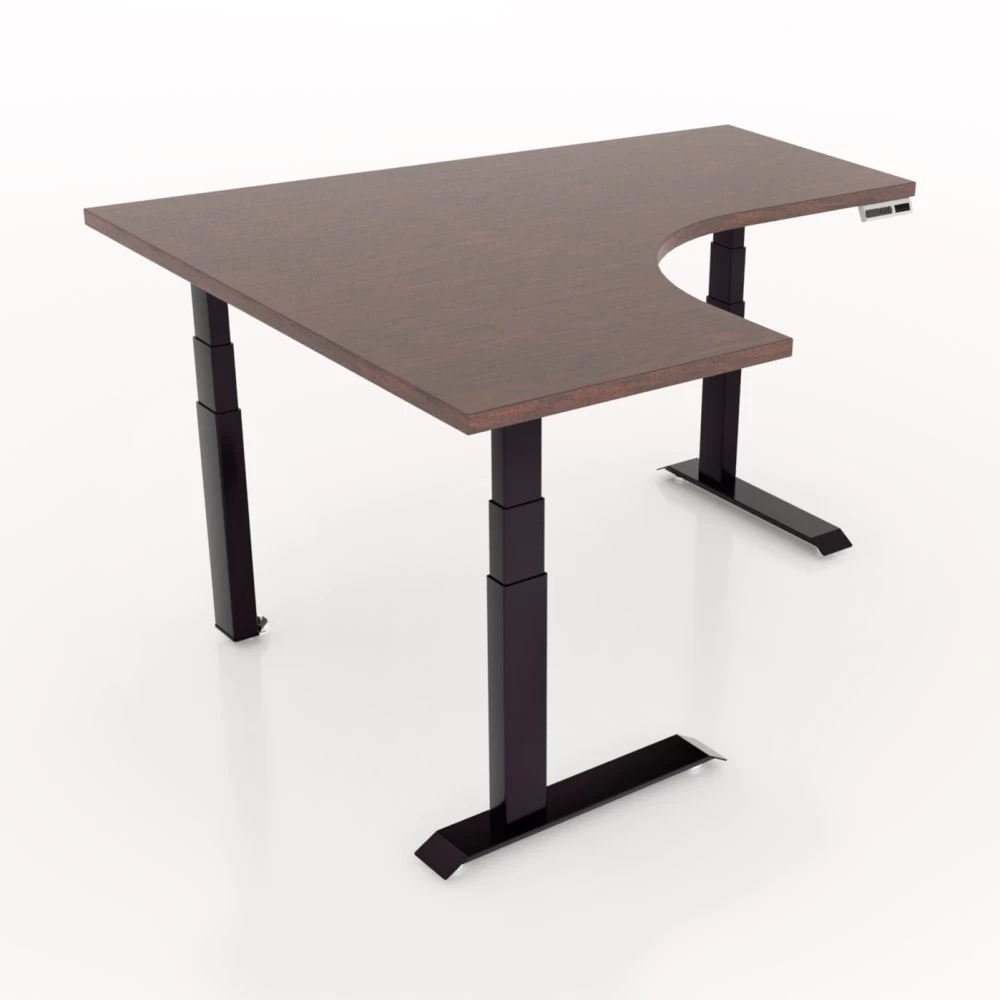

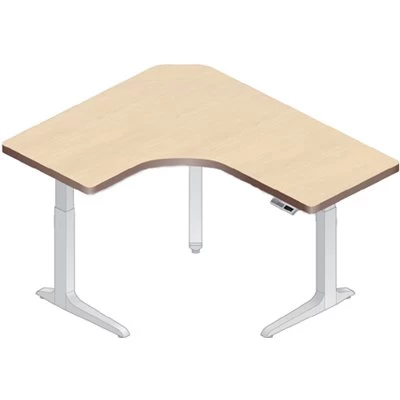

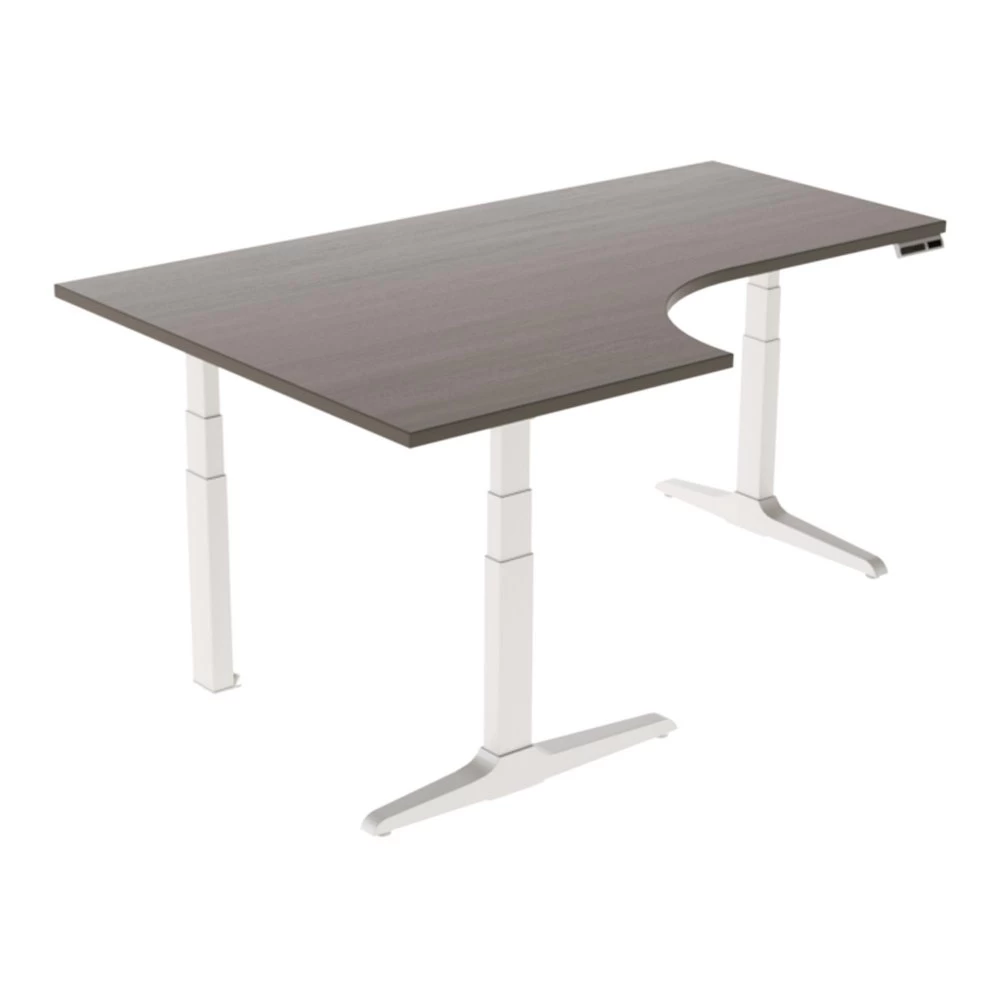

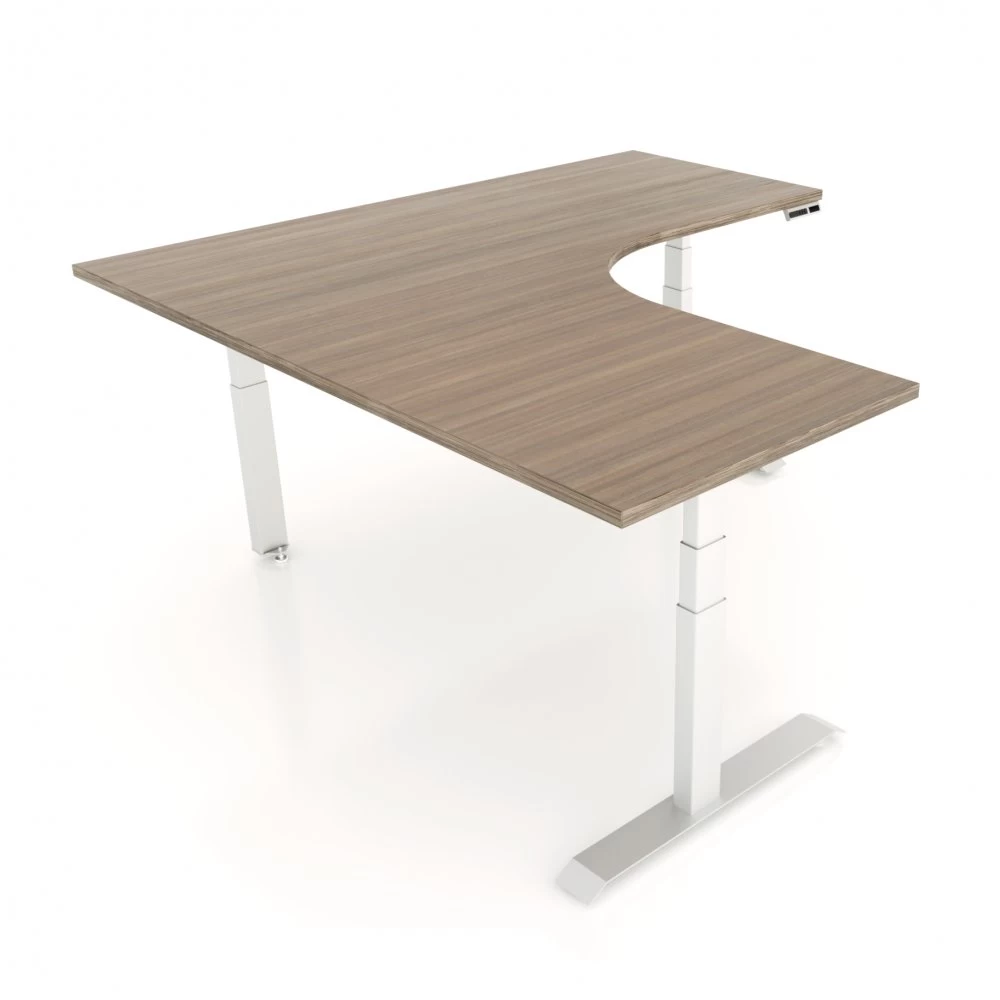

WorkRite Sierra HX Electric Offset Corner 3 Legs Workcenter

Sierra HX Electric Base Set – All Sierra HX Electric Base Sets
include a Frame Set (legs, brackets, motor(s) and cables) as well as
your choice of Foot and Switch. Workrite Sierra HX is the foundation for
the most innovative adjustable height workcenter for today’s
professional workplace. The Frame Sets feature high quality, European
engineering and design and meet BIFMA G1-2013 height adjustability
requirements. They can handle payloads of 225-300 pounds, and features
hidden crossbar design that provides greater knee clearance for the
user. Sierra HX Frame Sets are available in three finishes with the
widest range of size configurations and feature options, making it the
most versatile workcenter in the Workrite portfolio.

Lifetime Warranty – The Workrite Sierra series is our most durable,
long-lasting product line that now carries a Lifetime Warranty. With
exceptional versatility, range, load-capacity and new bluetooth switch
options, Sierra HX offers something for everyone in the commercial
office.

Dimensions

Frame Set Features

• Frame options: 2-leg and 3-leg frames

• Compatible with 24″ or 30″ deep worksurfaces

• Widths from 34″ to 84″ depending on shape

• Finish options: silver, black, and white

• Height range: 22.5″ to 48.7″ for full BIFMA G1-2013 compliance

• Payload capacity: 225 pounds for 2-leg models. 300 pounds for 3-leg models

• Travel speed: 1.6 inches per second

• Max power draw: 120 V, 60 Hz, 4.25 A (2-leg) 3.3 A (3-leg)

• Standby power: 0.1 W

• MEMS Anti-Collision technology

• 10′ power cord

• Meets BIFMA X5.5 standards for performance and durability

• Workrite Sierra HX Base Set has achieved GREENGUARD GOLD Certification

• UL962 Certified when paired with Workrite worksurface

• Sierra HX 2-Leg Frame Set Features – Widths range from 30″ to 90″ wide. Payload carry capacity: 225 lb (after top). Gross load capacity: 352 lb (not including top and safety factor).

• Sierra HX 3-Leg Frame Set Features – Widths range from 42″ to 90″ wide. Payload carry capacity: 300 lb (after top). Gross load capacity: 528 lb (not including top and safety factor).

Option 1 and 2: Desk Top Position and Surface Dimensions

Option 3: Laminate Top Colors

Option 4: Base Frame Color

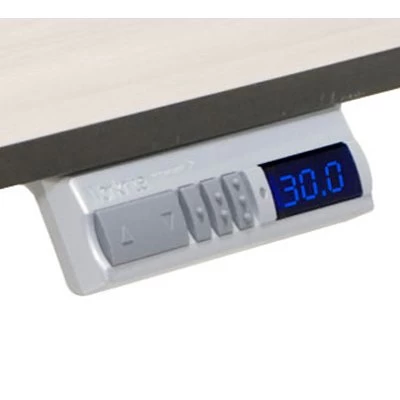

Option 5: Control Switch

Option 6: Foot Type

Option 7: Casters – Wheels

Workcenter Ordering Information

Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1″ of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.

Worksurfaces are pre-drilled with mounting location for frame sets or bases.

Joining kits are provided with all two piece worksurfaces.

Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.

Important Notes:

• Workcenters ship unassembled and require simple hand tools to install.

• If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.

• If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.

• All workcenters have adjustable glides providing 0.5″ of adjustment.

• Mobile pedestals may limit lower height range.
