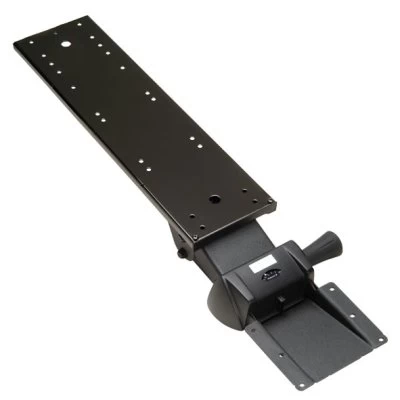

WorkRite 3175-17N Pinnacle 2 Value Arm - 17" Nylon Glide Track

WorkRite 3175-17N Pinnacle 2 Value Arm - 17" Nylon Glide Track - Image 2

Original price was: $142.80.Current price is: $95.99.

SKU: ZXJNB 54928009 Categories: Keyboard Systems, Peripherals

Discover a world of quality products.
Have the best deals
Free Shipping Worldwide
There are quality problems, free return and exchange

Description
Reviews (0)

Workrite Pinnacle 2 is the latest generation of the
highly acclaimed PinnacleArm. With an easy-read TiltRite
gauge and full-range tilt support, the Pinnacle 2 keyboard
arm offers unprecedented smoothness and adjustability for
maximum comfort.

Specifications

Track Length	16-13/16″
Track Width	7-1/8″
Work Surface Depth	17″ or more
Tilt Range	-15° to +10°
Height Range	6″
Track Style	Nylon Glide

	Dimensions a = 16-13/16″ b = 7-1/8″ c = 25/32″

Pinnacle Arm Without Tray & Track	Pinnacle Arm With Keyboard Tray

Pinnacle 2 and Pinnacle 2 Value Pinnacle 2 Extended	For the most versatile solution, select a platform with an integrated ambidextrous mousing surface. Two popular choices include the Banana-Board, with its sliding mouse surface or Revo, with its quick change mouse tray. Tilt range: -15° to +10° No-knob, no-lever, lift-n-lock for one-touch height adjustment Independent height and angle controls Height range from flush to 6″ below worksurface 360° swivel for easy positioning and storage Non-intrusive low profile track provides maximum knee clearance and smooth, consistent operation Optional no-positive-tilt kit

Tilt Gauge indicates negative tilt

Features

Superior Tilt Range –
Pinnacle 2 offers full range positive and negative tilt with a single arm to
accommodate the optimal position for different needs.

Easy-Read Visual –
The Pinnacle 2 tilt gauge is conveniently located on the top of the arm for easy
viewing.

Adjustable Dual Spring Assist –
The dual counterbalance lift assist spring is preset at the factory for optimal
performance. However, with the unique combination of adjustability and dual
springs, the Pinnacle 2 enables users to adjust the spring to accommodate most
keyboard platforms.

Easy Adjustability –
Workrite was the first to develop incremental tilt capability that does not
effect height adjustment or require a tightening or clamping knob. With
particular focus on employee comfort and convenience, Pinnacle 2 features an
incremental tilt that is adjustable by simply rotating the knob to increase or
decrease to the recommended tilt angle. This helps to maintain a straight wrist
position for employees with a repetitive strain injury such as carpal tunnel
syndrome (CTS).

Durability –
All Workrite Pinnacle 2 adjustable keyboard arms meet or exceed the ANSI/BIFMA
X5.5-1998 standards for performance, durability, and cycle testing. All Pinnacle
2 products carry a Limited Lifetime Warranty.

Option 1: Color

Black

Option 2: Track Length

16-13/16″ track length for desks deeper than 17″.

Option 3: Swivel Plate

Swivel Plate 2179-SP: The swivel plate allows you to swivel your
keyboard tray horizontally independent from the arm.

Allows keyboard and mouse platform to pivot an extra 45 degree
for special mounting requirements.

Easy to Install
Mounts between the arm and keyboard platform.
Weight 3 lbs

Option 4: Mounting Spacer

Mounting Spacer (1/4″ Thickness)
Mounting Spacer (1/2″ Thickness)
Mounting Spacer (3/4″ Thickness)
Mounting Spacer (1″ Thickness)
Mounting Spacer (1 1/4″ Thickness)
Mounting Spacer (1 1/2″ Thickness)
Mounting Spacer (1 3/4″ Thickness)
Mounting Spacer (2″ Thickness)

Mounting Spacer is required only when the edge of your desk is thicker than the rest of the worksurface.
Used to attach adjustable arm tracks when edge is thicker than worksurface.
You can add spacer to make a flat surface under the desktop from front to back in order to install the Adjustable Arm.
Available in 16″ and 21″ lengths (please specify).

a = 16″ or 21″

b = 11-3/4″

Option 5: Corner Solution

179ACD	Dimensions: 12″ W x 1 3/4″ H. Adjusts to fit 1″ to 2″ thick work surfaces. Clamping design eliminates spacers. Converts 90 degree to useable work area. Weight: 3 Lbs. Color: Black

179CCD	a = 17.5″ … b = 9.25″ … c = 1.5″ Move operator closer to work surface Designed specifically to fit model # 321 with Pinnacle 2 Arm. Also work with the following platform models: 187,188,487,488 Converts 90 degree corners and diagonal corners less than 17″ to useable work area Weight: 4 Lbs Color: Black/Gary

179CR	a = 26″ … b =15″ … c = 1 1/2″ Fits all platforms up to 28″ wide Works with all Workrite keyboard arms Converts 90″ corners and corners with keyboard cutouts to useable diagonal area Weight: 4 Lbs Color: Black/Gray

Option 6: Positive Tilt Lock

It is a pin that is inserted in the arm to prevent the tilt from going to
positive. It restricts the adjustable arms going to negative tilt range from -6
to -15 degrees.
