Original price was: $184.20.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Have the best deals
- Free Shipping Worldwide
- There are quality problems, free return and exchange

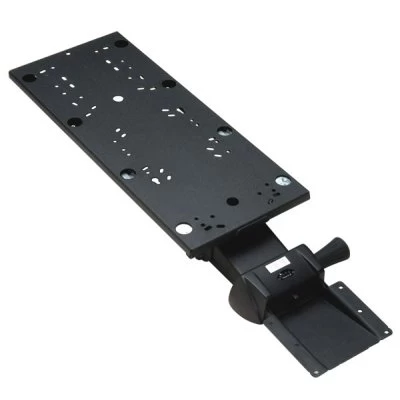

Workrite Pinnacle 2 is the latest generation of the highly acclaimed PinnacleArm. With an easy-read TiltRite gauge and full-range tilt support, the Pinnacle 2 keyboard arm offers unprecedented smoothness and adjustability for maximum comfort.
Specifications
| Track Length | 16 – 13/16″ |
| Track Width | 9 – 1/8″ |
| Work Surface Depth | 17″ or more |
| Tilt Range | -15° to +10° |
| Height Range | 6″ |
| Track Style | ThinGlide progressive ball-bearing slide |
Dimensions
a = 16 – 13/16″
b = 9 – 1/8″
c = 25/32″
Pinnacle Arm Without Tray & Track
Pinnacle Arm With Keyboard Tray
Pinnacle 2 and Pinnacle 2 Value
Pinnacle 2 Extended
For the most versatile solution, select a platform with an integrated ambidextrous mousing surface. Two popular choices include the Banana-Board, with its sliding mouse surface or Revo, with its quick change mouse tray.
- Tilt range: -15° to +10°
- No-knob, no-lever, lift-n-lock for one-touch height adjustment
- Independent height and angle controls
- Height range from flush to 6″ below worksurface
- 360° swivel for easy positioning and storage
- Non-intrusive low profile track provides maximum knee clearance and smooth, consistent operation
- Optional no-positive-tilt kit
Tilt Gauge indicates negative tilt
Features
Superior Tilt Range – Pinnacle 2 offers full range positive and negative tilt with a single arm to accommodate the optimal position for different needs.
Easy-Read Visual – The Pinnacle 2 tilt gauge is conveniently located on the top of the arm for easy viewing.
Adjustable Dual Spring Assist – The dual counterbalance lift assist spring is preset at the factory for optimal performance. However, with the unique combination of adjustability and dual springs, the Pinnacle 2 enables users to adjust the spring to accommodate most keyboard platforms.
Easy Adjustability – Workrite was the first to develop incremental tilt capability that does not effect height adjustment or require a tightening or clamping knob. With particular focus on employee comfort and convenience, Pinnacle 2 features an incremental tilt that is adjustable by simply rotating the knob to increase or decrease to the recommended tilt angle. This helps to maintain a straight wrist position for employees with a repetitive strain injury such as carpal tunnel syndrome (CTS).
Durability – All Workrite Pinnacle 2 adjustable keyboard arms meet or exceed the ANSI/BIFMA X5.5-1998 standards for performance, durability, and cycle testing. All Pinnacle 2 products carry a Limited Lifetime Warranty.
Option 1: Color
Black
Option 2: Track Length
16-13/16″ track length for desks deeper than 17″.
Option 3: Swivel Plate
Swivel Plate 2179-SP: The swivel plate allows you to swivel your keyboard tray horizontally independent from the arm.
Allows keyboard and mouse platform to pivot an extra 45 degree for special mounting requirements.
- Easy to Install
- Mounts between the arm and keyboard platform.
- Weight 3 lbs
Option 4: Mounting Spacer
- Mounting Spacer (1/4″ Thickness)
- Mounting Spacer (1/2″ Thickness)
- Mounting Spacer (3/4″ Thickness)
- Mounting Spacer (1″ Thickness)
- Mounting Spacer (1 1/4″ Thickness)
- Mounting Spacer (1 1/2″ Thickness)
- Mounting Spacer (1 3/4″ Thickness)
- Mounting Spacer (2″ Thickness)
- Mounting Spacer is required only when the edge of your desk is thicker than the rest of the worksurface.
- Used to attach adjustable arm tracks when edge is thicker than worksurface.
- You can add spacer to make a flat surface under the desktop from front to back in order to install the Adjustable Arm.
- Available in 16″ and 21″ lengths (please specify).
a = 16″ or 21″
b = 11 – 3/4″
Option 5: Corner Solution
179ACD
- Dimensions: 12″ W x 1 3/4″ H.
- Adjusts to fit 1″ to 2″ thick work surfaces.
- Clamping design eliminates spacers.
- Converts 90 degree to useable work area.
- Weight: 3 Lbs.
- Color: Black
179CCD
- a = 17.5″ … b = 9.25″ … c = 1.5″
- Move operator closer to work surface
- Designed specifically to fit model # 321 with Pinnacle 2 Arm. Also work with the following platform models: 187,188,487,488
- Converts 90 degree corners and diagonal corners less than 17″ to useable work area
- Weight: 4 Lbs
- Color: Black/Gary
179CR
- a = 26″ … b = 15″ … c = 1 1/2″
- Fits all platforms up to 28″ wide
- Works with all WorkRite keyboard arms
- Converts 90″ corners and corners with keyboard cutouts to useable diagonal area
- Weight: 4 Lbs
- Color: Black/Gray
| Model | 3170-17TG |
| Manufacturer | Workrite Ergonomics |
| Part Number | 3170-17TG |
| UPC | 029274402921 |
Be the first to review “WorkRite 3170-17TG Pinnacle 2 Arm With 17″ Ball Bearing Track”
Related products
Peripherals
Peripherals
Peripherals
Reviews
There are no reviews yet.
