Based on the popular Ergotron LX Wall Mount Arm, we have developed a unique solution – Adjustable Wall Mount Laptop Arm, ED-LLXW.

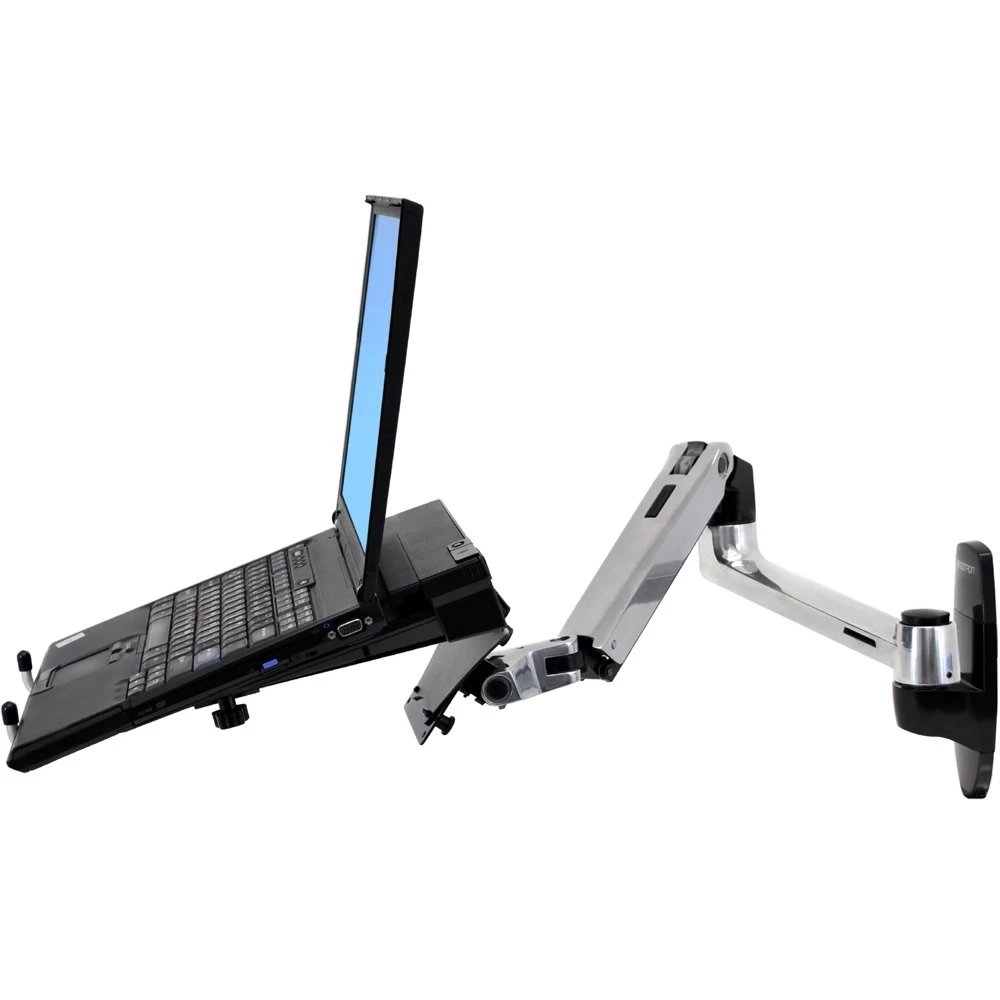

The Wall Mount Laptop Arm ED-LLXW is a complete package – a combination of an arm, that mounts on a wall and a tray, that holds the laptop. With the ability to easily fold back into a compact position, this arm is ideally suited to high-traffic areas like patient rooms, hospital corridors and manufacturing floors.
ED-LLXW is updated version of ED-NB-LXWM.

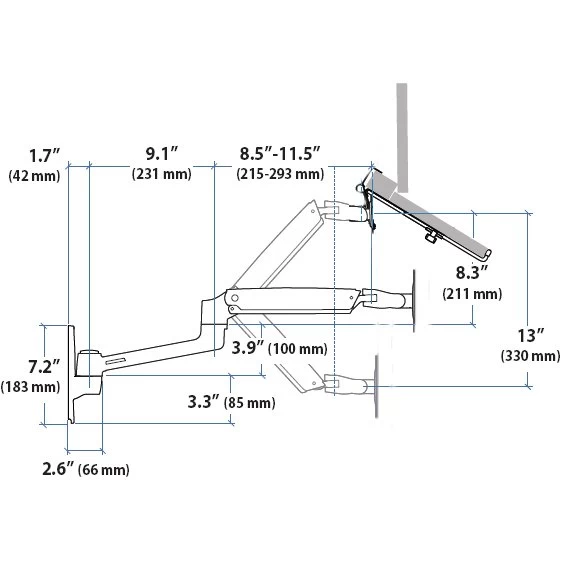

Technical Drawing
Product Information
| Wall Mount Arm (polished aluminum) and Notebook Tray (black) | |
| Included |
|
| Improved Arm Features & Benefits |
|
| Mounting Options | Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket 97-091 (order separately) |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Base | Includes theft deterrent anchor holes for cable locks |
| Monitor Depth | May affect weight capacity |
| Shipping Dimensions | 17.5″H x 7.7″W x 6.9″D (44.5 x 19.5 x 17.5 cm) |
| Shipping Weight | 6.2 lbs (3.2 kg) |
| Warranty | Ten (10) years |
Benefits
- The Wall Mount Arm along with the notebook tray provides ergonomic comfort even though it may not be your permanent working area.
- By adjusting the display according to the user`s needs, this package reduces shoulder, neck, back and eye stress.
- The cable management feature clubs the cables under the arm and out of sight and way of the user.
- The arm extends 25″ from the wall, enabling the display to be pushed out of the way, when not in use.
- The 13″ height adjustment of the display makes it suitable for most users.
| Model | ED-LLXW |
| Manufacturer | Ergodirect |
| Part Number | ED-LLXW |
| Color | Polished Aluminum Arm and Black Notebook Tray |
| Weight Capacity | 2.5-12 lbs (1.14–5.45 kg) |
| Lift | (33 cm) 13 in |
| Tilt | 5 degree down and up 75 degree |
| Pan | 360 degree |
| Rotation | (P/L) 360 degree |
| Mounting Options | Wall |
| Warranty | Five (5) years |
| Monitor Arm Types | Laptop/Notebook |
