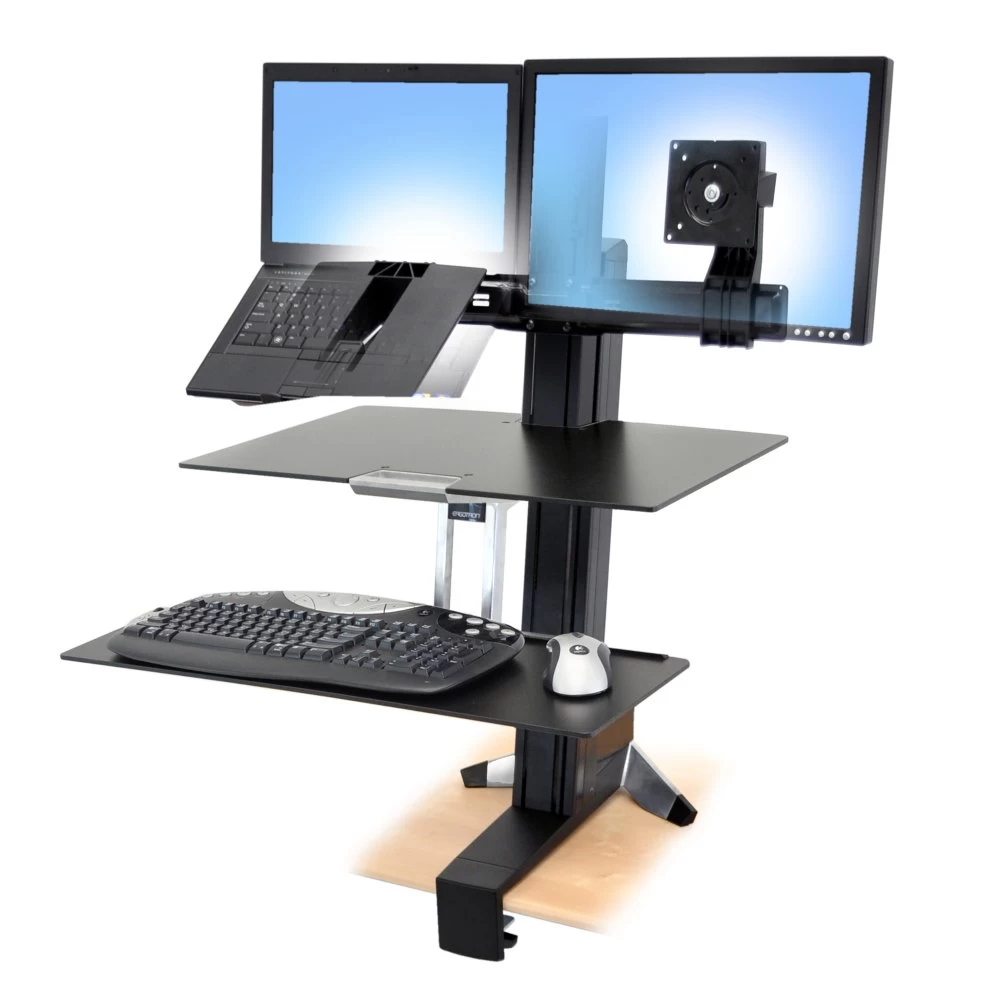

Sit-Stand LCD & Laptop Workstation With Worksurface EDW-4203D

Transform any surface or table into a personalized height-adjustable desk. Change from a sitting to a standing posture whenever you want; move your keyboard and displays in one simple motion, making computing comfortable for prolonged periods. This sit-stand desk mount places your laptop alongside a monitor, creating a productive dual-display workstation.

Technical Drawing



Technical Specifications

Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
Up to 24″	Up to 25 lbs 11.3 kg	22.8″ 58 cm	30°	–	360°	MIS-D



Product Information

	Sit-Stand Workstation for Combination Laptop and LCD Monitor, with Worksurface and Large Keyboard Tray (black and polished aluminum)
Maximum Screen Size	Maximum outside width of display is 24.5″ (62 cm) when display is 2″ (5 cm) thick. Accommodates most displays with screen-size up to 24″ as well as some displays with screens as large as 26″. Actual allowable width of displays will vary slightly depending on display thickness.
Weight Capacity	Maximum total load on height-adjustment assembly = 25 lbs (11.4 kg). LCD weight = 6–12 lbs (2.7–5.5 kg) each, worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 5 lbs (2.3 kg). For proper operation the total weight of components when added together should not exceed 25 lbs (11.4 kg)
Lift Range	LCD and keyboard adjust 18″ (46 cm) in tandem; LCD adjusts 4.8″ (12.2 cm) independently; maximum LCD height adjustment = 22.8″ (58 cm). The worksurface restricts the vertical travel range of the LCD lift pivot; height adjustment of LCD without worksurface is 5″ (13 cm)
Laptop	Use laptop with a separate, external keyboard for proper ergonomics

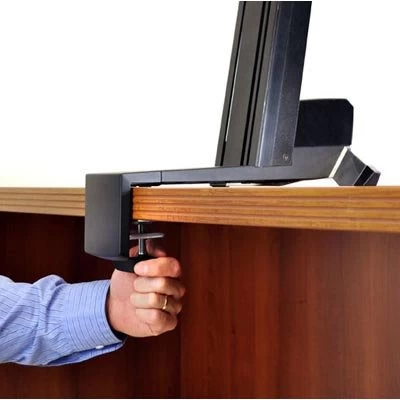

Desk Clamp	Desk Clamp attaches to surface edge .47″ to 2.4″ (1.2 to 6 cm) thick

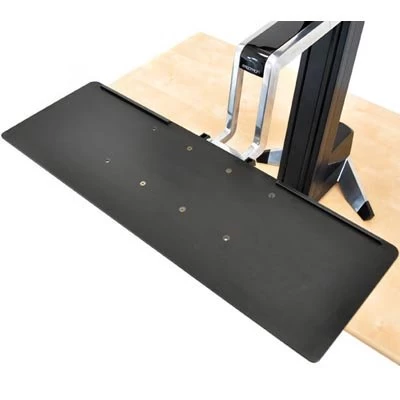

Keyboard Tray	Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry – avoid repetitive-stress injuries while increasing comfort and productivity
Worksurface Dimensions	0.25″H x 23″W x 15″D (6 x 585 x 380 mm)
Keyboard Tray Dimensions	0.25″H x 27″W x 9″D (6 x 685 x 226 mm)
Exterior	Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel
Mounting Standards	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
NOTE	Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment Computer systems mounted on this workstation may require extra long power and video cables in order to span between standing and sitting heights
Warranty	Five (5) years



Benefits



Premium Ergonomics

• Install keyboard tray at focal distance that is right for you: closer or
  farther; left, right or centered

• When sitting, lower your keyboard below desktop height to proper ergonomic
  position

• Independent monitor screen adjustment

• Easily and simultaneously lift keyboard and monitor to your height for
  unsurpassed comfort

• Counterbalanced adjustment points using patented Constant Force technology
  allow instantaneous, tool-free re-positioning while you work!



For Computer Users

• Improve your energy and productivity by standing or sitting as you work,
  and then switch positions whenever you choose. This work style encourages
  healthy movement throughout the day

• Promote fitness and comfort as you compute, reducing potential back and
  neck pain by adding movement into your work routine in a truly ergonomic
  workstation

• Double your view and move it too! With two monitors you can save time by
  using multiple applications at once – eliminate toggling back and forth
  between documents and programs

• Burn more calories by choosing to stand for periods of your work-day;
  periodic standing also promotes greater bone density and better sleep at
  night.



For IT and Facilities Staff

• IT deployment friendly – convert most work areas into a productive and
  complete computer workstation in minutes

• Modify existing office spaces or cubes by simply clamping this workstation on
  an existing worksurface, without the cost of expensive professional installers

• Safe and neat routing of cables

• Flexible, open-architecture design is scalable for future computer
  equipment



For HR/Risk Management and Company Cost Savings

• Manage the cost of healthcare premiums by promoting wellness in the daily
  work routine

• Provide standing work platforms for employees without having to buy
  expensive height-adjustable chairs

• Comfortable computing offers provable ROI on investment – healthcare costs
  associated with unhealthy computing and missed time are reduced while
  productivity increases

• Standing supports healthy neck and back conditions. According to the 2007
  OE Medicine Journal, back and neck pain are cited as the most costly
  conditions affecting employees

• Studies show an average productivity increase of 20–30% when using two
  displays instead of one

• Studies in office ergonomics show productivity increases 12%–18% following
  an ergonomic intervention where employees are provided with well-designed
  ergonomic furniture
