Secure IPad Wall Mount Arm, ED-911-24

Secure iPad Arm ED-911-24



Disclaimer

iPad Secure Wall Mount Arm associated parts are designed only as theft deterrents, not theft-proof. Ergodirect.com in no event will be held liable for any loss or damage including without limitation, indirect or consequential loss or damage, or any loss or damage whatsoever arising from loss of data or profits arising out of or in connection with the use of this product.







The Apple iPad is increasing finding a home in self-service and kiosk applications. However, the iPad’s compact size and mobility creates a theft and risk. Ergodirect.com’s Secure iPad Arm Wall Mount allows you to position the iPad wherever you need it wiHang your iPad on the wall to save maximum space. Allows pivot and tilt. Or, add optional extender arms to allow even greater flexibility and range. iPad secure arm wall mount comes in black only – inquire about upcharge for special color runs at Ergodirect.com.





Features

• Adjustable tension at joints – ideal for touch screen applications

• Reposition the iPad with one hand, no knobs to turn

• The iPad display can tilt up and down 30º and turn left and right 30º

• Pivot iPad 90º for portrait to landscape viewing

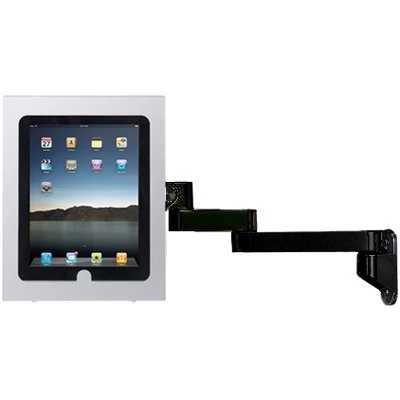

• 4″ and 8″ extension arms available; can be combined to increase extension up to 12″

• Folds into 3″ of space



Related Parts

Pivoting Wall Mount with 4″ Extension Arm
Pivoting Wall Mount with 8.5″ Extension Arm
Pivoting Wall Mount with 8.5″ + 4″ = 12.5″ Extension Arm
M4 x 12mm pin in hex screws
100 degree 10-32 x 3/8 pin in hex flat head screw
Secure iPad Holder with access to Home Button, Weight 2.75 lbs
Secure iPad Holder with No access to Home Button, Weight 2.75 lbs





Technical Drawing

Wall Mount







Secure iPad Holder





Installation of Secure iPad Holder with Arm

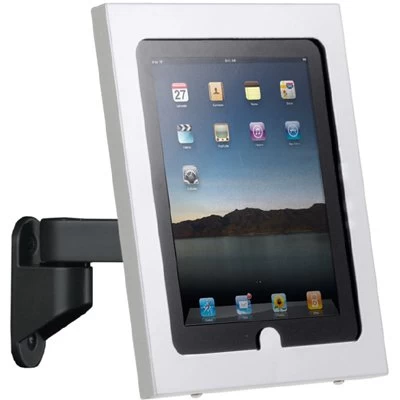

Secure iPad Wall Mount Arm

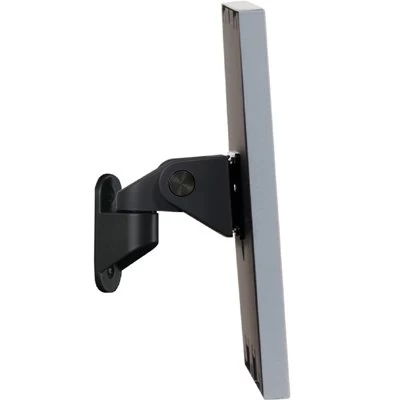

	Pivoting Wall Mount Arm Adjustable tension at joints. The display can tilt up and down 30° or left and right 30°. VESA monitor compatible.
	Secure iPad Holder It comes with two options: 1. Allows the user to access the Home Button 2. Blocks user access to Home Button for applications where it is necessary. It does not allow the user to access the Home Button
	Screws to secure iPad to arm Height = 1/4″ Threads per inch = 20 Head size = 10
	Secure Screw Kits Hex screws





Secure your iPad to the wall

You can find secure wall screws from independent manufacturers such as tamperproof.com or brycefastener.com. However, we are not responsible for the functionality, security or provide products warranty.
