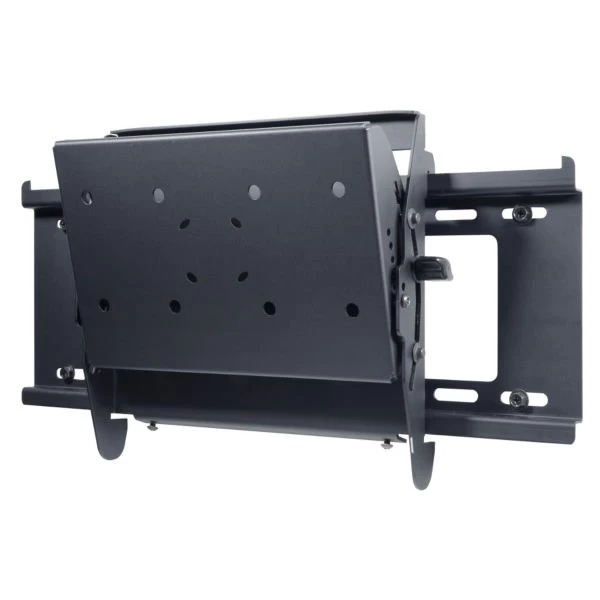

Peerless ST16D Display-Specific Tilt Wall Mount Up To 71″

Peerless ST16D Dedicated line provides display-specific solutions for mounting
medium to large sized displays. Peerless ST24D is compatible with Peerless-AV’s
comprehensive inventory of display-specific PLP adaptor plates, ensuring a
precise fit for almost any display. This wall mount offers tilt adjustment of
+15°/-5°
for perfect viewing options. Additionally, installers can choose from either a
wall plate for 16″ stud centers, perfect for any portrait-style applications, or
a more versatile wall plate for 16″-24″ stud centers. All models ship
pre-assembled for fast and easy installation.



Technical Drawing



Specifications

Minimum to Maximum Screen Size	ST16D: 22″ to 71″
Weight Capacity	200 lbs (90.0 kg)
Color	Black
Finish	Powder Coat
Distance from Wall	3.01″ (76mm)
Increlock Increments	-5, 0, 5, 10, 15 degree
Security Features	Security Hardware
Tilt	+15 / -5 degree
Product Dimensions	ST16D: 19.25″ x 10.48″ x 2.98″-4.02″ (489 x 266 x 76-102mm)
Product Weight	ST16D: 8.8 lbs (4.0 kg))
Shipping Dimensions	ST16D: 20.25″ x 12.25″ x 4.25″ (514 x 311 x 108mm)
Shipping Weight	ST16D: 10.1 lbs (4.6 kg)
Package Contents	Wall plate Interface plate and hardware
UPC Code	ST16D: 735029240143



Features

• Tilt allows adjustment of +15/-5° without the use of tools

• Included IncreLok feature offers fixed tilt lock in 5°
  increments when used

• Horizontal display adjustment up to 8″ (203mm) for centering
  display on wall

• Easy-Glide design ensures display is securely attached to
  wall plate

• Choose from 16″ (406mm) only or 16″-24″ (406-610mm) stud
  center wall plate

• Fits any display-specific PLP or LC adaptor plate

• Model ST16D ships with 19.25″ (489mm) wide wall plate,
  perfect for portrait style installations

• Wall plate knockouts provide wall access, improving cable
  management options
