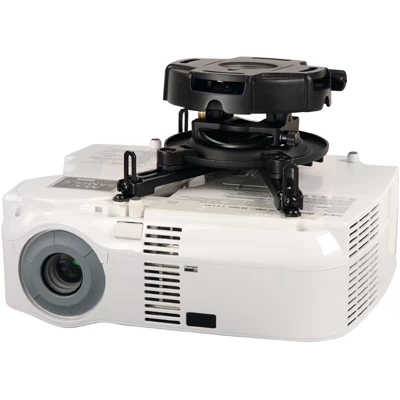

Peerless PRG-UNV-S Precision Gear Projector Ceiling Mount Up To 50 Lbs

Features of Peerless PRG UNV S :

• Patent pending precision gear provides accurate projector image alignment.

• Two adjustment knobs control projector image alignment.

• Horizontal wrench access slots make flush mounting installations fast & easy.

• Pre-assembled design reduces installation time.

• Quick release mechanism to easily service projector.

• Cable management allows cables to be routed through projector mount out of sight.

• Security hardware included for theft prevention.

• Tilt- ± 20°, Roll ± 10°, Swivel 360°.

• Contact Peerless for model specific adapter plate, or universal clamp style adapter plates.

Technical Drawing of Peerless PRG-UNV Precision Gear Projector Ceiling Mount

of Peerless  PRGUNVS:

Peerless’ PRG Precision Gear Projector Mount is changing the way image alignment is done. The patent-pending precision gear design provides exact tilt and roll image positioning with a simple turn of a knob. Once the installer sets the precision gear to the desired position it stays securely in place. It will not shift during projector maintenance, bulb replacement, and will not loosen or change alignment due to vibration, accidental bumping etc. With Peerless’ PRG Precision Gear Projector Mount the installer sets it and forgets it.

Specifications of Peerless PRG-UNV or PRG-UNV-S or PRG-UNV-W

Mounting Pattern:

Up to 17.63″ (448 mm)

Tilt:

±20°

Swivel:

360° (±15° when flush mounted)

Roll:

±10°

Mounting Surfaces:

Wood joist, concrete and other structures (Other structures require accessory)

Product Dimensions (W x H x D):

8.5″-17.63″ x 3.81″-4.81″ x 8.5″-17.63″

(216-448 x 97-122 x 216-448 mm)

Product Weight:

3.08 lbs (1.4 kg)

Load Capacity:

50 lbs (22 kg)

Finish:

Scratch resistant fused epoxy

Package Size (W x H x D):

6.19″ x 2.81″ x 11.63″ (157 x 71 x 295 mm)

Package Ship Weight:

3.78 lb (1.7 kg)

Package Contents:

• PRG Precision Gear Projector Mount

• Spider Universal Adapter Plate

• Mounting and projector attachment hardware

• Assembly instructions

Units in Package:

1

Literature (Please open the following documents for more technical information)

Peerless PRG UNV or PRG UNV S or PRG UNV W Precision Gear Projector Mount – Catalog Page

– pdf

Peerless PRGUNV or PRGUNVS or PRGUNVW Precision Gear Projector Ceiling Mount – Drawing

– pdf

Peerless PRG-UNV or PRG-UNV-S or PRG-UNV-W Projector Ceiling Mount – Installation

– pdf
