Peerless PLCM-UNL Universal Straight Column Flat Panel 32″ To 60″ LCD Ceiling Mount PLCMUNL

Other PLCM products

PLCM-UNL-CP:

Universal mount for landscape mounting of 32″ to 60″ screens to wood joist on 16″ centers or concrete ceiling.

PLCM-1CP:

Dedicated mount for up to 71″ screens to wood joist on 16″ centers or concrete ceiling. Requires screen specific adapter, sold separately.

PLCM-2:

Base mount only for up to 71″ screens. Requires appropriate extension column, screen-specific

adapter and ceiling plate for various ceilings, all sold separately.

PLCM-1:

Dedicated mount for up to 71″ screens to various ceilings. Requires screen-specific adapter and ceiling plate, both sold separately.

Accessories for PLCM-UNL Universal Ceiling Mount for Landscape  PLCMUNL

Wood Joist Plate ACC120

Unistrut Adapter ACC550

ACC556 Heavyweight CathedralAdapter

ACC557 Truss Ceiling Adapter

Peerless ACC558

I-Beam Clamp

Structural Ceiling Plate CMJ300

Ceiling Plates

CMJ450Suspended Ceiling Plate

concrete Ceiling Plate CMJ470

CMJ500 Adjustable Suspended Ceiling

DCS200Structural Ceiling Adapter

DCT100 Truss Ceiling Adapters

Peerless PLCM UNL Straight Column Flat Panel Ceiling Mount

Does not include ceiling plate

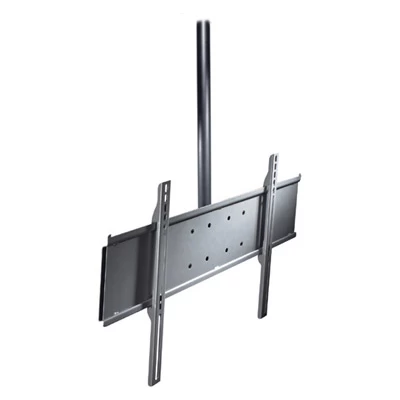

The Straight Column Ceiling Mount offers a straight column from the ceiling attachment point to the flat panel screen. The straight column ceiling mount is ideal for sports facilities, airports, lobbies or retail environments. It delivers 20° of adjustable tilt and 360° of swivel. This mount ships complete with 2.5’ fixed length extension column and theft resistant security fasteners. Model-specific or Universal style PLP adapter plates are available to match your screen make and model, both are sold separately. For screens larger than 60″ a dedicated plate must be purchased.

Load Weight Capacity Chart:

PLCM-UNL-CP

30.75″ (78.1 cm)

42.63″ (108.2 cm)

4.43″ (11.2 cm)

200 lb (90.7 kg)

33.3 lb (15.1 kg)

PLCM-UNL

30.75″ (78.1 cm)

41.54″ (105.5 cm)

4.43″ (11.2 cm)

200 lb (90.7 kg)

30.30 lb (13.7 kg)

PLCM-UN1-CP

27.5″ (69.8 cm)

40.00″ (101.6 cm)

3.92″ (9.9 cm)

125 lb (56.6 kg)

30.10 lb (13.6 kg)

PLCM-UN1

27.5″ (69.8 cm)

38.91″ (98.8 cm)

3.92″ (9.9 cm)

125 lb (56.6 kg)

27.40 lb (12.4kg)

PLCM-1CP

18″ (45.7 cm)

34.59″ (87.8 cm)

3.61″ (9.1 cm)

225 lb (102.0 kg)

18.70 lb (8.4 kg)

PLCM-1

10.24″ (20.0 cm)

33.5″ (85.0 cm)

3.25″ (8.2 cm)

225 lb (102.0 kg)

16 lb (7.2 kg)

PLCM-2

**

**

**

225 lb (102.0 kg)

**

**  – Width, Height, Depth and Shipping Weight vary with ceiling plate, extension column and adapter plate used

Features:

• 0° to 20° adjustable tilt and 360° swivel

• Screen mounts vertically or horizontally

• Uses standard 1 1/2″ – 11.5 NPT schedule 40 pipe

• Additional length can be added for lowering

• Theft-resistant security fasteners secure the screen to the mount

• Sold with or without ceiling plate

• Cord management

• Complete detailed installation instructions for wood and

• Concrete structures

• Has EXT103 or EXT103S – 3 feet (0.9 m) fixed extension column

• Color : Black

Universal Models: Security Fasteners – Includes theft resistant hardware for attaching screen to mount

• PLCM-UNL-CP – Black

• PLCM-UNL – Black

• PLCM-UN1-CP – Black

• PLCM-UN1 – Black

PLCM-UNL models include screen adapter to accommodate mounting holes spaced up to 28.75″ horizontally and 17.05″ vertically. PLCM-UN1 models include screen adapter to accommodate mounting holes spaced up to 27.6″ horizontally and 17″ vertically

Dedicated Models: Dedicated adapter plates come in flat black and include security fasteners

• PLCM-1 – Black

• PLCM-1CP – Black

• PLCM-2 – Black

Requires screen-specific adapter to be sold separately
