Peerless PLCM-1CP Dedicated Straight Column Ceiling Mount For 32-65″ LCD LED Flat Panel PLCM1CP

Other PLCM products

PLCM-UNL:

Universal mount for landscape mounting of 32″ to 60″ screens to various ceilings. Requires ceiling plate, sold separately.

PLCM-UN1:

Universal mount for portrait or landscape mounting of 32″ to 50″ screens to various ceilings. Requires ceiling plate, sold separately.

PLCM-UN1-CP:

Universal mount for portrait or landscape mounting of 32″ to 50″ screens to wood joist on 16″ centers or concrete ceiling.

PLCM-2:

Base mount only for 32-65″ screens. Requires appropriate extension column, screen-specific

adapter and ceiling plate for various ceilings, all sold separately.

PLCM-1:

Dedicated mount for 32-65″ screens to various ceilings. Requires screen-specific adapter and ceiling plate, both sold separately.

Accessories for  PLCM-1CP Dedicated Straight Column Ceiling Mount PLCM1CP

Fixed Extension Column EXT

Height Adjustable Extension Column AEC

Wood Joist Plate ACC120

Unistrut Adapter ACC550

ACC556 Heavyweight CathedralAdapter

ACC557 Truss Ceiling Adapter

Ceiling Plates

Peerless ACC558

I-Beam Clamp

Structural Ceiling Plate CMJ300

CMJ450Suspended Ceiling Plate

concrete Ceiling Plate CMJ470

DCS200 Structural Ceiling Adapter

DCT100 Truss Ceiling Adapters

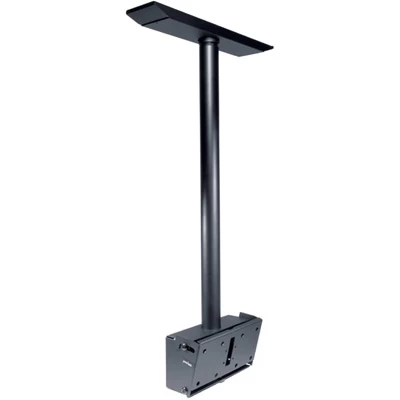

Peerless PLCM 1CP Dedicated Ceiling Mount with Plate PLCM1CP

The Straight Column Ceiling TV Mount offers a straight column from the ceiling attachment point to the flat panel LCD LED screen. The straight column ceiling mount is ideal for sports facilities, airports, lobbies or retail environments. It delivers 20° of adjustable tilt and 360° of swivel. This mount ships complete with 2.5’ fixed length extension column and theft resistant security fasteners. Model-specific or Universal style PLP adapter plates are available to match your screen make and model, both are sold separately. For screens larger than 60″ a dedicated plate must be purchased.

Load Weight Capacity Chart:

PLCM-UNL-CP

30.75″ (78.1 cm)

42.63″ (108.2 cm)

4.43″ (11.2 cm)

200 lb (90.7 kg)

33.3 lb (15.1 kg)

PLCM-UNL

30.75″ (78.1 cm)

41.54″ (105.5 cm)

4.43″ (11.2 cm)

200 lb (90.7 kg)

30.30 lb (13.7 kg)

PLCM-UN1-CP

27.5″ (69.8 cm)

40.00″ (101.6 cm)

3.92″ (9.9 cm)

125 lb (56.6 kg)

30.10 lb (13.6 kg)

PLCM-UN1

27.5″ (69.8 cm)

38.91″ (98.8 cm)

3.92″ (9.9 cm)

125 lb (56.6 kg)

27.40 lb (12.4kg)

PLCM-1CP

18″ (45.7 cm)

34.59″ (87.8 cm)

3.61″ (9.1 cm)

225 lb (102.0 kg)

18.70 lb (8.4 kg)

PLCM-1

10.24″ (20.0 cm)

33.5″ (85.0 cm)

3.25″ (8.2 cm)

225 lb (102.0 kg)

16 lb (7.2 kg)

PLCM-2

**

**

**

225 lb (102.0 kg)

**

**  – Width, Height, Depth and Shipping Weight vary with ceiling plate, extension column and adapter plate used

Features:

• 0° to 20° adjustable tilt and 360° swivel

• Screen mounts vertically or horizontally

• Uses standard 1 1/2″ – 11.5 NPT schedule 40 pipe

• Additional length can be added for lowering

• Theft-resistant security fasteners secure the screen to the mount

• Sold with or without ceiling plate

• Cord management

• Complete detailed installation instructions for wood and

• Concrete structures

• Color : Black

Universal Models: Security Fasteners – Includes theft resistant hardware for attaching screen to mount

• PLCM-UNL-CP – Black

• PLCM-UNL – Black

• PLCM-UN1-CP – Black

• PLCM-UN1 – Black

PLCM-UNL models include screen adapter to accommodate mounting holes spaced up to 28.75″ horizontally and 17.05″ vertically. PLCM-UN1 models include screen adapter to accommodate mounting holes spaced up to 27.6″ horizontally and 17″ vertically

Dedicated Models: Dedicated adapter plates come in flat black and include security fasteners

• PLCM-1 – Black

• PLCM-1CP – Black

• PLCM-2 – Black

Requires screen-specific adapter to be sold separately

All PLCM Products:

Tilt

20°

20°

20°

Swivel

360°

360°

360°

Mounting Surfaces

Wood joist, concrete and various other applications

Wood joist, concrete and various other applications

Wood joist, concrete

and various other applications

Needed

Requires screen-specific adapter and ceiling plate, both sold separately.

Requires screen-specific adapter, sold separately. Includes structural ceiling plate.

Requires appropriate extension column, screen-specific adapter and ceiling plate for various ceilings, all sold separately

Tilt

20°

20°

20°

20°

Swivel

360°

360°

360°

360°

Mounting Surfaces

Wood joist, concrete and various other applications

Wood joist, concrete and various other applications

Wood joist, concrete and various other applications

Wood joist, concrete and various other applications

Needed/

Included

Requires ceiling plate, sold separately.

Includes universal screen adapter plate.

Includes structural ceiling plate and universal screen adapter plate.

Requires ceiling plate, sold separately.

Includes universal screen adapter plate for landscape mounting only.

Includes structural ceiling plate and universal screen adapter plate.

Literature (Please open the following documents for more technical information)

Catalog Page

– pdf

Technical data (PLCM-1)

– pdf

Technical data (PLCM-1CP)

– pdf

Technical data (PLCM-2)

– pdf

Technical data (PLCM-UNL-CP)

– pdf

Technical data (PLCM-UN1)

– pdf

Technical data (PLCM-UNL)

– pdf

Technical data (PLCM-UN1-CP)

– pdf

Technical data (ALL UN-1 models)

– pdf

Installation Sheet (PLCM-1, PLCM-UNL)

– pdf

Installation Sheet (PLCM-UNL-CP, PLCM-1CP)

– pdf

Installation Sheet (PLP UN1 Universal Adapter Brackets for large screens)

– pdf

Installation Sheet (PLCM-2)

– pdf

Installation Sheet (PLCM-UN1, PLCM-UN1-CP)

– pdf

Installation Sheet (PLP-UNL(-S), PLP-UNLP(-S) universal adapter brackets for 32″ – 60″ screens)

– pdf
