Highlights
-
Adjustable VESA mounting hole patterns in 100mm increments, starting at 200 x 200mm up to 700 x 400mm, additional patterns supported with adaptor plates
-
Integrated cable management tie-backs make display-to-display cabling simple
-
Included security hardware prevents the mount from extending out from the wall
-
Simple, tool-less micro-adjustments at 8 points seamlessly align the displays
-
Pull-out/prop-open mechanism provides quick service access
-
Open wall plate architecture allows for total wall access that increases electrical and cable management options
-
Displays and mounts sit flush against the wall for a clean side appearance
-
Spring loaded mechanism allows displays to click securely into place against the wall
-
Modular mount for unlimited video wall display configurations
-
Reusable custom wall spacers eliminate guesswork and on-site installation calculations (sold separately)
- Discover a world of quality products.
- Have the best deals
- Free Shipping Worldwide
- There are quality problems, free return and exchange

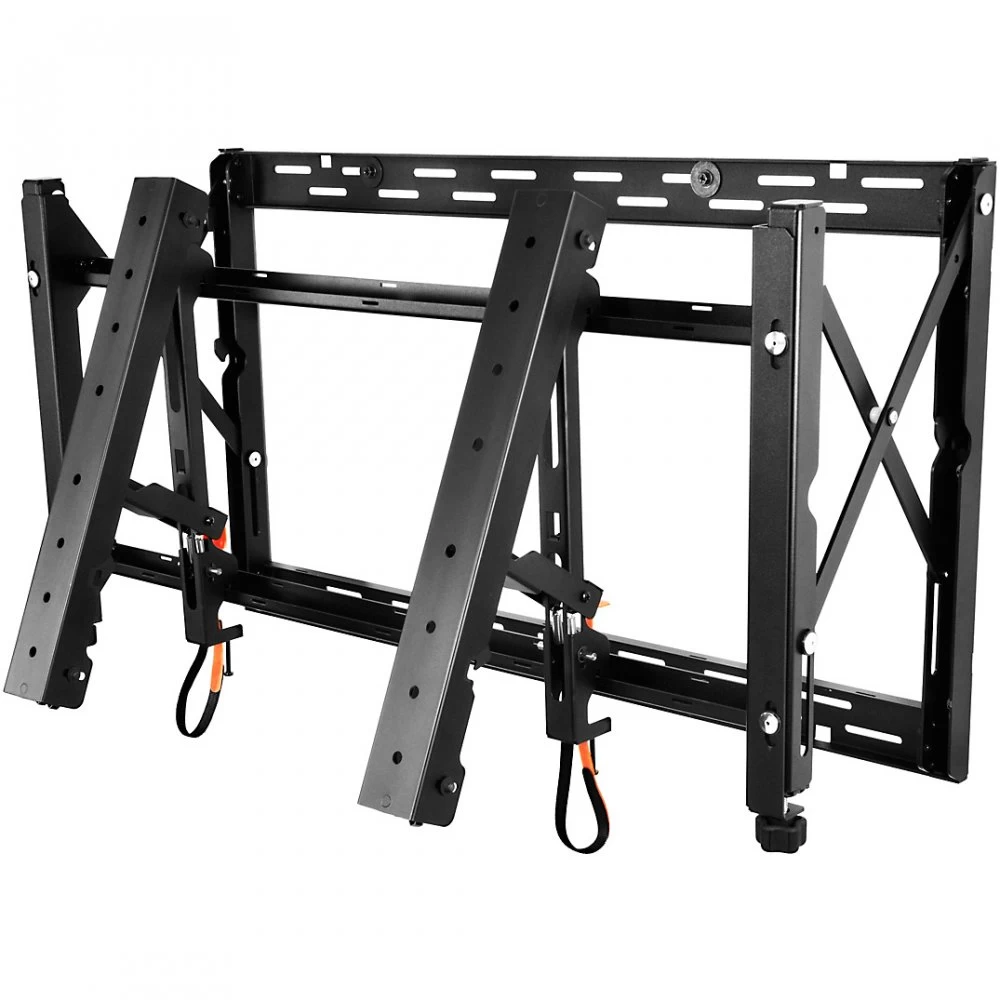

Peerless-AV’s Full-Service Video Wall Mount is easy to configure, quick to
install and a snap to maintain. Create any configuration imaginable, but leave
the tedious calculations to the custom wall plate spacers. The mount’s
innovative design is loaded with time saving features like no-tool-required
micro-adjustments and easy-access to any display for quick serviceability.
Helpful Hints: For displays with 800×400 mounting patterns please reference the
accessories tab for model: ACC-V800X.
Technical Drawing
Specifications
| Color | Black |
| Finish | Powder Coat |
| Screen Size | 40″ to 65″ |
| VESA Pattern | 200 x 200mm up to 700 x 400mm, additional patterns supported with adapter plates |
| Weight Capacity | 125 lbs (56.8kg) |
| Distance from Wall | 3.08-3.83″ (78-97mm) |
| Package Contents |
|
| Product Dimensions | 35.00″ x 20.00″ x 3.08″-3.83″ (890 x 508 x 78-97mm) |
| Product Weight | 33 lbs (15kg) |
| Shipping Dimensions | 37.13″ x 22.25″ x 4.25″ (943 x 565 x 108mm) |
| Shipping Weight | 37.95 lbs (17.25kg) |
| UPC Code | 735029278771 |
| Model | DS-VW765-LAND |
| Manufacturer | Peerless Mounts |
| Part Number | DS-VW765-LAND |
| UPC | 735029278771 |
| Color | Black |
| Finish | Powder Coat |
| Dimensions (W x H x D) | 35.00″ x 20.00″ x 3.08″-3.83″ (890 x 508 x 78-97mm) |
| Weight | 33 lbs (15kg) |
| Weight Capacity | 125 lbs (56.8kg) |
| Shipping Dimensions | 37.13″ x 22.25″ x 4.25″ (943 x 565 x 108mm) |
| Shipping Weight | 37.95 lbs (17.25kg) |
| Monitor Weight | 40″ to 65″ |
| Mounting Pattern | 200 x 200mm up to 700 x 400mm, additional patterns supported with adapter plates |
| Warranty | Limited 5 year |
| Distance From Wall | 3.08 – 3.83″ (78 – 97mm) |
| Mounting Options | Wall |
