Long Reach Desk Mount Monitor Arm, ErgoDirect EDM-1202D

The EDM-1202D long reach desk mount monitor arm extends 34″ out, and has a height range of 13″, allowing more flexibility for your ergonomic comfort. Long reach monitor mounts help bring content closer when needed, and conveniently fold up when not in use, freeing up space. Monitors 6-18 lbs (max.), and up to 34″ in screen size are compatible with this arm. Install the arm with either a clamp or grommet mount.



This polished aluminum monitor arm has universal applications. Install it in your office to collaborate on content with co-workers, or on the counter of a retail store or library for customers and patrons to look up product availability. Shift the arm to share your screen while helping clients. Swing it out of the way as necessary, or move up, down, or tilt for a better viewing position. Perfect for a bank or real estate office.



With its sleek, simple look, this extended reach monitor arm is aesthetically pleasing and gives a modern feel to your office or home. This arm also comes with a ten year warranty.

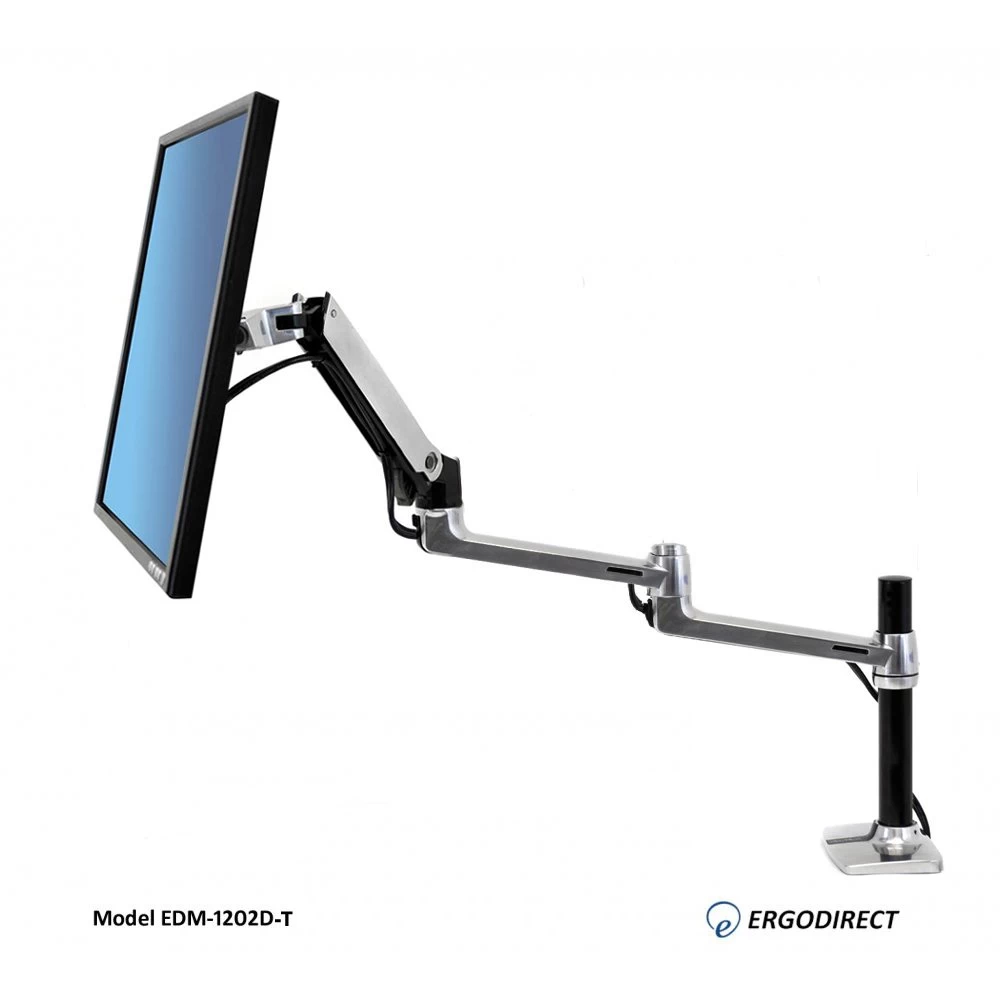

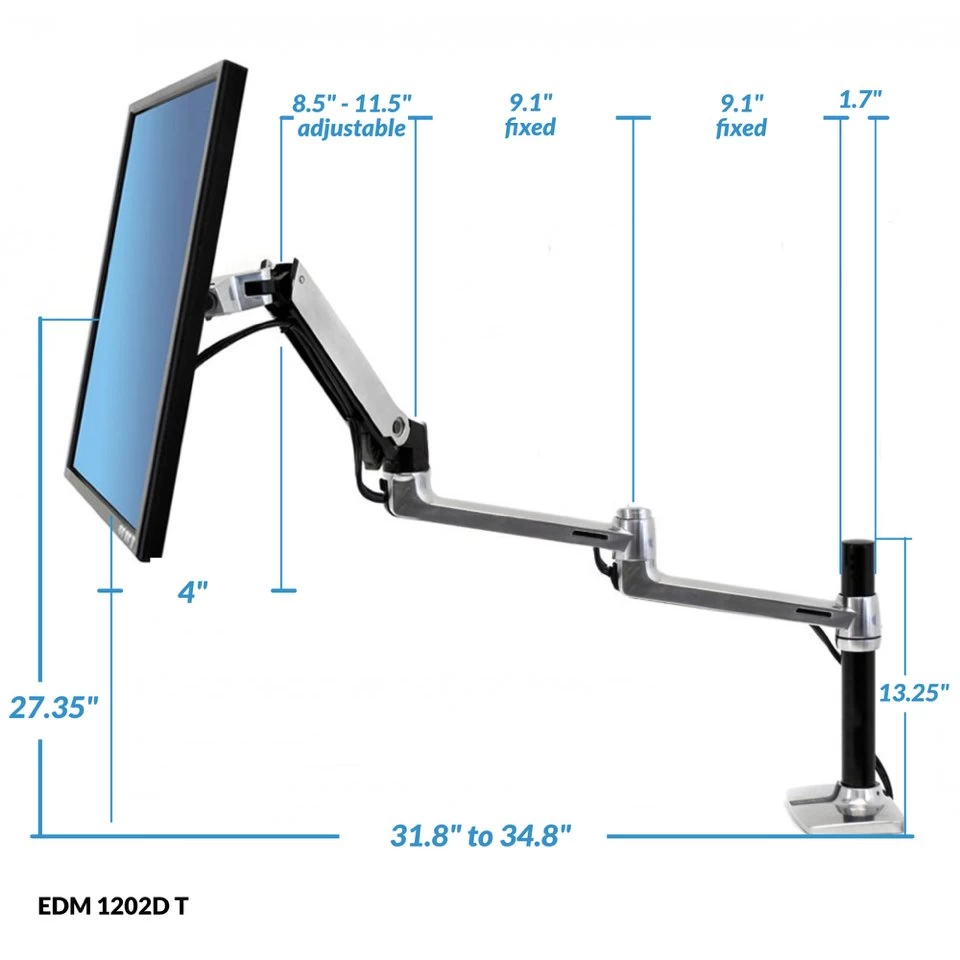

The EDM-1202D comes in two models – 1) EDM-1202D with a regular 7″ pole and 2) EDM-1202D with a Tall Pole with 13.25″ pole. The tall pole model provides an additional distance of 6.25″ along the pole for the arm to be placed. With EDM-1202D  and regular pole, the distance from the center of the monitor to the desktop, at the highest position of the arm, is 22″. With EDM-1202D-T and tall pole the distance from the center of the monitor to the desktop, at the highest position of the arm, is 27.35″.

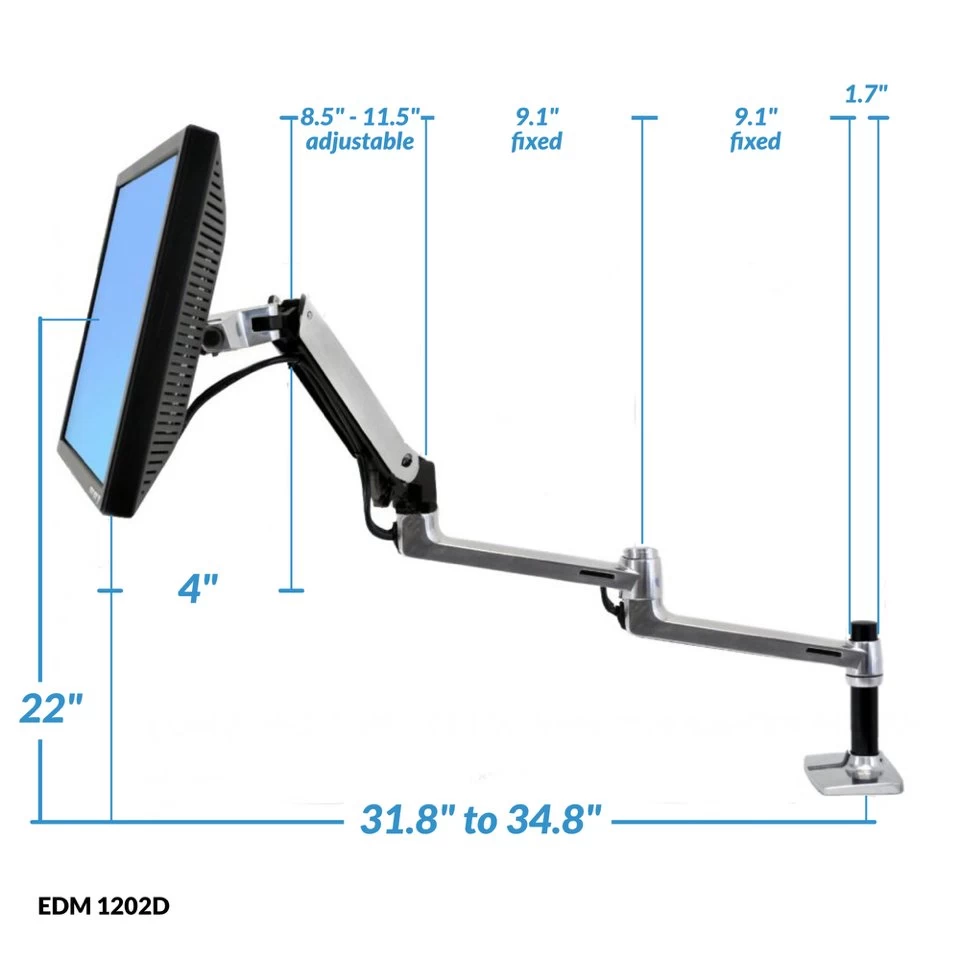

Technical Drawing

Desk Mount Arm



Long Reach Monitor Arm Extension



Product Information

	Desk Mount LCD Monitor Arm (polished aluminum)
Includes	LCD Monitor Arm Extension Desk clamp and grommet mount bases 7″ pole
Pole Diameter	Diameter is 1-3/8″. Grip is adjustable on the pole. It can be as low as 2″ and as high as 5.9″
Quality Tested	10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved  Features and Benefits	Polished aluminum construction offers greater durability and enhanced aesthetics Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas Snap-fit cap secures interface of arm to extension for greater stability New clamp and grommet mount base ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks
Mounting Options	Desk Clamp attaches to surface edge .4″ to 2.4″ (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31″ to 2″ (8 to 50 mm) wide and up to 3″ (76 mm) thick
Mounting Standards	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight Capacity	6 to 18 lbs (2.72 to 8.16 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5″ (11 cm) for a total height range of 8.5″ (22 cm)
Tilt Range	70° backward, 5° forward
Product Weight	7.8 lbs (3.6 kg)
Shipping Dimensions	17.75″ x 10.5″ x 6.75″ (45 x 27 x 17 cm)
Shipping Weight	9.75 lbs (4.4 kg)
Warranty	Ten (10) years



	Monitor arm (polished aluminum)
Shipping Dimensions	12″H x 4″W x 2.3″D (31 x 10 x 6 cm)
Shipping Weight	1.5 lbs (.6 kg)
Warranty	Five (5) years



Benefits

• Cable management feature clubs the cables under the arm and out of sight
  and way of the user

• Upgrade LCD monitors and TVs with improved ergonomic adjustment



• Patented CF motion technology provides premium ease-of-use display adjustment



• Arm folds back over the base into a compact retracted position; perfect for
  tucking under systems furniture storage shelves or cabinets in space constrained
  areas



• Passes 10,000-cycle motion test, which ensures years of trouble-free
  height adjustment

• Polished aluminum metal construction offers greater durability and enhanced aesthetics
