Innovative STX-11S Staxx 1 Over 1 Monitor Mount – Standard

Innovative’s modular display system, Staxx, is a completely configurable pole
based system that supports up to six monitors. Once your system is locked into
place at the desired height using the new anti-rotation clip and collar, a
single modular component can support anywhere from one tilter head to several
different combinations of arms and up to six monitors.

Introducing Staxx – Modularity. Flexibility. Simplicity

• Scalable Solution – Staxx is easy to install and reconfigure, more monitors can be added by simply adding more of the same parts.

• Large Screen Sizes Welcome – Staxx is capable of mounting three monitors, up to 30″ wide, side-by-side.

• Independent Monitor Adjustment – Flexible extension arms allow you to position the monitors for your perfect viewing angle.

• Small Footprint, Big Capabilities – Designed for modularity, Staxx can accommodate up to six monitors using a single mount.

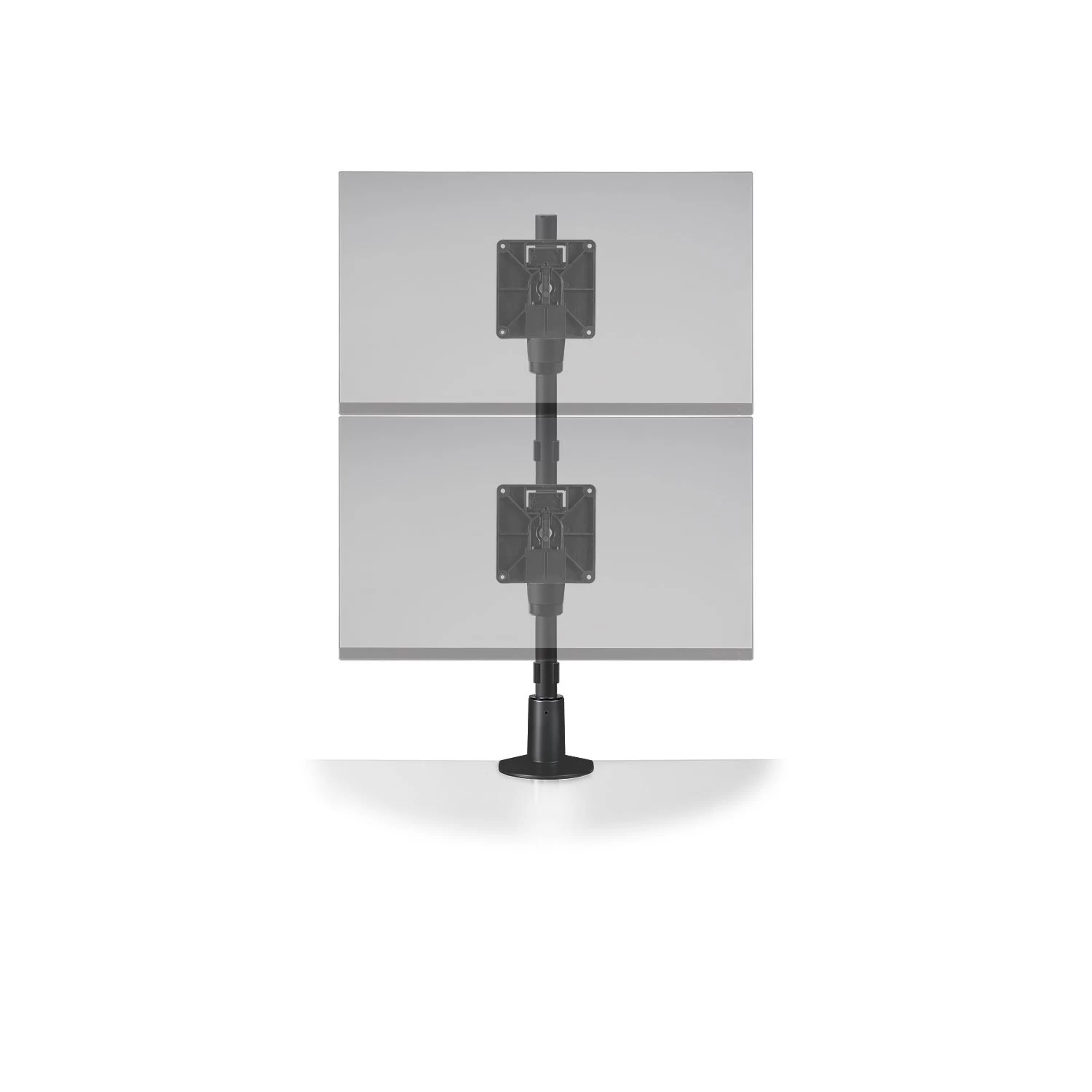

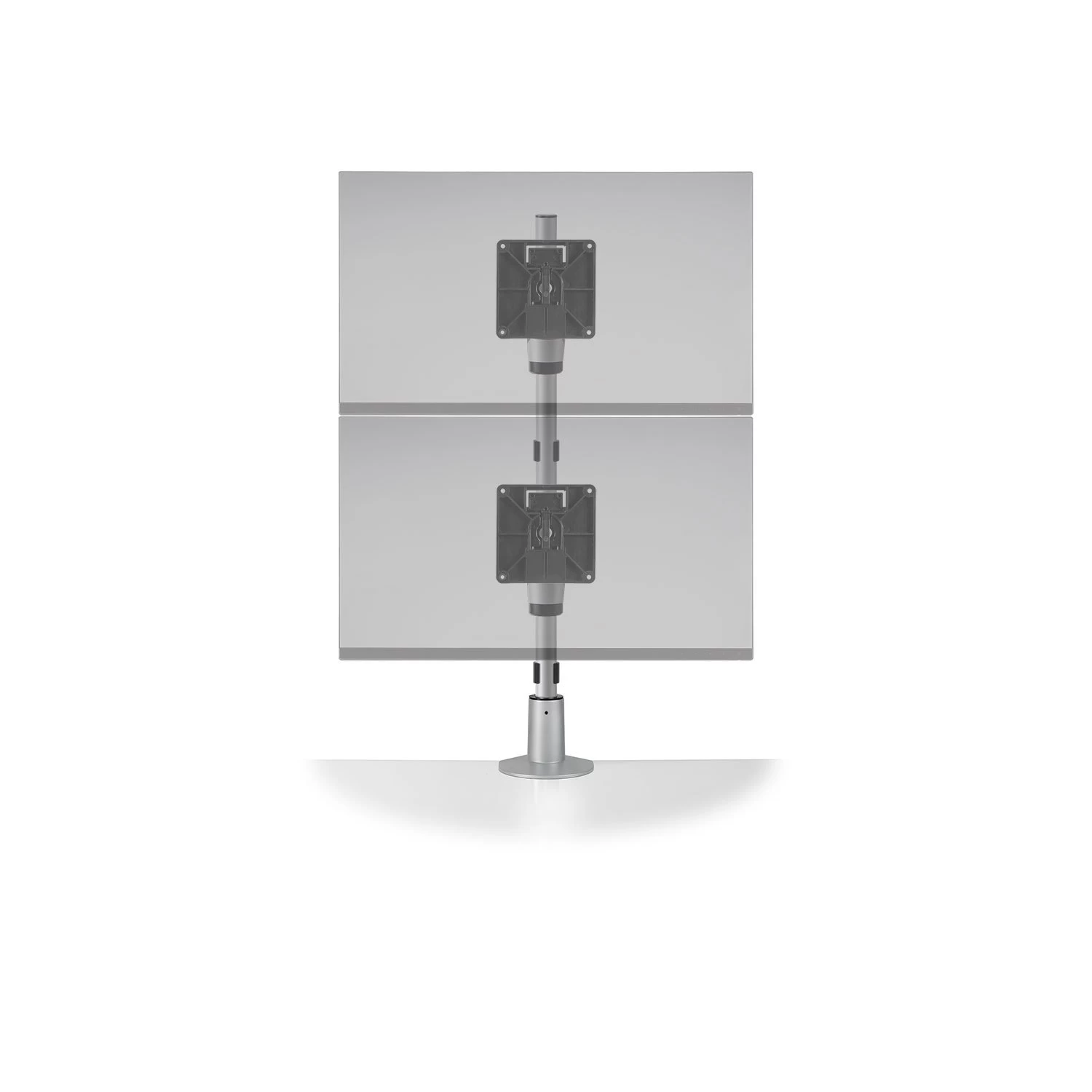

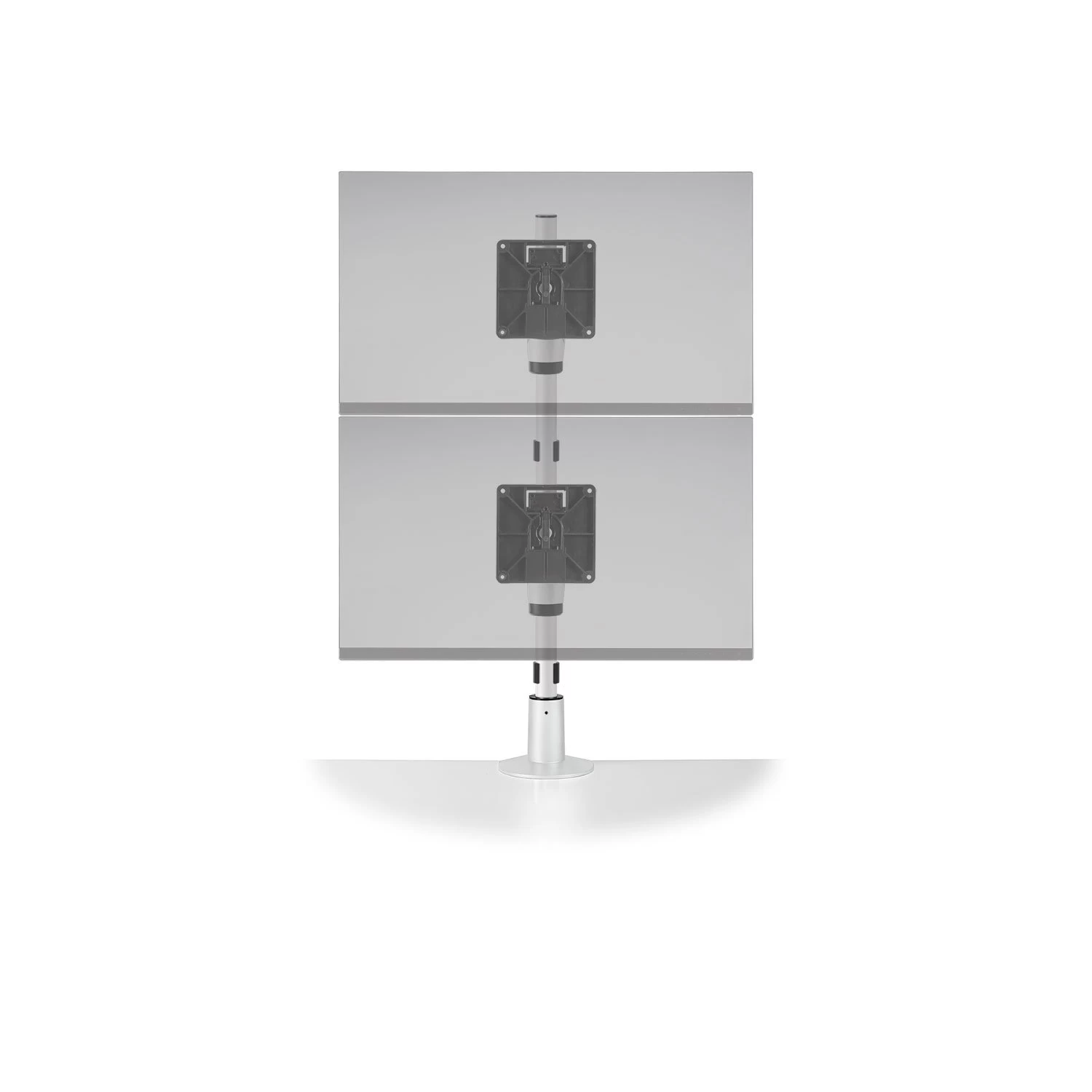

Innovative STX-11S multi-monitor stand mounts two monitors – one over the other. The 1 over 1
features a space saving design with a clean aesthetic.

Please
note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

Tilter – A tilter is the part
of the adjustable monitor arm that attaches to the back of your monitor
and allows the monitor to rotate, pivot and tilt to desired
position.  This monitor arm is now available with Next Gen Tilter
8500. This new tilter apart from being slim and sleek has a quick release
bracket, which makes installation and release easy and fast. It has a 30
lb weight capacity. However please bear in mind that the Next Gen Tilter
8500 comes with 100mm VESA adapter unlike the earlier standard tilter
which comes with 75mm and 100mm adapter plate. If your monitor has only
75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your
needs.

8500 Quick Release Monitor Tilter

8336 Standard Monitor Tilter

Mount – Mount is the part
that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount,
Innovative 8524. It functions as a clamp or grommet mount for desk
installation and allows you to install the arm from above the desk without
having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.


8524 Top Down Mount




Technical Drawing

Specifications

Features

• Each monitor can be positioned independently allowing for quick
  adjustment, pivot and placement

• Friction control system provides smooth adjustment while adjusting
  the position of the arm

• Integrated cable management allows cables to be tucked under the
  forearm extensions

• Adjust height of monitors on pole in 1″ increments

• VESA-monitor compatible – 100mm VESA adapter included

• Provides 200 degrees of monitor tilt

• 10 year warranty
