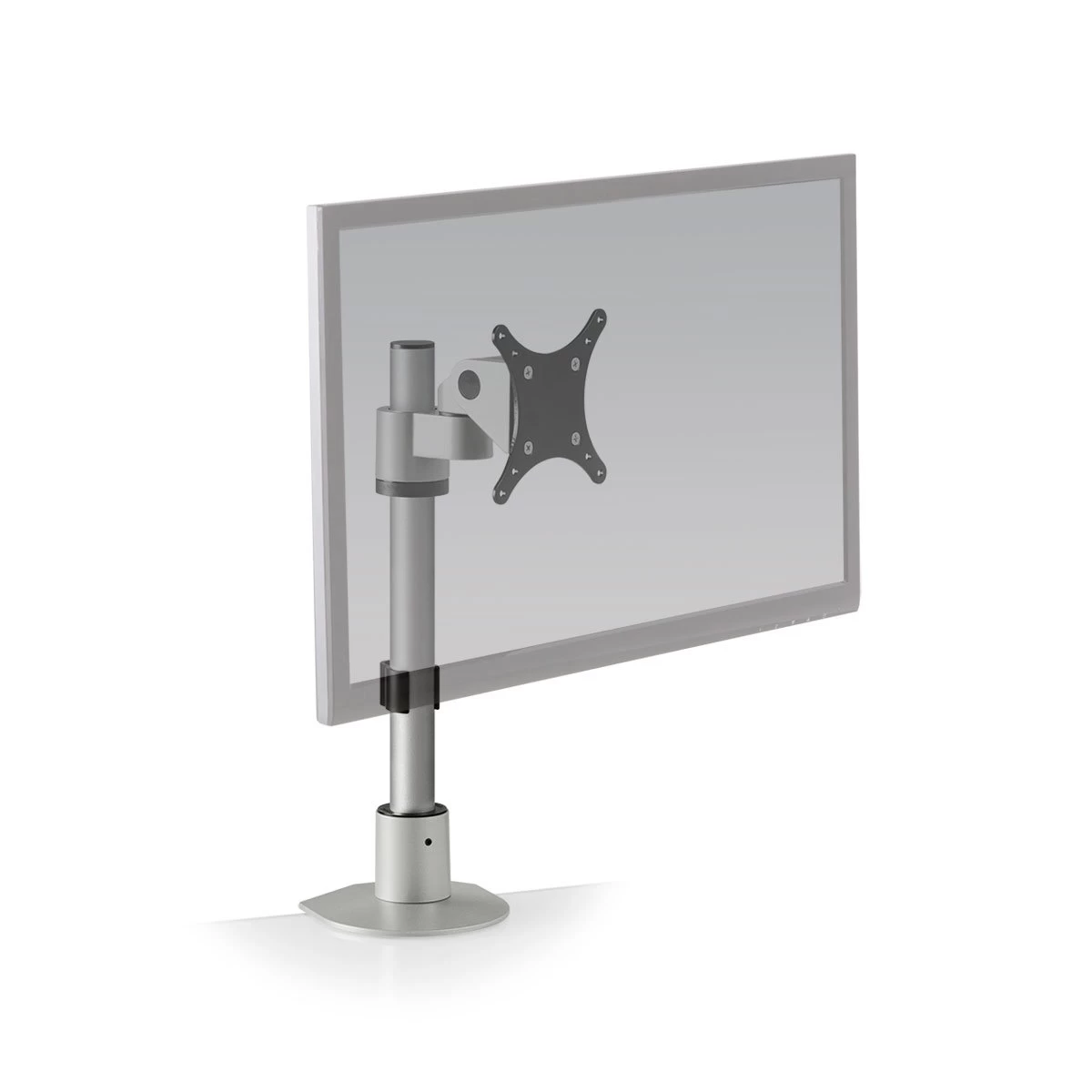

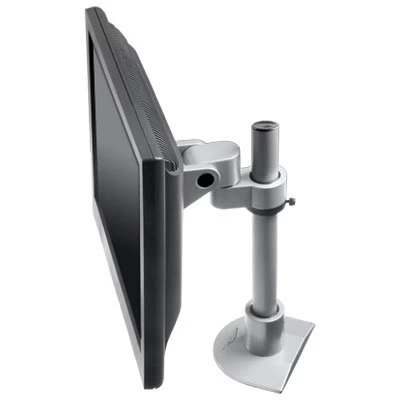

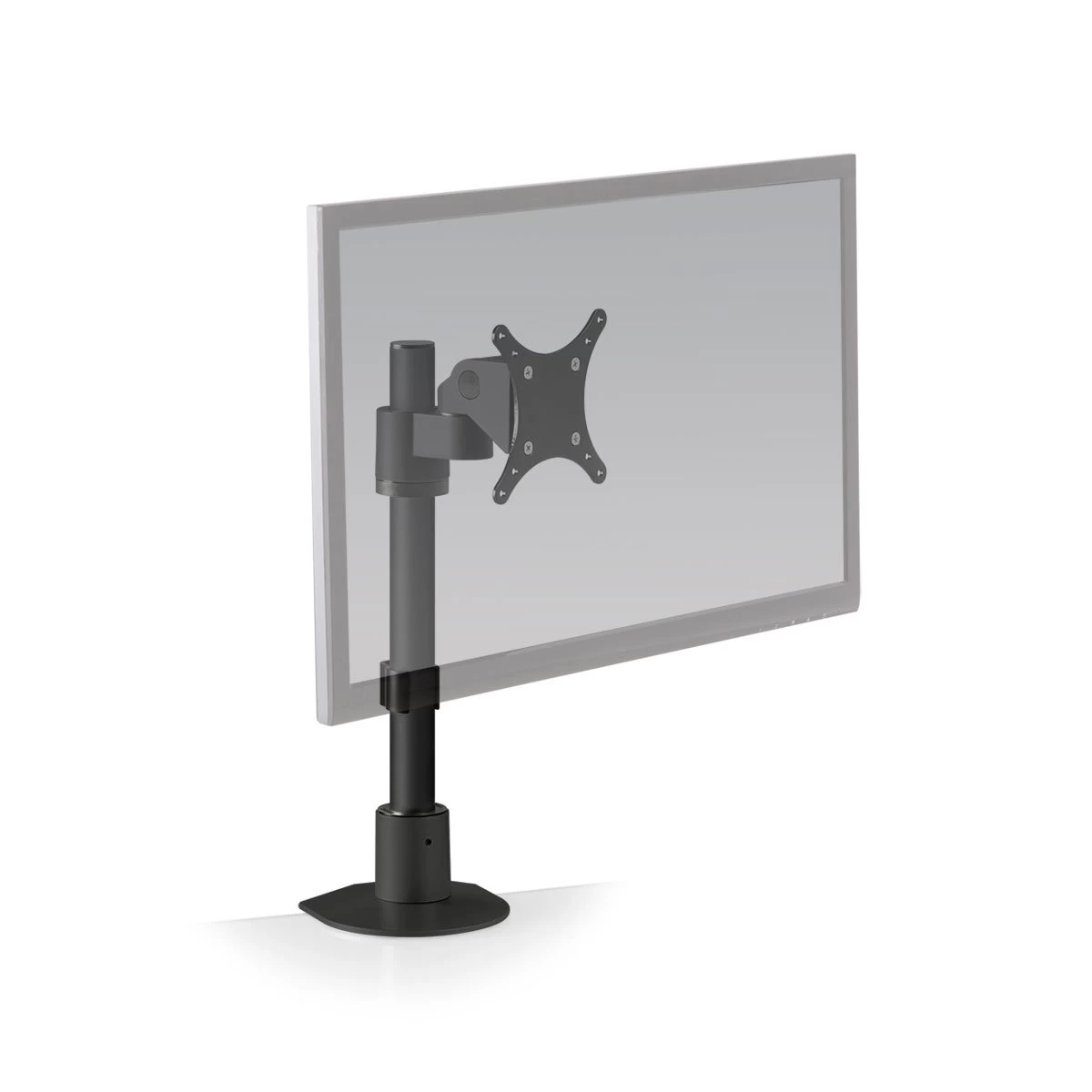

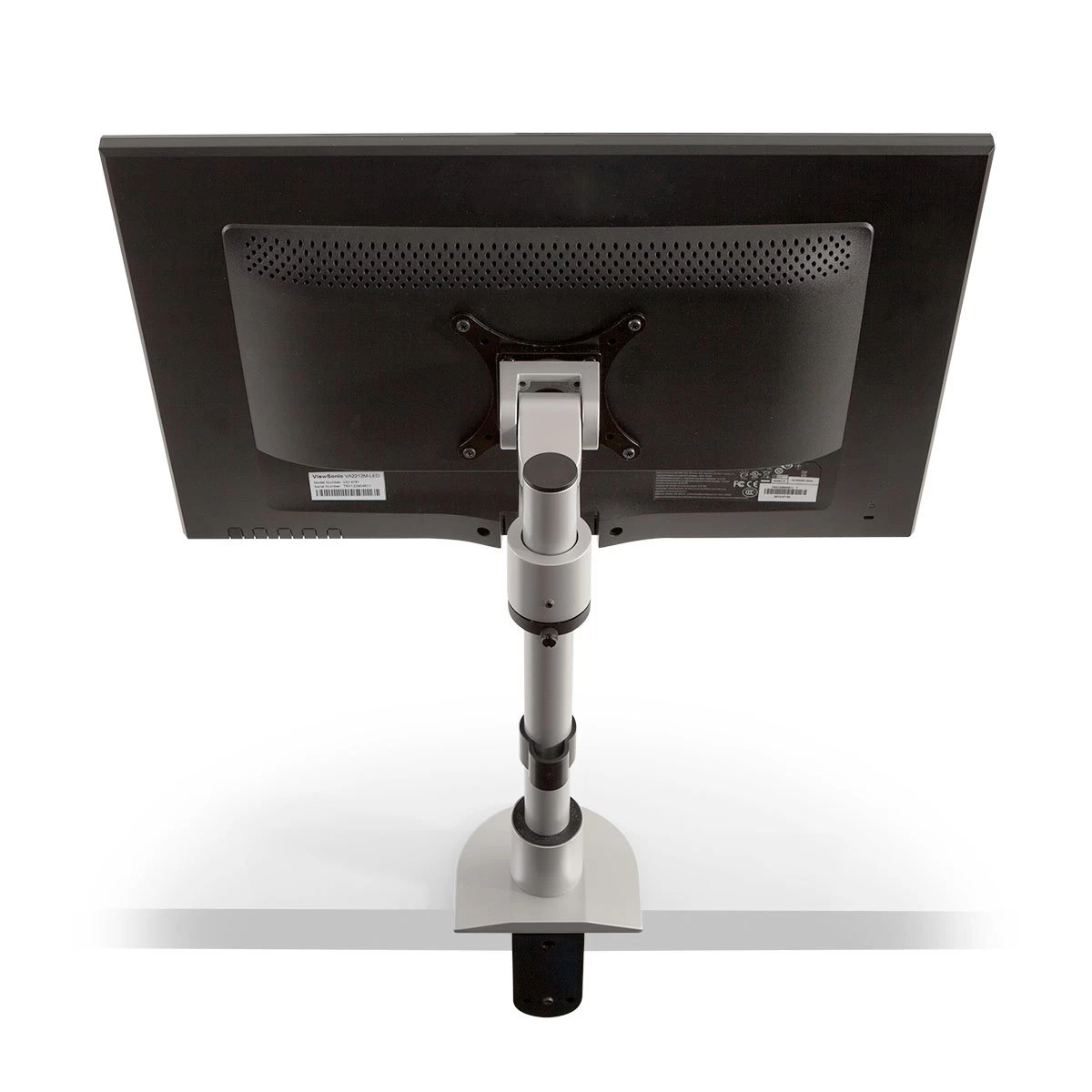

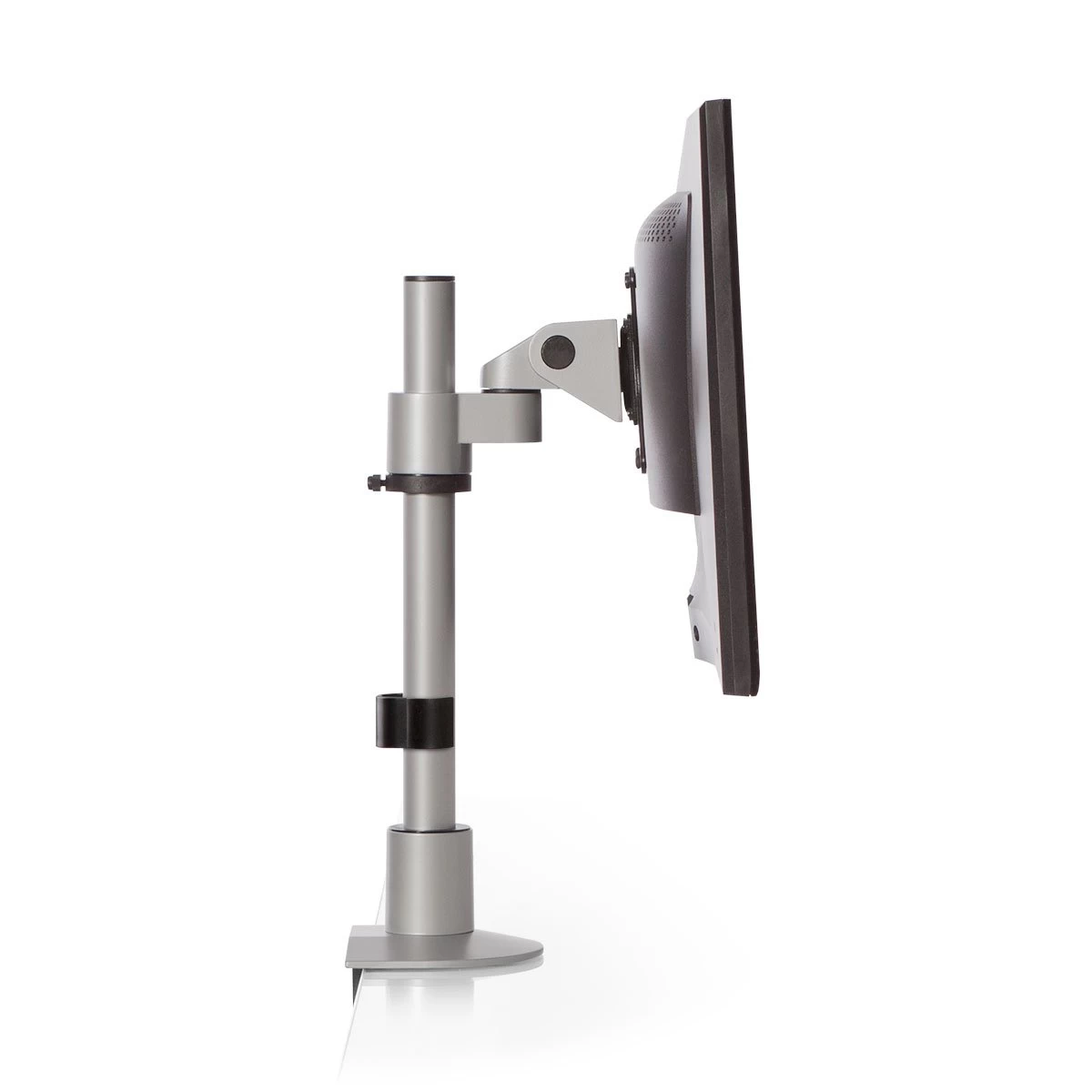

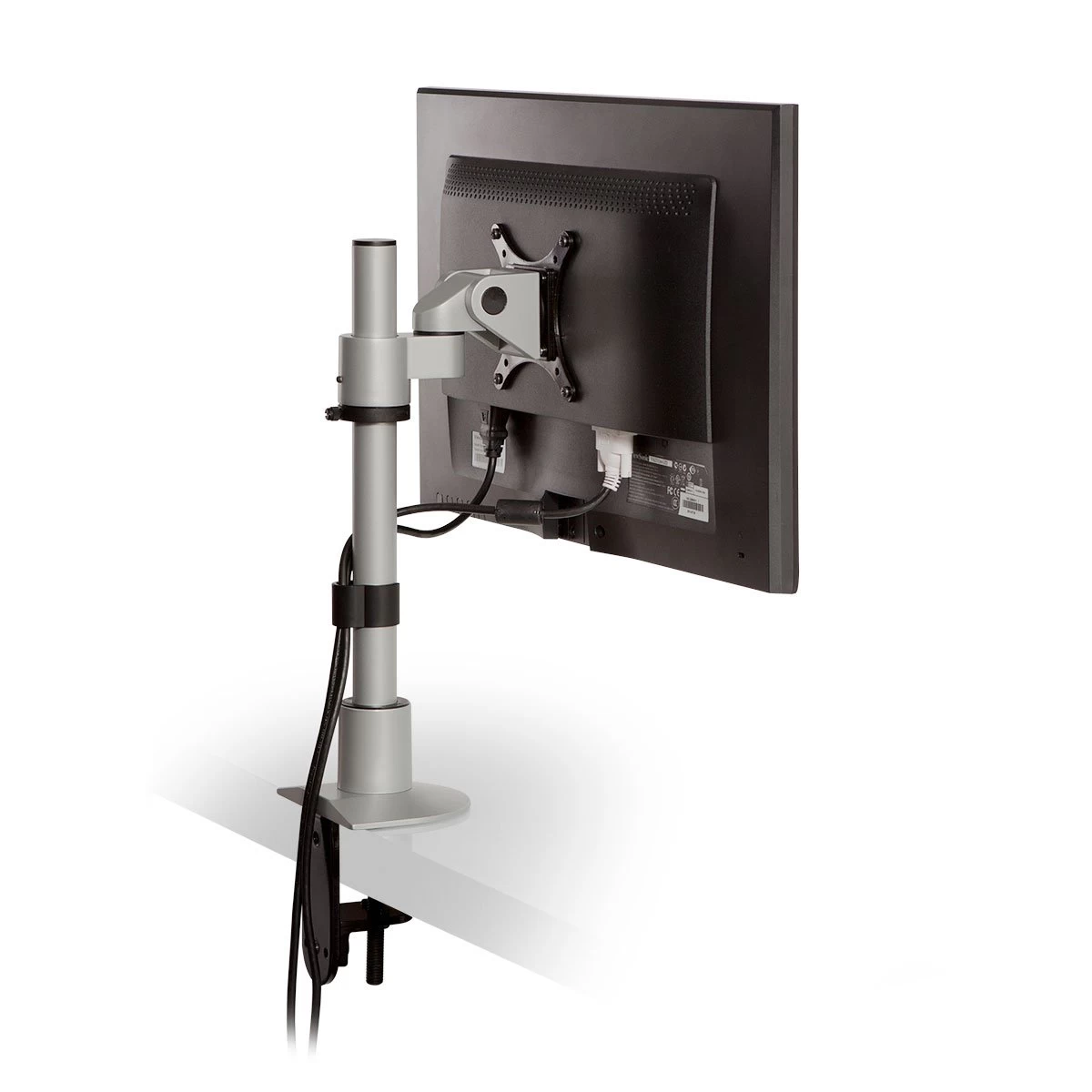

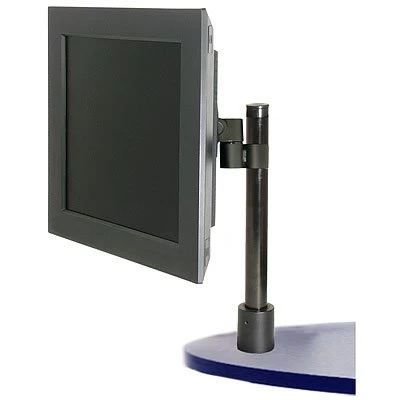

Innovative 9136-S-14 Adjustable Monitor Pole Mount – 14″ Pole

Innovative 9136-S-14 pole mount suspends the flat panel monitor above
the work surface. Reposition articulating monitor arm along the 14″ pole
mount.

Save valuable desk space and work in greater ergonomic comfort by
elevating your flat panel monitor above the work surface with the
9136-S-FM articulating pole mount. This height adjustable monitor arm
allows the users to pivot and tilt the monitor for optimal viewing.
Easily position the monitor at any height along the 14″ pole mount.



Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter – A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

8500 Quick Release Monitor Tilter

8336 Standard Monitor Tilter



Technical Drawing

Technical Specifications

Features

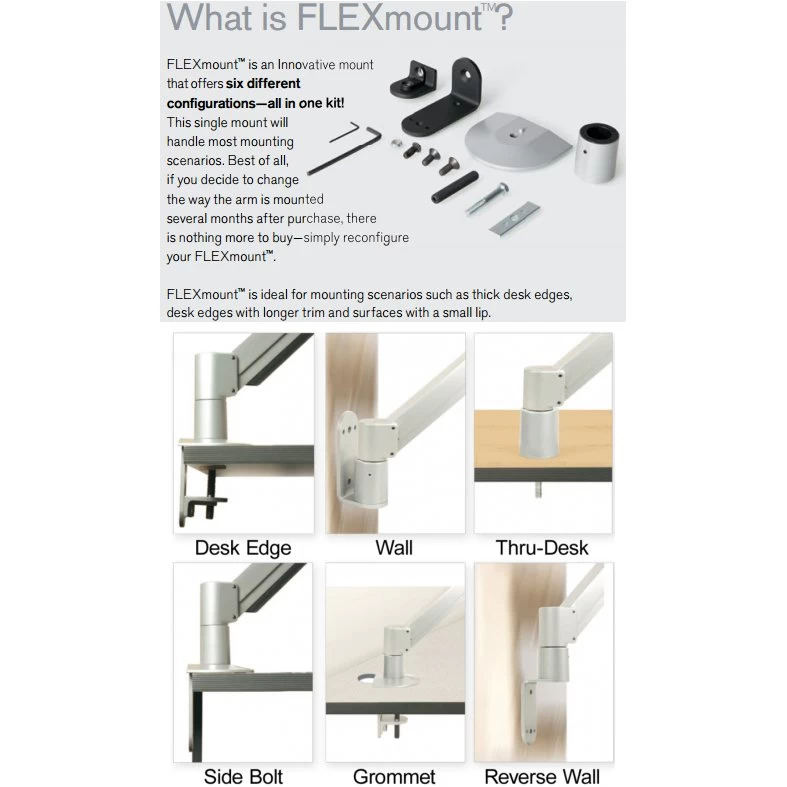

• FLEXmount with six mounting options is available

• Features a 14″ standard pole mount; custom pole lengths are
  available

• Enables easy pivot, tilt, and rotation of the computer monitor

• Monitor tilter mechanism can tilt over 200 degrees

• Adjustable tension at monitor mount joints – ideal for
  touch-screen applications

• Monitor mount is ideal for slatwall mounting; can be combined
  with all Innovative mount options (sold separately)

• VESA-monitor compatible – 100mm VESA adapter included; please call for non-VESA options

• Optional upgrade to quick install/release monitor bracket;
  consult your sales rep for details
