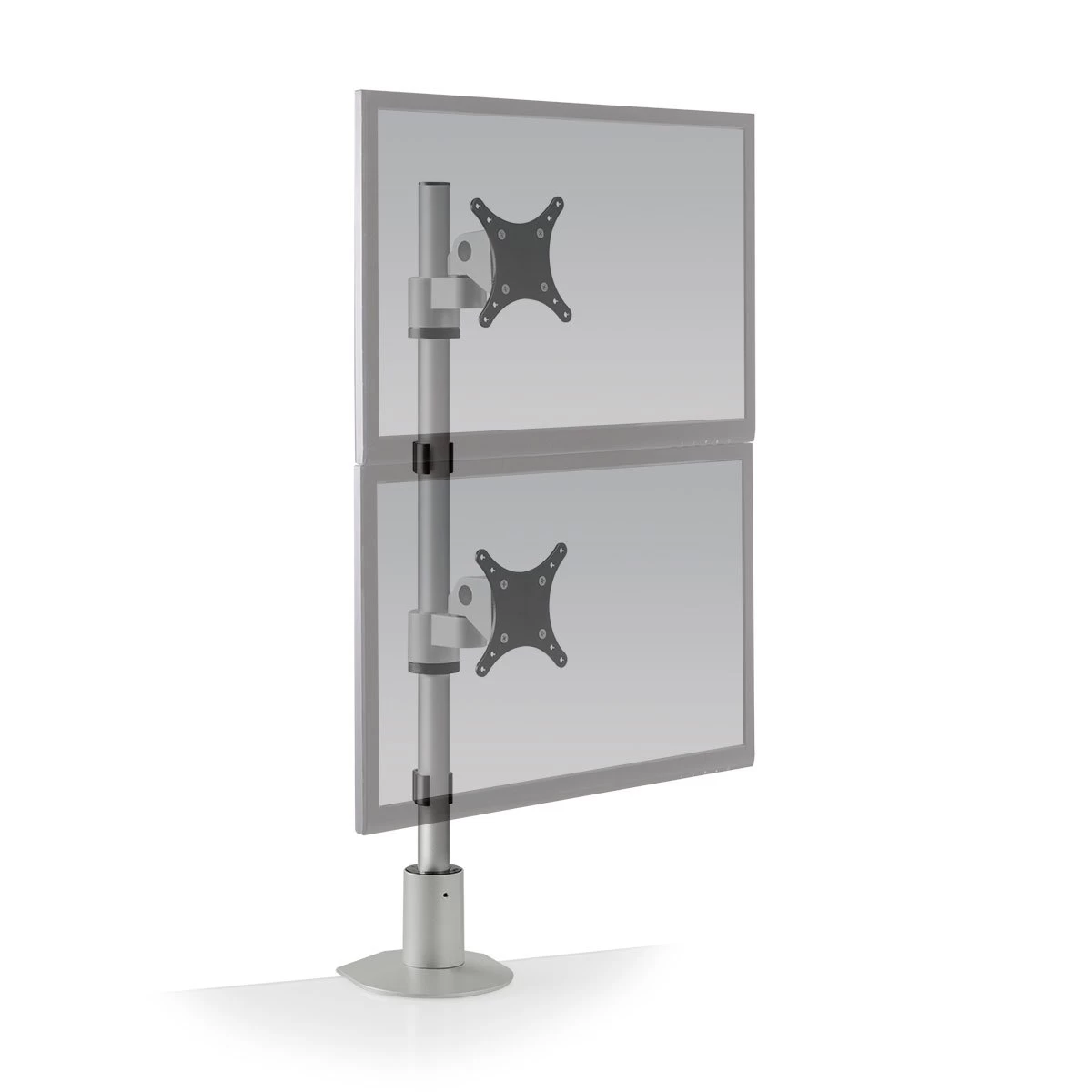

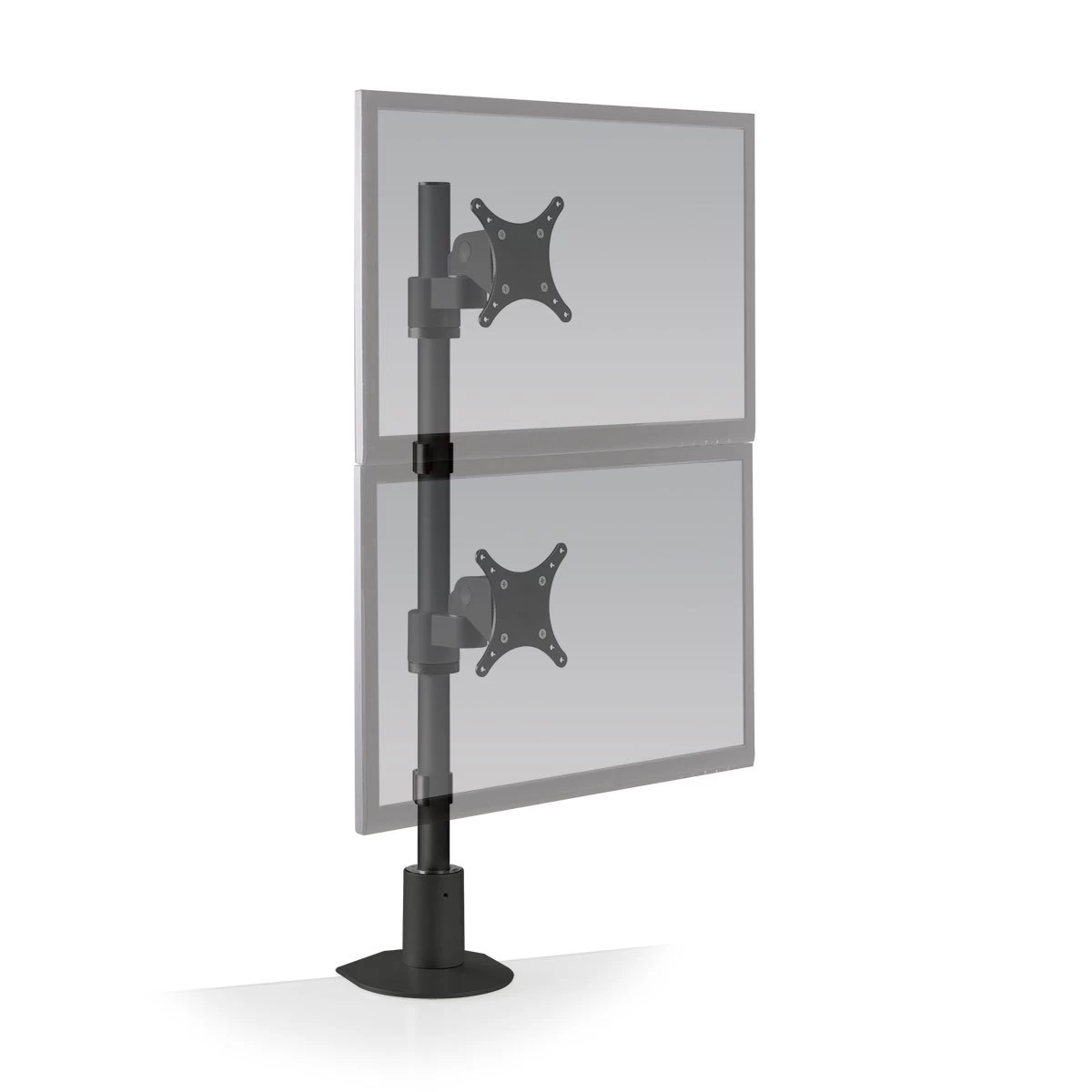

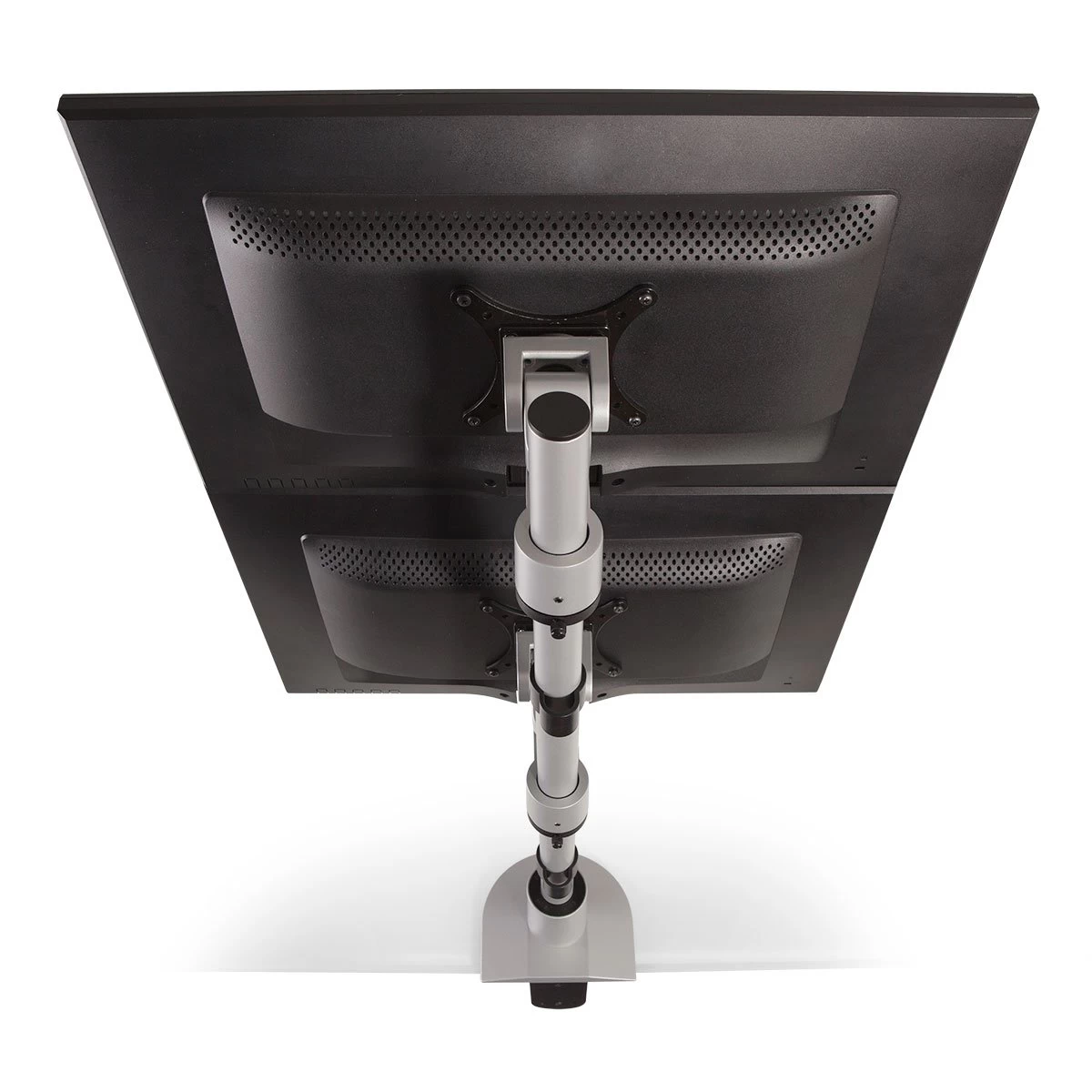

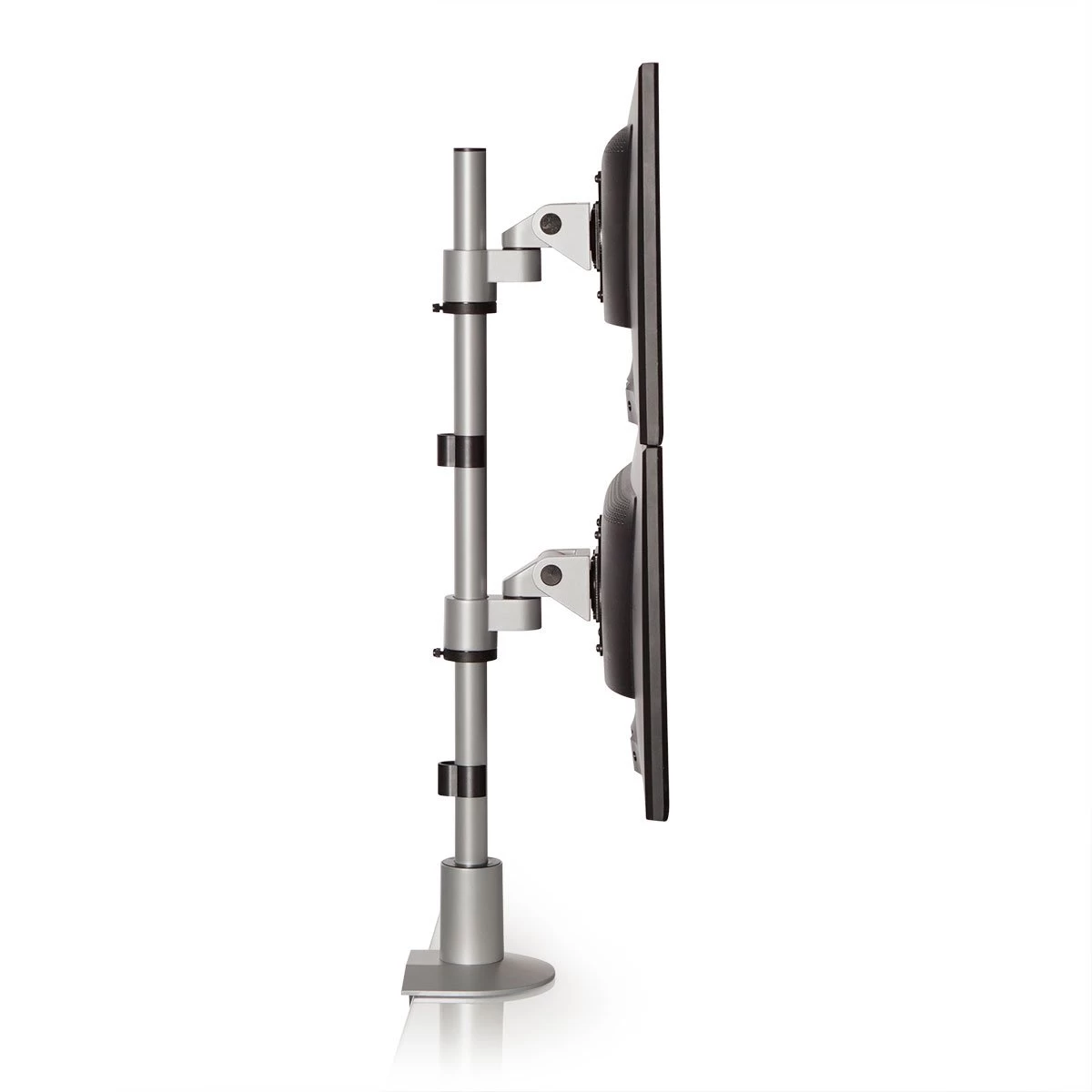

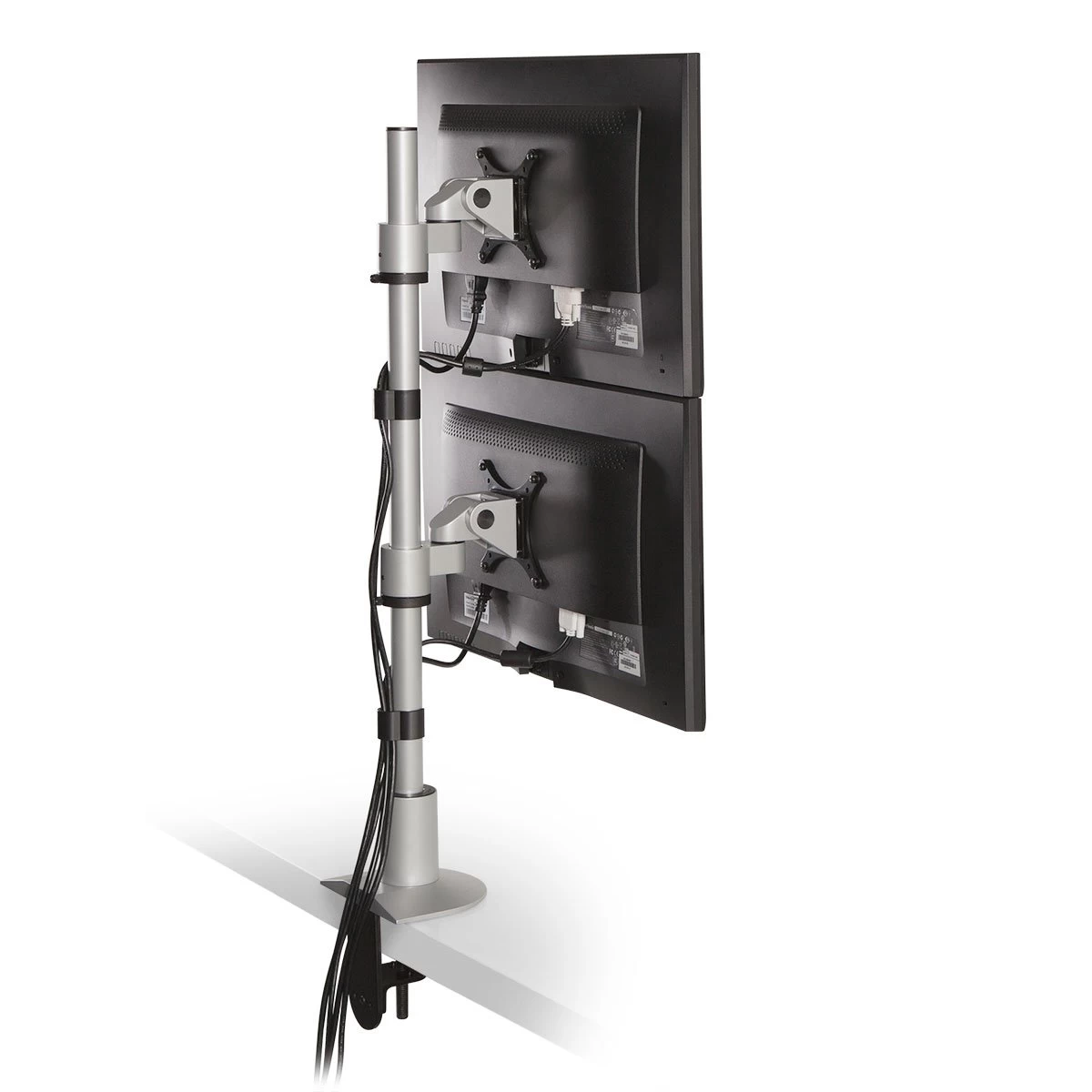

Work ergonomically and save space with innovative 9136-D-28 dual pole
monitor mount. Each monitor arm moves independently and can be
positioned at any height along the 28″ pole mount.
Save desk space by elevating two monitors above the work surface with
this handy mount. Innovative 9136-D-28 allows independent pivot and tilt
of each monitor. Position at any height along the included 28″ pole.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.
Tilter – A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position. This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.
| 8500 Quick Release Monitor Tilter | 8336 Standard Monitor Tilter |
Technical Drawing
Technical Specifications
| Color | 104 – Vista Black, 124 – Silver |
| Screen Size | Up to 27″ |
| Extension Range | 5.7″ (14.5 cm) |
| Pivot | Landscape / Portrait |
| Rotation | One rotation joint |
| Pole Height | 28″ (71.12 cm) |
| Monitor Tilt | 200 degrees |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| VESA Compatibility | 100mm adapter included |
| Weight Capacity | Up to 45 lbs (20.4 kg) per monitor |
| Warranty | 10 years |
Features
-
Dual monitor stand includes FLEXmount with six mounting options
-
Standard 28″ pole included. Call for custom size options
-
Articulating flat panel pole mount enables independent pivot,
tilt, and rotation of monitors -
Monitor tilter mechanisms can tilt over 200 degrees
-
Dual monitor mount features adjustable tension at joints,
making it ideal for touch-screen applications -
Ideal for slatwall mounting; can be combined with all Innovative
mount options (sold separately) -
Flat panel stand is VESA-monitor compatible – 100mm VESA
adapter included. Please call for non-VESA options -
Optional upgrade to quick install/release monitor bracket.
Consult your sales rep for details
| Model | 9136-D-28-FM |
| Manufacturer | Innovative LCD Arms |
| Part Number | 9136-D-28-FM |
| Mounting Options | Desk |
| Mounting Options | Wall |
| Mounting Options | Slatwall |
| Monitor Arm Types | 2 Monitors |
| Mounting Options | Pole |
| Color | 104 – Vista Black, 124 – Silver |
| Pole Length | 28 |
| Tilt | 200 degree |
| Mounting Pattern | VESA 100mm |
| Weight Capacity | Up to 45 lbs (20.4 kg) per monitor |
| Number of Monitors | 2 Monitors |
| Monitor Size | Up to 27 |
| Extension | 5.7 |
| Pivot | Landscape / Portrait |
| Warranty | 10 years |
| Maximum Monitor Size | 27 |
| Monitor Placement | Stacked One Over the Other |
