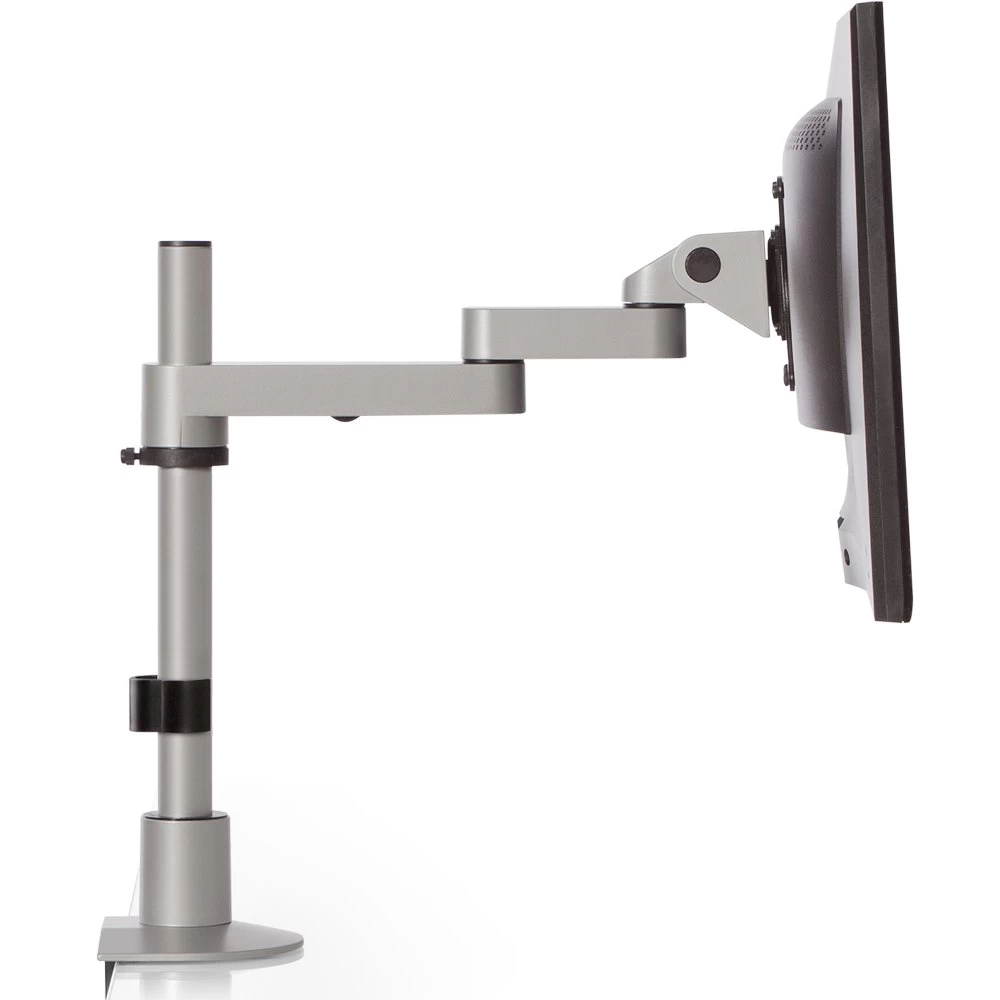

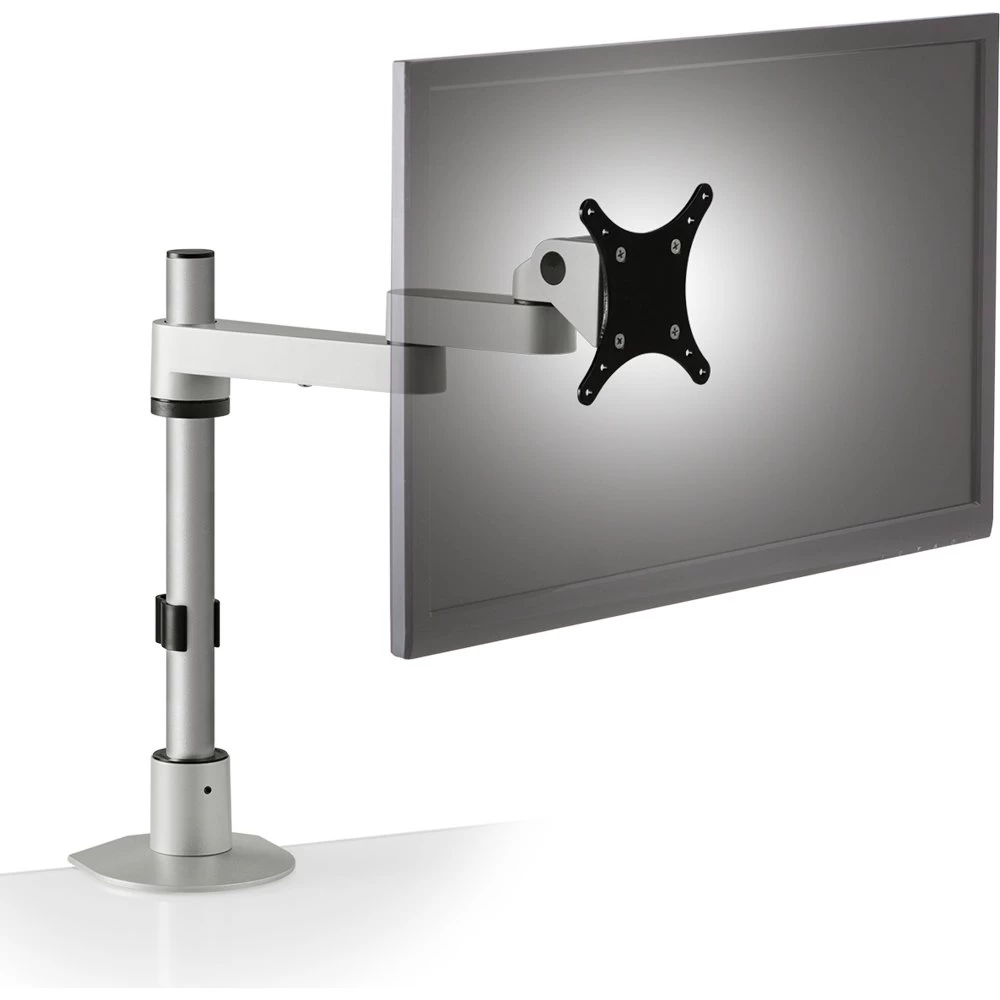

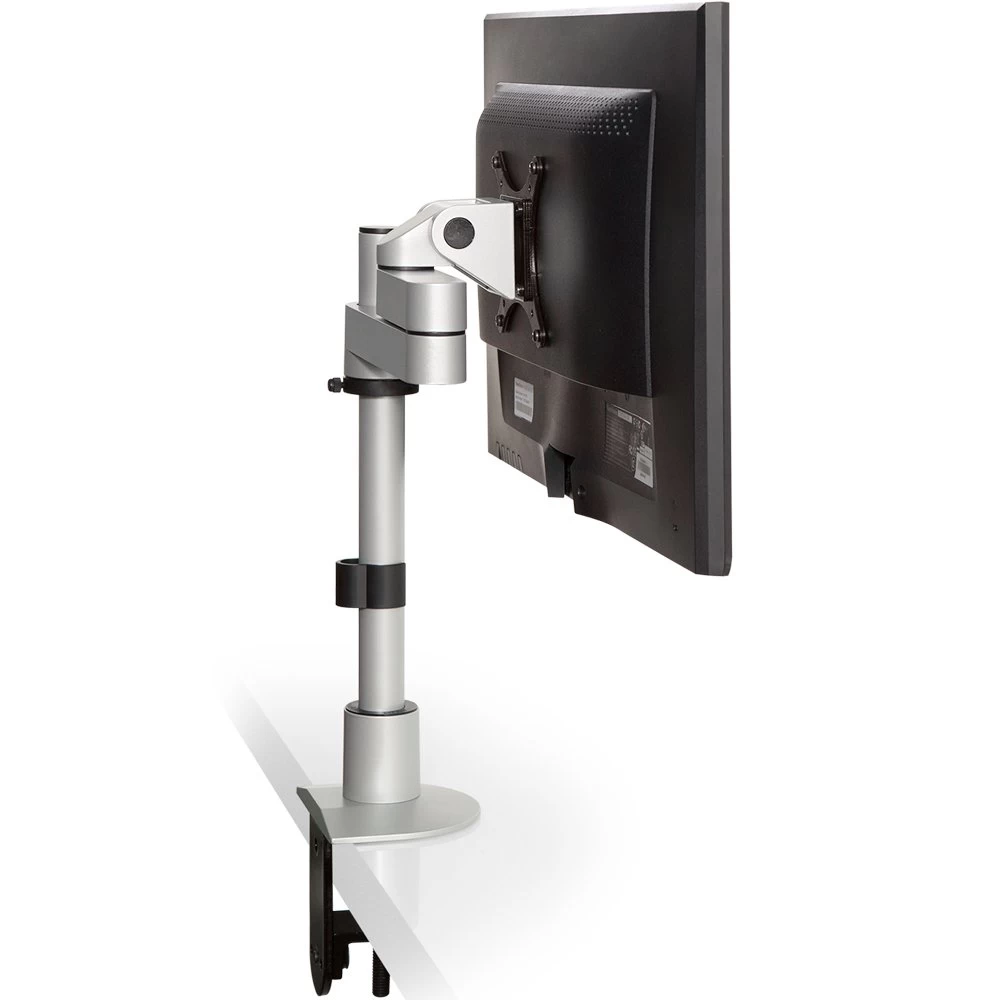

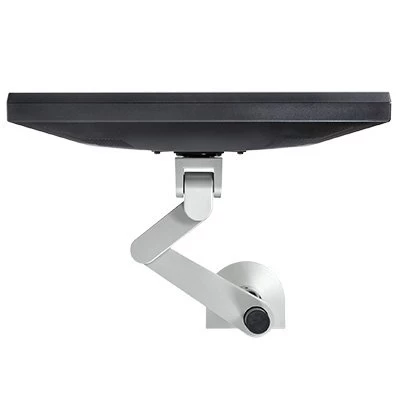

Innovative 9112-S-28 features foldable arms which adjust vertically
up and down a 28″ pole. The arms can fold up to fit in about 3″ of space
and extend out 14″. Various pole lengths and extensions are available or
can be designed to fit any application you may be looking for. Unique
cable management allows cables to tucked under the forearm extensions.
The 9112-S-28 articulating monitor arm mounts directly to the desktop
for space-saving ergonomic comfort. Easily adjust the monitor arm
vertically along the 28″ pole mount.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.
Tilter – A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position. This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.
| 8500 Quick Release Monitor Tilter | 8336 Standard Monitor Tilter |
Technical Drawing
Technical Specifications
| Color | 104 – Vista Black, 124 – Silver |
| Screen Size | Up to 32″ |
| Extension Range | 14″ |
| Pivot | Landscape / Portrait |
| Rotation | Three rotation joints |
| Pole Height | 28″ (72 cm) |
| Monitor Tilt | 200 degrees |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| VESA Compatibility | 100mm adapter included |
| Weight Capacity | Up to 40 lbs (18.1) per monitor |
| Warranty | 10 years |
Features
-
Features a 28″ standard pole mount; custom pole lengths are
available -
Mount rotates 360 degrees at three joints
-
Monitor tilter mechanism can tilt over 200 degrees
-
Features adjustable tension at joints, ideal for touch-screen
applications -
FLEXmount with six mounting options is available
-
Monitor arm is ideal for slatwall mounting; can be combined
with all Innovative mount options (sold separately) -
VESA-monitor compatible – 100mm VESA adapter included; please call for non-VESA options
-
Optional upgrade to quick install/release monitor bracket;
consult your sales rep for details
| Model | 9112-S-28 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 9112-S-28 |
| Mounting Options | Desk |
| Mounting Options | Wall |
| Mounting Options | Slatwall |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Color | 104 – Vista Black, 124 – Silver |
| Pole Length | 28 |
| Horizontal Range | 14 |
| Tilt | 200 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA 100mm |
| Monitor Weight | Up to 40 lbs per monitor |
| Pivot | Landscape to portrait |
| Monitor Size | Up to 32 |
| Warranty | 10 years |
| Price | $100 – $199 |
