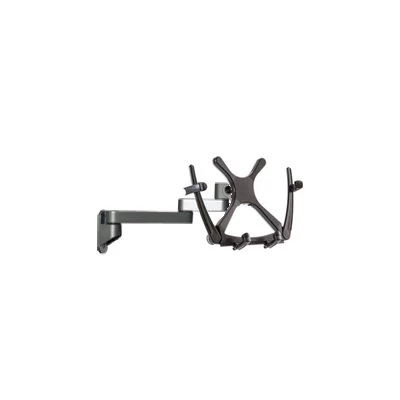

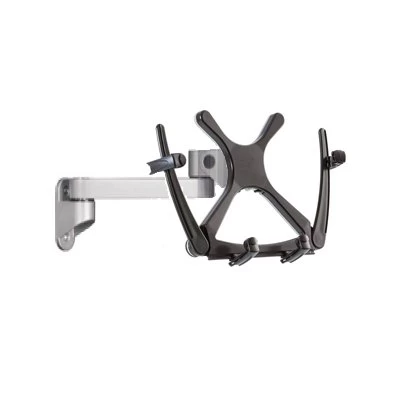

Innovative 9110-8.5 Wall Mount, EVO5501 Laptop Holder

Hang your Laptop on the wall to save maximum space. Allows pivot and tilt. For 9110-8.5, includes 8.5-inch extender arm for greater flexibility and range. For 9110-8.5-4, includes 2 extension arms (8.5 and 4-inches) for 12.5 inches of reach. For 9110-4-4, includes 2 extender arms (4″) for total 8″ of reach and for 9110-8.5-8.5, includes 2 extension arms (8.5″) for total 17″ of reach.

Attaches to arm via quick-install mechanism. Configures to support laptops or tablet PCs. Discover a new way of interfacing with your tablet PC or laptop, the EVO Tablet Arm suspends your portable above the desk where it can be instantly repositioned for comfortable viewing. Combine with a wireless keyboard and mouse to create an ergonomic docking station for your computer. It’s an ideal solution for workers on the move. Improve productivity while working at your primary desk, then simply grab the computer and go when it’s time to leave.





Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter – A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

8500 Quick Release Monitor Tilter

8336 Standard Monitor Tilter



Technical Drawing



Technical Specifications

9110
Tilt	30 degree up and down or left to right
Pivot	Landscape to portrait
Mounting Options	Wall
EVO5501
Minimum Width	10.5″ (26.7 cm)
Height	9.1″ (23.1 cm)
Length with Clips	0.6″ (1.5 cm) 0.9″ (2.3 cm) Minimum 1.8″ (4.6 cm) 2.1″ (5.3 cm) Maximum
Supports	Tablet PCs and Laptops



Features



EVO 5501

• Adapts to support both tablet PCs and laptops
• Securely grips tablet or laptop, with quick attach and release
• Adjustable clasps allow free access to jacks and ports
• When used with tablet PCs, enables one-handed use of the tablet
• Allows tablet to be used in portrait or landscape position
• Mounting arm floats computer above desk – simply grab and move to desired position
• Arm extends up to 18″, with vertical adjustment of +/- 5″ from horizontal
• Integrated cable management keeps cords off the desk
• Mount clamps to desk or through grommet with integrated handle (may also combine with slatwall, slatrail or wall mount)

9110

• Adjustable tension at joints – ideal for touch-screen applications
• Display can tilt up and down 30 degree and turn left and right 30 degree
• Pivot monitors from portrait to landscape
• Includes 8.5″ extension arm; combine extension arms to increase reach
