Innovative 7500-Wing Dual LCD Arm with Vertical/Horizontal Positioning (27 inch)
|
Arm collapses upon itself to save space
Features of innovative 7500-Wing-1000:

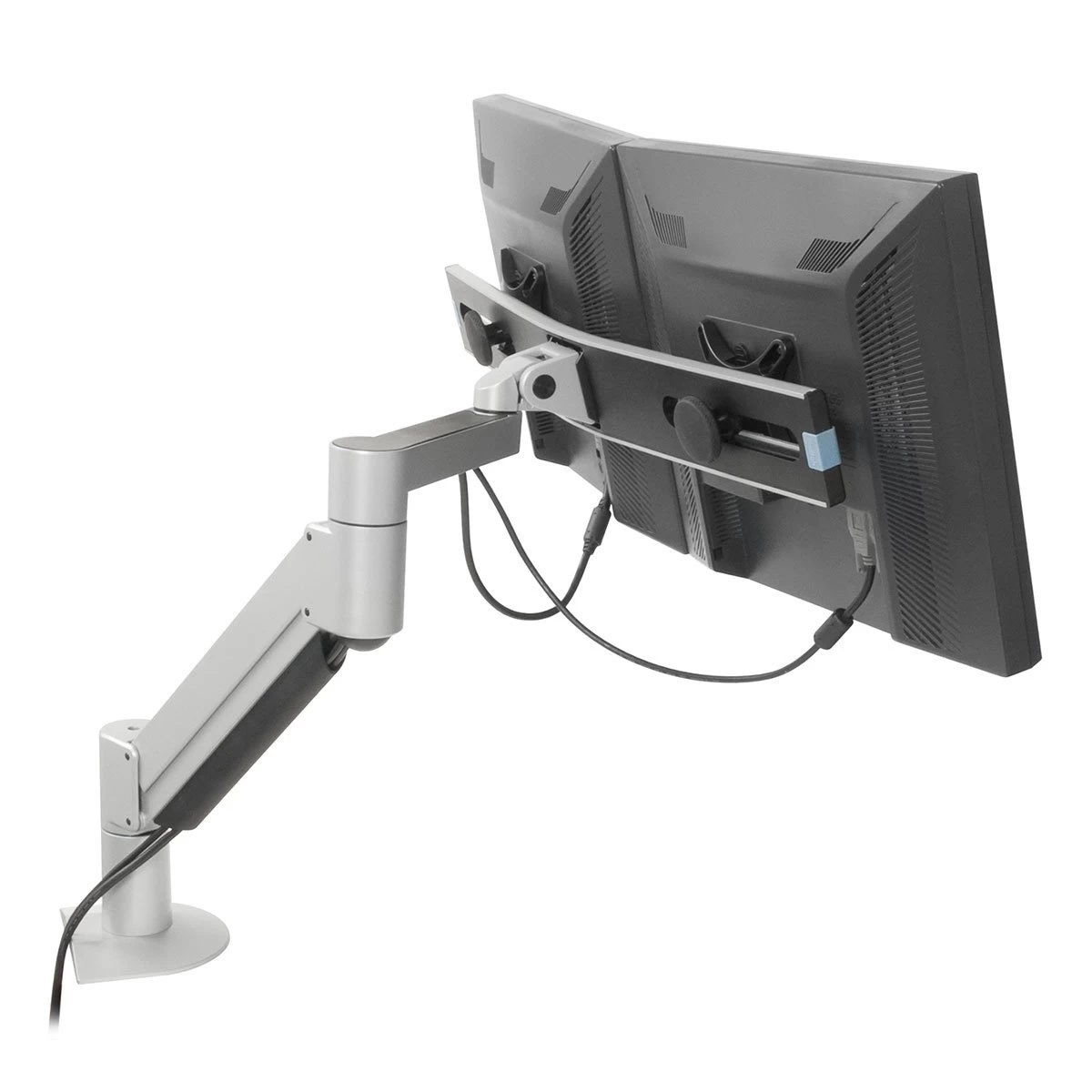

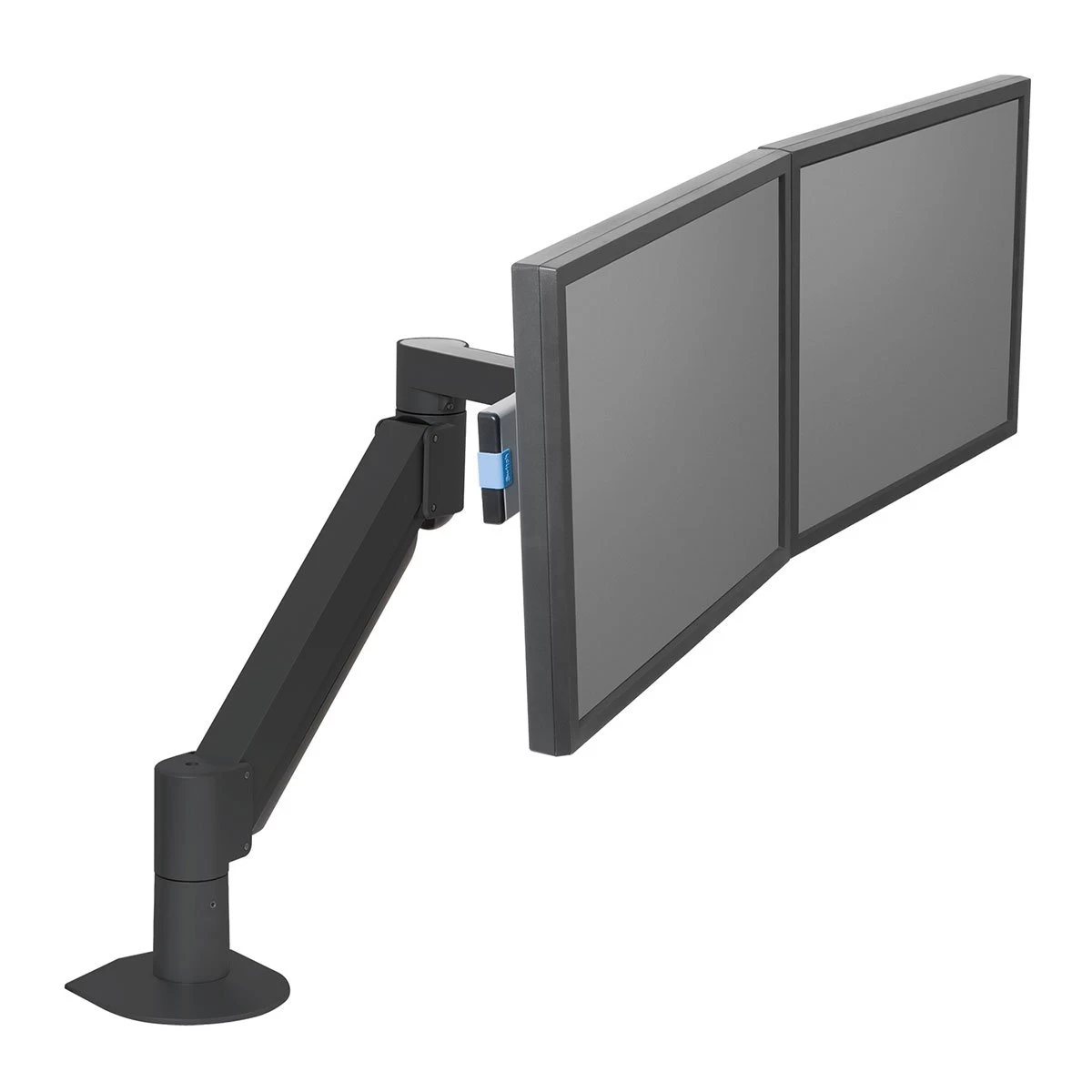

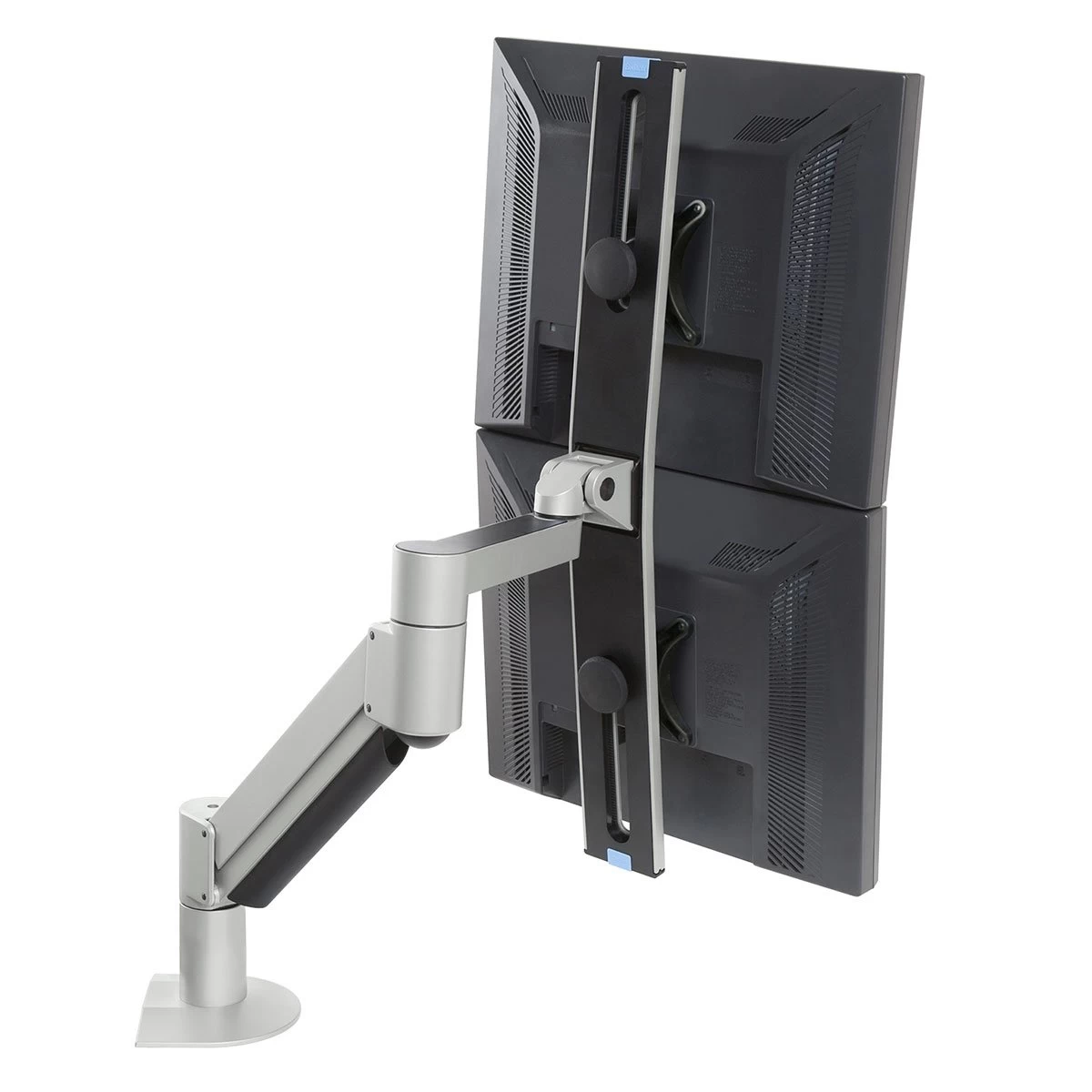

1. Monitors can be positioned horizontally (side by side) or vertically (stacked one over another).
2. Monitors can be independently rotated.
3. Accommodates monitors up to 22″ widescreen (note – monitors can not exceed weight
capacity of arm).
4. Monitor tilter mechanism can tilt over 200 degrees.

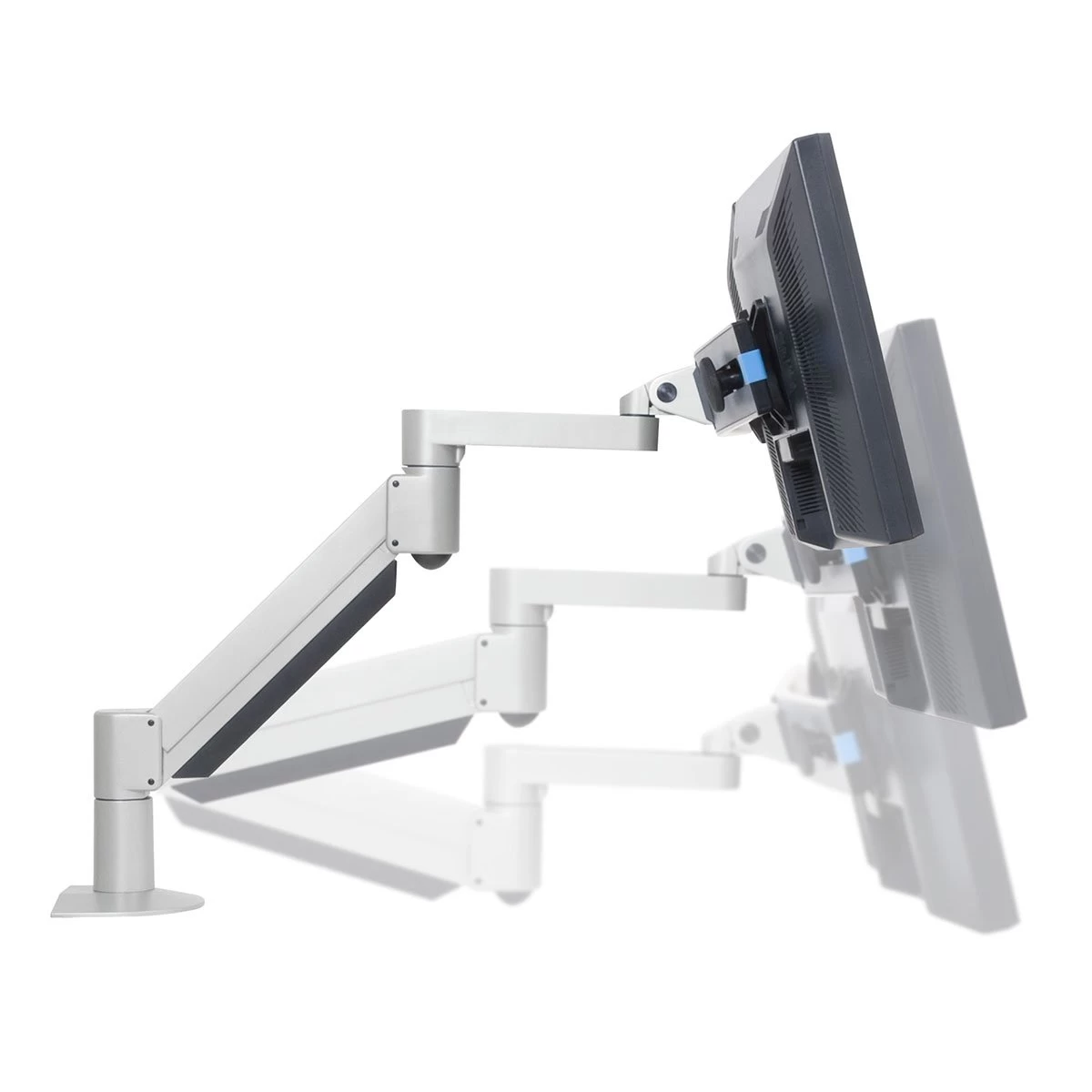

5. Gas arm “floats” monitors above desktop for instant height adjustment.
6. Quick-install/quick-release mechanism instantly and securely snaps monitors into position
7. Includes cable management system – cables concealed in arm
8. Optional 2″ and 6″ extender tubes are available to raise monitor (see Extender Tubes under
Available Accessories).
Technical Drawing for Innovative 7500-Wing-1500 Dual LCD Arms
of Innovative 7500-Wing Dual Arm:
Do you use two monitors? With the 7500-Wing, both monitors will float above your desktop, allowing you to quickly and easily adjust monitor height and position. Monitors can be positioned either side-by-side or one above the other.
Our adjustable wing bracket allows you to adjust monitors, and also allows rotation. Includes our spring-assist monitor tilter for effortless monitor motion. The 7500-Wing incorporates cable management – thread the cables right through the arm, keeping your work space clean and organized. The bracket works with all VESA 75/100mm monitors.
|
|
Specifications:
Max Monitor Width:
22″ per monitor
This measurement is based on a monitor depth of 3.5″. The depth of the monitor will have a slight effect on the overall max dimension.
Note: Monitor width is measured from end to end of the monitor as shown at right
Vertical Range:
+/- 9″ from horizontal
Horizontal Range:
27″
Rotation:
360 degrees at three joints
Monitor Tilt:
200 degrees
Cable Management:
Cables are concealed in arm
Mounting Options:
FLEXmount – six different mounting options in one kit, Slatwall, Wall, Thru-Desk, Pole Clamp Mount
VESA Compatibilty:
75mm and 100mm VESA adapters included. Please call for non-
VESA options.
More Images:
Rotate monitors from landscape to portrait
|
|
Quick-install/quick-release |
| Model | 7500-Wing-1000-NM or 7500-Wing-1500-NM |
| Manufacturer | Innovative LCD Arms |
| Part Number | 7500-Wing-1000-NM or 7500-Wing-1500-NM |
| UPC | 895026000246 |
| Weight | lb(s) |
| Maximum Monitor Size | 22 |
| Mounting Options | Desk |
| Mounting Options | Wall |
| Mounting Options | Slatwall |
| Mounting Options | Pole |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |

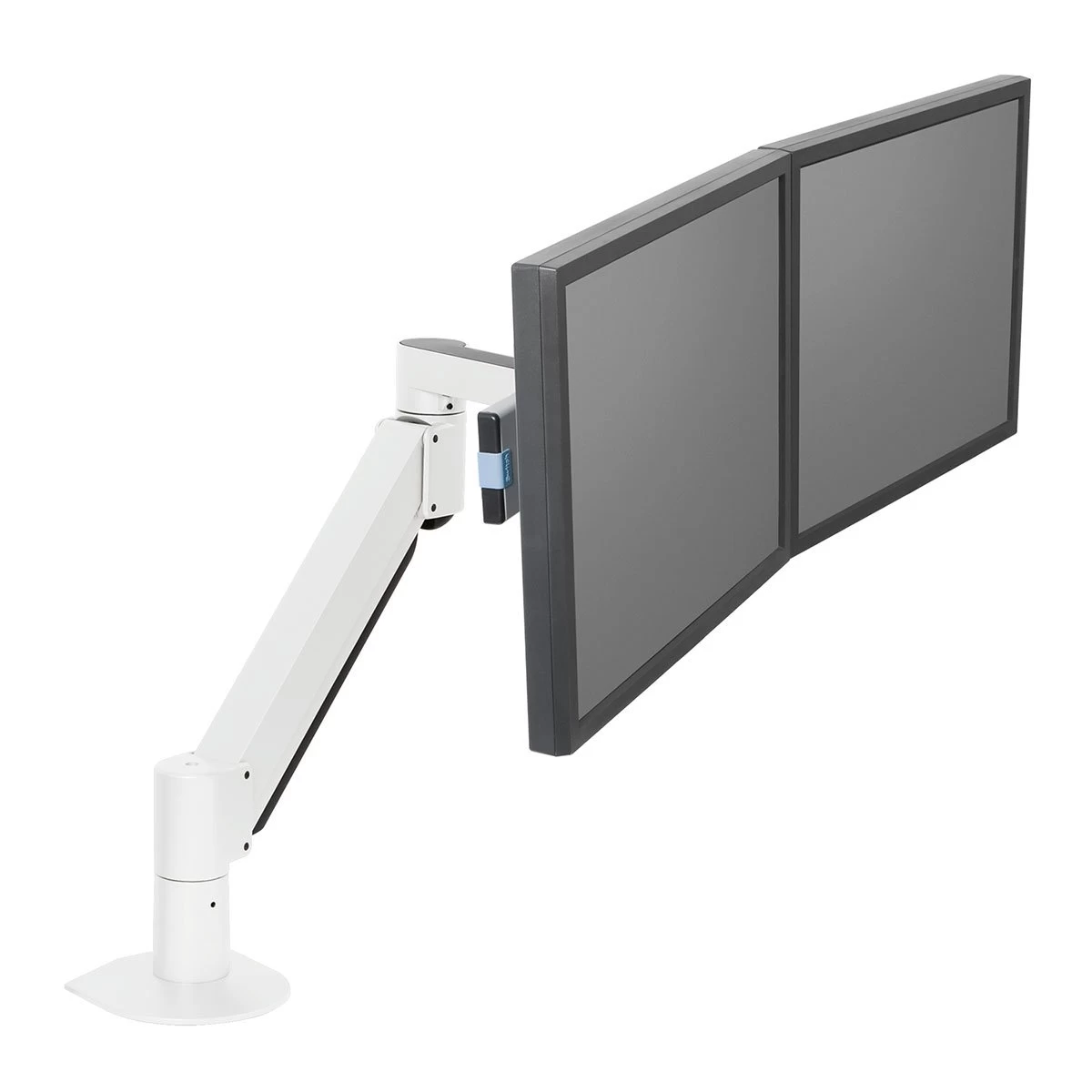

| Color | Flat White, Silver, Vista Black |
| Height Adjustment | 18.0 |
| Extension | 27 |
| Pivot | Landscape/Portrait |
| Rotation | At three joints 360 degree |
| Mounting Options | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| Mounting Pattern | VESA 75mm and 100mm |
| Warranty | 10 Years |
| Weight Capacity | 7500-Wing-1000: 1 – 11.4 lbs per monitor. 7500-Wing-1500: 2.5 – 18.7 lbs per monitor |
| Monitor Placement | Side-by-Side |
| Price | $500 – $599 |
