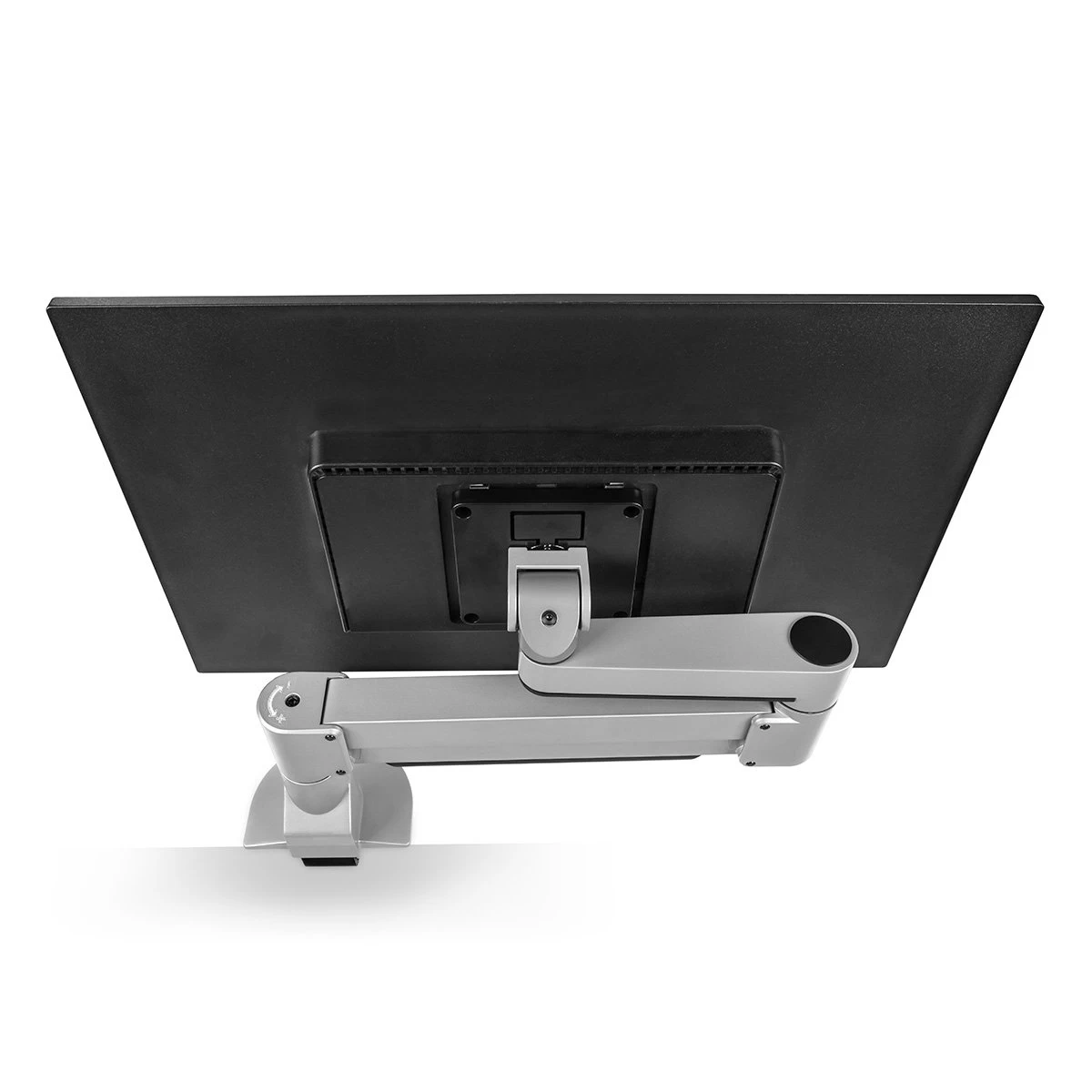

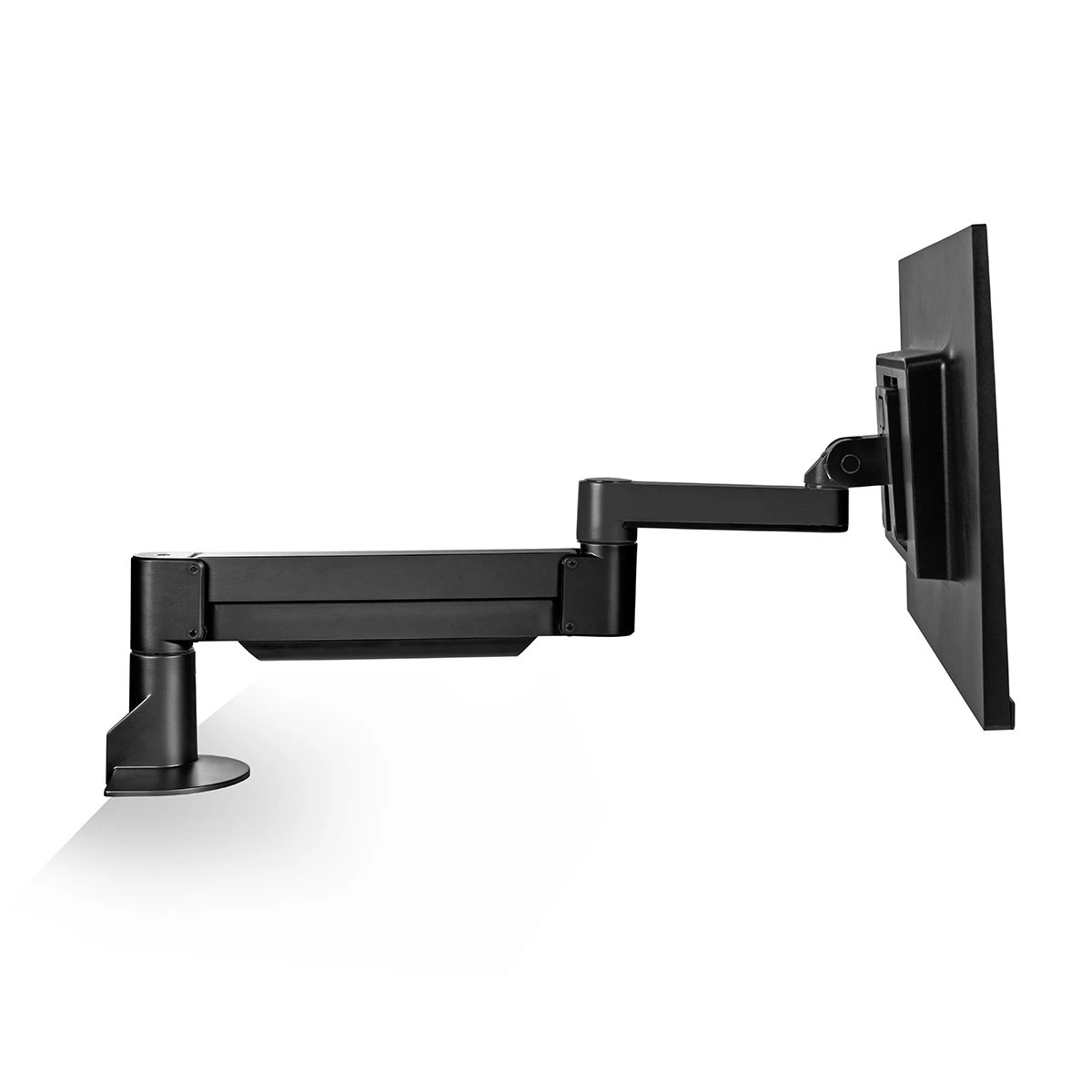

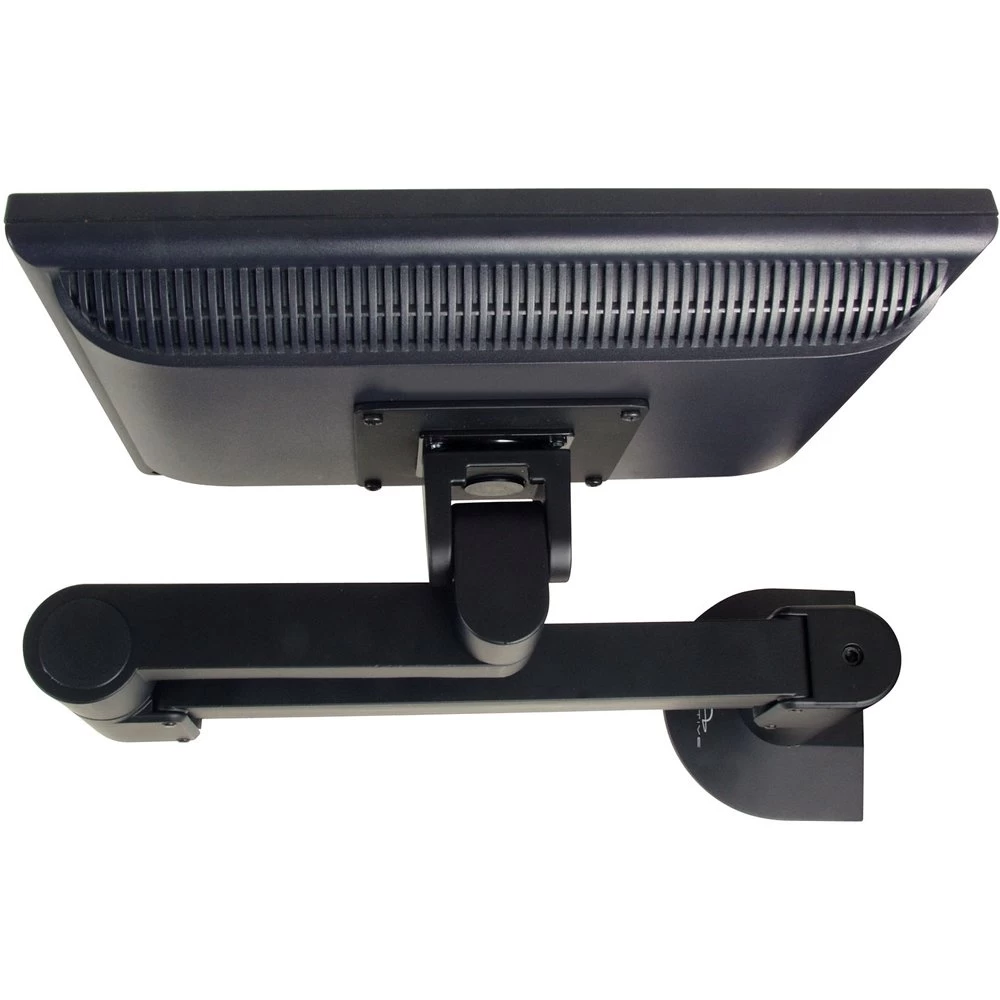

Innovative 7000 Flexible Flat Panel Radial Arm – 23.4″ Reach

The 7000 LCD Arm suspends your flat panel above your desk, allowing you to quickly change the position of the monitor with just one hand. Reclaim your desk top, while you work in greater ergonomic comfort.  A gas cylinder provides the counterbalance force, which provides a smooth and silent operation.

Please
note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

Tilter – A tilter is the part
of the adjustable monitor arm that attaches to the back of your monitor
and allows the monitor to rotate, pivot and tilt to desired
position.  This monitor arm is now available with Next Gen Tilter
8500. This new tilter apart from being slim and sleek has a quick release
bracket, which makes installation and release easy and fast. It has a 30
lb weight capacity. However please bear in mind that the Next Gen Tilter
8500 comes with 100mm VESA adapter unlike the earlier standard tilter
which comes with 75mm and 100mm adapter plate. If your monitor has only
75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your
needs.

8500 Quick Release Monitor Tilter

8336 Standard Monitor Tilter

Mount – Mount is the part
that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount,
Innovative 8524. It functions as a clamp or grommet mount for desk
installation and allows you to install the arm from above the desk without

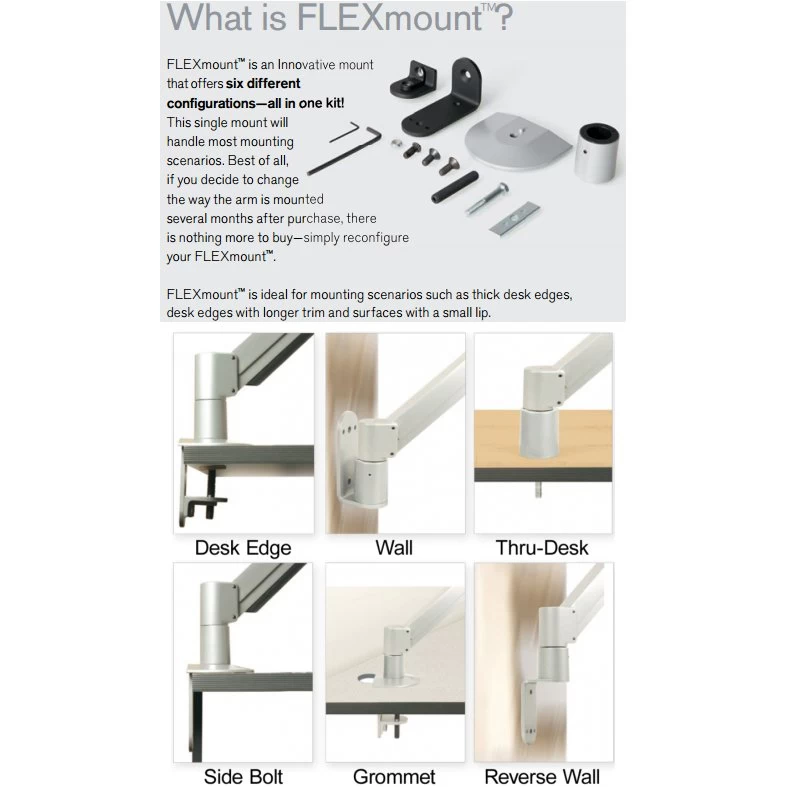

having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.


8524 Top Down Mount






Related Products

Part Number
7000-500-NM	Vertical range: 16″, Horizontal range: 23.4″, Weight range: 3 – 10 lbs, No Mount
7000-800-NM	Vertical range: 16″, Horizontal range: 23.4″, Weight range: 10 – 22 lbs, No Mount
7000-1000-NM	Vertical range: 16″, Horizontal range: 23.4″, Weight range: 13 – 28 lbs, No Mount

Technical Drawing

Technical Specifications

Color	104 – Vista Black, 124 – Silver and 248 – Flat White
Monitor Size	Up to 32″
Height Adjustment	16″ (+/- 8″ from horizontal)
Extension Range	23.4″
Monitor Pivot	Landscape / Portrait
Rotation	360 degrees at three joints
Monitor Tilt	200 degrees
Cable Management	Cables are concealed in arm
Mount Configurations	Top Down Mount & FlexMount among others
Standard VESA Compatibility	100 x 100mm, adapter included
Warranty	10 Years

Features

• 23.4″ of horizontal range

• 16″ of vertical range (8″ up and down from horizontal)

• Folds up to occupy just 3” of space

• Rotates 360 degrees at three joints

• Monitor tilter mechanism can tilt over 200 degrees

• VESA-monitor compatible – 100mm & 100mm VESA adapter included. Please call for non-VESA options

• Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details

• Optional 6″ extender tube available to raise monitor (see Extender Tubes under Available Accessories)
