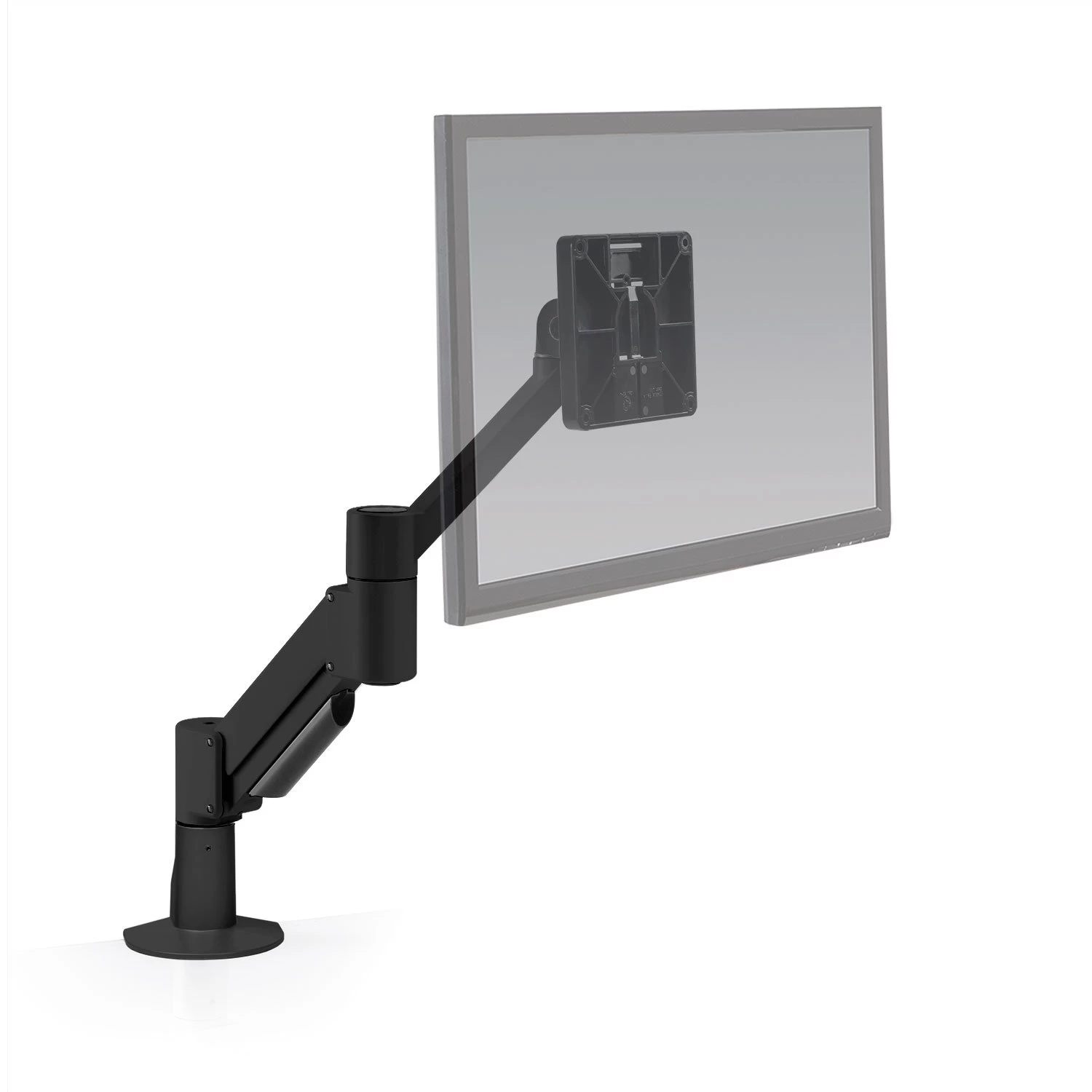

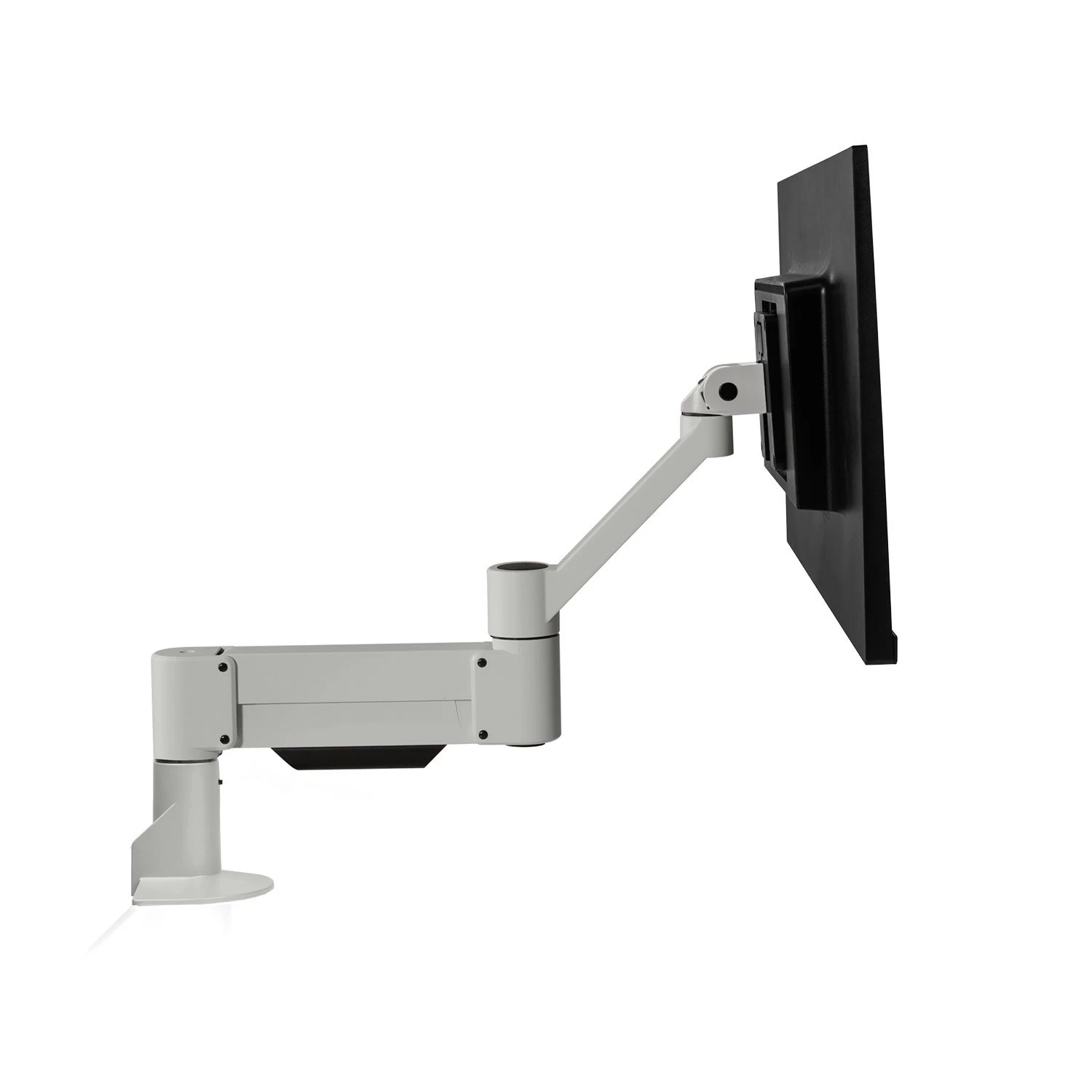

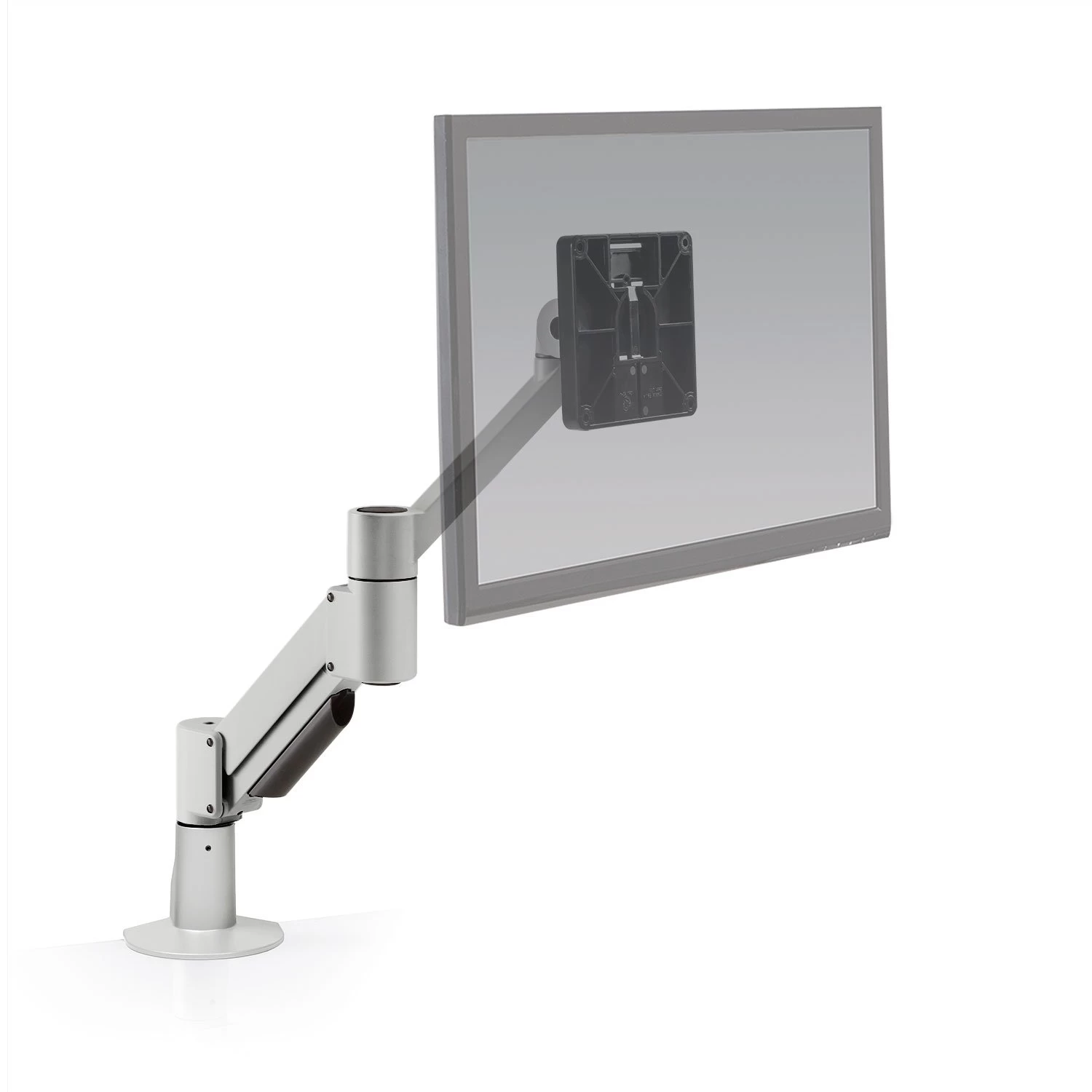

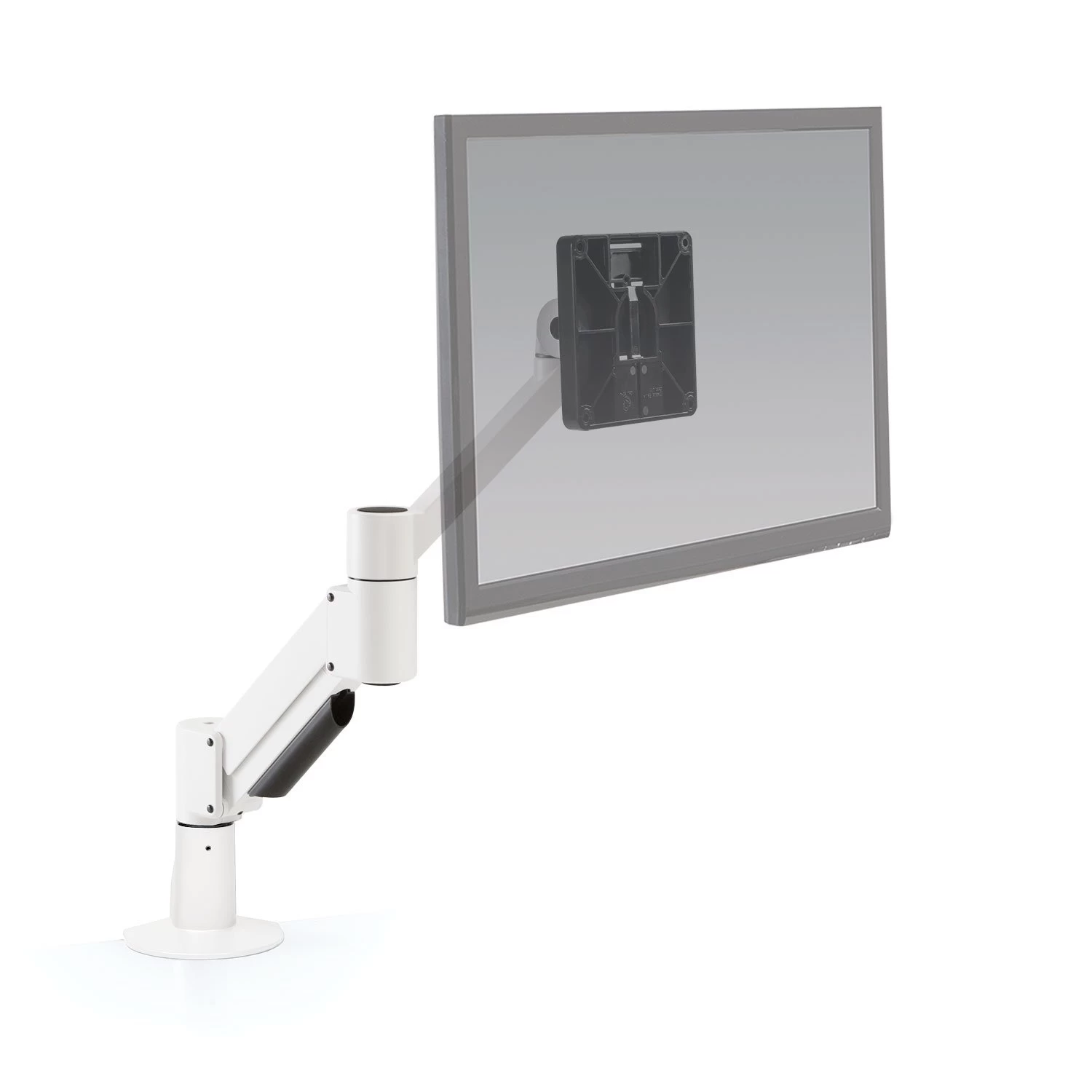

Innovative 3545 Short Reach Monitor Arm With Fixed 45° Forearm

Comparable to the 3500 monitor mount, Innovative 3545 short-reach
radial monitor arm offers a compact, space-saving design. The mount
features a fixed 45-degree forearm that provides additional vertical
reach. Users are able to quickly fold the monitor mount back and out of
the way when not in use.

Float your 20″+ flat panel monitor above the desk with this
short-reach radial monitor arm. Ideal for use in compact spaces while
maintaining ergonomic comfort.

Please
note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

Tilter – A tilter is the part
of the adjustable monitor arm that attaches to the back of your monitor
and allows the monitor to rotate, pivot and tilt to desired
position.  This monitor arm is now available with Next Gen Tilter
8500. This new tilter apart from being slim and sleek has a quick release
bracket, which makes installation and release easy and fast. It has a 30
lb weight capacity. However please bear in mind that the Next Gen Tilter
8500 comes with 100mm VESA adapter unlike the earlier standard tilter
which comes with 75mm and 100mm adapter plate. If your monitor has only
75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your
needs.

8500 Quick Release Monitor Tilter

8336 Standard Monitor Tilter

Mount – Mount is the part
that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount,
Innovative 8524. It functions as a clamp or grommet mount for desk
installation and allows you to install the arm from above the desk without
having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.


8524 Top Down Mount




Technical Drawing

Technical Specifications

Features

• FLEXmount with six mounting options is available

• The height-adjustable mount has a vertical adjustment range of
  9.5″, a horizontal range of 17.5″, and folds to occupy just 3″ of
  space

• Monitor tilter mechanism can tilt the flat panel monitor over
  200 degrees

• Flexible monitor arm rotates 360 degrees at three joints

• VESA-monitor compatible – 100mm VESA adapter included;
  please call for non-VESA options

• Optional upgrade to quick install/release monitor bracket;
  consult your sales rep for details

• Optional 6″ extender tube available to raise the monitor (see
  Extender Tubes under Accessories).
