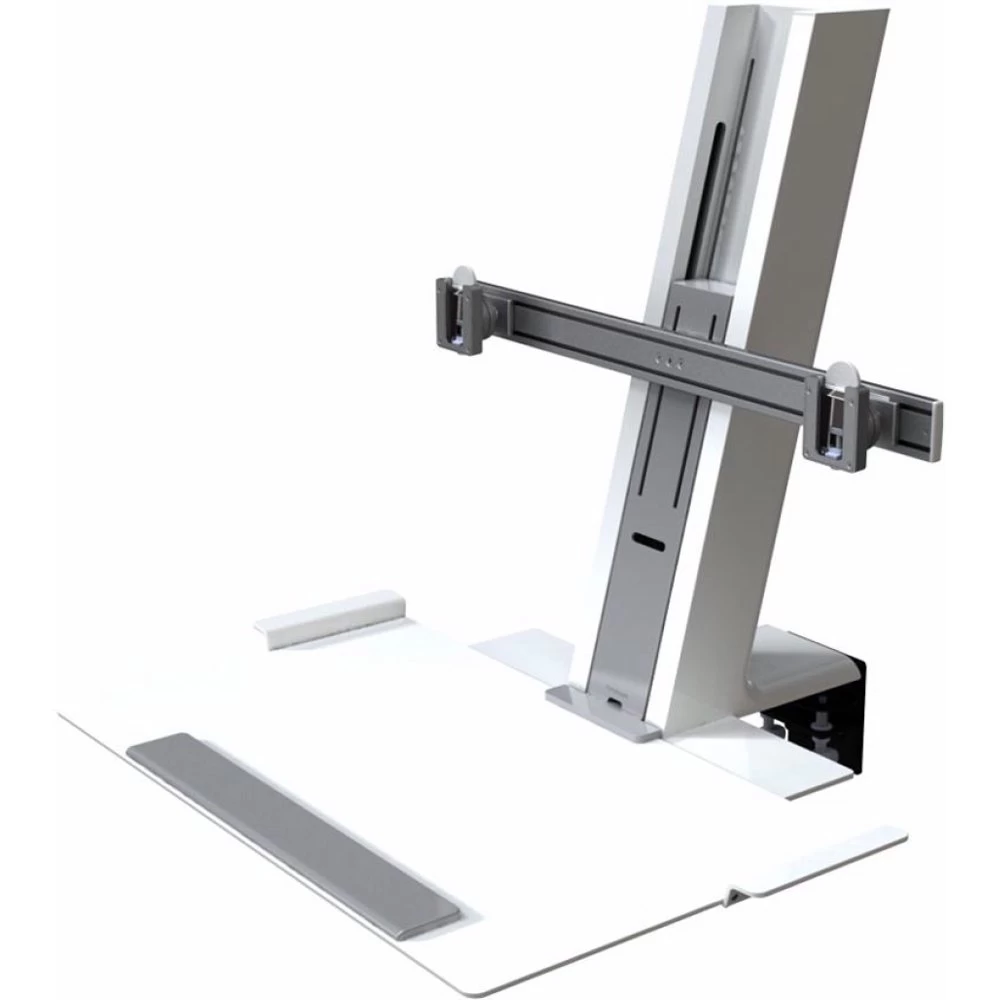

Humanscale QuickStand Heavy Dual Sit Stand Workstation

Sleek, sturdy and simple to use, QuickStand is the ultimate sit/stand
solution for new and existing workstations. Humanscale created QuickStand to
encourage users to be active and integrate movement into their days, which
is vital to health. For easy installation, QuickStand clamps to any
fixed-height work surface like a monitor arm. It is built with all the
cables the user needs to simply plug in and go, and these cables are
expertly managed for a clean aesthetic. And best of all, QuickStand doesn’t
compromise the user’s desktop, leaving space on either side for paper-based
work or other items.

A revolution for today’s workspaces, the QuickStand sit/stand workstation is
an intuitive solution created by the Humanscale Design Studio. It works by
clamping to any existing work surface, instantly transforming a static, or
“dumb,” desk into a smart one. Allowing the user to alternate effortlessly
between seated and standing postures, the QuickStand sit/stand workstation
promotes balanced movement throughout the day, and its clean aesthetic
complements any environment. Its sophisticated cable management system saves
valuable time by allowing users to simply plug in and go, while its sturdy
build makes it a reliable investment in employee health and wellness.

The Importance of Movement – Recent research suggests that sedentary
behavior can lead to significant health problems. But standing all day isn’t
the answer either, as it can cause discomfort and swelling in the legs and
feet. The best way to maintain wellness while working is to alternate
between sitting and standing postures and the QuickStand sit/stand
workstation encourages such movement.



Technical Drawing



Features

• Dynamic design allows QuickStand to clamp to any fixed-height work surface

• Adjustable platform enables the work surface to move effortlessly to the user’s
  desired height

• Stable build provides reliability to the user

• Elegant, clean aesthetic complements any environment

• Available in a number of configurations, including those with dual monitor
  requirements

• Able to accommodate nearly any application



Specifications

• Solid, stable product, Clean, visual aesthetic and Easy to operate

• Designed with a large platform that seamlessly blends into your work surface

• Cable harness pre-installed for easy plug in and go

• Fully integrated cable management

• Two USB outlets for keyboard/mouse

• 18″ (460 mm) platform height adjustment

• 5″ (127 mm) single/dual monitor display adjustment

• Work surface clamp has 6″ (150 mm) of horizontal adjustment for a 24″ (600 mm)
  up to 36″ (900 mm) deep surface

• Work surface clamp attaches to the back edge of a ½” (13 mm) up to 2¾” (70 mm)
  thick surface



Technical Specifications

Part Number	QSWL24/QSBL24	QSWL30/QSBL30	QSWC30/QSBC30
	Light Duty, Single Monitor, Small Platform	Light Duty, Single Monitor, Large Platform	Heavy Duty with Crossbar, Dual Monitors, Large Platform
Work Surface Size	24″ (600 mm) to 29″ (700 mm) Deep Work Surface	30″ (800 mm) to 36″ (900 mm) Deep Work Surface	30″ (800 mm) to 36″ (900 mm) Deep Work Surface
Color	White & Gray, Black & Gray	White & Gray, Black & Gray	White & Gray, Black & Gray
Package Contents	QuickStand Height-Adjustable Column Small Platform Integrated Cable Harness for One Monitor Palm Support Two-Piece Desk Clamp Tool Kit	QuickStand Height-Adjustable Column Large Platform Integrated Cable Harness for One Monitor Palm Support Two-Piece Desk Clamp Tool Kit	QuickStand Height-Adjustable Column Crossbar Large Platform Integrated Cable Harness for Two Monitors Palm Support Two-Piece Desk Clamp Tool Kit
Clamp Options	Two-Piece Desk Clamp for ½” (13mm) up to 2¾” (70 mm) Thick Work Surfaces	Two-Piece Desk Clamp for ½” (13mm) up to 2¾” (70 mm) Thick Work Surfaces	Two-Piece Desk Clamp for ½” (13mm) up to 2¾” (70 mm) Thick Work Surfaces
Platform Size	28″ (710 mm) Wide x 11″ (280 mm) Deep	28″ (710 mm) Wide x 17″ (430 mm) Deep	28″ (710 mm) Wide x 17″ (430 mm) Deep
Installed Cable Harness	1 x IEC C13 Power Cord 3 m Length 1 x DVI-DUAL Link Cable 3 m Length 2 x USB 2.0 Cable 2 m Length	1 x IEC C13 Power Cord 3 m Length 1 x DVI-DUAL Link Cable 3 m Length 2 x USB 2.0 Cable 2 m Length	2 x IEC C13 Power Cord 3 m Length 2 x DVI-DUAL Link Cable 3 m Length 2 x USB 2.0 Cable 2 m Length
Weight Capacity	Monitor Mount Weight – Minimum 4 lbs. (1.8 kg) to Maximum 11 lbs. (5 kg). Maximum Load on QuickStand Assembly – 25 lbs. (11.3 kg). Includes: Monitor Weight and Platform Contents	Monitor Mount Weight – Minimum 4 lbs. (1.8 kg) to Maximum 11 lbs. (5 kg). Maximum Load on QuickStand Assembly – 25 lbs. (11.3 kg). Includes: Monitor Weight and Platform Contents	Each Monitor Mount Weight – Minimum 4 lbs. (1.8 kg) to Maximum 11 lbs. (5 kg) Maximum Load on QuickStand Assembly – 25 lbs. (11.3 kg). Includes: Monitor Weight, Crossbar and Platform Contents
Height Adjustment	18″ (460 mm) Platform Height Adjustment 5″ (127 mm) Single/Dual Monitor Adjustment 23″ (585 mm) Maximum Height Adjustment	18″ (460 mm) Platform Height Adjustment 5″ (127 mm) Single/Dual Monitor Adjustment 23″ (585 mm) Maximum Height Adjustment	18″ (460 mm) Platform Height Adjustment 5″ (127 mm) Single/Dual Monitor Adjustment 23″ (585 mm) Maximum Height Adjustment
Display Size	≤ 24″	≤ 24″	≤ 24″
Display Tilt	+15°, -5°	+15°, -5°	+15°, -5°
Display Pan	Not Available	Not Available	+/- 15°
Display Rotation	180° Landscape to Portrait Display Rotation	180° Landscape to Portrait Display Rotation	180° Landscape to Portrait Display Rotation
VESA	VESA Compliant	VESA Compliant	VESA Compliant
Shipping Dimensions	38.5″ (1000 mm) Wide x 11.5″ (300 mm) Deep x 21.5″ (550 mm) High	38.5″ (1000 mm) Wide x 11.5″ (300 mm) Deep x 21.5″ (550 mm) High	38.5″ (1000 mm) Wide x 11.5″ (300 mm) Deep x 21.5″ (550 mm) High
Shipping Weight	57 lbs. (26 kg)	57 lbs. (26 kg)	60 lbs. (27 kg)
Warranty	5 years, 24/7	5 years, 24/7	5 years, 24/7



Package Contents

• Each QuickStand is shipped with the required tools to install and setup the product



Desk Clamp Options

• Two-piece clamp for clamping to the back of work surfaces
• Two-piece clamp will fit through the following size grommet hole: 4.5” (115 mm) Wide x 1” (25.5 mm) Deep
• No through work surface installation option



3 Installed Cable Harness

• Length of power cord and DVI cables running from the back of QuickStand: 48″ (1220 mm)
• Length of USB cables running from the back of QuickStand: 36″ (915 mm)
• Length of power cord and DVI cables running from the front of QuickStand: 16″ (400 mm)
• Power cord will be different depending on country of sale



4 Typical Monitor Display Size

• Monitor display size is an approximation. The dimension is a diagonal measurement of screen. Monitor display size may be exceeded as long as weight does not exceed maximum monitor mount weight capacity.
