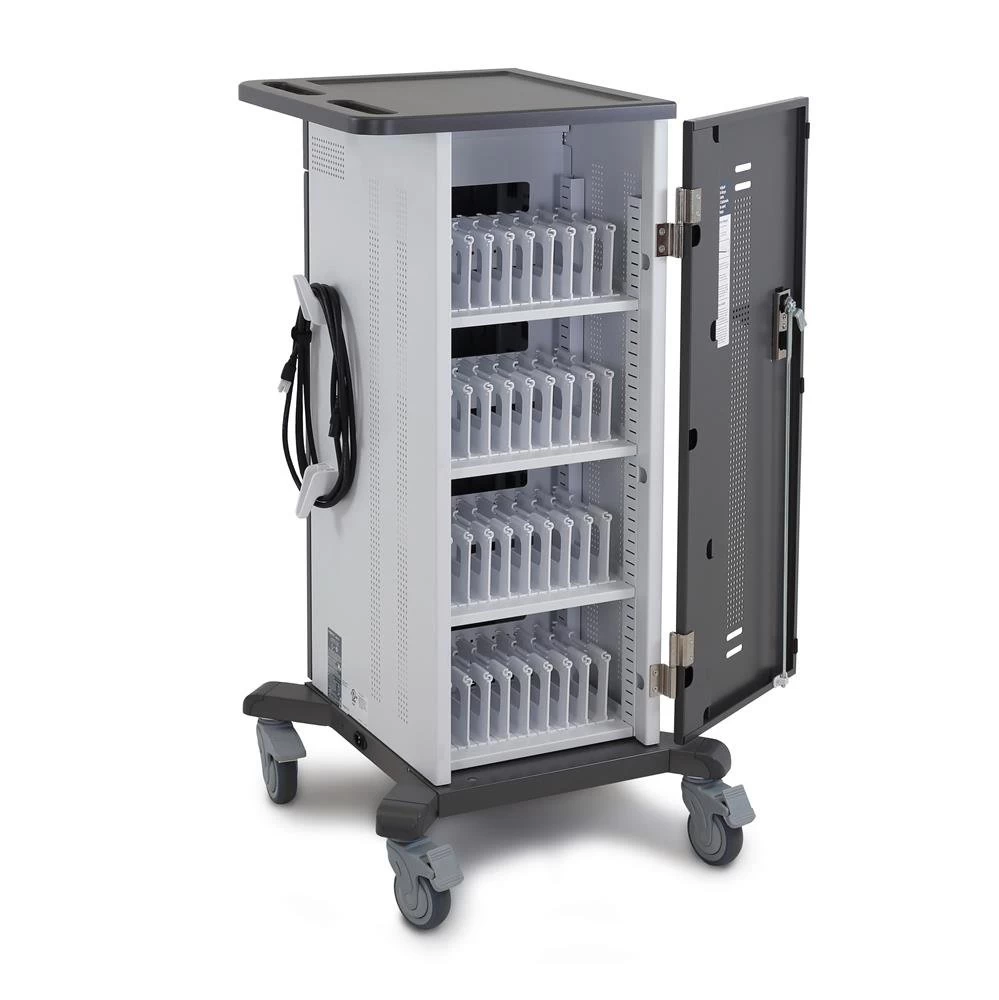

Charge up to 40 tablets, smartphones or e-readers in Ergotron
YES40-TAB-1 customizable charging cart. It offers a no-tip,
easy-to-maneuver design that stores and transports your devices even in
tight education spaces. Sturdy doors keep your devices secure and remove
for quick access. Adjust the bay width and shelf height for your
technology in this durable cart that lasts.
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 10″ | Up to 3.5 lbs 1.6 kg | – | – | – | – | – |
Product Information
| Part Number (color) | YES40-TAB-1 |
| YES40 Tablet Charging Cart | |
| Included |
|
| Total Capacity | Up to 40 devices with .87″-wide (2 cm) bays; up to 32 devices with 1.25″-wide (3 cm) bays. Adjustable bay dividers install at any width in 1/3″ (.8 cm) increments along each shelf’s 12″-long (30 cm) installation track, supporting devices of any thickness |
| Before Charging | It is recommended that devices be powered off |
| Maximum Device Width/Height | 10.5″ x 8″ (26.6 x 20.3 cm), including case and cord, when cart is configured to hold 32 or 40 devices |
| Weight Capacity | 28 lbs (12.7 kg) per shelf (4 shelves total in cart). Per device maximum weight of 3.5 lbs (1.6 kg) assumes 8 devices per shelf in a cart configured to hold 32 devices in total |
| Compatible | With Apple’s eighth-generation iPad |
| Ships | Fully assembled with shelves arranged for landscape storage, configured for 32 devices with 1.25″ (3 cm) wide bays; comes with 8 additional bay dividers to configure cart to hold 40 units |
| Footprint | Small footprint, just 24″ (61 cm) square, tucks into any corner and rolls down narrow aisles with ease |
| Adjustable Shelves | Adjustable shelves install at any height in 2/3″ (1.7 cm) increments along the 31″-high (79 cm) installation track. Store devices on their long side, in landscape orientation, or on their short side, in portrait orientation, as dictated by device size and the position of the power inlet and on/off button |
| Keyed Locks | Keyed locks front and back engage a two-point locking system for security. Brackets can position your padlock to block access to the front and back latches for extra security |
| Locking IT Area | Locking IT area in back provides a pegboard center panel that holds cable clips to organize cord bundles |

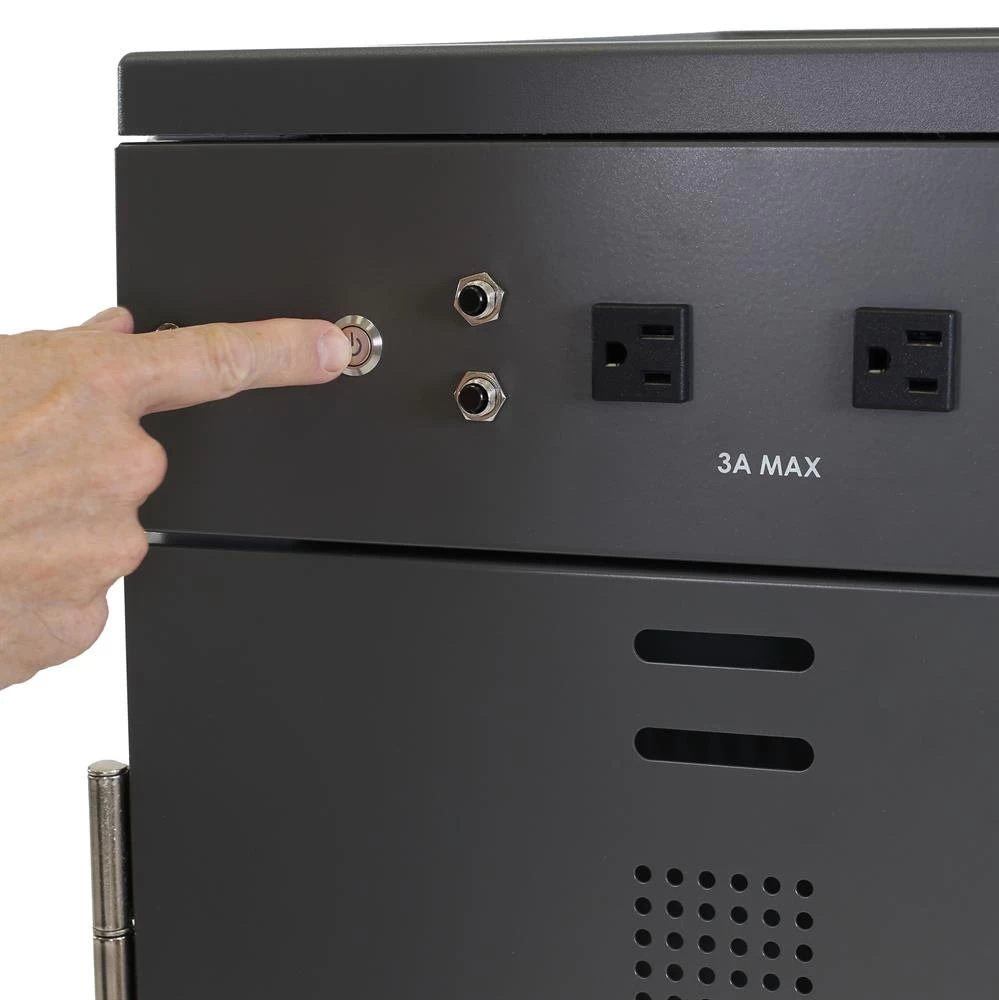

| Interface Panel | Interface panel above the IT area has two external outlets to power your peripherals plus the on/off switch and indicator light |
| Single Front Door | Single front door opens 270 degrees so door lays flush against the side of the cart when open |
| Locking Casters | Heavy-duty locking casters move smoothly over rough surfaces |
| Wide Handle | Two 5″-wide (13 cm) handle grips sit at a comfortable 40″ (100 cm) height and makes the cart easy to steer |
| Comfort Edge Top Surface | The comfort edge top surface has a lip to prevent items from rolling off |
| Made with | 14- and 16-guage steel with durable baked-on powder coat finish |
| Certified and Listed | Certified and listed to UL 62368-1 and CSA 22.2- 62368-1 for Safety of Information Technology Equipment |
| Product Dimensions | 24.5″ x 46″ x 23.75″ (62 x 117 x 60 cm) |
| Product Weight | 147.9 lbs |
| Shipping Dimensions | 29.5″ x 30.7″ x 48.4″ (75 x 78 x 123 cm) |
| Shipping Weight | 191.9 lbs |
| Warranty | Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables |
Benefits
-
Adjustable rows & dividers – Fits up to 40 tablets,
smartphones or e-readers -
Customizable & configurable – Pop-N-Go Bays: Just pop them
out and then position them at any width -
Lightweight design – Easily moves through small areas with
heavy-duty locking casters -
Secure storage – Removable, locking door keeps devices secure
-
Fast charging – Uses patented PowerShuttle Technology to support safe and fast charging
-
Fully assembled – Just plug it in to start charging – saving you time and hassle
| Model | YES40-TAB-1 |
| Manufacturer | Ergotron |
| Part Number | YES40-TAB-1 |
| Color | White/grey |
| Screen Size | Up to 10 in |
| Maximum Device Size | Width/Height: 10.5″ x 8″ (26.6 x 20.3 cm), including case and cord, when cart is configured to hold 32 or 40 devices |
| Weight Capacity | 28 lbs (12.7 kg) per shelf (4 shelves total in cart). Per device maximum weight of 3.5 lbs (1.6 kg) assumes 8 devices per shelf in a cart configured to hold 32 devices in total |
| Dimensions | 24.5″ x 46″ x 23.75″ (62 x 117 x 60 cm) |
| Weight | 147.9 lbs |
| Shipping Dimensions | 29.5″ x 30.7″ x 48.4″ (75 x 78 x 123 cm) |
| Shipping Weight | 191.9 lbs |
| Warranty | Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables |
