Ergotron SV43-13A0-0 StyleView Cart With LCD Pivot, 2 Drawers

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24″

16.8 kg

63 cm

24°

90°

MIS-D

Part Number

SV43-13A0-0

StyleView Cart with LCD Pivot, non-powered, 2 Drawers (2
medium drawers x 1 row)

Includes

• LCD pivot
• Primary double drawer
• Drawer dividers
• Worksurface
• CPU lock
• Secure CPU compartment
• Four-port USB hub

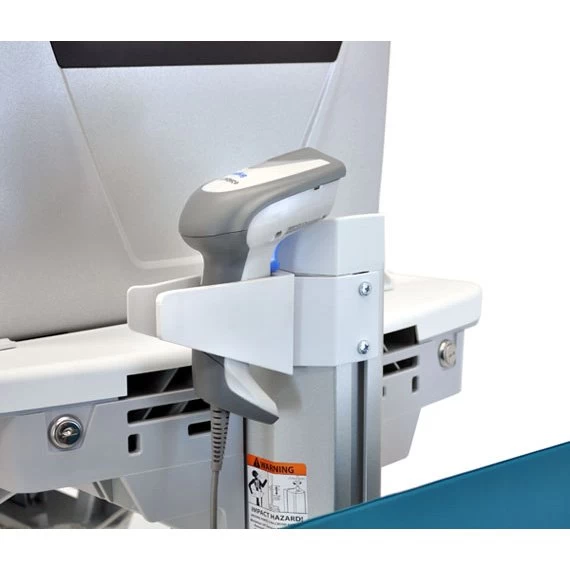

• Scanner holder bracket
• Mouse holder
• Wrist rest

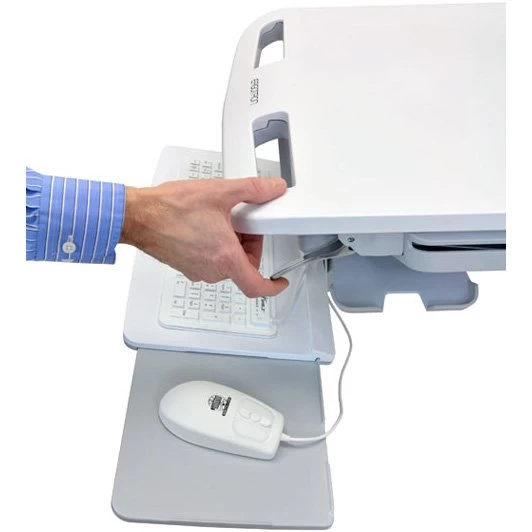

• Back-tilt keyboard tray
• Left/right mouse tray
• Rear handle
• Storage basket
• Cable storage
• Four casters (two locking)
• StyleLink software

Total Maximum Load on Height-Adjustment Assembly

37 lbs (16.8 kg). This is the sum of the following
components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface ≤ 5
lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13
lbs (5.9 kg); medium drawer ≤ 1 lbs (.5 kg)

Note

• Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers – contact Ergotron for details
• If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface

Adjust 20″ (51 cm) in tandem; LCD Pivot adjusts 5″ (13 cm)
independently; maximum LCD height adjustment = 25″ (63 cm)

Portrait Screen Orientation

May be incompatible with widescreen displays > 19″

Cart

• Cart may be fitted with up to five rows of standard-height drawers. Vertical adjustment range is affected by the number of drawer rows: 0–2 rows = 20″ (51 cm); 3 rows = 16″ (41 cm); 4 rows = 12″ (30 cm); 5 rows = 8″ (20 cm)
• Cart may be fitted with up to three rows of tall drawers

True Ergonomics

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry – avoid repetitive-stress injuries while increasing comfort and productivity
• Designed for users 5’0″ to 6’1″ (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
• Actual cart weight is just 79 lbs (35.8 kg), making system relocation easy

Safe

• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• Large, smooth worksurface; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
• Front-locking casters
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

Service

• Covered by Global Service Program – 24/7 coverage
• Includes free StyleLink software with enterprise capabilities for drawer management reporting

All the Details Covered

• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
• Button for LED lights is located conveniently on worksurface
• Rear basket keeps task-related items where they can be quickly accessed
• Universal mounting slot for accessories and equipment
• Ships fully assembled

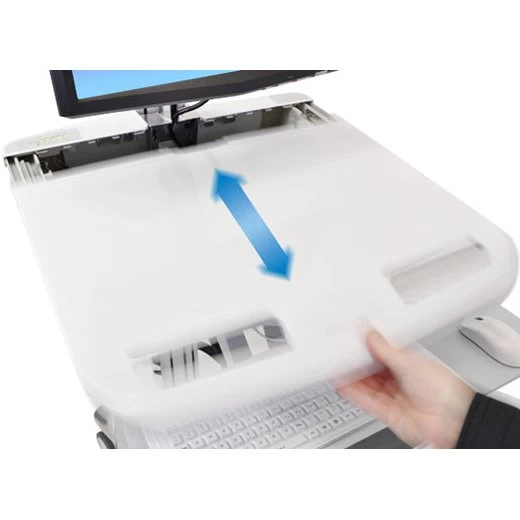

• Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
• Four-port USB hub

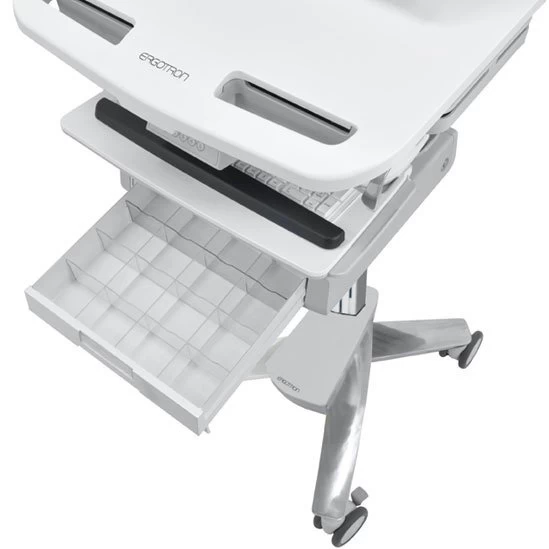

• Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
• Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions

• Internal Dimensions: medium drawer = 2.5″H x 5.5″W x 10.5″D (63.5 x 140 x 267 mm) – includes dividers to configure up to 4 compartments
• Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3″ diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
• Storage compartment for closed notebook, thin client or CPU: 17.75″W x 14.75″D x 4″H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

Compact Wheel-to-Wheel Base Dimensions

17″ x 21″ (430 x 533 mm)

Worksurface Dimensions

22.4″W x 19.75″D (567 x 502 mm)

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x
75 mm)

Shipping Dimensions

53″D x 34″W x 36″H (135 x 89 x 91 cm)

Shipping Weight

105 lbs (47.6 kg); actual cart weight = 79 lbs (35.8 kg)

Warranty

Five (5) years
