Stay productive and on the go with our certified power system.

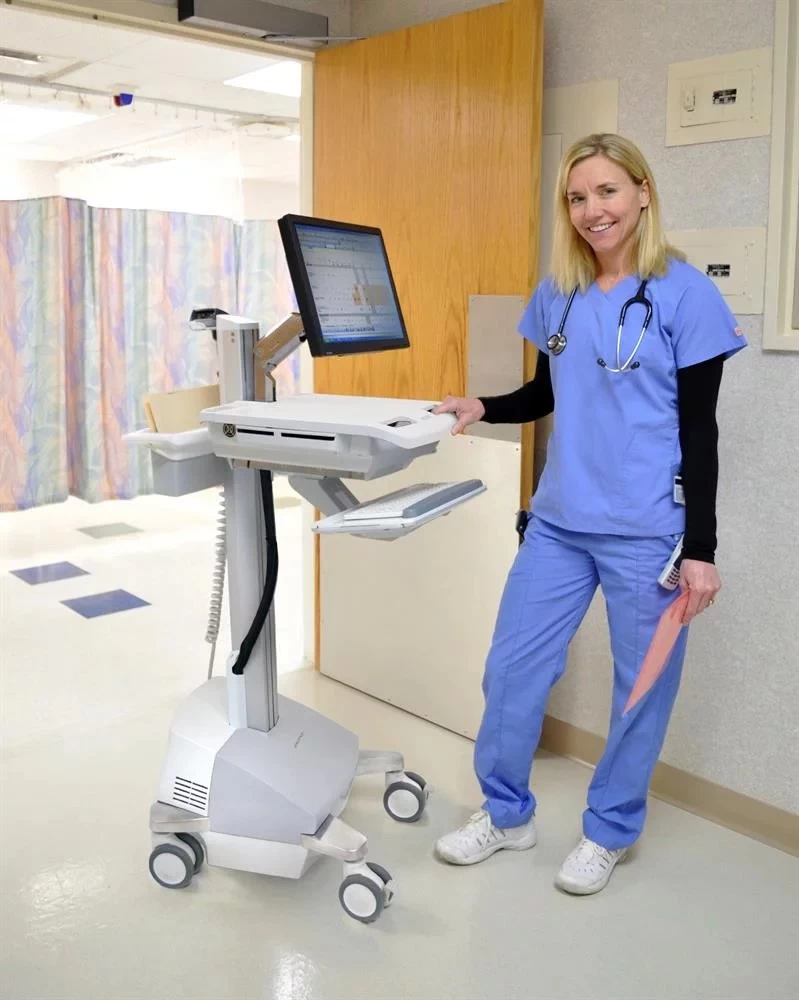

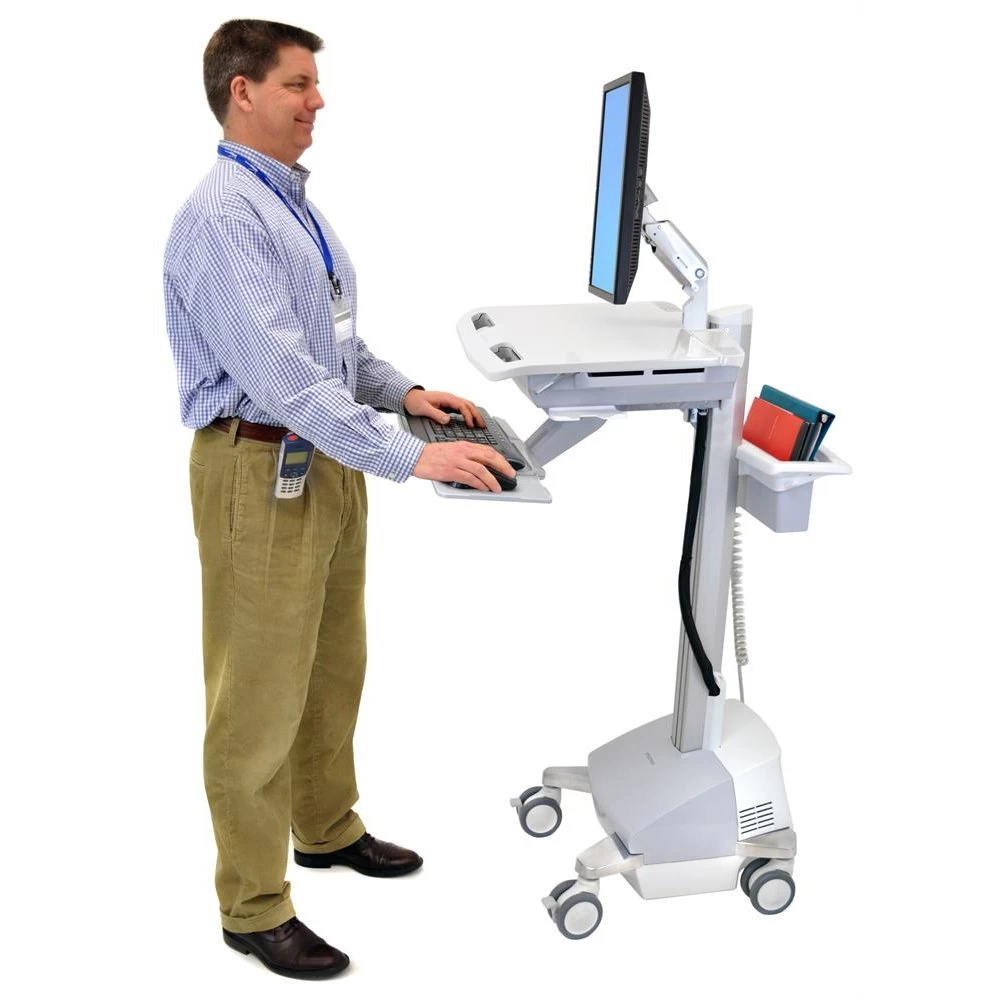

Ergotron SV42-6201-1 innovative, truly ergonomic and easy-to-maneuver
healthcare cart features sit-to-stand height adjustment, independent

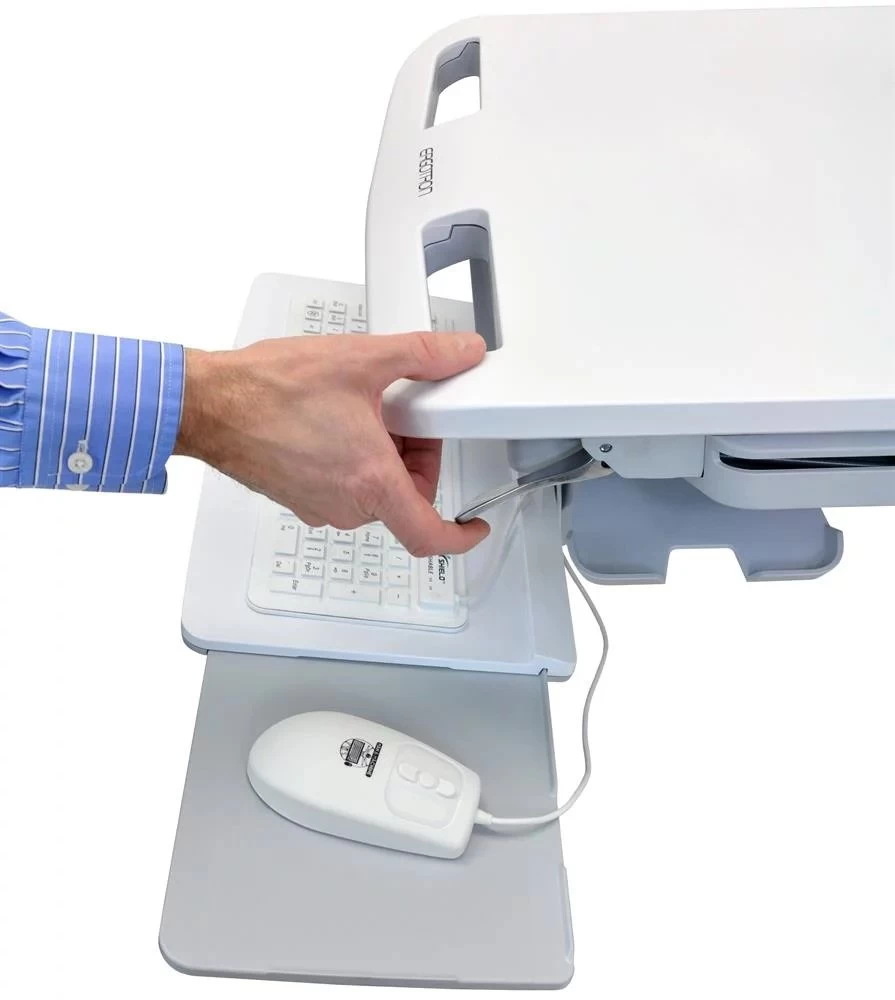

screen positioning and an adjustable back-tilt keyboard tray.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 24″ | Up to 35 lbs 15.9 kg | 27″ 68.6 cm | 65° | 180° | 360° | MIS-D |
Product Information
| Part Numbers |
|
| StyleView LCD Cart, SLA Powered, Arm (no drawers) | |
| TAA | (Trade Agreements Act) compliant |
| Includes |
|
| Total Maximum Load on Height Adjustment Assembly | 35 lbs (15.9 kg). This is the sum of the following components: LCD arm = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg) |
| Note | If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately) |

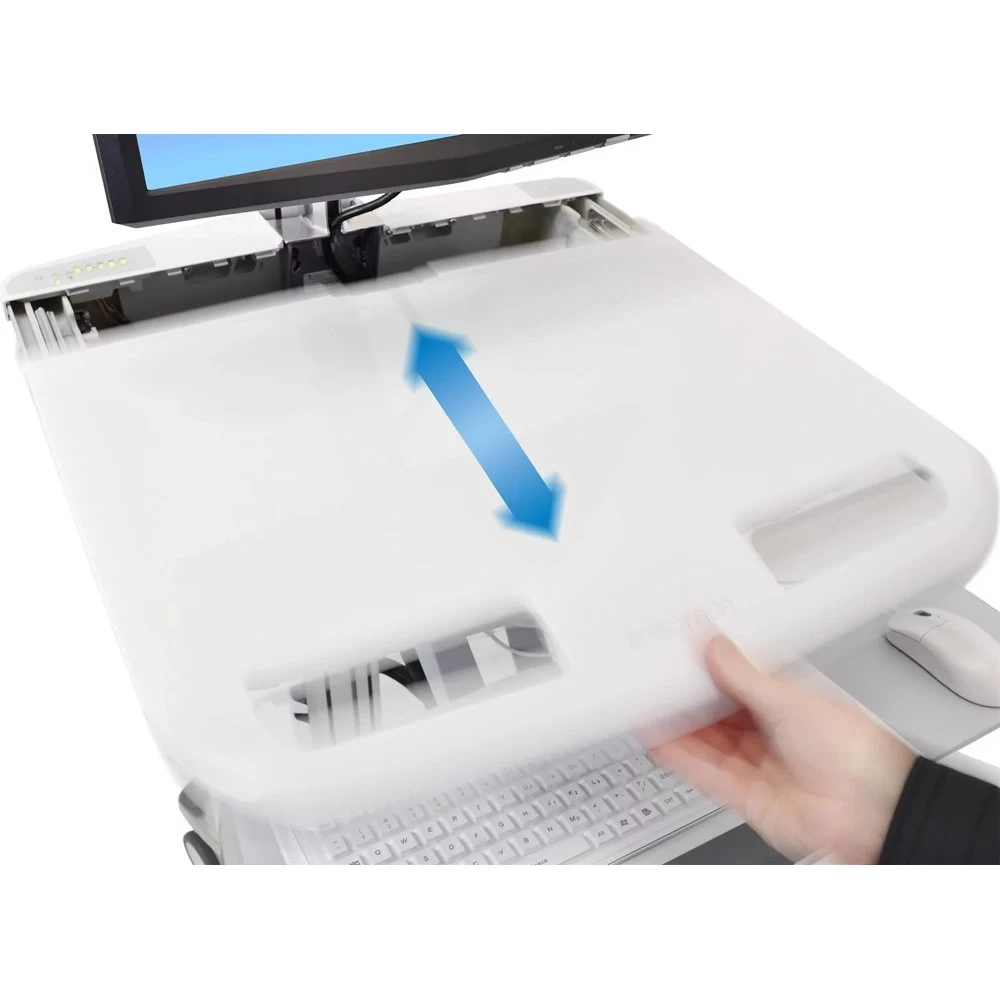

| LCD and Worksurface | LCD and worksurface adjust 20″ (51 cm) in tandem; LCD Arm adjusts 7″ (17 cm) independently; maximum LCD height adjustment = 27″ (68 cm) |
| Monitor Up/Down Tilt | +60°/-5° |
| Portrait Screen Orientation | Portrait screen orientation may be incompatible with widescreen displays > 19″ |
| True Ergonomics |
|
| Safe |
|
| Service |
|
| All the Details Covered |
|
| Compatibility and Dimensions |
|
| Recommendation | It is recommended that a discharge test be conducted when cart is first purchased to determine runtime with computer equipment configured on the cart. Change batteries when instructed by StyleLink battery management software. If StyleLink is not used, it is strongly recommended a monthly discharge test be conducted to determine runtime loss. If runtime is less than 50% of original, batteries must be changed |
| Shipping Dimensions | 56.5″H x 34″W x 24.5″D (144 x 86 x 62 cm) |
| Shipping Weight | 162 lbs (73.5 kg); actual cart weight = 129 lbs (58.5 kg) |
| Warranty | Five (5) years for cart’s mechanical components, two (2) years on power module |
Benefits
-
Effortlessly maneuver the cart to the point of need – StyleView
quickly responds to caregivers’ touch and enables nurses to focus on
their patients -
Truly ergonomic design accommodates the largest range of nurses
and other caregivers; designed for sitting or standing with
single-motion fluid adjustment – helps promote caregiver wellness and
productivity -

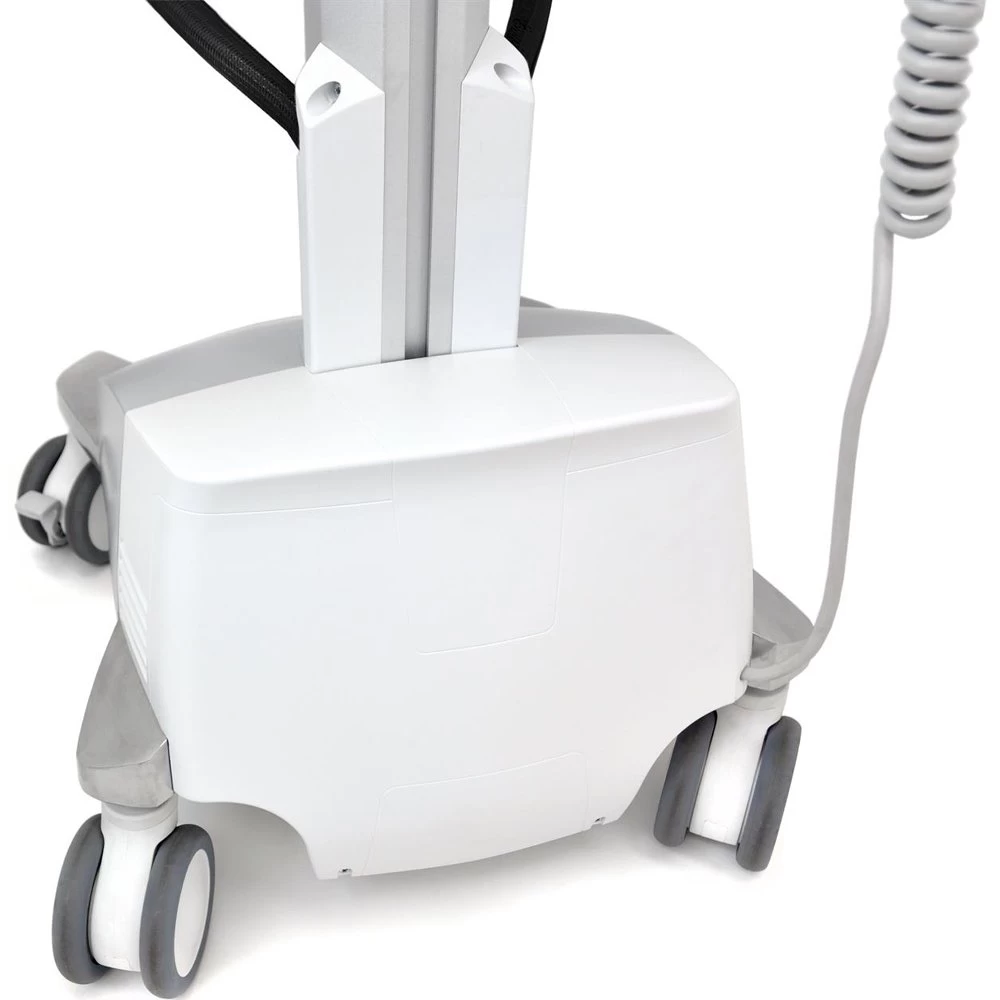

StyleView’s small footprint, with ultra-smooth gliding casters,
travels easily across crowded carpet or hard surface floors and is
perfect for space constrained areas -
Open-architecture design accommodates multiple configurations:
closed notebooks with monitor, CPU and monitor, thin clients, tablets,
all-in-one computers and future hardware upgrades -
Surfaces are treated with antimicrobial for product protection
-

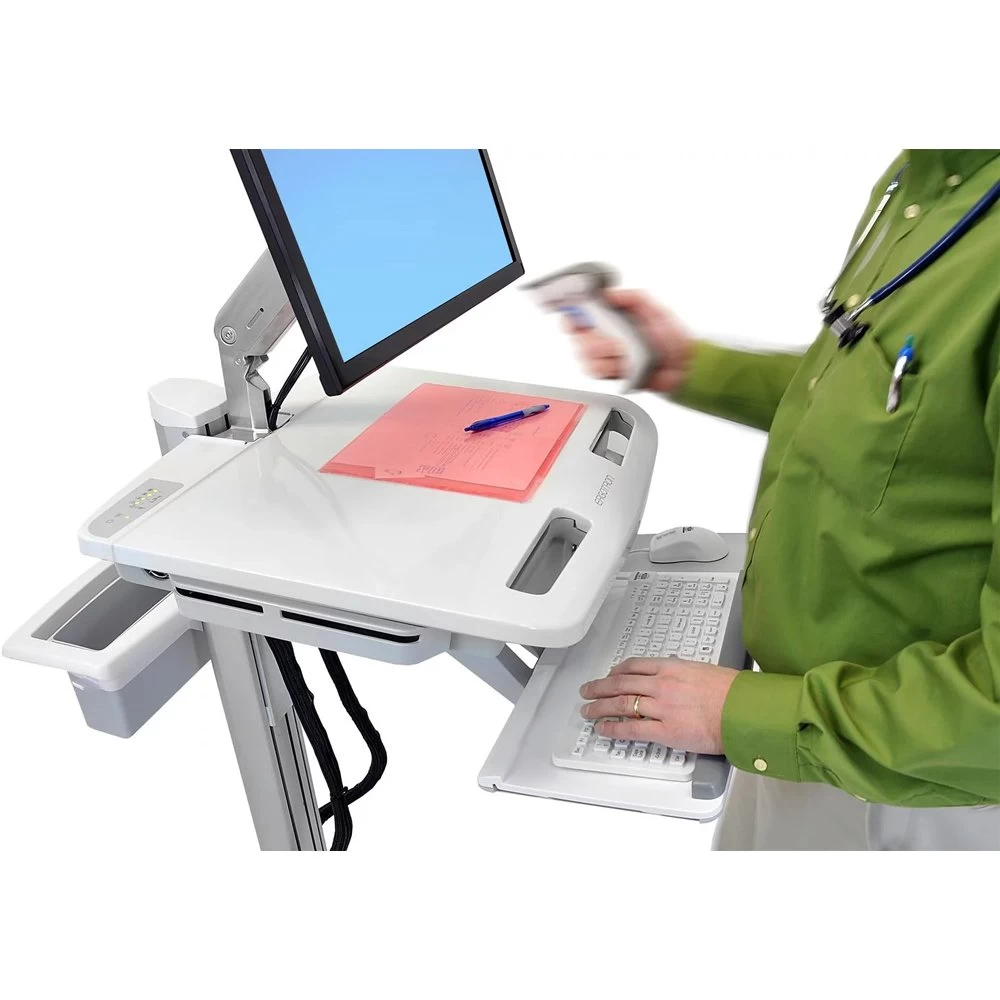

LCD and keyboard pan side-to-side for closer access while
interacting with clients; arm also reaches low for people wearing
bifocals or using a tablet PC -

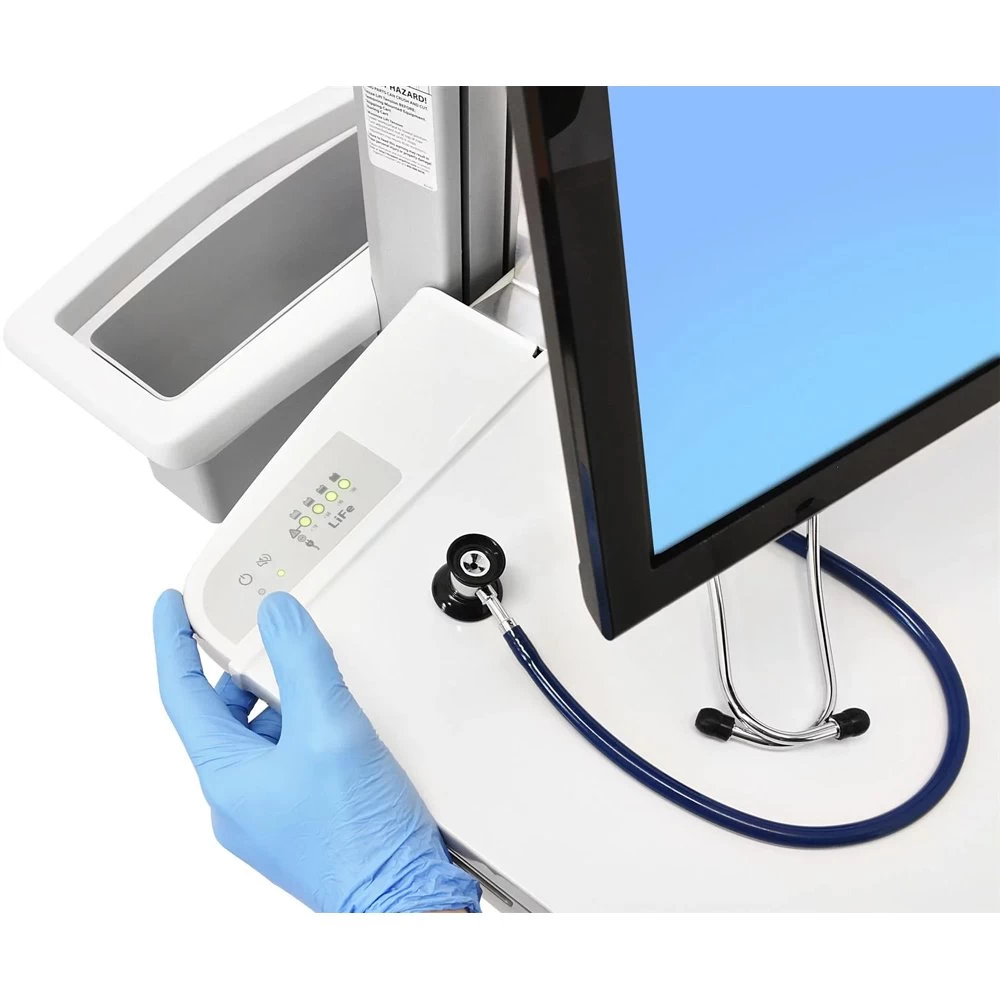

Dependable fifth-generation power system with easy to replace
batteries. For patient and caregiver safety the full cart and power
system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1
M90, as well as NFPA leakage current limits -
Passes Ergotron’s 10,000-cycle motion test, which ensures a
minimum of five years trouble-free sit-to-stand height adjustment
| Model | SV42-6201-1 |
| Manufacturer | Ergotron |
| Part Number | SV42-6201-1 |
| UPC | 698833022759 |
| Weight | lb(s) |
| Color | White, Grey and Polished Aluminum |
| Screen Size | 24″-30″ in |
| Weight Capacity | 35 lbs (15.9 kg). This is the sum of the following components: LCD arm = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg) |
| Lift | (68.6 cm) 27 in |
| Pan | 180 degree |
| Rotation | 360 degree |
| VESA | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Tilt | +60 degree/-5 degree |
| Compact Wheel to Wheel Base Dimensions | 15.5″ x 17″ (394 x 432 mm) |
| Worksurface Dimensions | 22.4″W x 19.75″D (567 x 502 mm) |
| Shipping Dimensions | 56.5″H x 34″W x 24.5″D (144 x 86 x 62 cm) |
| Shipping Weight | 162 lbs (73.5 kg) |
| Cart Weight | 129 lbs (58.5 kg) |
| Warranty | Five (5) years for cart’s mechanical components, two (2) years on power module |
| Product Type | LCD Monitor |
| Product Type | Tablet |
| Power Type | SLA |
| Display Type | 1 Monitor |
| Lift Technology | Constant Force |
| TAA Compliant | Yes |
