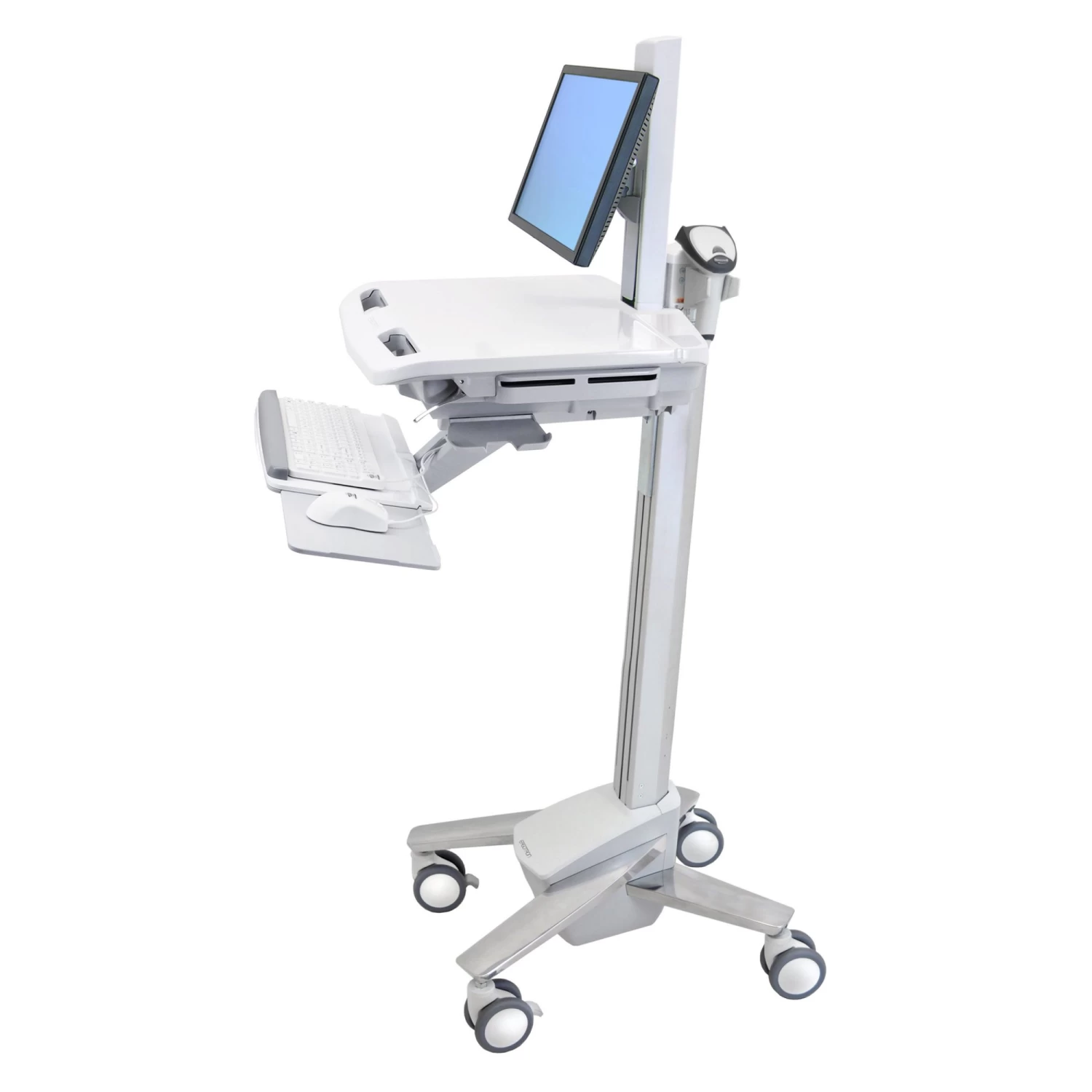

Ergotron SV40-6300-0 innovative, truly ergonomic and easy-to-maneuver
medical cart features sit-to-stand height adjustment, independent screen

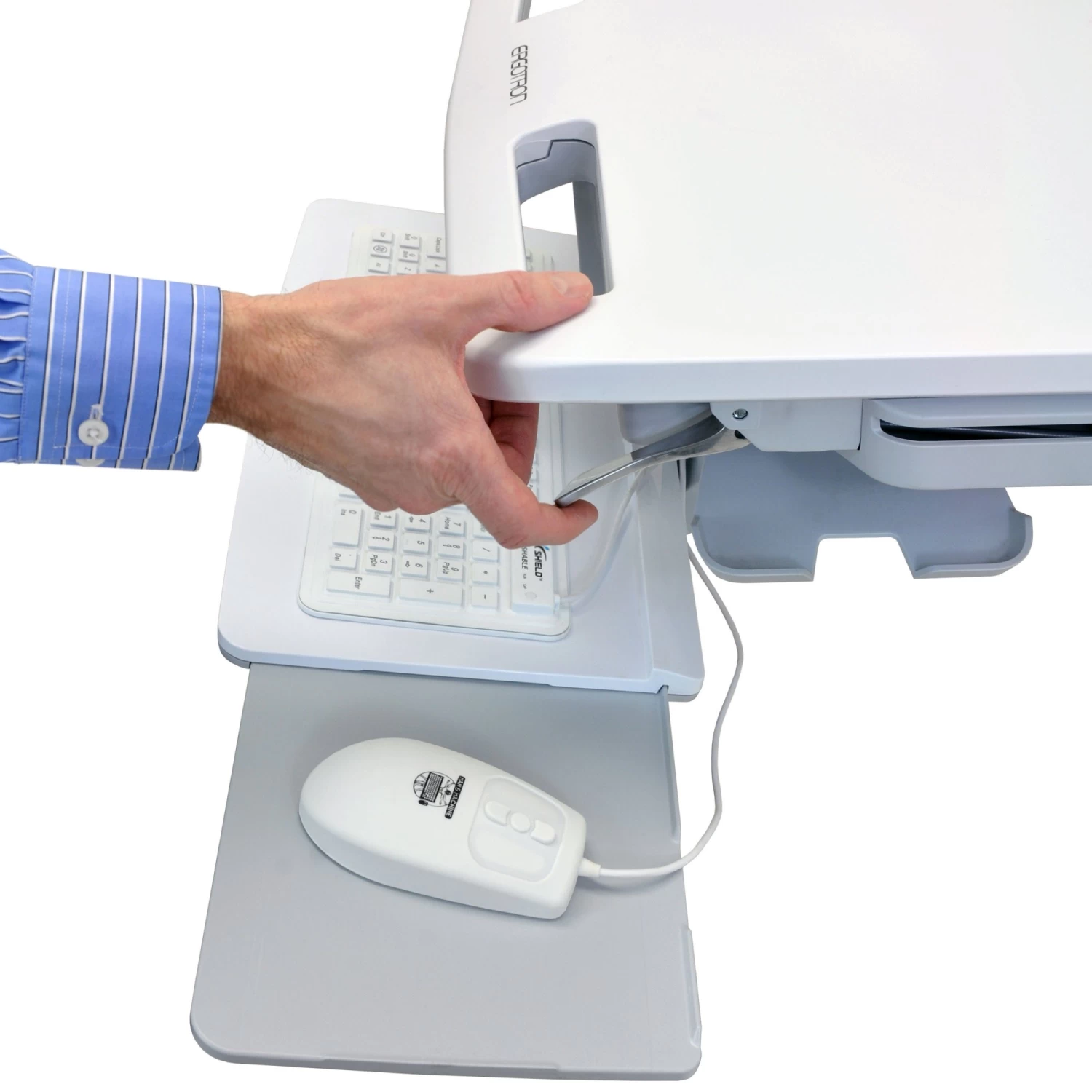

positioning, side-to-side keyboard motion and an adjustable back-tilt
keyboard tray.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 24″ | Up to 35 lbs 15.9 kg | 25″ 63.5 cm | 25° | 24° | 90° | MIS-D |
Product Information
| Part Numbers | SV40-6300-0 |
| StyleView LCD Cart, non-powered SV40, pivot (white, grey and polished aluminum) | |
| Includes |
|
| Total Maximum Load on Height Adjustment Assembly | 35 lbs (15.9 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg); optional drawers = 7 lbs (3.2 kg) each |
| Note |
|
| LCD and Worksurface | LCD and worksurface adjust 20″ (51 cm) in tandem; LCD Pivot adjusts 5″ (13 cm) independently; maximum LCD height adjustment = 25″ (63 cm) |
| Portrait Screen Orientation | Portrait screen orientation may be incompatible with widescreen displays > 19″ |
| True Ergonomics |
|
| Safe |
|
| Service |
|
| All the Details Covered |
|
| Compatibility and Dimensions |
|
| Shipping Dimensions | 53″D x 34″W x 36″H (135 x 89 x 91 cm) |
| Shipping Weight | 83 lbs (38 kg); actual cart weight = 54 lbs (24.5 kg) |
| Warranty | Five (5) years |
| Model | SV40-6300-0 |
| Manufacturer | Ergotron |
| Part Number | SV40-6300-0 |
| UPC | 698833039733 |
| Weight | lb(s) |
| Color | White, grey and polished aluminum |
| Monitor Size | Up to 24″ |
| Weight Capacity | Up to 35 lbs (15.9 kg) |
| Lift | (63.5 cm) 25 in |
| Tilt | 25 degree |
| Pan | 24 degree |
| Rotation | 90 degree |
| Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Compact Wheel to Wheel Base Dimensions | 17″ x 21″ (430 x 533 mm) |
| Worksurface Dimensions | 22.4″W x 19.75″D (567 x 502 mm) |
| Shipping Dimensions | 53″D x 34″W x 36″H (135 x 89 x 91 cm) |
| Shipping Weight | 83 lbs (38 kg) |
| Cart Weight | 54 lbs (24.5 kg) |
| Warranty | Five (5) years |
| Product Type | LCD Monitor |
| Power Type | Non-powered |
| Display Type | 1 Monitor |
| Lift Technology | Constant Force |
| Screen Size | 24″-30″ in |
| TAA Compliant | No |
