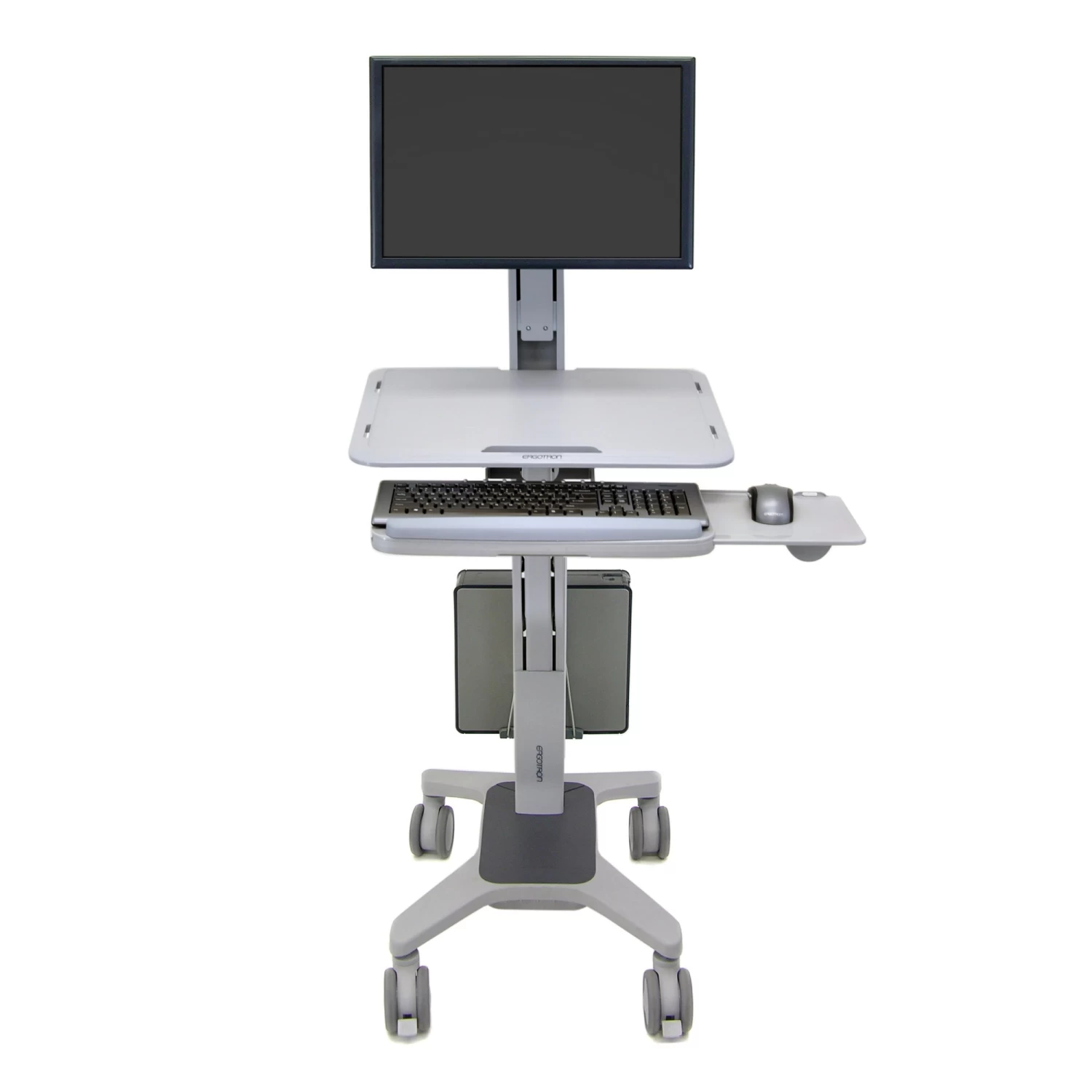

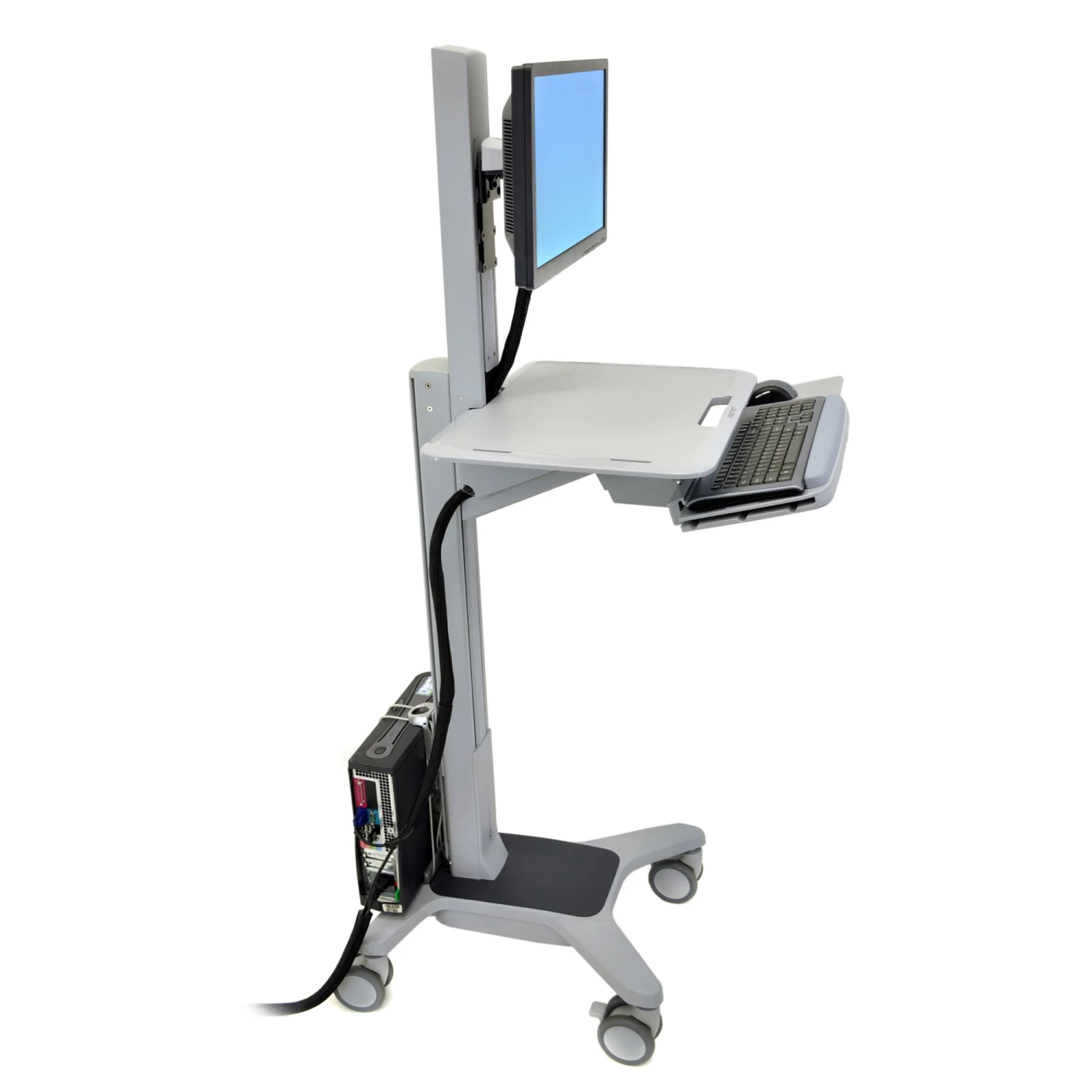

Ergotron 24-198-055 stays energized and productive while you compute
– move from a sitting to a standing position whenever you want. This
computer cart’s large worksurface and height-adjustable keyboard tray
and display make computing comfortable for prolonged periods.
Counterbalanced adjustment points allow instantaneous, tool-free
re-positioning while you work. Additional features include 25″ (63 cm)
total height adjustment, a small footprint and advanced cable
management.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 30″ | Up to 27 lbs 12.2 kg | 25″ 63.5 cm | 25° | – | 360° | MIS-D |
Product Information
| Part Number | 24-198-055 |
| WorkFit-C Sit-Stand Workstation for Single LCD Monitor, LD, with Mobile Cart Base (two-tone grey) | |
| Includes |
|
| Washington State Analysis | A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18% |
| Weight Capacity | Maximum load on height-adjustment assembly = 27 lbs (12.2 kg). Includes weight of display in addition to contents on Worksurface and in Cable Storage Box. LCD pivot capacity = 5–18 lbs (2.3–8.1 kg) |
| Lift Range | LCD/keyboard/worksurface adjusts 20″ (51 cm) in tandem; LCD adjusts 5″ (13 cm) independently; maximum LCD height adjustment = 25″ (63 cm) |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| CF Technology | Patented Constant Force lift-and-pivot motion technology |
| CPUs | Attach safely to rear of cart with CPU Holder. Accommodates CPUs from 12″H x 3″D to 18″H x 8.5″D (30 x 8 cm to 46 x 22 cm) |
| CPU Holder Capacity | 40 lbs (18 kg) |
| Keyboard Tray | Ergonomic negative-tilt keyboard tray ensures wrists remain in a neutral position during data entry – avoid repetitive-stress injuries while increasing comfort and productivity. Includes concealed mouse tray that slides out on left or right |
| Cable Management | Cable management storage box |
| Exteior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel |
| Casters | Four dual casters – lockable front casters |
| Worksurface Dimensions | 22″W x 17″D (56 x 43 cm) |
| Wheel-to-Wheel Base Dimensions | 17″W x 20.5″D (43 x 52 cm) |
| Keyboard Heights from Ground | Minimum, 22.4″ (568 mm); Maximum, 42.4″ (1077 mm) |
| Display Heights from Ground | Display Heights (center of hole mounts for display) from ground: Minimum, 34.8″ (884 mm); Maximum, 59.8″ (1519 mm) |
| Shipping Dimensions | 45.5″H x 19.75″W x 24″D (116 x 50 x 61 cm) |
| Shipping Weight | 72 lbs (33 kg) |
| Warranty | Five (5) years |
Benefits
For Computer Users
-
On-demand sit-stand workstation – improve your energy and
productivity by standing or sitting as you work, and then switch
positions whenever you choose. This work style encourages healthy
movement throughout the day -
Promote fitness and comfort as you compute, reducing potential
back and neck pain by adding movement into your work routine in a
truly ergonomic workstation -
Easily and simultaneously lift keyboard and LCD screen to proper
height for unsurpassed ergonomic comfort -
Patented Constant Force lift technology provides fluid, one-touch
adjustments of the keyboard and monitor positions for personalized
computing -
Mobile configuration brings flexibility into the workspace. Easily
moves through small doorways and over thresholds for collaborative
meetings -
Burn more calories by choosing to stand for periods of your
work-day; periodic standing also promotes greater bone density and
better sleep at night
For IT and Facilities Staff
-
IT deployment friendly – set aside several fully equipped WorkFit
C-Mods for temporary workers, unassigned workstations (aka hoteling or
hot desking) or telecommuter work pods; roll to the place of need
(easily stored and ready to roll) -
Modify existing office spaces or cubes by simply removing a
section of worksurface and rolling in the sit-to-stand WorkFit,
without the cost of expensive professional installers -
Safe and neat routing of cables through the expansive cable
management storage area -
Flexible, open-architecture design is scalable for future computer
equipment -
Takes less time to retrofit existing stations or repurpose for
changing workforce, reduces facility spend
For HR/Risk Management and Company Cost Savings
-
Manage the cost of healthcare premiums by promoting wellness in
the daily work routine -
Provide standing work platforms for employees without having to
buy expensive height-adjustable chairs -
Comfortable computing offers provable ROI on investment –
healthcare costs associated with unhealthy computing and missed time
are reduced while productivity increase -
WorkFit supports healthy neck and back conditions. According to
the 2007 OE Medicine Journal, back and neck pain are cited as the most
costly conditions affecting employees -
Studies in office ergonomics show productivity increases 12%-18%
following an ergonomic intervention where employees are provided with
well-designed ergonomic furniture
| Model | 24-198-055 |
| Manufacturer | Ergotron |
| Part Number | 24-198-055 |
| UPC | 698833010893 |
| Weight | lb(s) |
| Weight Capacity | Maximum load on height-adjustment assembly = 27 lbs (12.2 kg). Includes weight of display in addition to contents on Worksurface and in Cable Storage Box. LCD pivot capacity = 5–18 lbs (2.3–8.1 kg) |
| Monitor Size | Up to 30″ |
| Lift | (63.5 cm) 25 in |
| Tilt | 25 degree |
| Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Shipping Weight | 72 lbs (33 kg) |
| Shipping Dimensions | 45.5″H x 19.75″W x 24″D (116 x 50 x 61 cm) |
| Warranty | Five (5) years |
| Color | Two tone grey |
| Rotation | 360 degree |
| CPU Dimension | CPUs attach safely to rear of cart with CPU Holder. Accommodates CPUs from 12″H x 3″D to 18″H x 8.5″D (30 x 8 cm to 46 x 22 cm) |
| CPU Holder Capacity | 40 lbs (18 kg) |
| Worksurface Dimensions | 22″W x 17″D (56 x 43 cm) |
| Compact Wheel to Wheel Base Dimensions | 17″W x 20.5″D (43 x 52 cm) |
| Height Range | Keyboard Heights from ground: Minimum, 22.4″ (568 mm); Maximum, 42.4″ (1077 mm) Display Heights (center of hole mounts for display) from ground: Minimum, 34.8″ (884 mm); Maximum, 59.8″ (1519 mm) |
| Mounting Options | Cart |
| Product Type | LCD Monitor |
| Product Type | Laptop |
