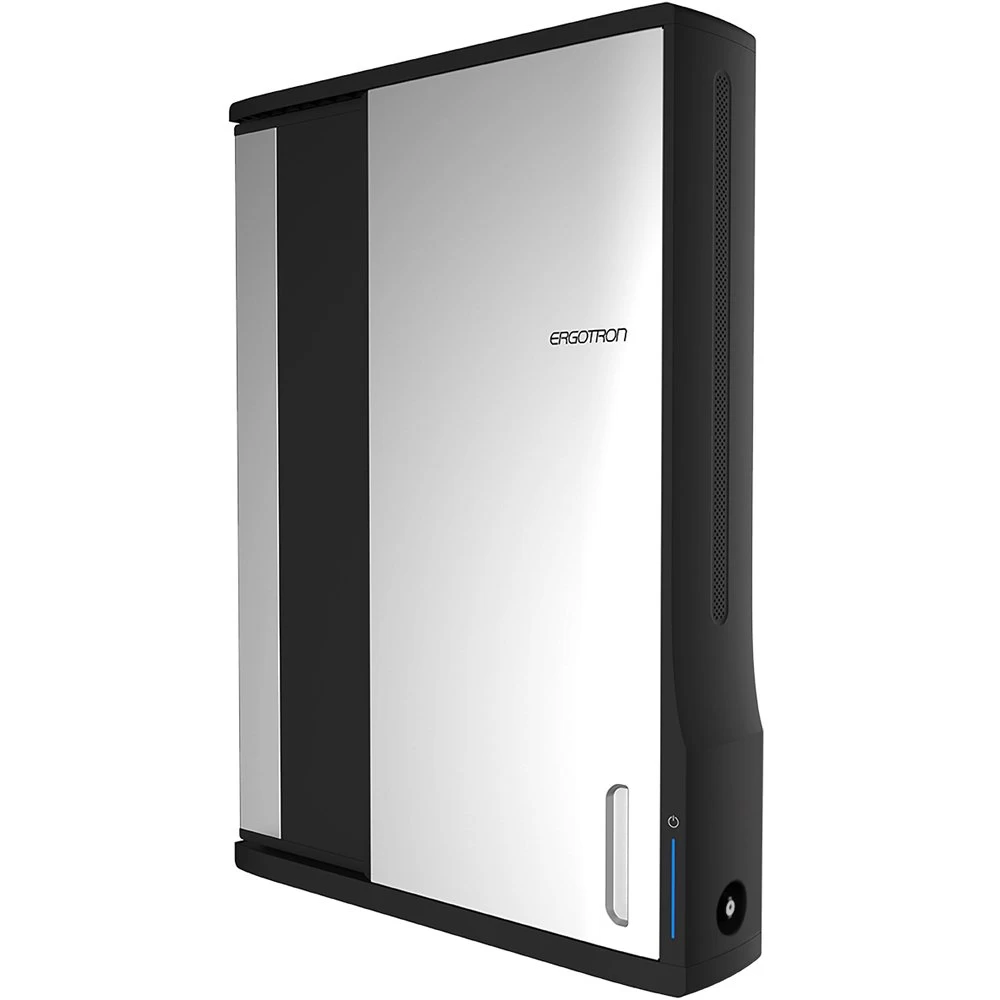

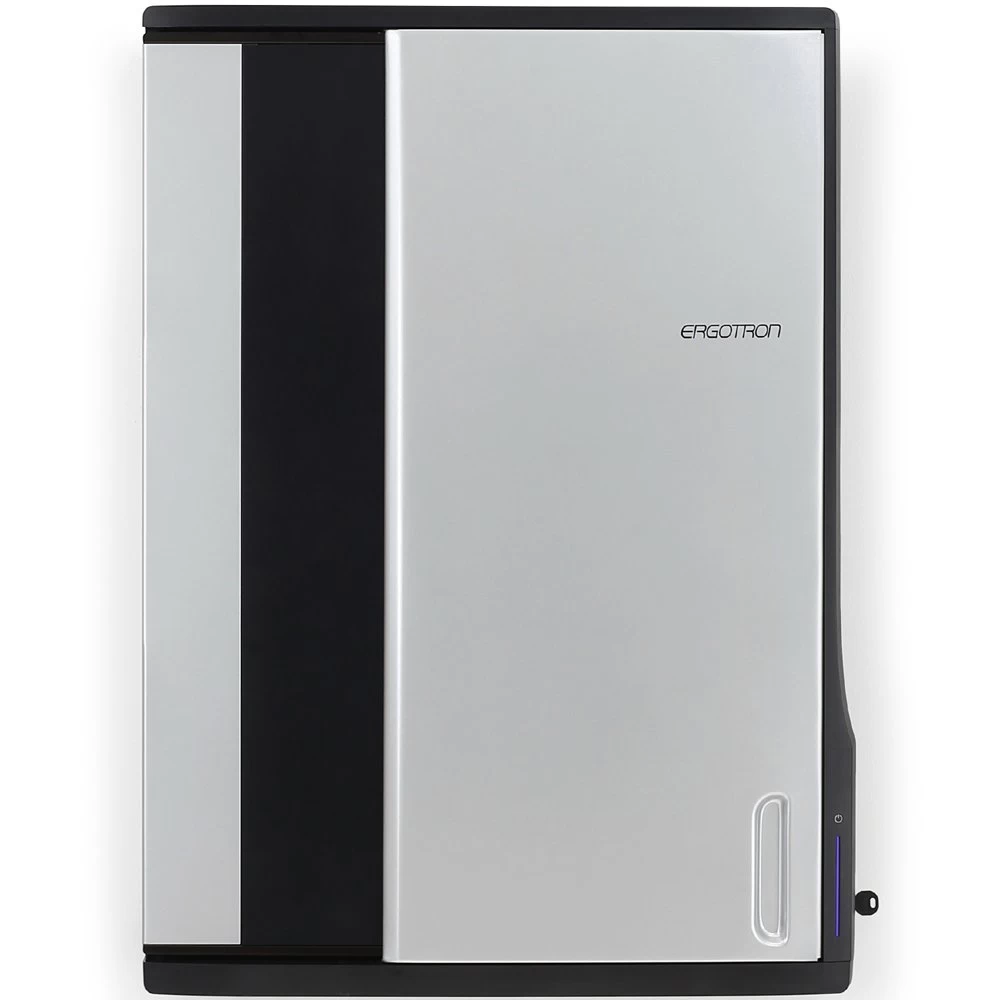

Power up. Ergotron DM12-1006-1 slim storage enclosure is perfect for
charging and securing up to 12 tablets and Chromebooks. It’s designed to
be compatible with a wide variety of manufacturers like Microsoft,
Samsung, Apple, Lenovo, HP, Dell, Amazon, Asus, Acer and many others.
Features include a space-saving profile and easy device access with Show
& Stow technology.
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 12″ | Up to 3 lbs 1.4 kg | – | – | – | – | – |
Product Information
| Part Numbers |
|
| Zip12 Charging Wall Mount Storage Cabinet (black/silver) | |
| Includes |
|
| Total Capacity | 12 devices |
| Individual Device Maximum Dimensions | 11.9″ W x 8.9″ H x 1.0″ D (30.2 x 22.6 x 2.5 cm) including case and cord |
| Compatible | Compatible with Apple’s eighth-generation iPad |
| Individual Device Maximum Weight | 3 lbs (1.4 kg). Total rated weight capacity = 44.4 lbs (20.1 kg) |
| Country Specific Outlet Strip | Country-specific 12-receptacle outlet strip is designed to work with oversized wall adapters and mini-sized bricks. AC adapter maximum dimensions = 4.1″H x 2.0″W x 4.0″D (10.4 x 5.0 x 10.1 cm) |
| Uses | Uses the AC adapters that come with each device. AC adapters are not included |
| UL/IEC 62368-1 and CSA C22 2 No. 62368-1 | UL/IEC 62368-1 and CSA C22 2 No. 62368-1 for Safety of Information Technology Equipment |
| CE marked | Based on compliance with Safety, EMC, and RoHS directives |
| Environmentally Clean | RoHS, REACH, WEEE and EU (94/620EC) packaging compliant |
| Temperature Range | Operating = 0° to 30°C (32° to 86°F); storage = -40°C to -60°C (-40° to 140°F) |
| Relative Humidity | Operating 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing) |
| Cooling/Ventilation | One 12V DC continuous operation fan |
| Product Dimensions | 26.4″ W x 35.6″ H x 5.9″ D (67 x 91 x 15 cm) |
| Product Weight | 61.1 lbs |
| Shipping Dimensions | 40.9″ x 28.9″ x 8.4″ (104 x 74 x 21 cm) |
| Shipping Weight | 69.3 lbs |
| Warranty | Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables |
Benefits
-
Open-architecture design works with most tablets (including
Surface, Android and iPad) and Chromebooks with screens up to 12″ in
size -
Designed to be compatible with a wide variety of manufacturers
such as Microsoft, Samsung, Apple, Lenovo, HP, Dell, Amazon, Asus,
Acer and many others -

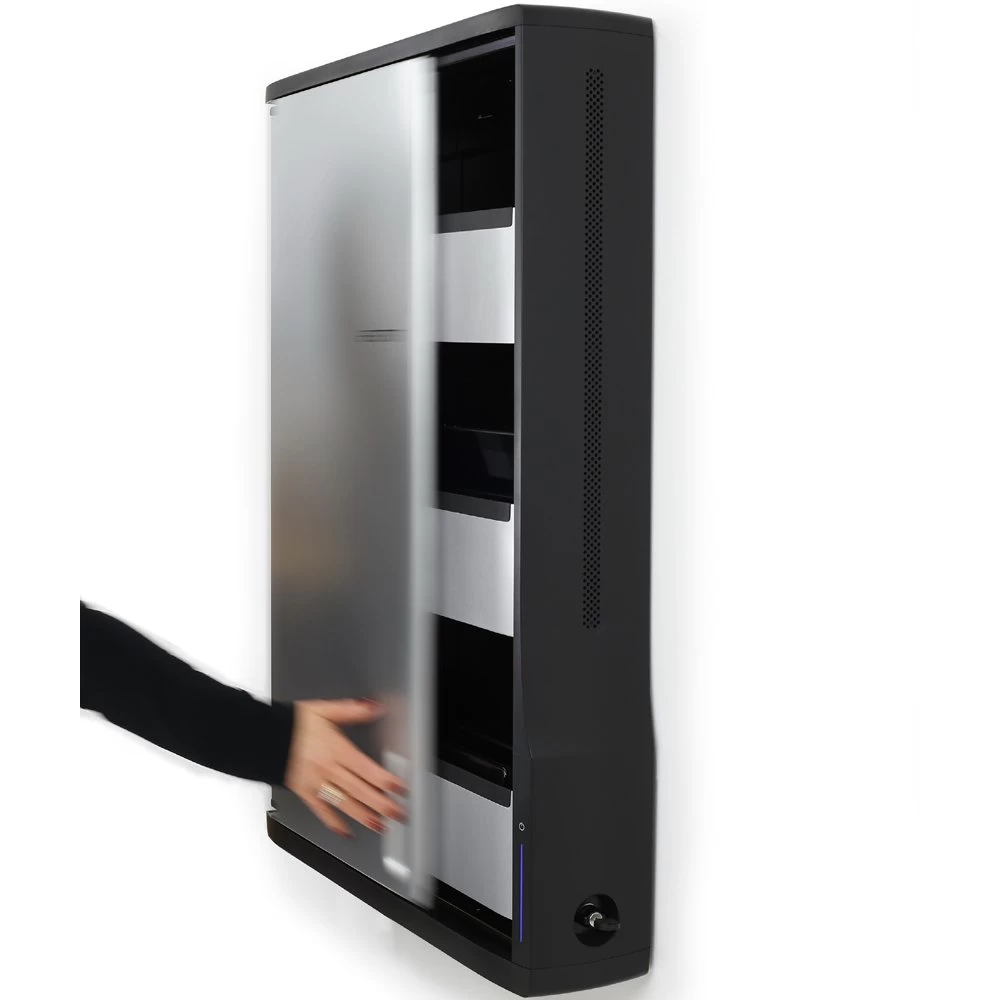

Smooth sliding door provides easy access to devices and stays
within the sleek profile -

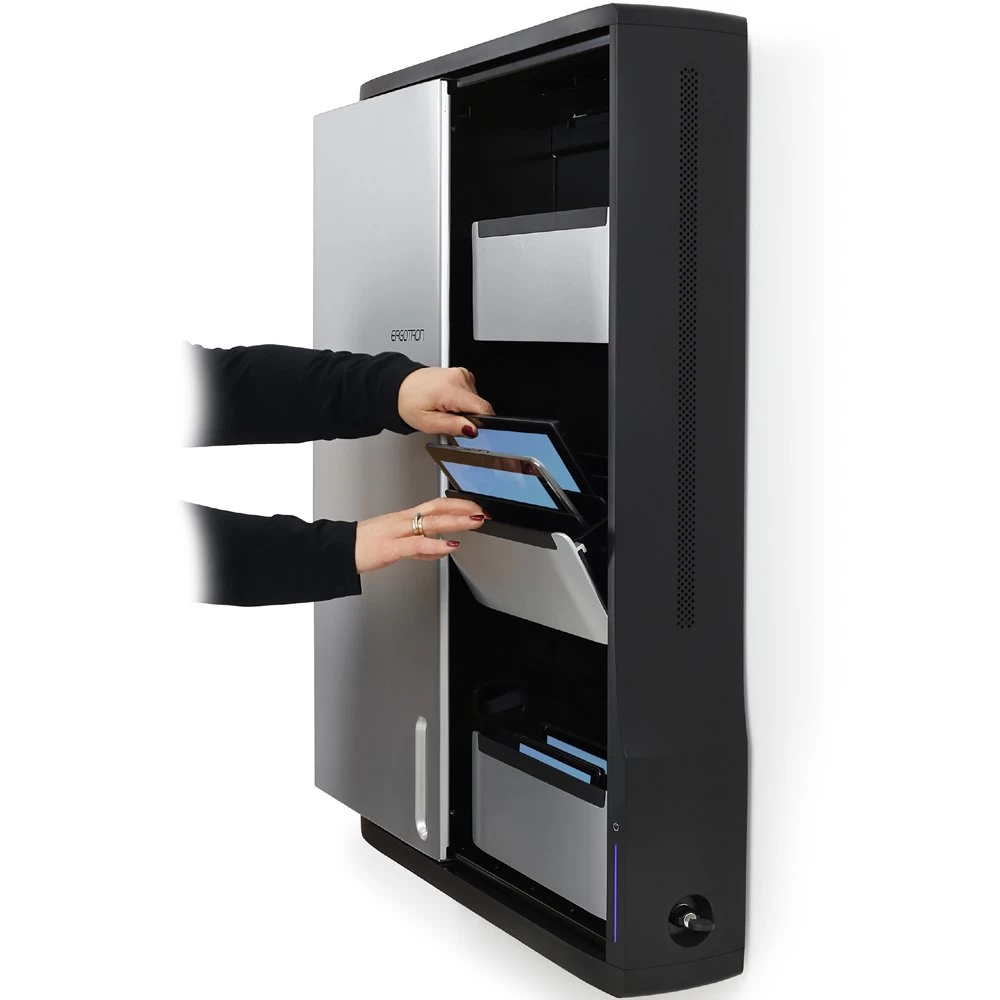

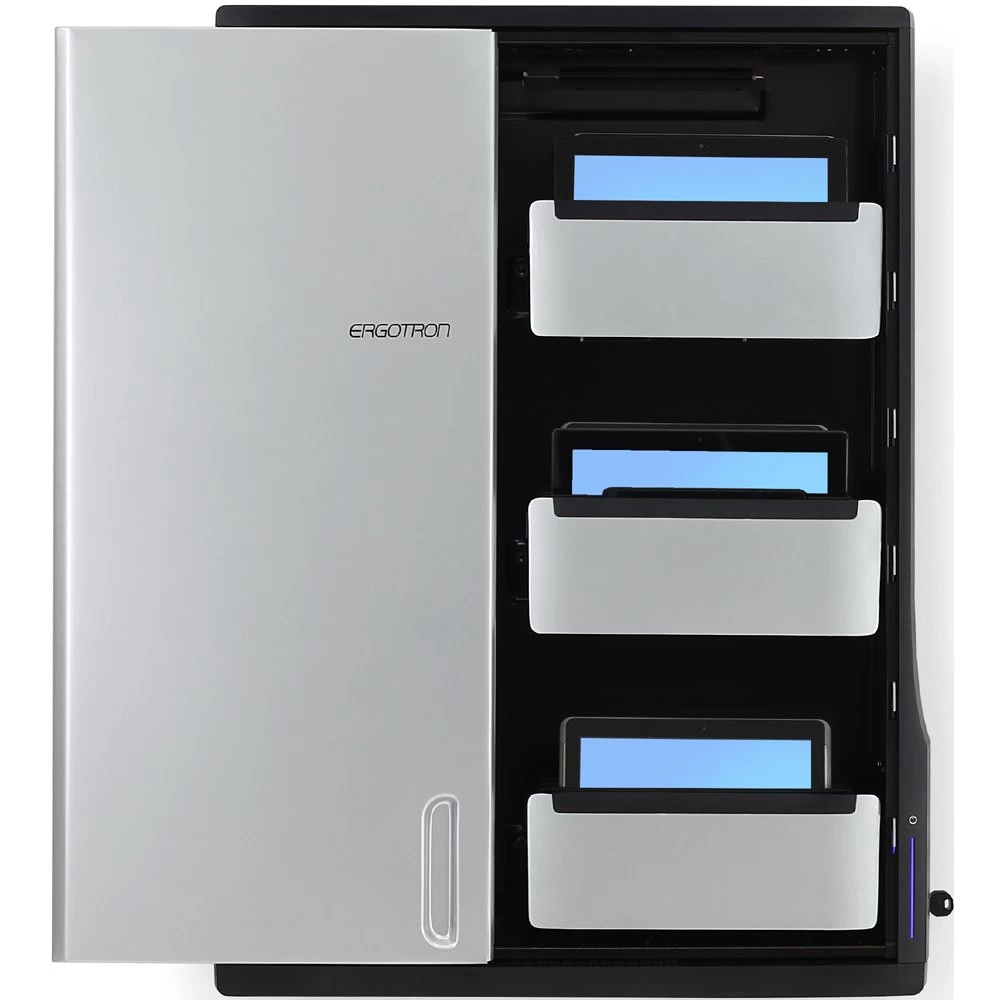

Show & Stow technology tilting tablet trays make loading and
unloading devices simple. Pull trays out to load or unload and they
will automatically retract -

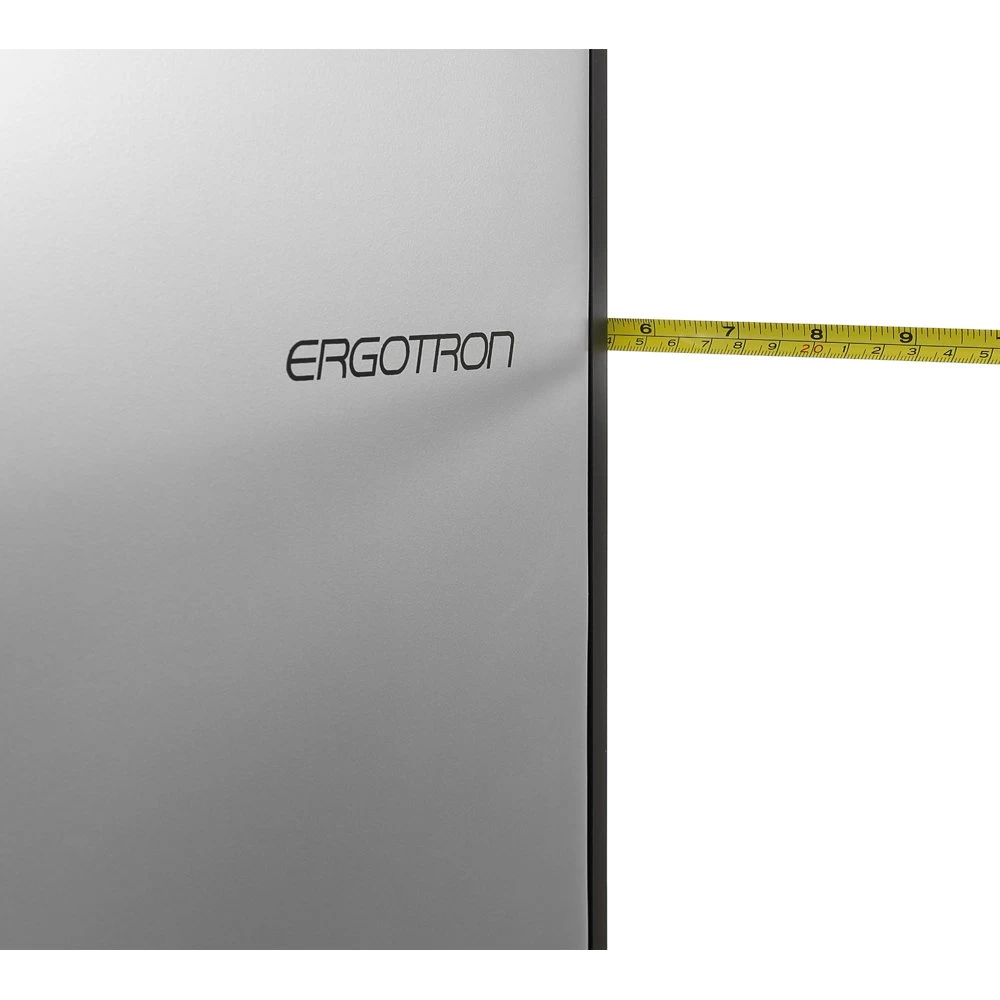

Low-profile design protrudes less than 6″ (15.2 cm) from the
wall saving space within the classroom -
Quick, simple installation includes mounting template, mounting
bracket, and hardware. Mount the bracket on the wall, hang the cabinet
and secure with two heavy-duty screws -
Six-point locking bracket keeps devices safe and secure
-
Snap-in tablet tray cable clips make setup simple and keep the
device cables perfectly positioned for easy insertion -

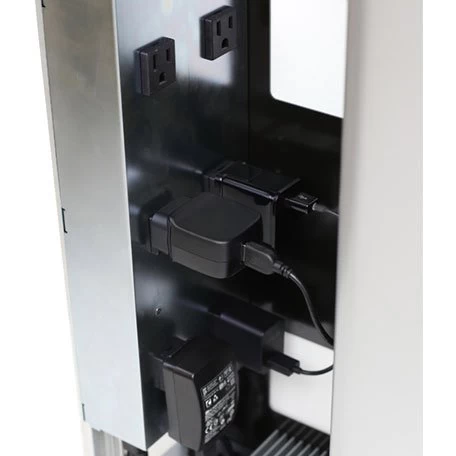

Separate AC adapter storage area for easy one-time setup and
clean cable storage. Custom country-specific outlet strip includes
plenty of space to work with oversized wall adapters and mini-bricks -
For user and equipment safety, the entire cabinet is tested and certified to UL standard. CE marked based on compliance with Safety, EMC, and RoHS directives
| Model | DM12-1006-1 |
| Manufacturer | Ergotron |
| Part Number | DM12-1006-1 |
| UPC | 698833050301 |
| Color | Black/silver |
| Dimensions | Individual: 11.9″W x 8.9″H x 1.0″D (30.2 x 22.6 x 2.5 cm) including case and cord |
| Weight Capacity | Individual: 3 lbs (1.4 kg). Total: 44.4 lbs (20.1 kg) |
| Temperature | Operating = 0° to 30°C (32° to 86°F); storage = -40°C to -60°C (-40° to 140°F) |
| Humidity | Operating 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing) |
| Dimensions | 26.4″W x 35.6″H x 5.9″D (67 x 91 x 15 cm) |
| Weight | 61.1 lbs |
| Shipping Dimensions | 40.9″ x 28.9″ x 8.4″ (104 x 74 x 21 cm) |
| Shipping Weight | 69.3 lbs |
| Warranty | Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables |
| Display Type | Tablet |
