Ergotron BZD02CG/CG4 Anthro Zido Ultrasound Mobile Cart

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

–

61.4 kg

25 cm

–

–

–

Part Number

BZD02CG/CG4

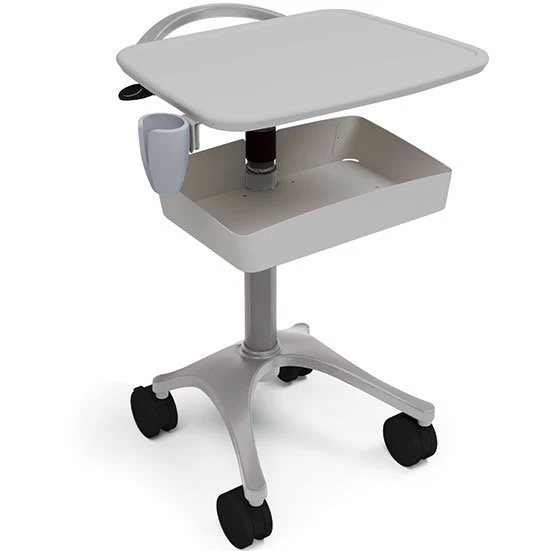

Zido Ultrasound Cart Package (cool grey)

Includes

• Probe holder

• Metal bin

• Handle

• Zido Adjustable-Height Cart
  (lipped worksurface, worksurface bracket, 2.5″-diameter
  pneumatic column (light load), rubber column cover, metal
  base, four 4″ dual-wheel casters)

Weight Capacity

135 lbs (61.4 kg) in total; 45 lbs (20.5 kg) on
worksurface

Load

• When calculating the load being applied to the cart’s column and worksurface, also factor the weight of any accessory options that are being installed.
• The listed capacity for the Zido Ultrasound Cart Package factors the additional weight of the handle (4 lbs/1.8 kg), probe holder (1 lbs/.5 kg) and metal bin (10 lbs/4.5 kg).
• Without addition of packaged accessories, the Zido Cart’s total weight capacity = 150 lbs (68.2 kg)

Zido’s Column

Is offset to the back of the cart base, leaving room in front
of the column for you to stand or sit comfortably. The offset
column also leaves space to install deeper accessories

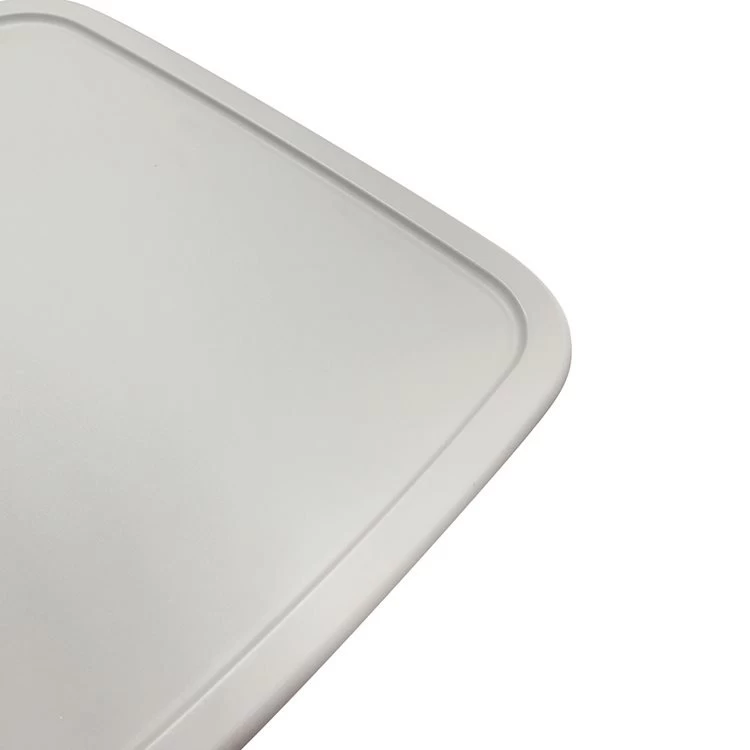

Worksurface

• Worksurface is medium-density fiberboard wrapped in
  highly durable thermoplastic laminate that resists cracking
  and chipping and stands up to a wide range of chemicals. Metal
  surfaces have a baked-on powder coat finish

• The worksurface included with this package features a
  lipped perimeter to keep items from rolling off

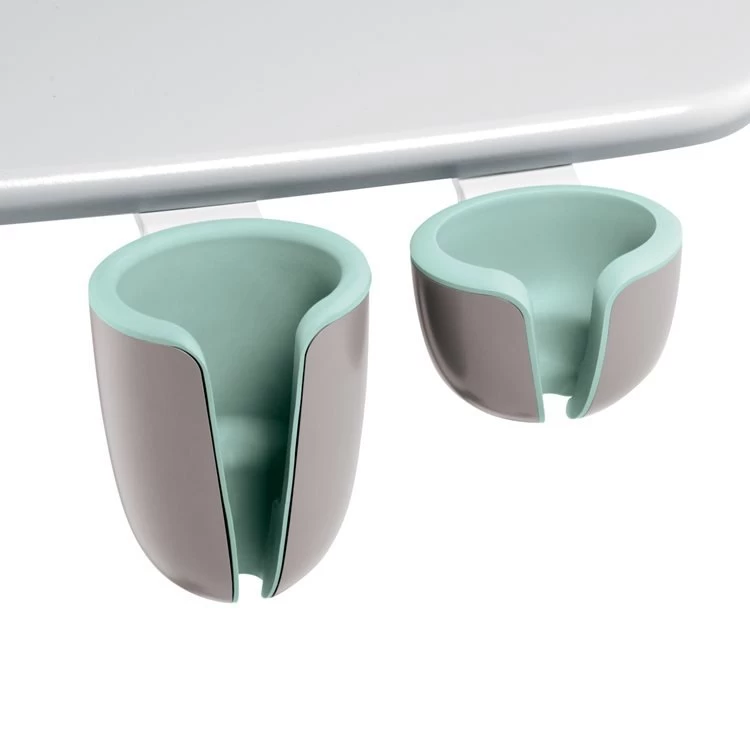

Probe Holder Dimensions

2.5″ x 3.5″ x 4.5″ (6.4 x 8.9 x 11.4 cm)

Metal Bin Dimensions

18″ x 11″ x 3″ (45.7 x 27.9 x 7.6 cm)

Zido Package

This Zido package configuration is shipped in 4 boxes

Shipping Weight

67 lbs (30.5 kg)

Warranty

Limited lifetime; five (5) years for pneumatic cylinder
