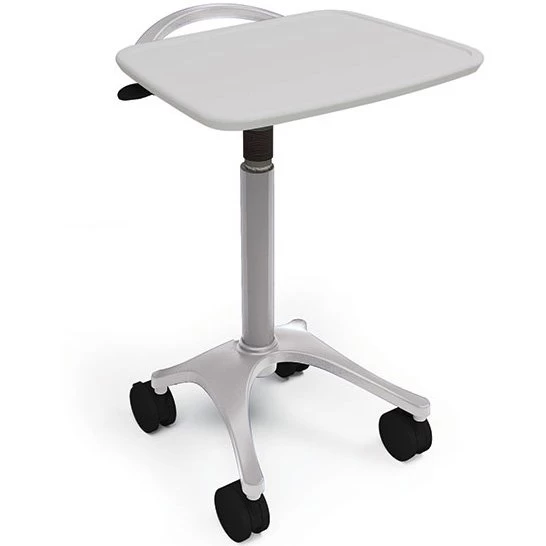

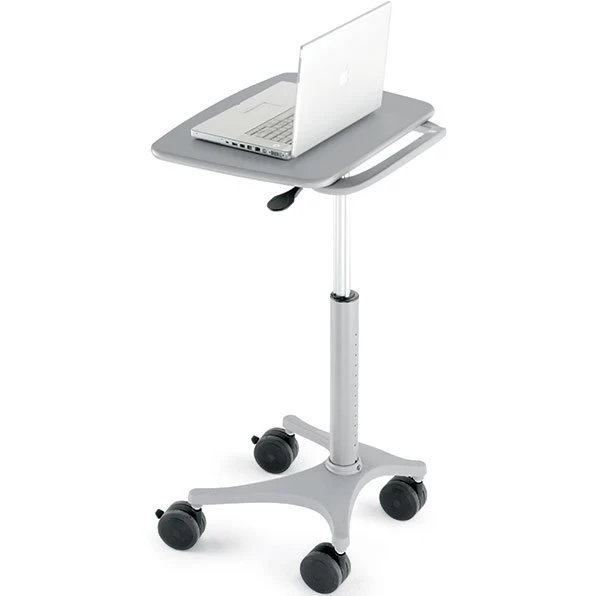

Ergotron BZD01CG/CG4 Anthro Zido EMR Height Adjustable Cart Package

Ergotron BZD01CG/CG4 stripped-down, height-adjustable cart is perfect for
transporting a laptop or tablet directly to a patient. The cart’s tiny footprint
makes it easy to fit in tiny spaces, and its wide handle makes it easy to move
around. Add additional accessories for more customization. The The BZD01CG/CG4 was formerly manufactured by Anthro.



Technical Drawing



Technical Specifications

Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
–	Up to 146 lbs 66.4 kg	10″ 25 cm	–	–	–	–



Product Information

Part Number	BZD01CG/CG4
	Zido EMR Cart Package (cool grey)
Includes	Handle Zido Adjustable-Height Cart (lipped worksurface, worksurface bracket, 2.5″-diameter pneumatic column (light load), rubber column cover, metal base, four 4″ dual-wheel casters)
Weight Capacity	146 lbs (66.4 kg) in total; 46 lbs (20.9 kg) on worksurface
Load	When calculating the load being applied to the cart’s column and worksurface, also factor the weight of any accessory options that are being installed. The listed capacity for the Zido EMR Cart Package factors the additional weight of the handle (4 lbs/1.8 kg). Without addition of packaged accessories, the Zido Cart’s total weight capacity = 150 lbs (68.2 kg)
Zido’s Column	Is offset to the back of the cart base, leaving room in front of the column for you to stand or sit comfortably. The offset column also leaves space to install deeper accessories

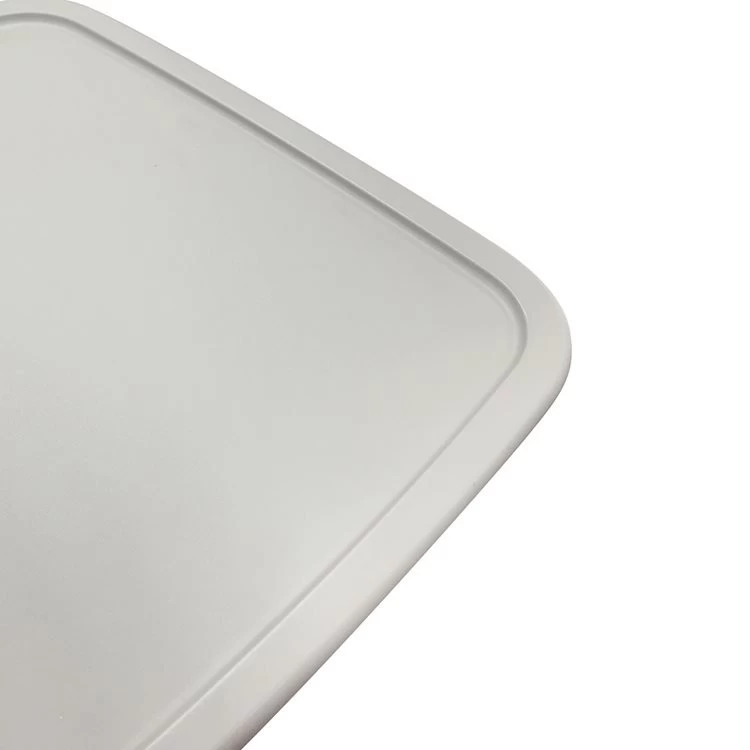

Worksurface	Worksurface is medium-density fiberboard wrapped in highly durable thermoplastic laminate that resists cracking and chipping and stands up to a wide range of chemicals. Metal surfaces have a baked-on powder coat finish The worksurface included with this package features a lipped perimeter to keep items from rolling off
Zido Package	This Zido package configuration is shipped in 2 boxes
Shipping Weight	56 lbs (25.5 kg)
Warranty	Limited lifetime; five (5) years for pneumatic cylinder



Benefits

• Built with Anthro-DNA –  The 30-year legacy of
  Anthro Corporation lives on in its world-class factory,
  award-winning designs and market-leading personal customer
  service. This product is Built with Anthro‑DNA.

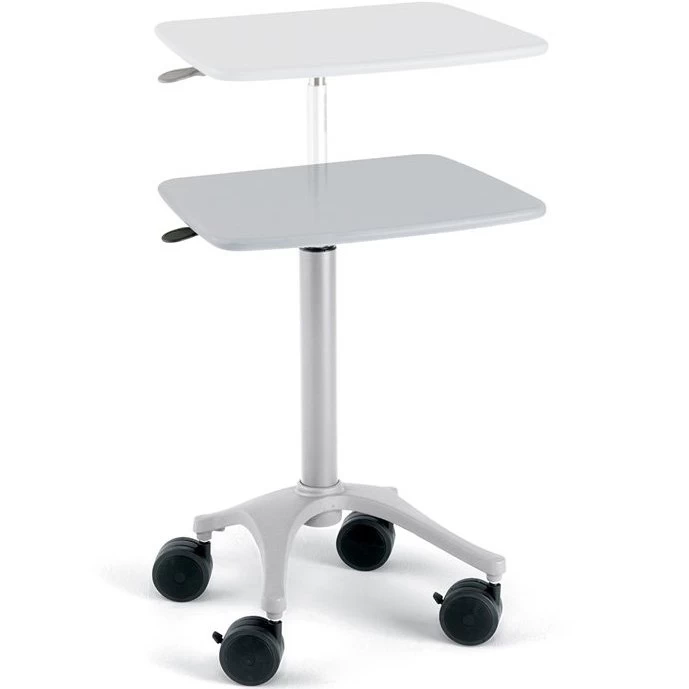

• Height Adjustable – Find a comfortable height whether
  sitting or standing. Squeeze the lever and a pneumatic
  cylinder moves the surface to any height between 30″ and 40″
  (76–102 cm)

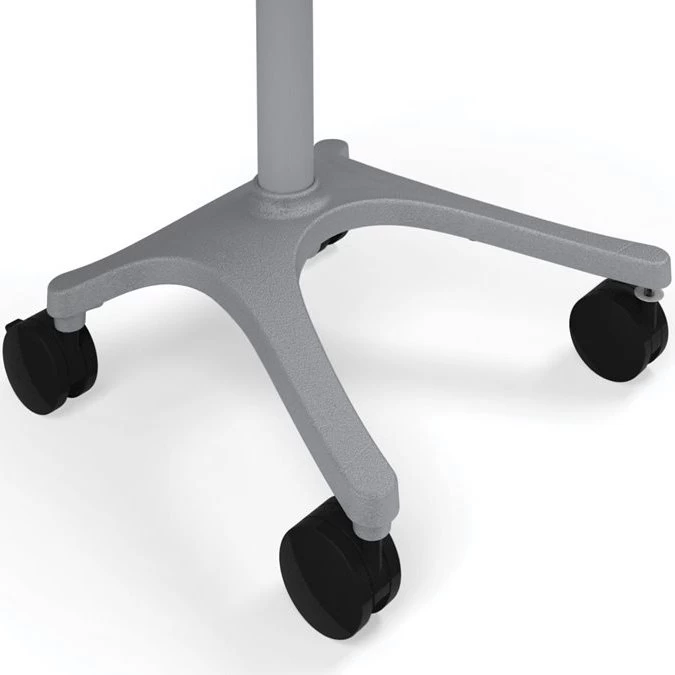

• A Strong Foundation – Zido’s heavy cast-metal base
  provides a very stable foundation. Even though it’s small to
  fit tight spaces, this cart holds up to 146 lbs (66.4 kg)
  total

• Load It Up – Different Zido accessories install on
  the front or the back of the column to maximize your space.
  Add storage, a power strip, or keyboard and monitor mounts.
  The column has holes in 1″ (2.5 cm) increments to install
  shelves, bins and other accessories at exactly the right
  height

• Easy to Maneuver – With a footprint of just 22″ by
  22″ (56 x 56 cm), this cart fits easily in tight spaces, so
  it can go everywhere you do. The 17″-wide (43 cm) handle
  makes it easy to steer anywhere you need go
