Ergotron 97-582-009 adjustable keyboard platform is a necessity in
any word-processing office application. Match this accessory with a
monitor stand or arm for a complete ergonomic desktop solution.
Provides a full range of adjustment to accommodate a wide range of
computer users. Stores the keyboard conveniently under the worksurface,
where it can be pulled out whenever it’s needed.

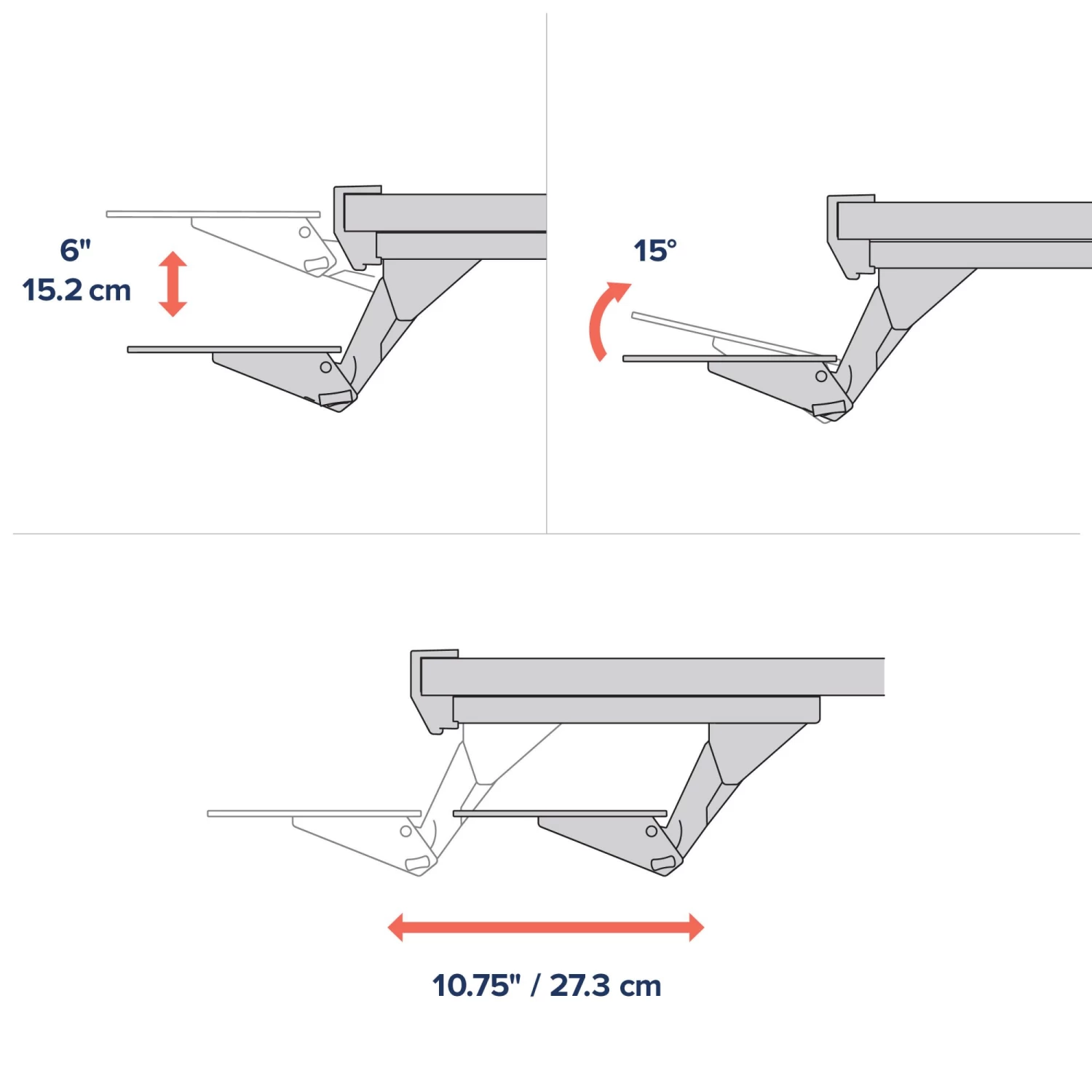

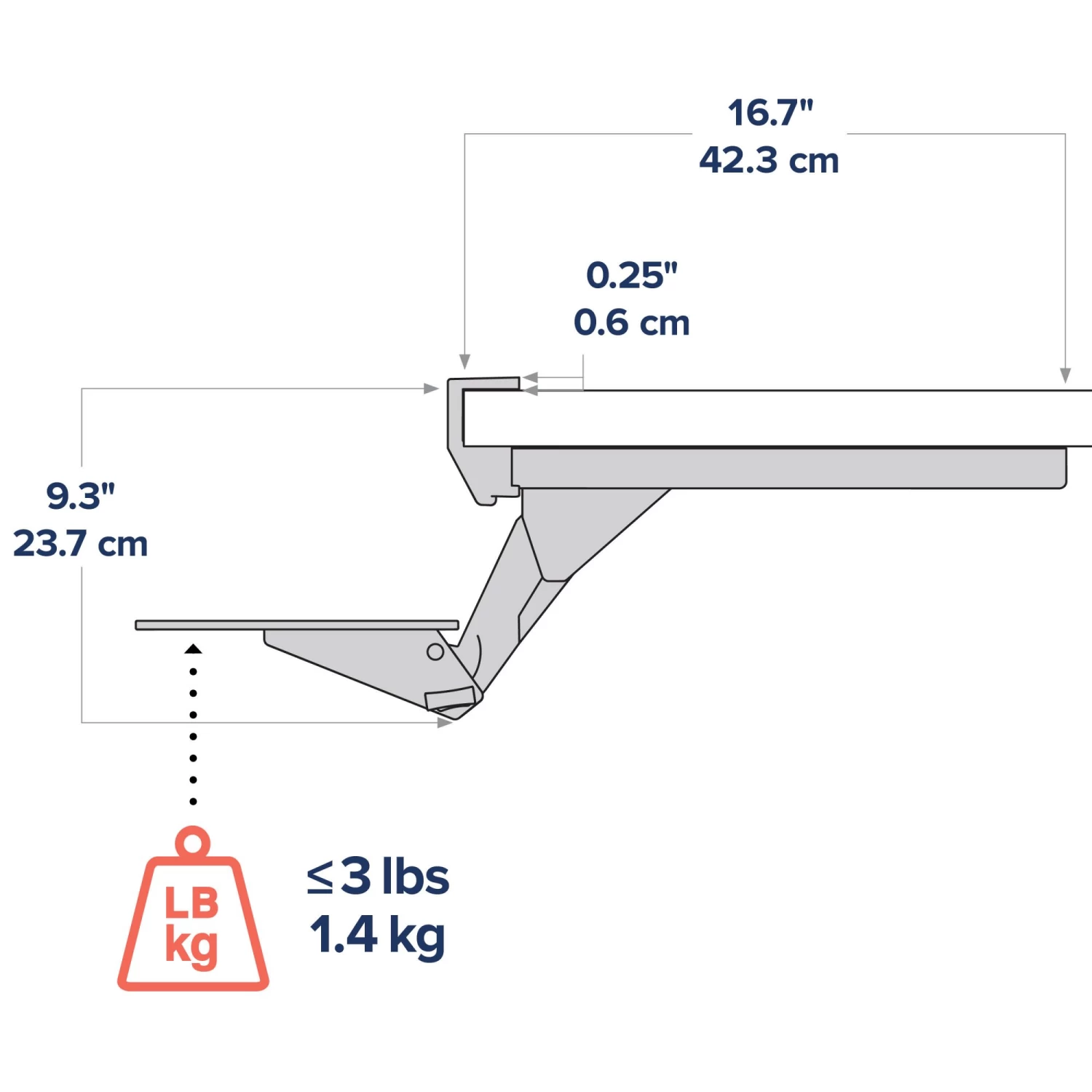

Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| – | Up to 3 lbs 1.4 kg | 6″ 15.2 cm | 15° | – | – | – |
Product Information
| Part Number | 97-582-009 |
| Neo-Flex Underdesk Keyboard Arm (black) | |
| Includes |
|
| Single Knob Adjustment | For both height and tilt settings |
| Extract/Retract Range | 10.75″ (27.3 cm) |
| Tray Dimensions | 26.9″ x 8.9″ (68.3 x 22.6 cm); large surface designed specifically to accommodate ergonomic keyboards |
| Mounting Options | Attaches with front-clamp and a single screw (required for greater stability), or with four screws (supplied with product) |
| Compatible | With desktop worksurfaces from .75″ (1.9 cm) up to 1.5″ (3.8 cm) thick |
| Designed | To meet requirements per ANSI/BIFMA X5.5-2008 |
| Product Weight | 10.2 lbs (4.6 kg) |
| Shipping Dimensions | 34.2″ x 11″ x 12.75″ (87 x 28 x 32 cm) |
| Shipping Weight | 14.4 lbs (6.6 kg) |
| Warranty | Three (3) years |
Benefits
-
Lift, lower and tilt your keyboard for optimum comfort
-
Stores under the worksurface when not in use; extends and
retracts from under the worksurface -
Tray accommodates larger keyboards and mouse equipment with
its large one-piece surface -
Easy and flexible installation: Inconspicuously clamps to
front-edge of desktop, or remove clamp and attach with four screw
under the surface -
Ball-bearing slides produce smooth motion
-
Durable and sturdy construction: Arm and slide are made of
steel and tray is composed of robust phenolic material -
Provides a solid and stable data-entry platform
| Model | 97-582-009 |
| Manufacturer | Ergotron |
| Part Number | 97-582-009 |
| UPC | 698833016505 |
| Weight Capacity | Up to 3 lbs (1.4 kg) |
| Lift | (15 cm) 6 in |
| Tilt | 15 degree |
| Mounting Options | Desk |
| Shipping Weight | 14.4 lbs (6.6 kg) |
| Shipping Dimensions | 34.2″ x 11″ x 12.75″ (87 x 28 x 32 cm) |
| Warranty | Three (3) years |
| Color | Black |
| Extend/Retract Range | 10.75″ (27.3 cm) |
| Tray Dimensions | 26.9″ x 8.9″ (68.3 x 22.6 cm); large surface designed specifically to accommodate ergonomic keyboards. |
| Desktop Thickness Range | 0.75″ (1.9 cm) up to 1.5″ (3.8 cm) |
| Weight | 10.2 lbs (4.6 kg) |
