Note: Ergotron 47-092-800 comes with 2 sets of removable/interchangeable side caps. This means that the customer can choose to either black or grey, both colors included. Each box comes with both color side caps so customer can choose.

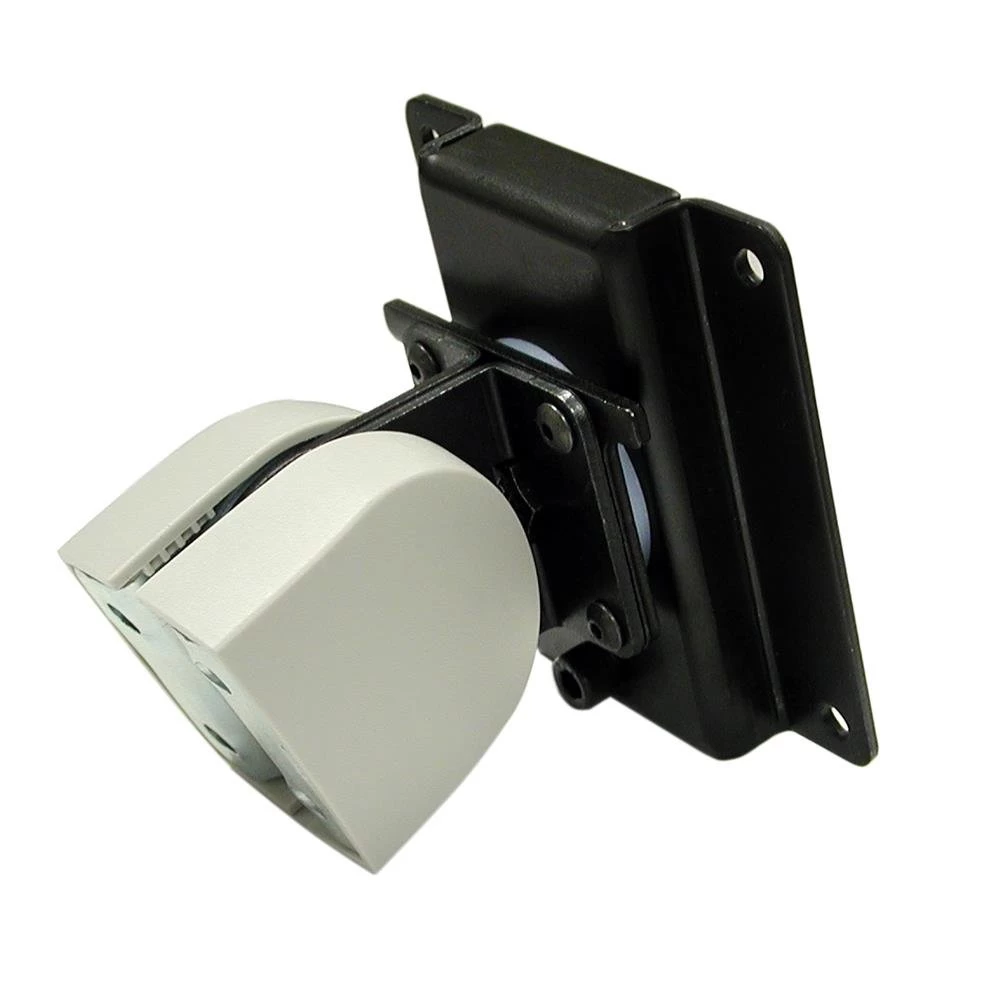

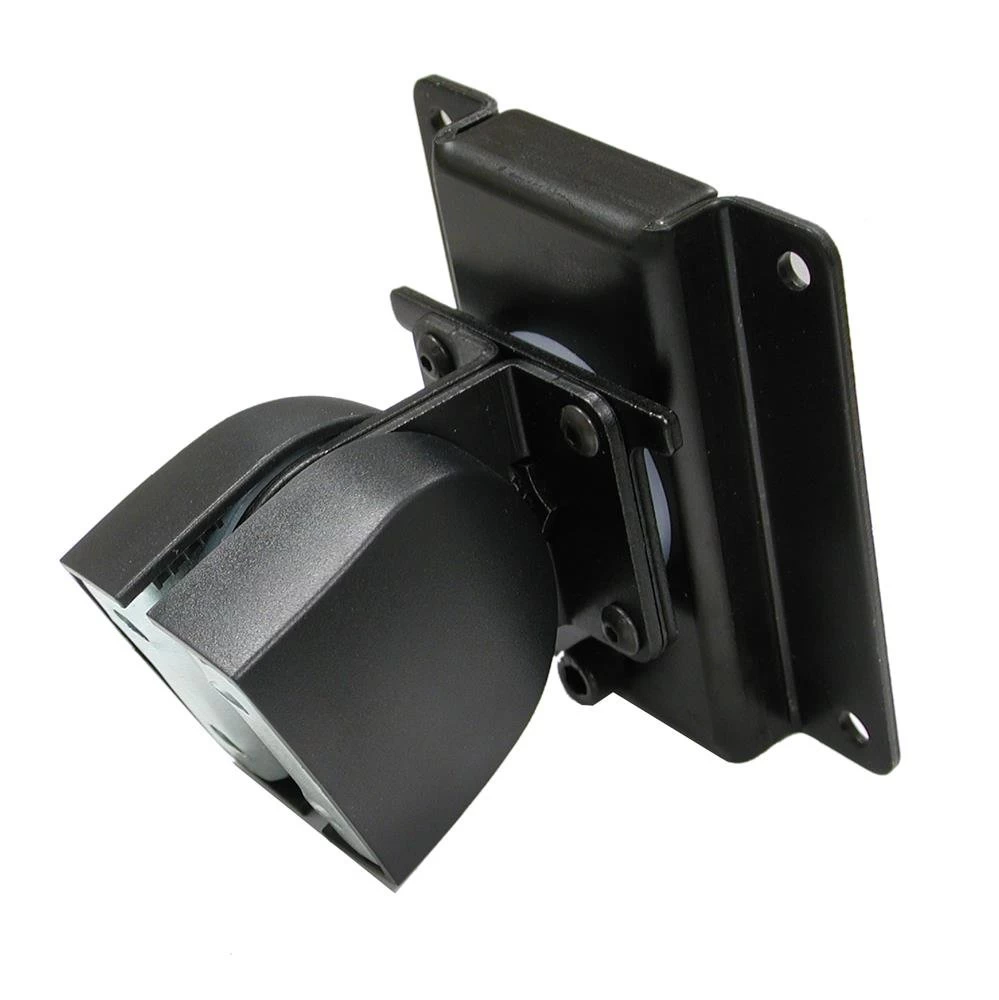

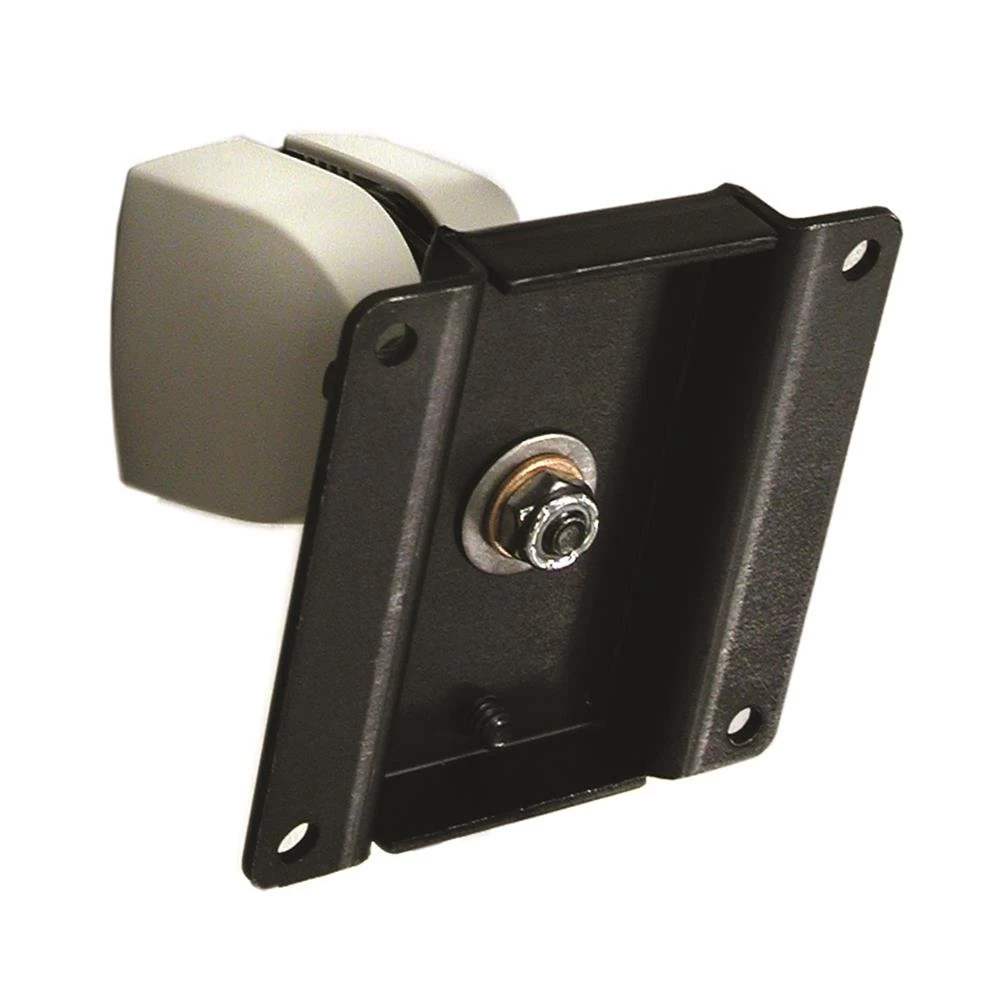

Ergotron 47-092-800 allows an LCD to be mounted with a minimum profile while providing up/down tilt. It even rotates for portrait/landscape viewing.

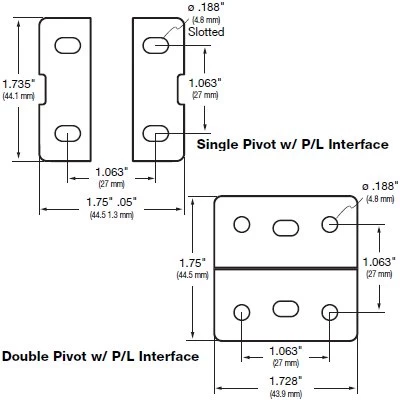

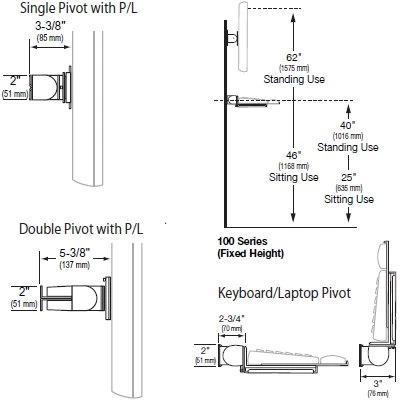

Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 38″ | Up to 25 lbs 11.3 kg | – | 180° | – | 360° | MIS-D |
Product Information
| Part Number | 47-092-800 |
| 100 Series Single Pivot (black or grey, both colors included) | |
| Weight Capacity | 25 lbs (11.3 kg). Monitor depth greater than 3″ (7.5 cm) may diminish capacity |
| Screen Size | Is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity |
| Mounting Options | Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. To increase support, a separately-ordered Wall Plate or Wall Track accessory is recommended. |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Shipping Weight | 2 lbs (.9 kg) |
| Warranty | Five (5) years |
Benefits
- Provides smooth adjustment while maintaining touch-screen stability. Tilt or rotate your screen.
- Slim profile saves space – less than 4″ separates wall and monitor.
- Includes both black and grey plastic covers; when installing, you choose the color.
- Internal steel construction for long-lasting durability.
| Model | 47-092-800 |
| Manufacturer | Ergotron |
| Part Number | 47-092-800 |
| UPC | 698833004380 |
| Color | Black or grey, both colors included |
| Weight Capacity | Up to 25 lbs (11.3 kg). Monitor depth greater than 3″ (7.5 cm) may diminish capacity. |
| Monitor Size | Up to 38″ |
| Tilt | 180 degree |
| Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Mounting Options | Wall |
| Shipping Weight | 2 lbs (.9 kg) |
| Warranty | Five (5) years |
| Rotation | 360 degree |
| Monitor Arm Types | 1 Monitor |
