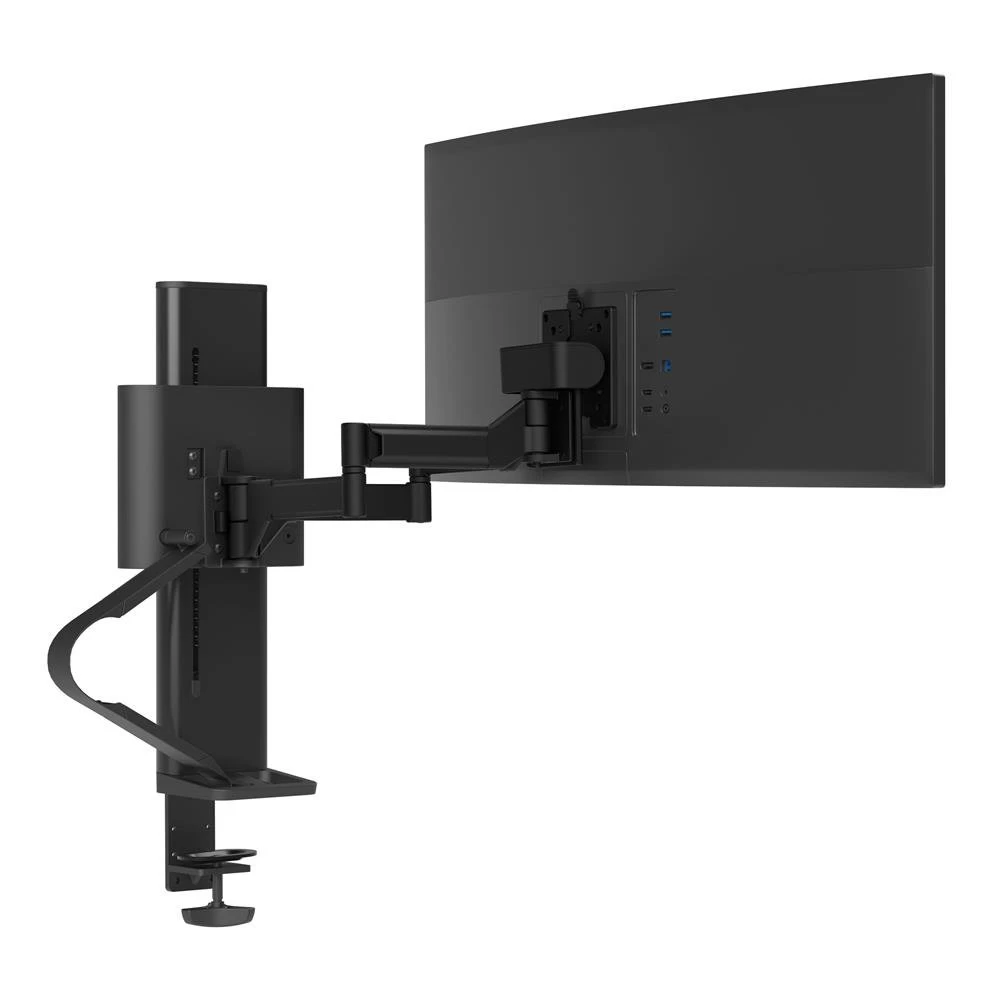

Ergotron 45-630-224 TRACE Monitor Mount adapts to how each
user works and feels their best to create ergonomic, flexible
workspaces. It intuitively adjusts between tasks and postures to
encourage movement and collaboration, always returning to the natural
home position. The modular TRACE design and premium, 15-year warranty
solidify a long-term investment.
TRACE offers a variety of mounting options: the standard 2-piece clamp,
an accessory TRACE Slim Profile Clamp Kit or an accessory TRACE Grommet
Clamp Kit. Choose the method that meets your requirements.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 38″ | 6.5 – 21.5 lbs 2.9 – 9.8 kg | 11″ 27.9 cm | 80° | 240° | 360° | MIS-D |
Product Information
| UPC | 698833083996 |
| Part Number | 45-630-224 |
| TRACE Desk Monitor Mount (matte black) | |
| Includes |
|
| Design | Design tested to 15,000 motion cycles |

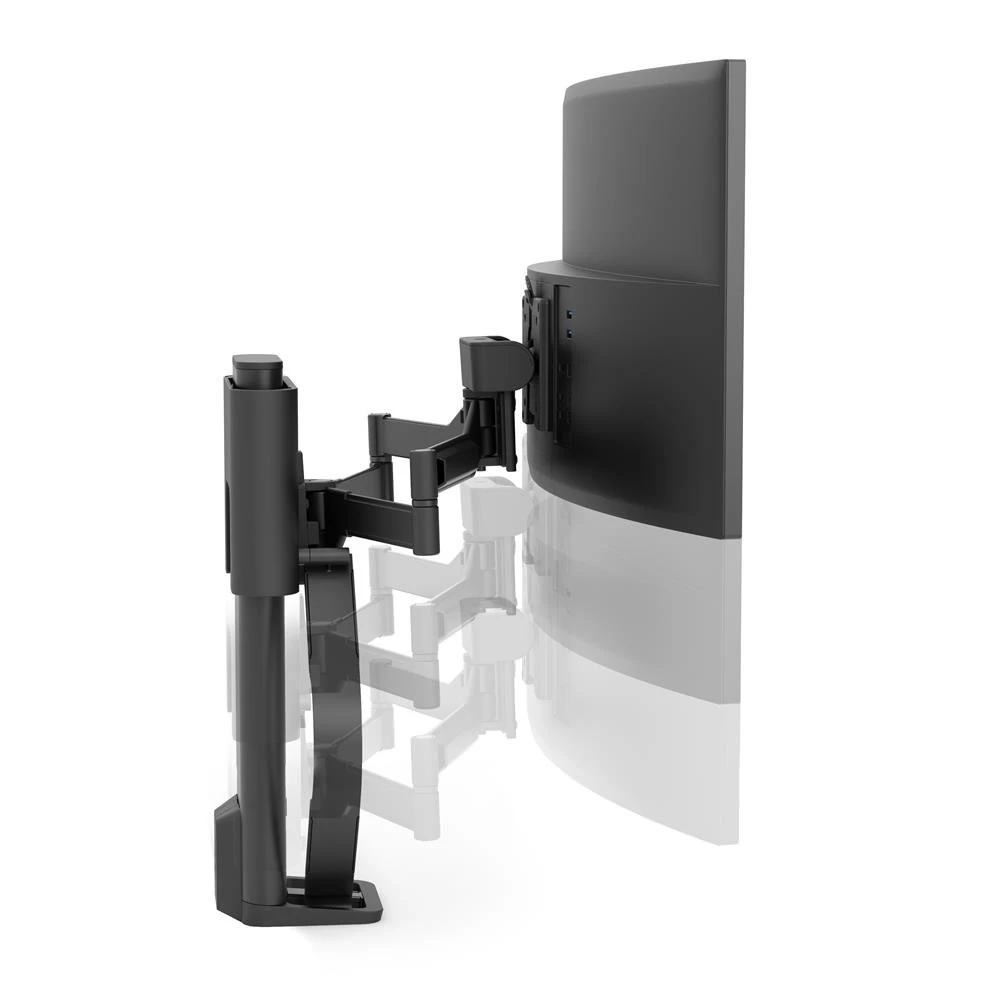

| Extension/Retraction Motion Range | 15″ (38 cm) |
| Tilt Range | Up 75° / Down 5° |

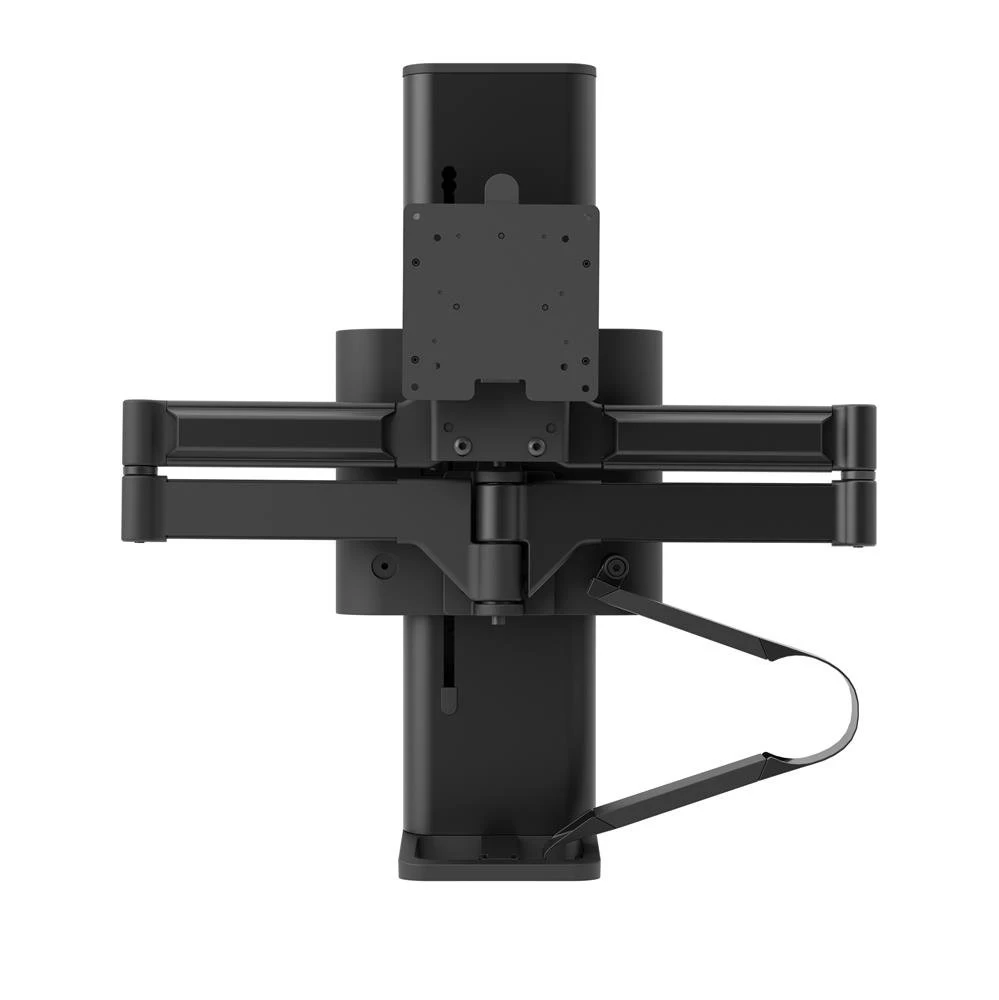

| Mounting Standards | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm) |

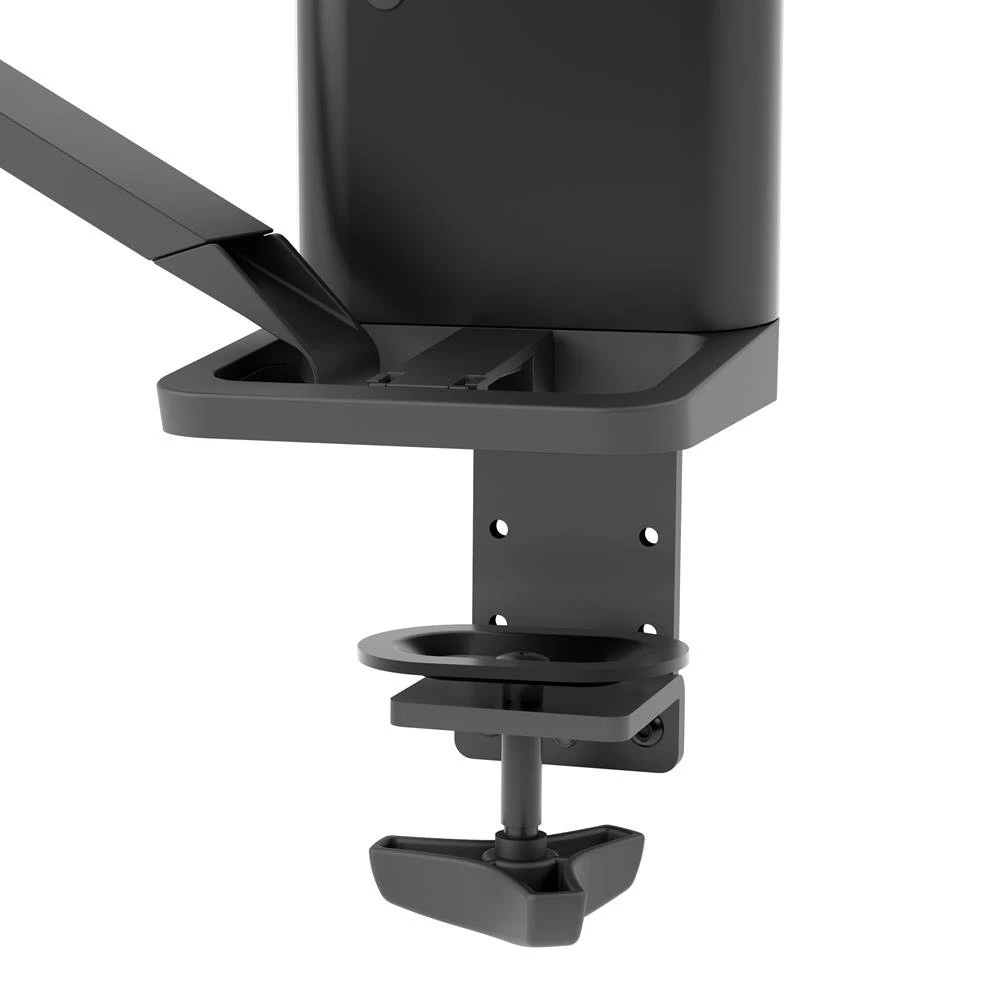

| Standard 2-Piece Desk Clamp | Standard 2-piece desk clamp attaches to surface edge up to 2.55″ (65 mm) thick |
| Accessory Mounting Options | Slim Profile Clamp Kit (ideal for freestanding desks where clamp is visible – presents an extra clean look); Grommet Clamp Kit (allows attachment through desktop surface hole) |
| Certified | This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds) |
| Product Weight | 15.3 lbs (7 kg) |
| Shipping Dimensions | 30.1″ x 10.6″ x 9.1″ (76 x 27 x 23 cm) |
| Shipping Weight | 18.3 lbs (8.3 kg) |
| Warranty | 15 years |
Benefits
-

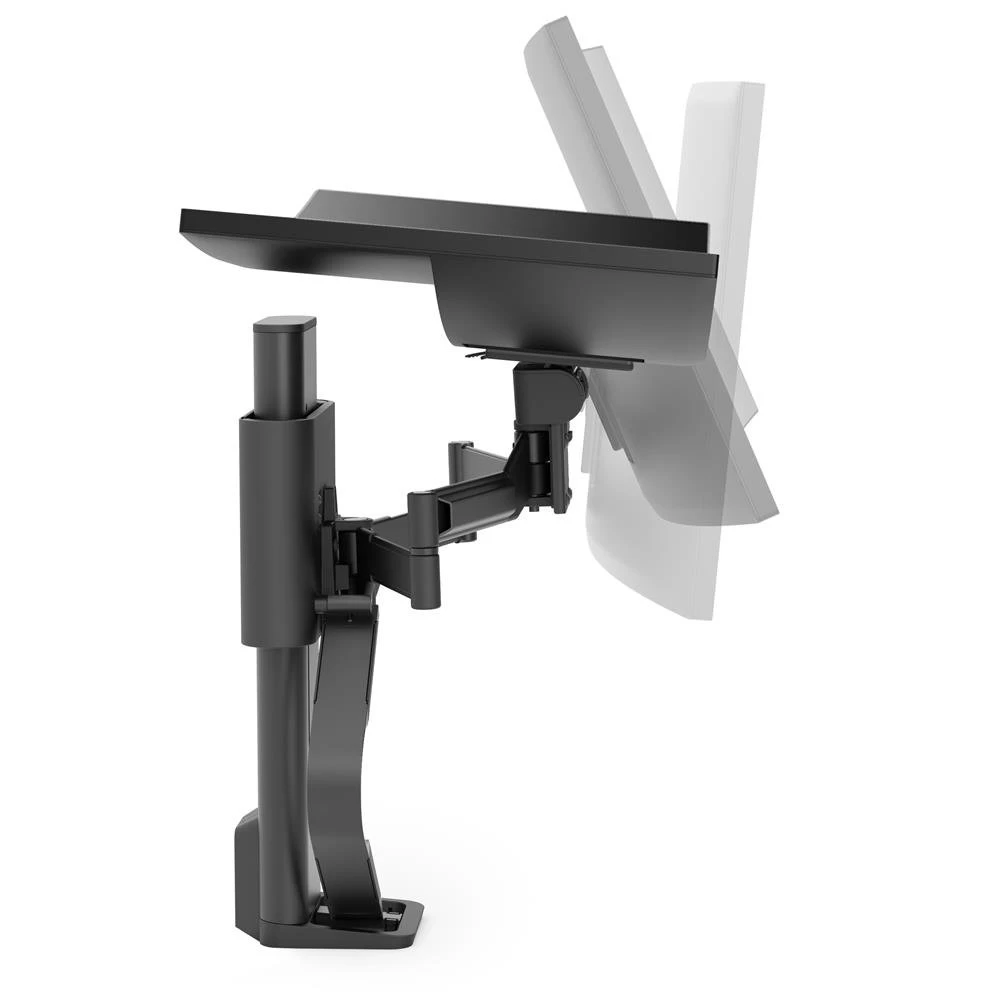

Intuitive adjustment – TRACE effortlessly follows your next
move -
Adaptable workstyle – Easily transitions between individual
tasks and collaboration -
More workspace – Lifts screens off the desktop from a compact
base -
Stay organized – Integrated cable management reduces clutter
-

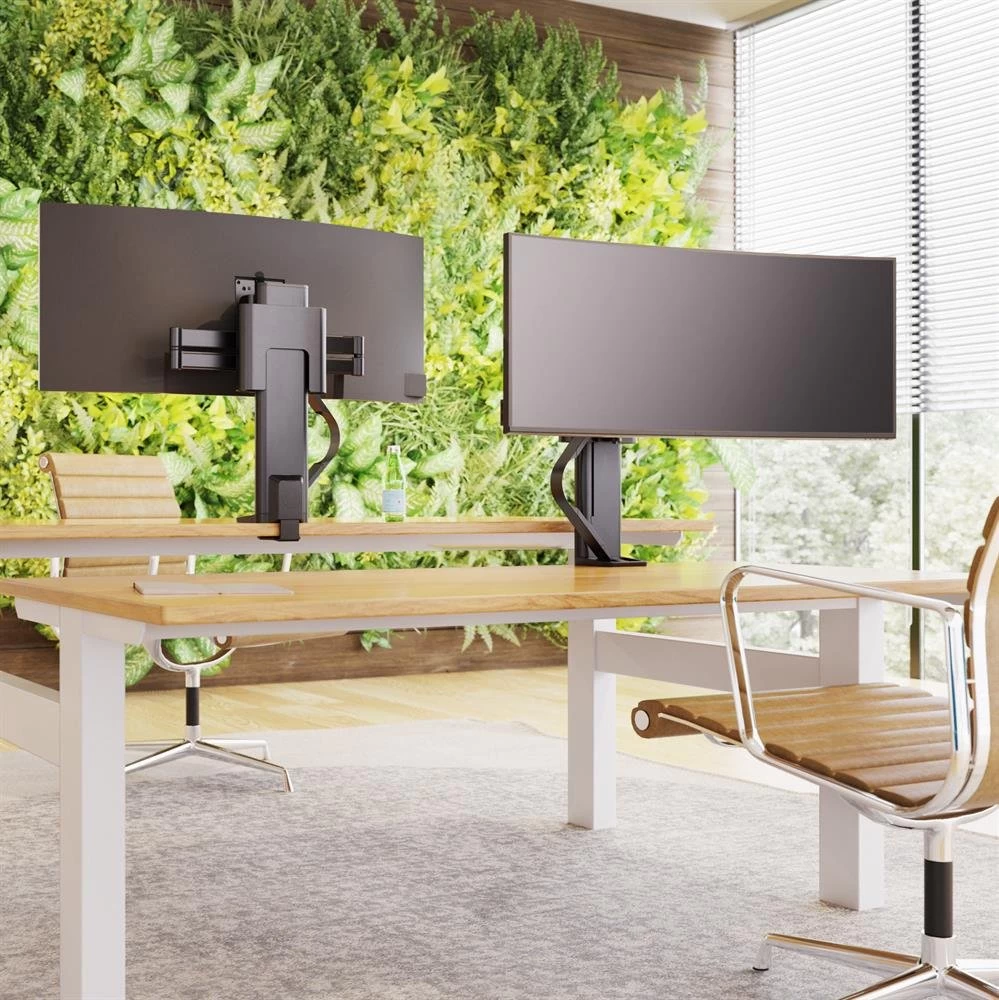

Flexible design – Quickly converts to a dual monitor
configuration -
Ergonomic fit – Encourages regular movement to support
healthy working
| Model | 45-630-224 |
| Manufacturer | Ergotron |
| Part Number | 45-630-224 |
| UPC | 698833083996 |
| Color | Matte black |
| Monitor Size | Up to 38″ |
| Weight Capacity | 6.5-21.5 lbs (2.9-9.8 kg) |
| Lift | (27.9 cm) 11 in |

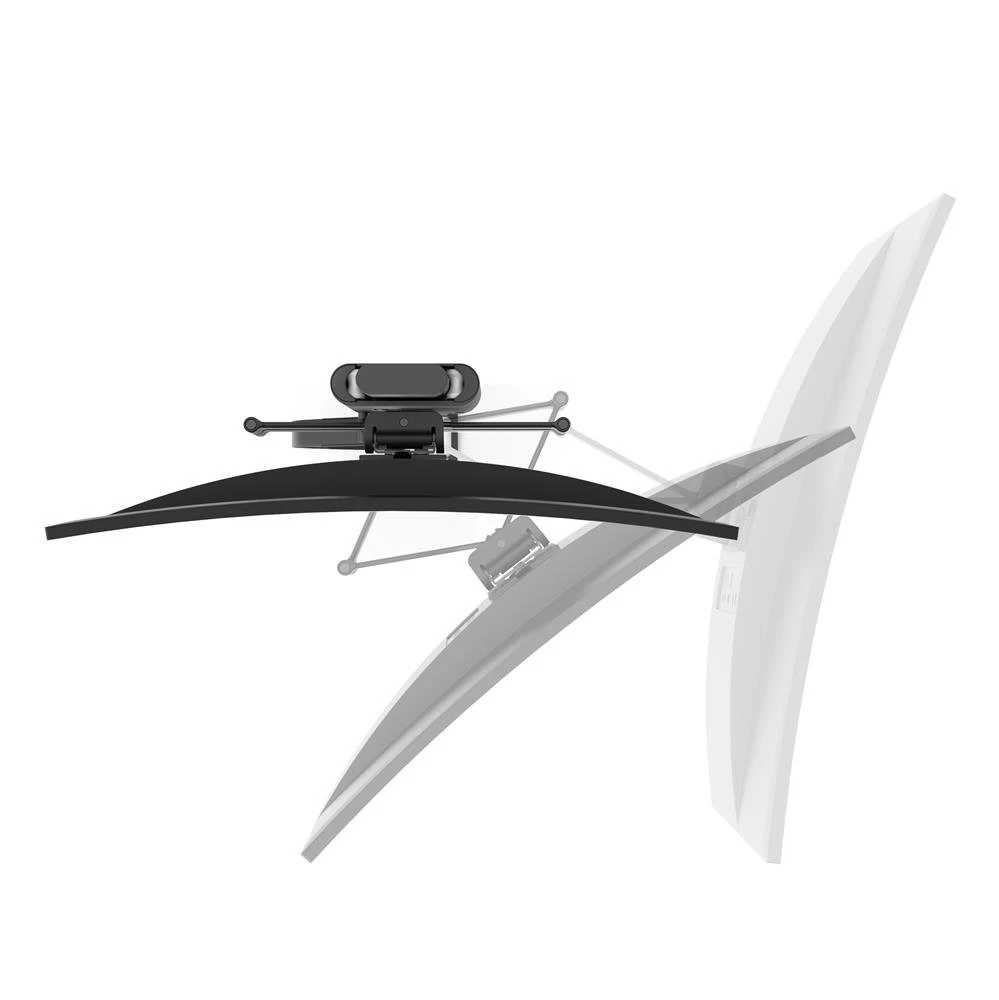

| Tilt | 80 degree |

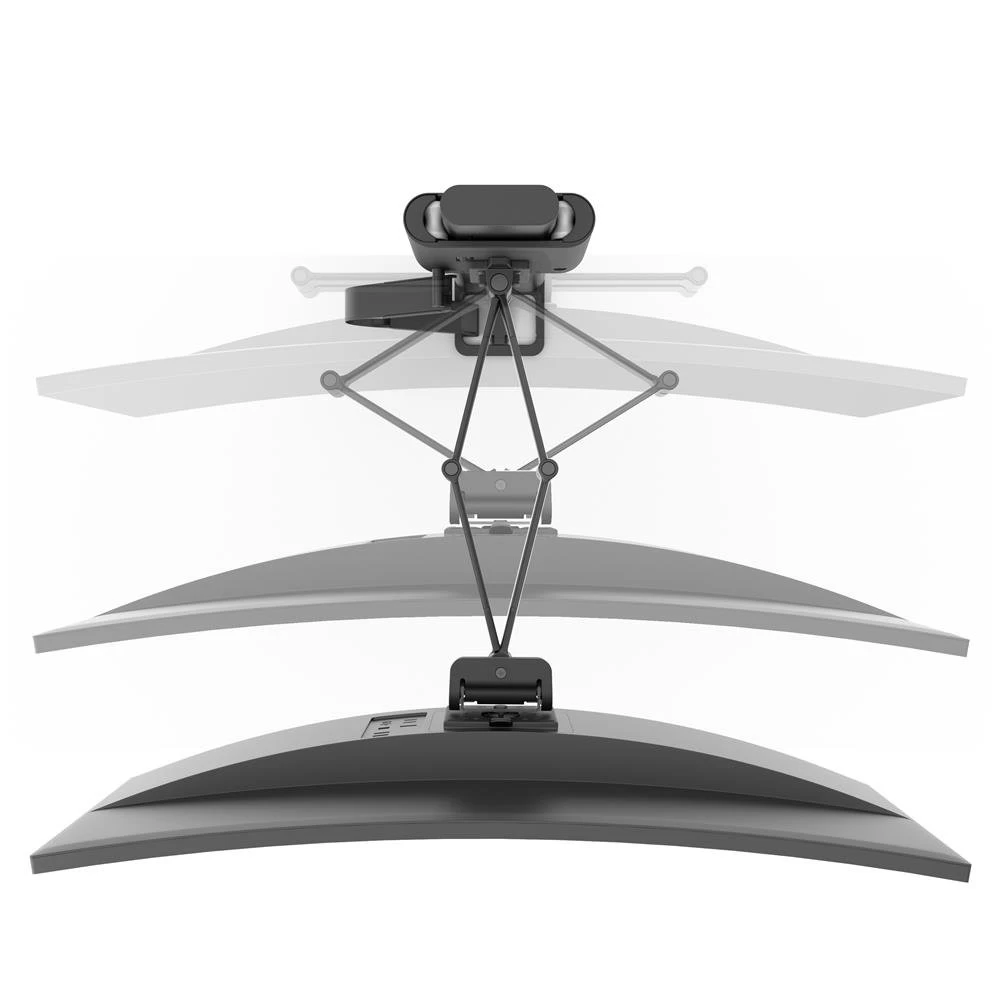

| Pan | 240 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm) |
| Surface Edge Thickness | Up to 2.55″ (65 mm) thick |
| Weight | 15.3 lbs (7 kg) |
| Shipping Dimensions | 30.1″ x 10.6″ x 9.1″ (76 x 27 x 23 cm) |
| Shipping Weight | 18.3 lbs (8.3 kg) |
| Warranty | 15 years |
| Number of Monitors | 1 Monitor |
| Price | $400 – $499 |
