Ergotron 45-619-251 modular CareFit Combo wall mount with covered Wall Track mounting system supports nurse-patient connections, caregiver comfort and uptime by enabling efficient documentation at the point of care. It’s easy to reposition and store, offers an area for supplies or a full worksurface, and enhances healing spaces with clean lines and hidden cables.

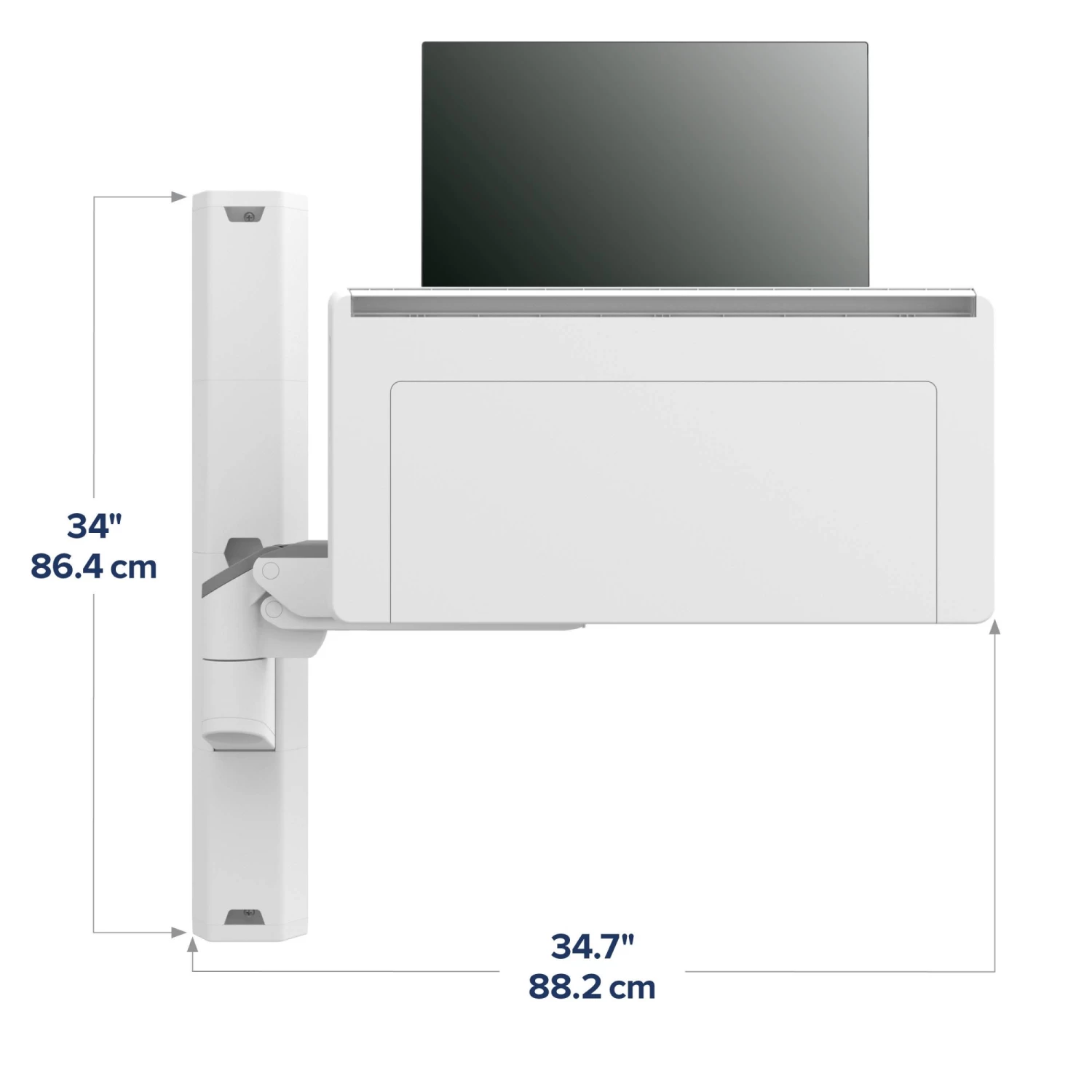

Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 27″ | 8 – 23.5 lbs 3.6 – 10.7 kg | 25″ 63.5 cm | 25° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-619-251 |
| CareFit Combo System with Worksurface | |
| GTIN | 00698833083330 |
| Includes |
|
| Exterior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic |
| Weight Capacity | Display = 8–22 lbs (3.6–10 kg); keyboard and mouse = 1.5 lbs (0.7 kg) |

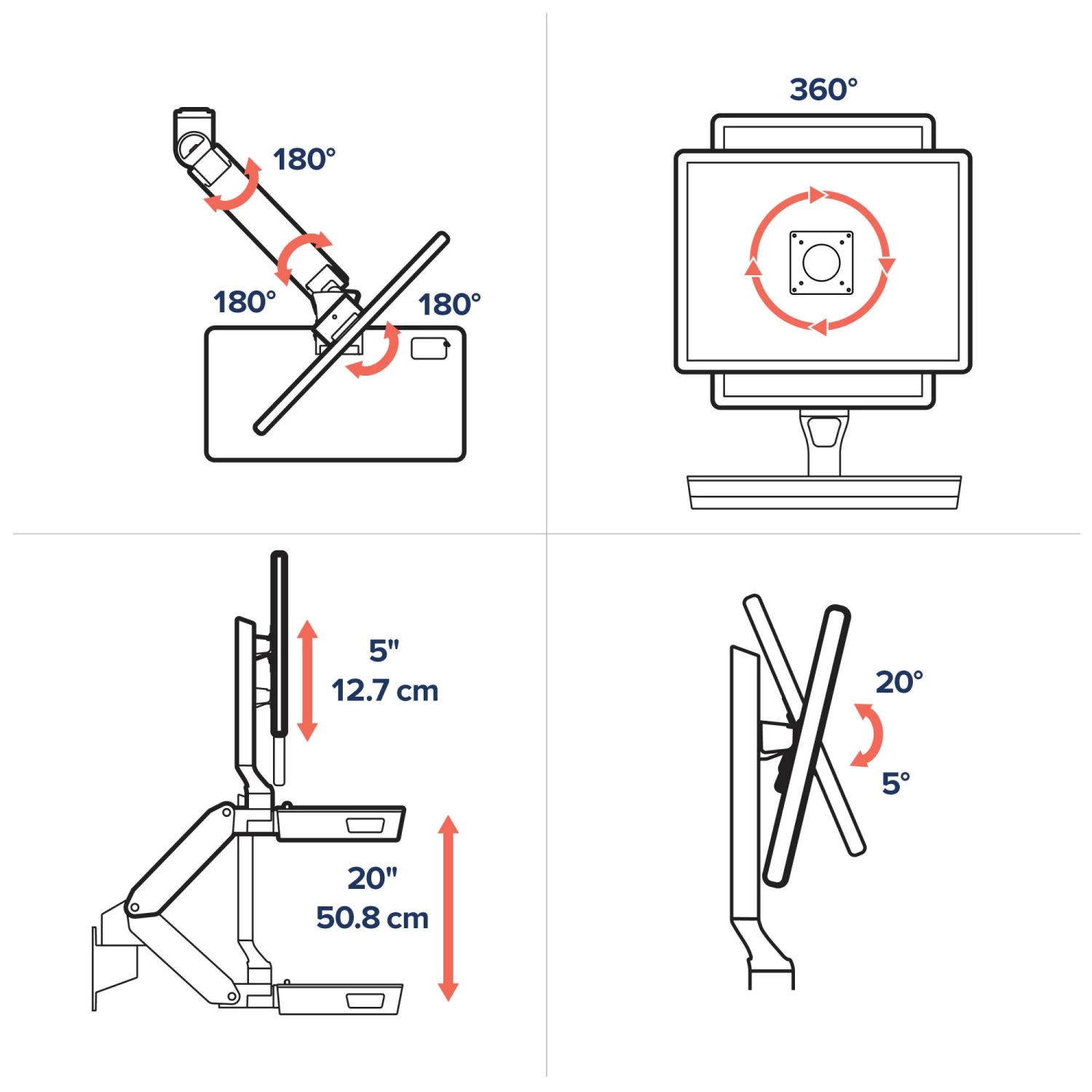

| Lift Range | Monitor and keyboard adjust 20″ (51 cm) in tandem with single-motion; monitor adjusts 5″ (13 cm) independently; maximum monitor height adjustment = 25″ (64 cm) |
| Pan Range | Arm can turn 180° at two points for 360° total side to side motion; monitor can also turn 180° independently |
| Tilt Range | Monitor tilts 20° up / 5° down; keyboard tilts 90° up for space-saving storage |

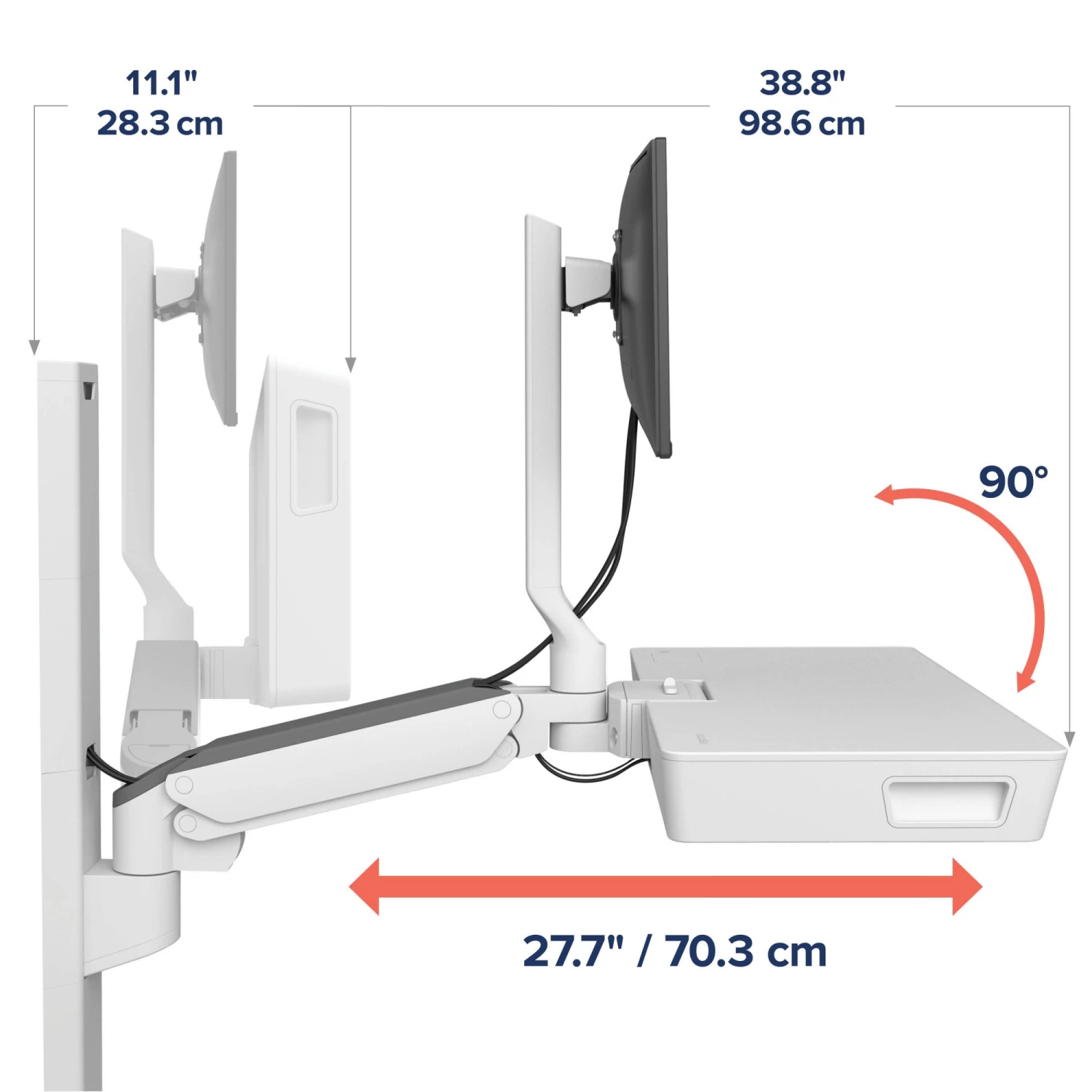

| Folds | Folds to within 11″ (28 cm) of wall in stowed position |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Extender Accessory | To increase extension range, also order the CareFit Extender accessory, 98-547-251 |
| Product Weight | 47.5 lbs (21.6 kg) |
| Shipping Dimensions | 37.1″ x 26.1″ x 10″ (94 x 66 x 25 cm) |
| Shipping Weight | 60.8 lbs (27.6 kg) |
| Warranty | Five (5) years |
Benefits
-
Flexible workflows – Easy screen sharing and one-hand stowing enhances patient interactions
-
Comfortable documentation – Offers ergonomic height-adjustment and intuitive access to tools
-

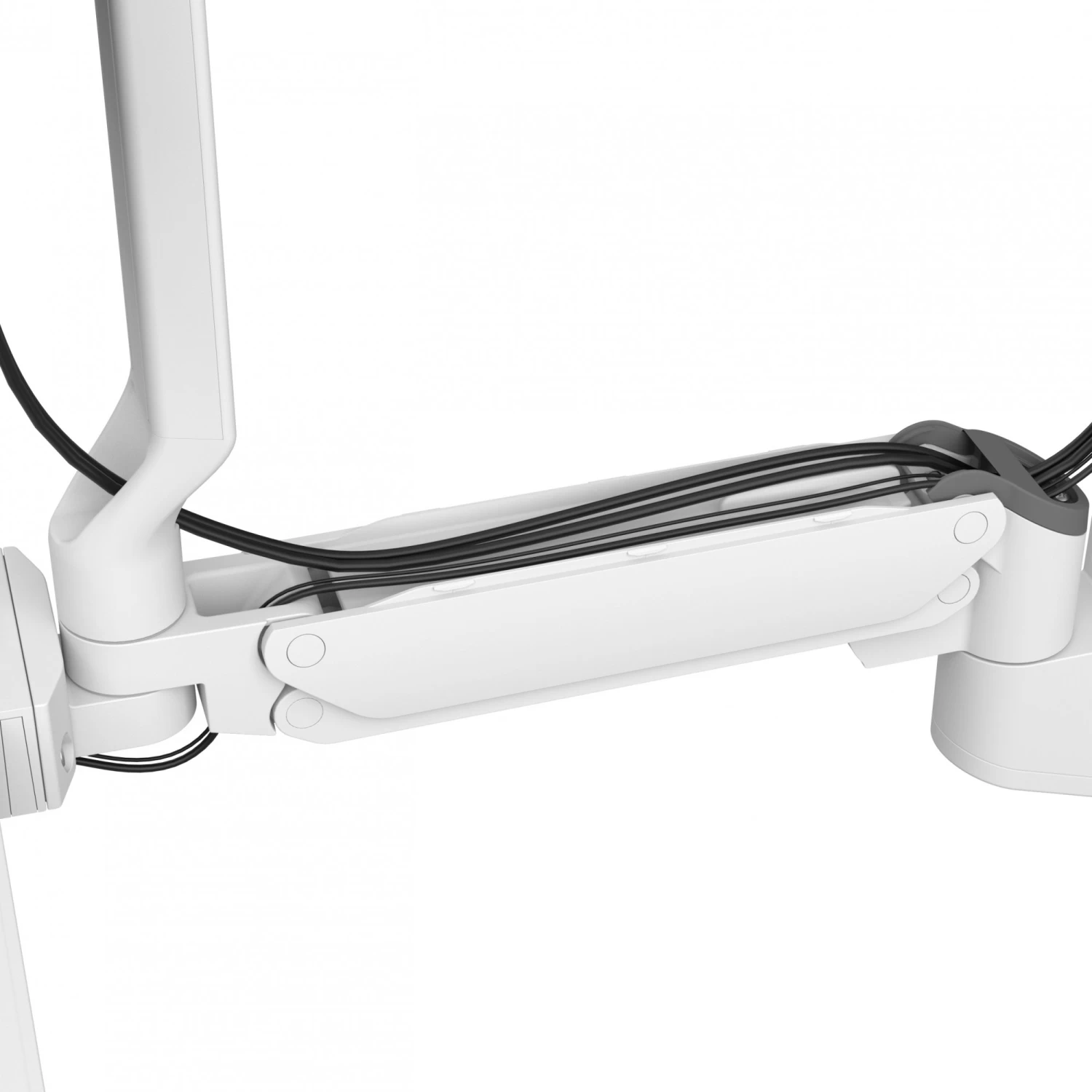

Neat workspace – Concealed cable management minimizes clutter and supports infection control
-
Supports uptime – Convenient cord access simplifies maintenance with timely support available from our expert team
-
Warm aesthetic – Modular wall mount enhances new and existing healing spaces
-
Quality construction – Sturdy design supports multiple configurations and installation options
| Model | 45-619-251 |
| Manufacturer | Ergotron |
| Part Number | 45-619-251 |
| UPC | 698833083330 |
| Monitor Size | Up to 27″ |
| Weight Capacity | 8-23.5 lbs (3.6-10.7 kg) |
| Lift | (63.5 cm) 25 in |
| Tilt | 25 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Weight | 41 lbs (19 kg) |
| Shipping Dimensions | 37.1″ x 26.1″ x 10″ (94 x 66 x 25 cm) |
| Shipping Weight | 51 lbs (23 kg) |
| Warranty | Five years |
