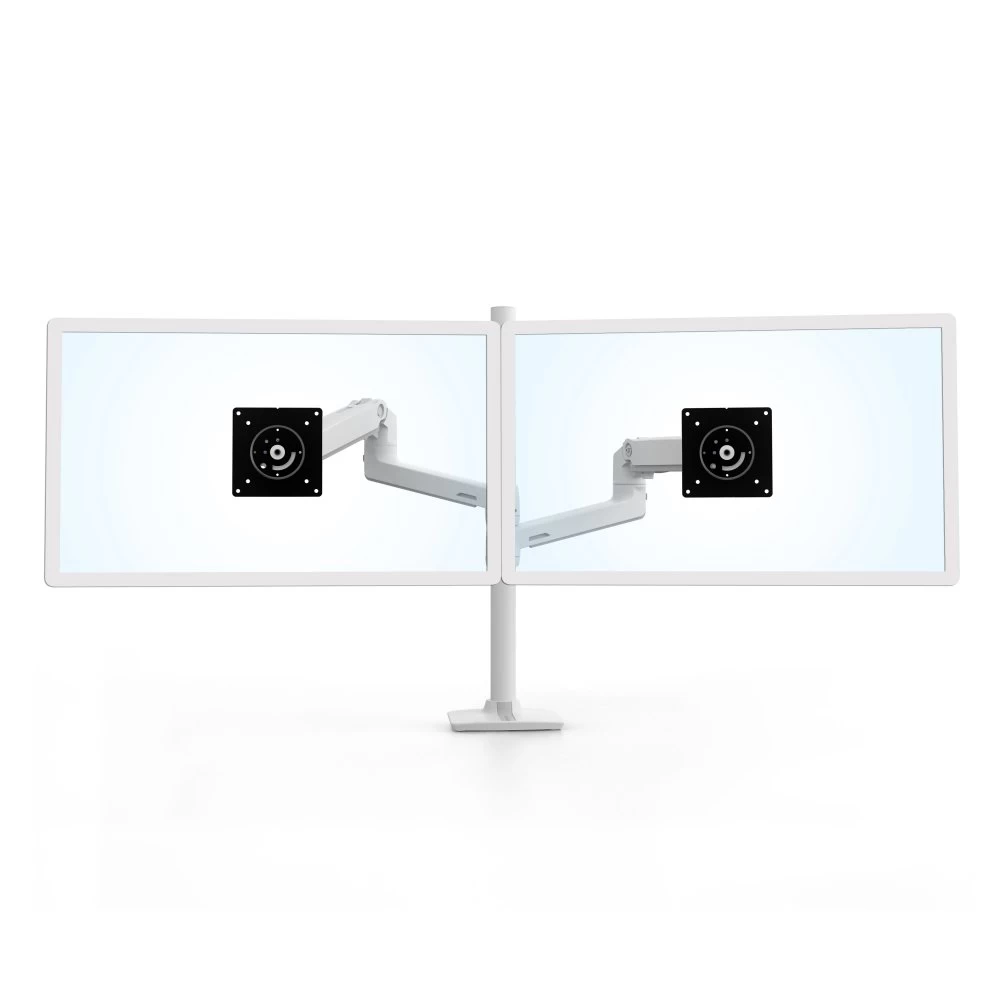

Sleek and streamlined, Ergotron 45-509-216 LX is the perfect desk
accessory to add flexibility to your monitors. The tall pole
accommodates monitors up to 40″. Place them exactly where you want for
ergonomic comfort.
Add a third or fourth display using the LX Arm, Extension and Collar Kit
accessory.
Technical Drawing
Technical Specifications

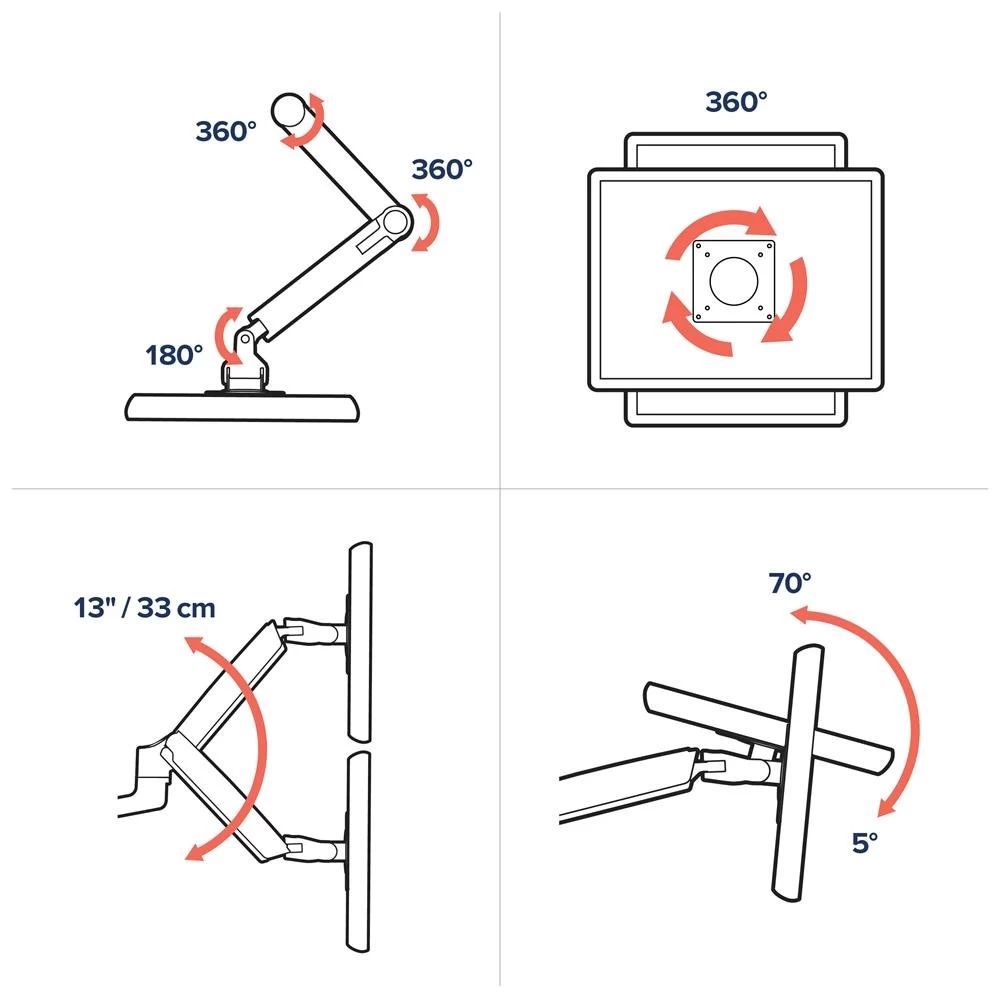

| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 40″ | 14-44 lbs 6.4-20.0 kg | 13″ 33.0 cm | 75° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-509-216 (white with grey accents) |
| LX Dual Stacking Arm, Tall Pole | |

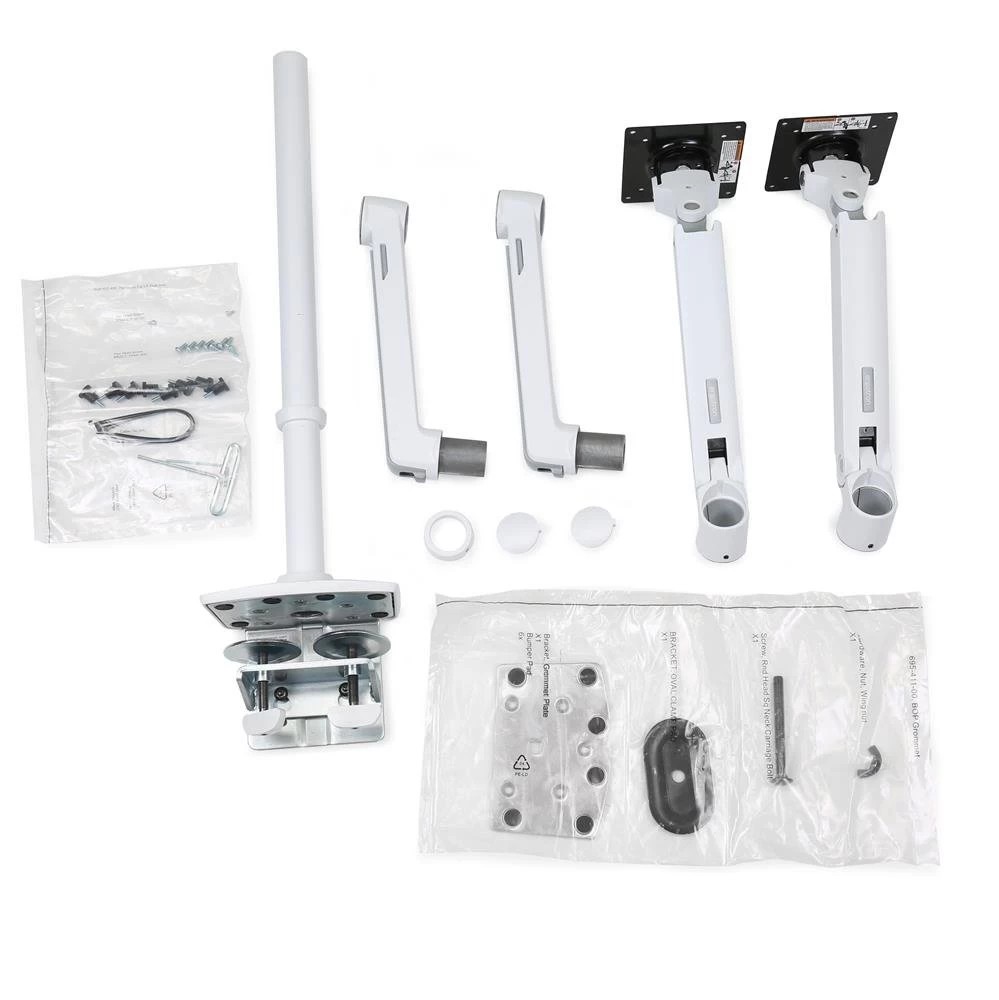

| Includes |
|
| Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200) |
| Construction | Aluminum and steel construction offers greater durability |
| Clamp and Grommet Mount Base | New clamp and grommet mount base ensures greater stability of display and arm |

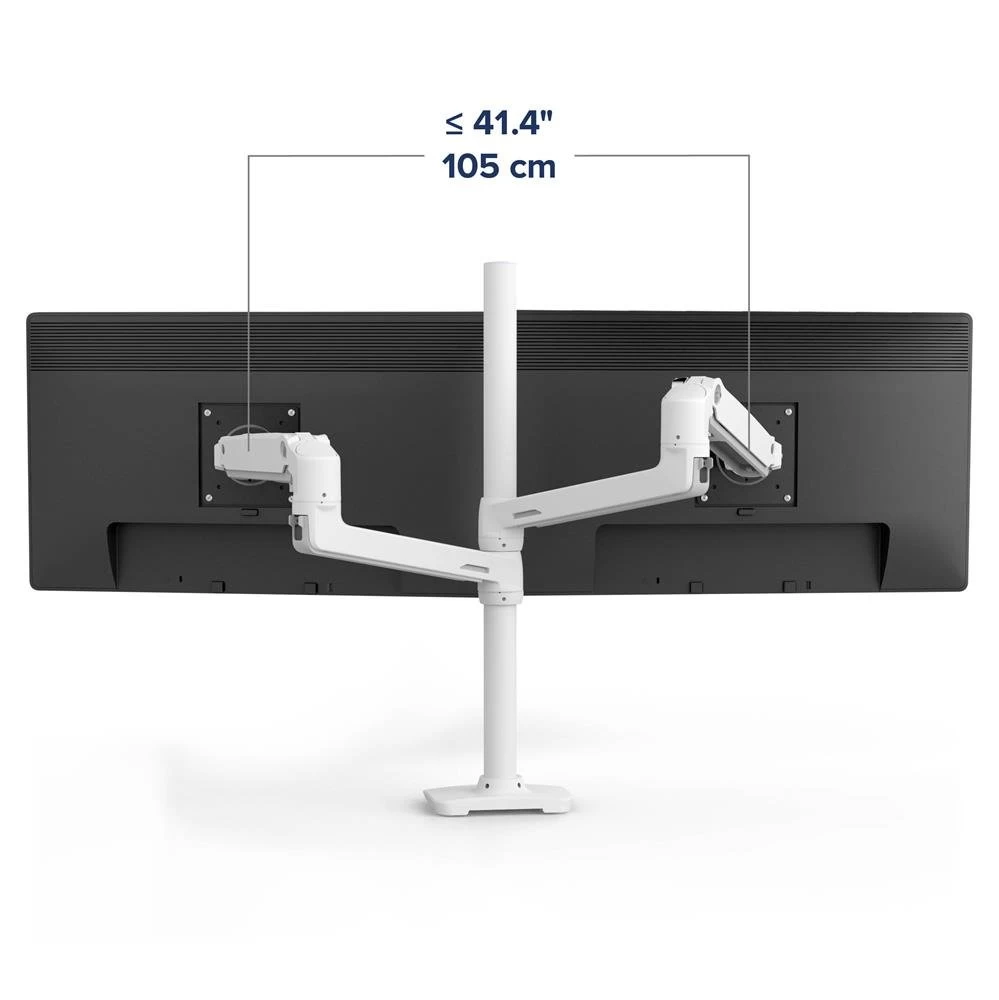

| Maximum Outside Height of Display | To facilitate stacking of monitors, maximum outside height of display should be no more than 21″ (53 cm). To align monitors side by side, maximum outside width should be no more than 40″ (102 cm). Most monitors with screen sizes of 40″ or less fit within this specification |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Desk Clamp | Desk clamp attaches to surface edge up to 2.6″ (66 mm) thick |
| Grommet Mount | Attaches through hole 0.31″ to 2″ (8–50 mm) wide and up to 3″ (76 mm) thick |
| Weight Capacity |
|
| Certified | This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds) |
| Product Weight | 19 lbs (8.62 kg) |
| Shipping Dimensions | 17.1″ x 17.7″ x 29.9″ (18 x 45 x 76 cm) |
| Shipping Weight | 24 lbs (10.9 kg) |
| Warranty | Ten (10) years |
Benefits
-

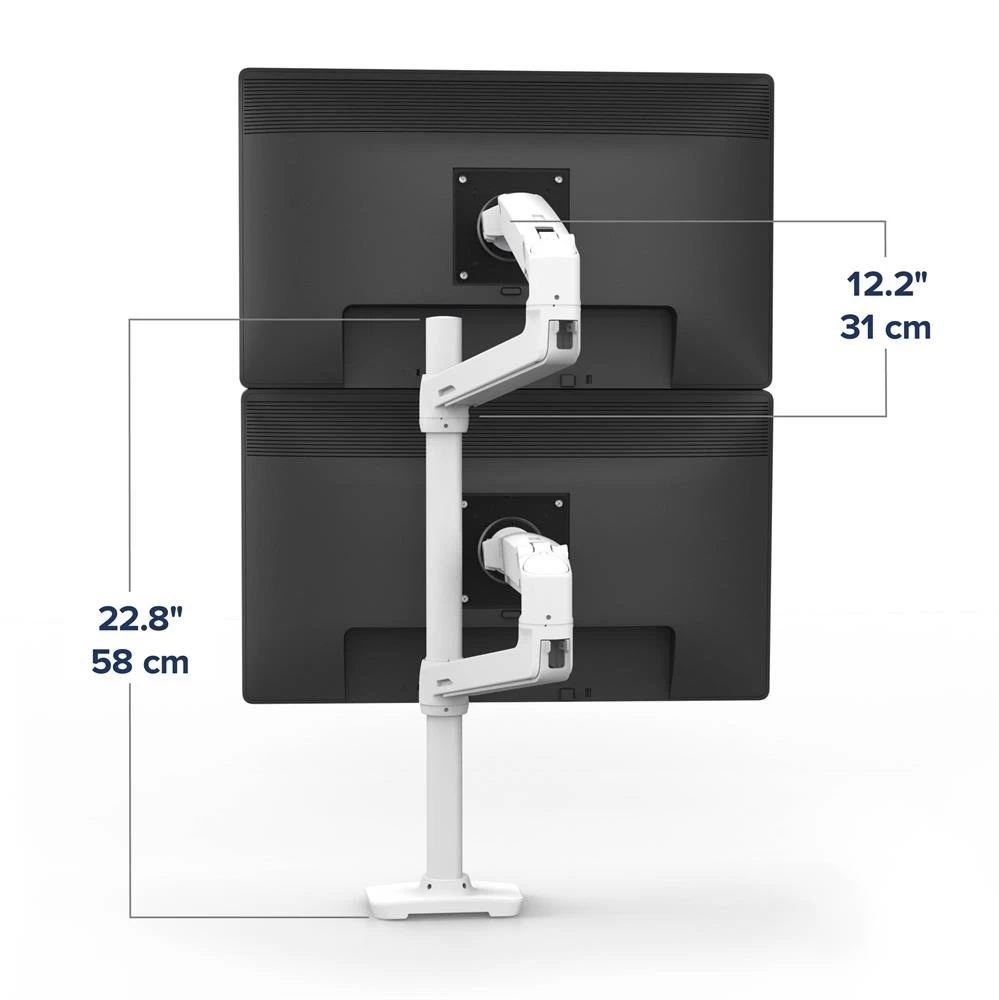

22″ (55.9 cm) tall pole provides configuration flexibility.
Ideal for larger displays -
Add a third or fourth display using the accessory LX Arm,
Extension and Collar Kit -
Position monitors for maximum ergonomic comfort with
unparalleled range of motion -
Helps reduce eye, back and neck strain
-
Folding arms free up space in constrained areas
-
Two-piece mounting clamp has keyhole-shaped holes for quick
assembly and two clamping screws for secure installation -
Easily turn one or both screens from landscape mode to
portrait mode – view entire pages without scrolling -
Passes Ergotron’s 10,000-cycle motion test, which ensures
years of trouble-free height adjustment -
Patented Constant Force lift-and-pivot motion technology
| Model | 45-509-216 |
| Manufacturer | Ergotron |
| Part Number | 45-509-216 |
| UPC | 698833061581 |
| Color | White with grey accents |
| Weight Capacity | 14-44 lbs (6.4-20 kg) |
| Lift | (33.0 cm) 13 in |
| Tilt | 75 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Surface Hole Dimensions | 5/16″ to 2″ (7-51 mm) wide and up to 3″ (80 mm) thick |
| Weight | 19 lbs (8.62 kg) |
| Shipping Dimensions | 17.1″ x 17.7″ x 29.9″ (18 x 45 x 76 cm) |
| Shipping Weight | 24 lbs (10.9 kg) |
| Warranty | Ten (10) years |
| Mounting Options | Desk |
| Number of Monitors | 2 Monitors |
| Number of Monitors | 3 Monitors |
| Number of Monitors | 4 Monitors |
| Maximum Monitor Size | 40″ |

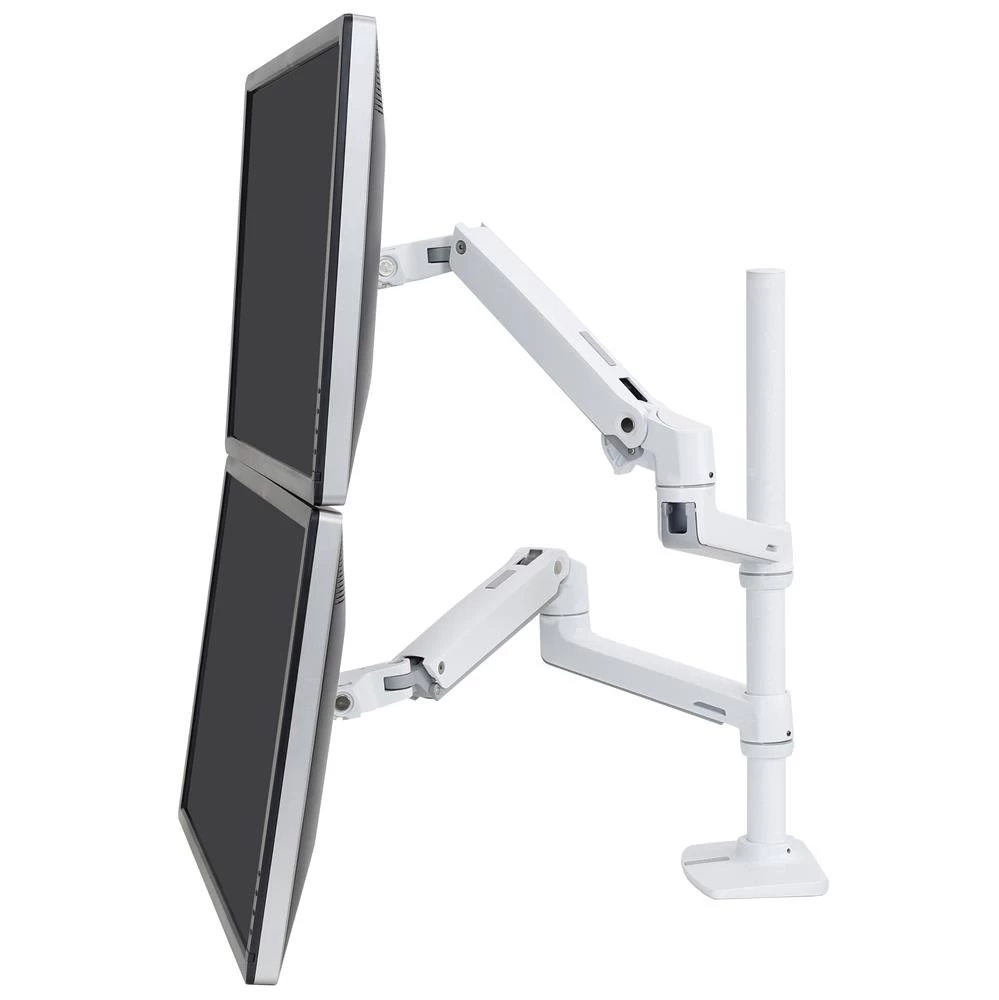

| Monitor Placement | Stacked One Over the Other |
| Price | $400 – $499 |
