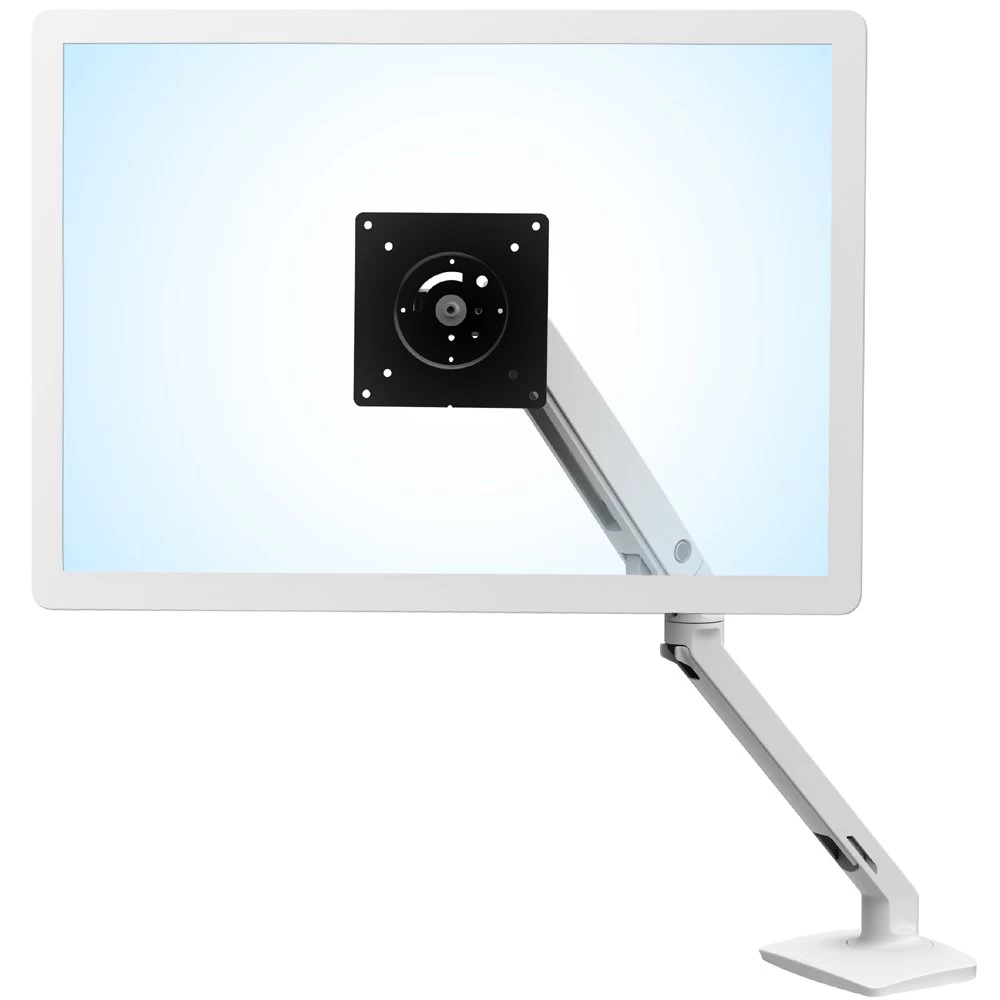

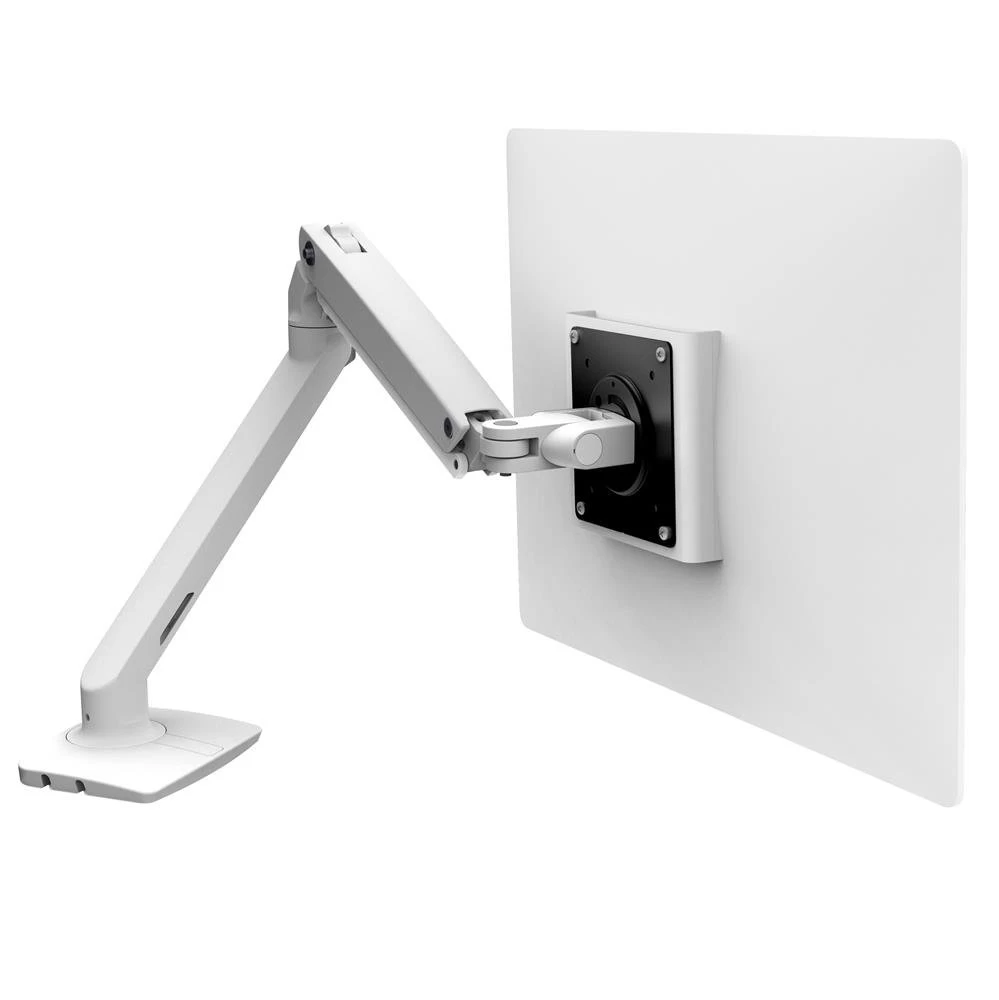

Add style to your desk without sacrificing functionality. The sleek
and lightweight MXV incorporates a modern V-shaped design with proven
engineering to create a stable yet flexible platform for your screen.
With a slim profile, Ergotron 45-486-216 MXV offers 13″ (33 cm) of
height adjustment, integrated tilt and more – all on a convenient swivel
base. The arm’s adjustability helps increase viewing comfort, while its
upscale finish leaves a stylish impression.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 34″ | 7-20 lbs 3.2-9.1 kg | 13″ 33.0 cm | 180° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-486-216 (white) |
| MXV Desk Mount LCD Monitor Arm | |
| Includes |
|
| Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200) |
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Arm Folds | Back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas |

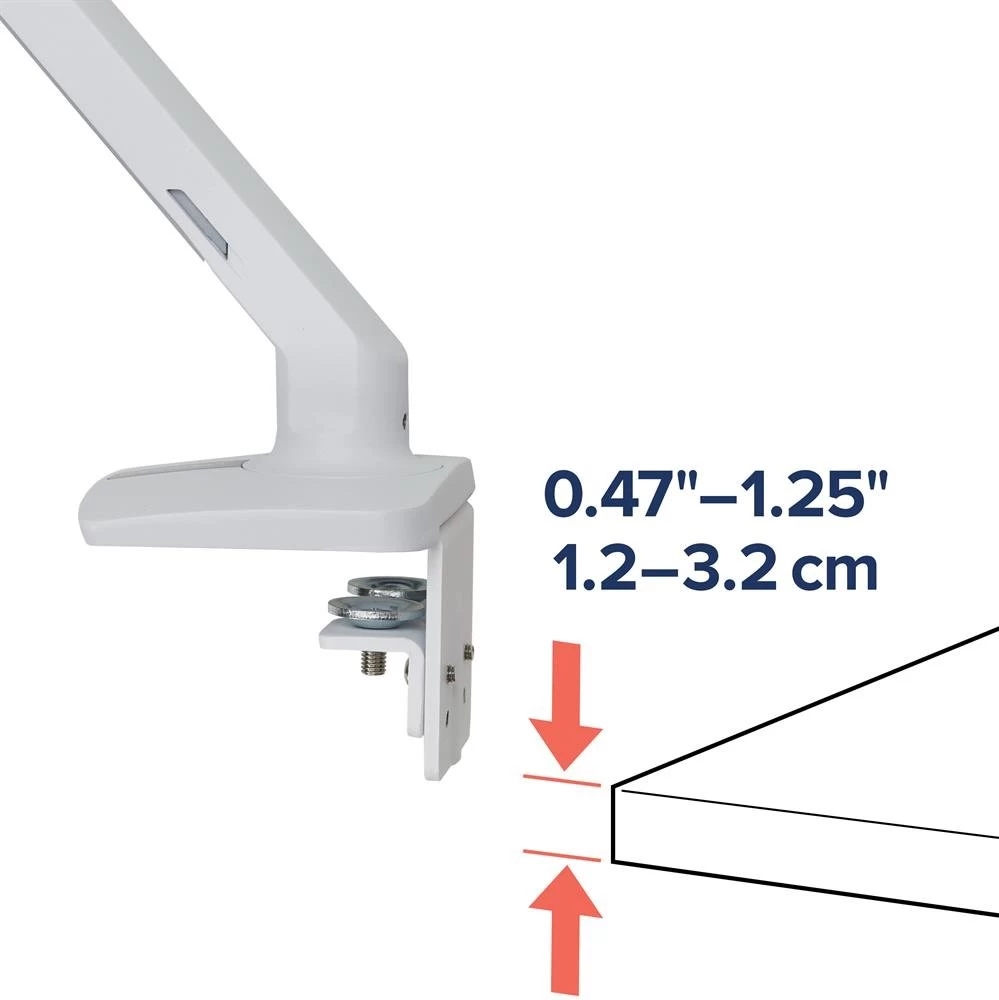

| Mounting Options | Desk Clamp attaches to surface edge .47″ to 1.25″ (12 to 32 mm) thick |
| Grommet Mount | An accessory Grommet Mount is available to install arm to desk via a through-hole in its surface: order 98-110 |

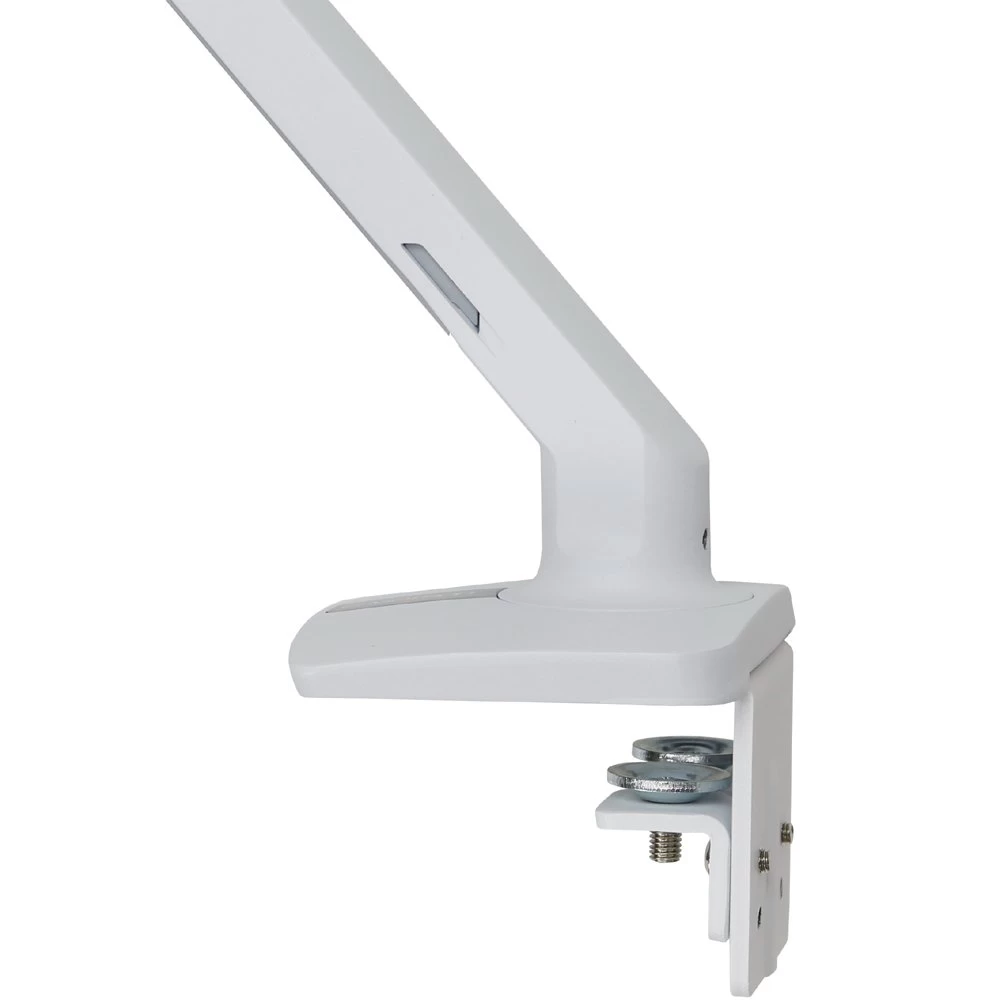

| Desk Clamp | Has anti-rotation screws to prevent base from slipping |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Tilt Range | 90° backward, 90° forward |
| Pan Range | 180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to a full 360° |
| Extension Range | 17.8″ (45 cm); maximum extension reach = 22.2″ (56 cm) from back of base to VESA mounting plate |
| Product Weight | 6.4 lbs (2.9 kg) |
| Shipping Dimensions | 34.4″ x 9.3″ x 7.3″ (87.5 x 23.5 x 18.5 cm) |
| Shipping Weight | 7.5 lbs (3.4 kg) |
| Warranty | Ten (10) years |
Benefits
-
Saves valuable desk space with the cable management system
and narrower profile – 25% slimmer than the LX arm -
Allows you to easily adjust your display with a light touch
thanks to patented Constant Force technology -
Creates additional flexibility with a friction pivot that
offers a 180-degree tilt -
Supports displays weighing 7 to 20 lbs (3.2 to 9.1 kg)
-
Monitor can extend out up to 22.2″ (56 cm)
-
Sits securely on your workstation with a low-profile desk
clamp base that can fit in tight places -
Keeps your monitors within your desk space with a solid
rotation-stop, perfect for call centers and back-to-back desks -
Prevents your arm from making contact with the wall with the
base’s rotation-stop, which limits its range to 180 degrees -
Passes Ergotron’s 10,000-cycle motion test, which ensures
years of trouble-free height adjustment -

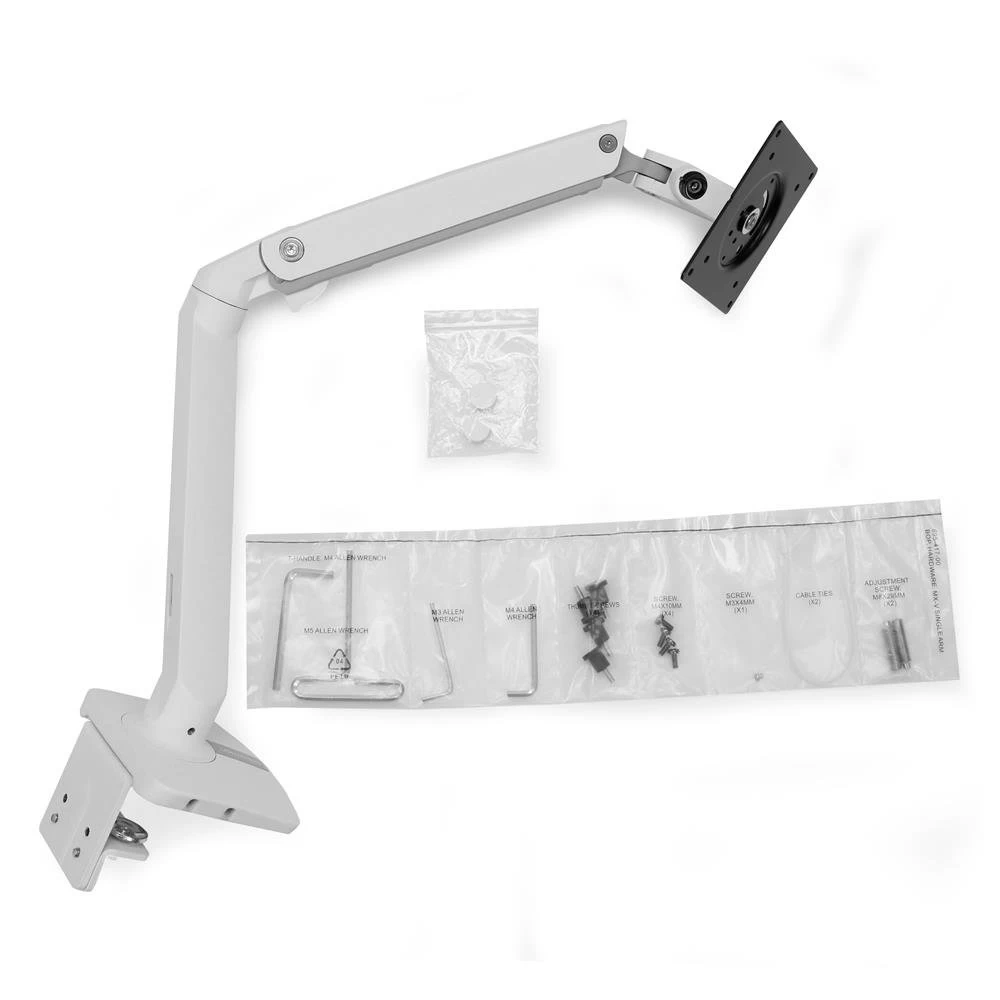

Arrives fully assembled for you to easily attach to your
desk, add your monitor and adjust the tension
| Model | 45-486-216 |
| Manufacturer | Ergotron |
| Part Number | 45-486-216 |
| UPC | 698833061987 |
| Color | White |
| Monitor Size | Up to 34″ |
| Weight Capacity | 7-20 lbs (3.2-9.1 kg) |
| Lift | (33.0 cm) 13 in |
| Tilt | 180 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Desk Thickness | 0.47″ to 1.25″ (12 to 32 mm) thick |
| Extension | 17.8″ (45 cm); maximum extension reach = 22.2″ (56 cm) |
| Weight | 6.4 lbs (2.9 kg) |
| Shipping Dimensions | 34.4″ x 9.3″ x 7.3″ (87.5 x 23.5 x 18.5 cm) |
| Shipping Weight | 7.5 lbs (3.4 kg) |
| Warranty | Ten (10) years |
| Mounting Options | Desk |
| Number of Monitors | 1 Monitor |
| Price | $200 – $299 |
