Sale!
Original price was: $374.00.$98.99Current price is: $98.99.
Highlights
- WorkFit-LX Sit-Stand system
- Operation: Made up of 2 arms that let you adjust monitor and keyboard independent of each other
- Tight Spaces: Installs on the side or back of the desk, sit-stand for tight spaces
- 20″ height adjustment: Keyboard, Monitor can be adjusted 20″ vertically
- 25 lbs weight capacity: Monitor Arm holds weight 7-25 lbs, keyboard arm up to 5 lbs
- For dual monitor system: Monitor weight should not exceed 8 lbs each. If your monitors weigh more than 8 lbs each, please check dual monitors with the WorkFit-LX
- Discover a world of quality products.
- Have the best deals
- Free Shipping Worldwide
- There are quality problems, free return and exchange

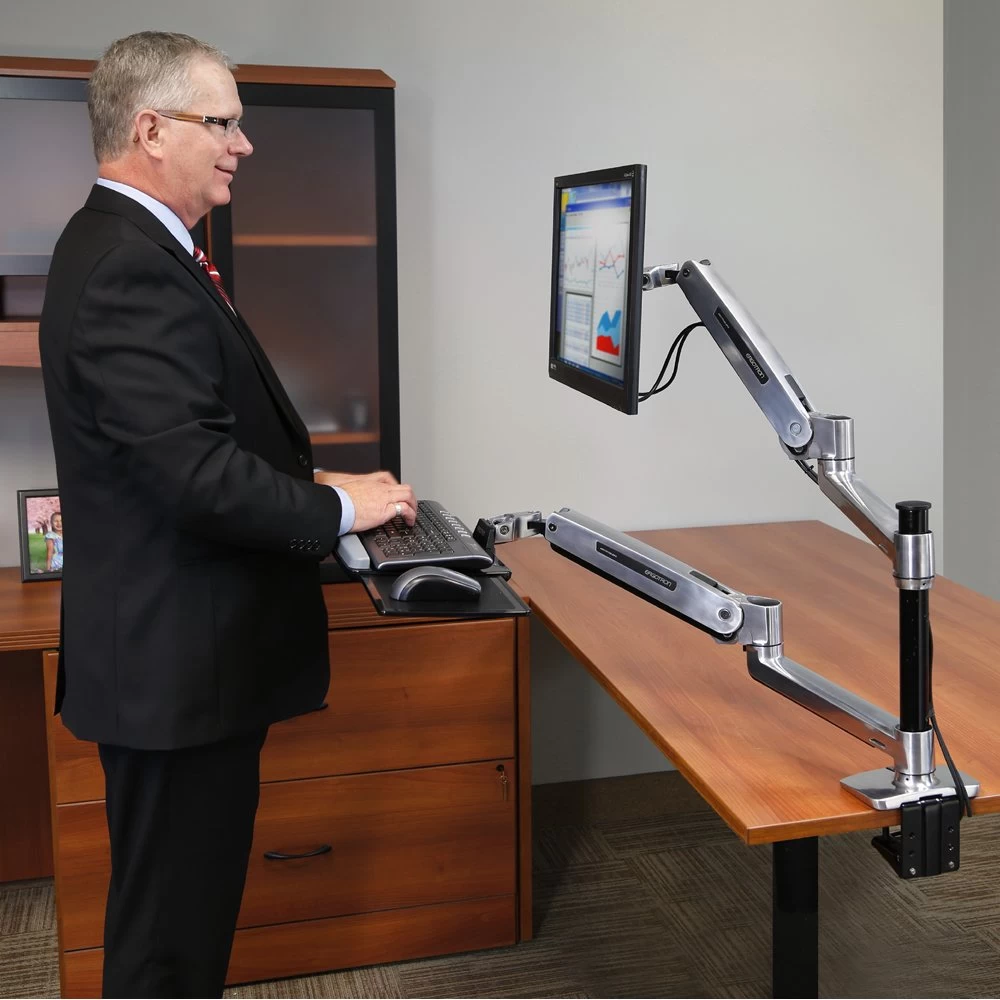

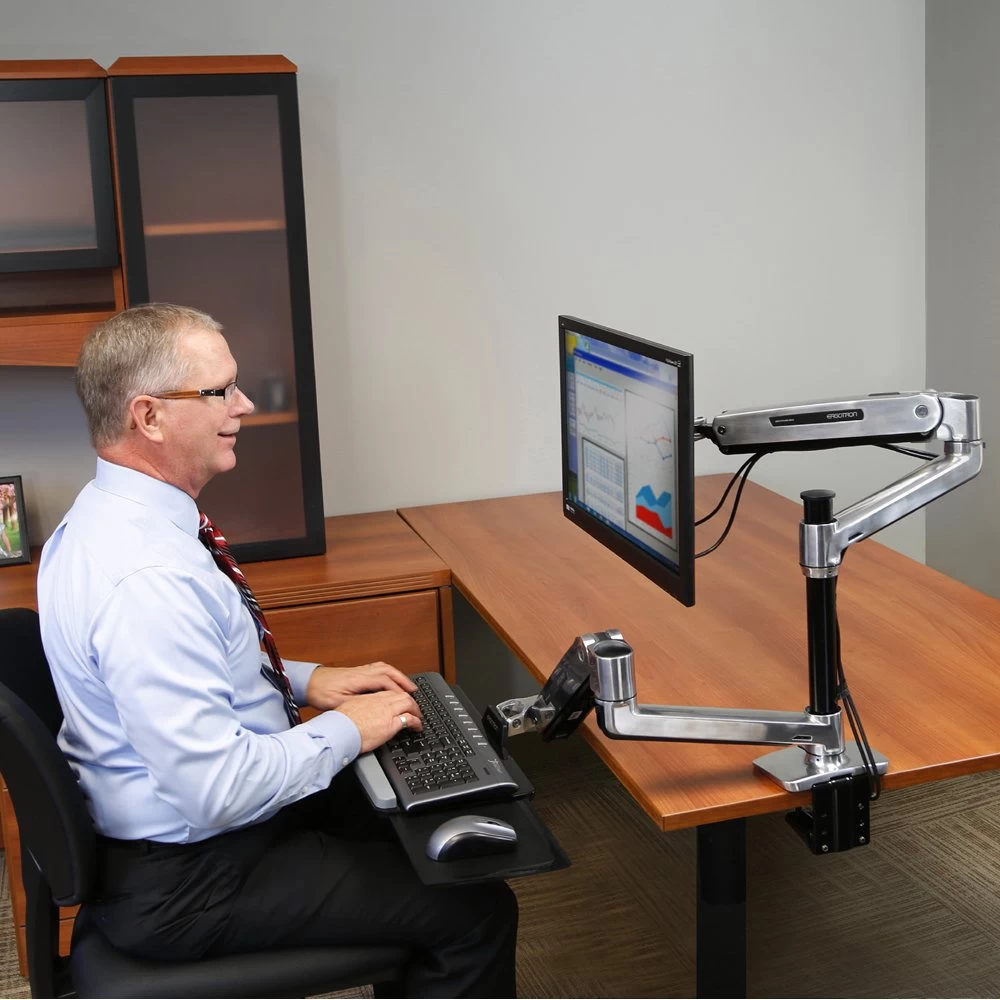

The highlight of Ergotron 45-405-026 WorkFit-LX is its modular and flexible design that lets you adjust the height and position of your keyboard and monitor independent of each other. This WorkFit-LX provides 20″ vertical and 62″ side-to-side flexibility to both the keyboard as well as the monitor.
This standing desk system enables complete control over focal distance in the positioning of the keyboard relative to the monitor screen. With an unparalleled range of adjustment, the LX easily accommodates a user’s sitting or standing posture.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 42″ | 7 – 25 lbs 3.2 – 11.3 kg | 20″ 50.8 cm | 75° | 360° | 360° | MIS-D/E/F |
Product Information
| Part Number | 45-405-026 |
| WorkFit-LX Sit-Stand Desk Mount System (polished aluminum) | |
| Includes |
|
| NOTE | Extra-long cables may be required to span between standing and sitting heights |
| Weight Capacity | Monitor arm = 7 to 25 lbs (3.1 to 11.3 kg); keyboard arm ≤ 5 lbs (2.2 kg) |
| Monitor Tilts | 70° up and 5° down. When keyboard is in down position, tray features a back-tilt of 5°; folds upright 90° in storage position. |
| Dimensions | Keyboard tray dimensions = 18.3″ x 8.9″ (46 x 23 cm); mouse tray dimensions = 8″ x 8″ (20 x 20 cm) |
| Mouse Tray | Slides out to either left or right side, depending on user preference |
| Mounting Standards | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
| Locking Connections | Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts |
| Desk Clamp | Attaches to edge up to 2.5″ (65 mm) thick; grommet mount attaches through hole 0.5″ to 2.5″ (7–65 mm) wide and up to 2.5″ (65 mm) thick |
| Stability of Monitor Arm | Is dependent on stability of desk or table to which system is attached; any bounce in desk or table surface will be transferred to arm |

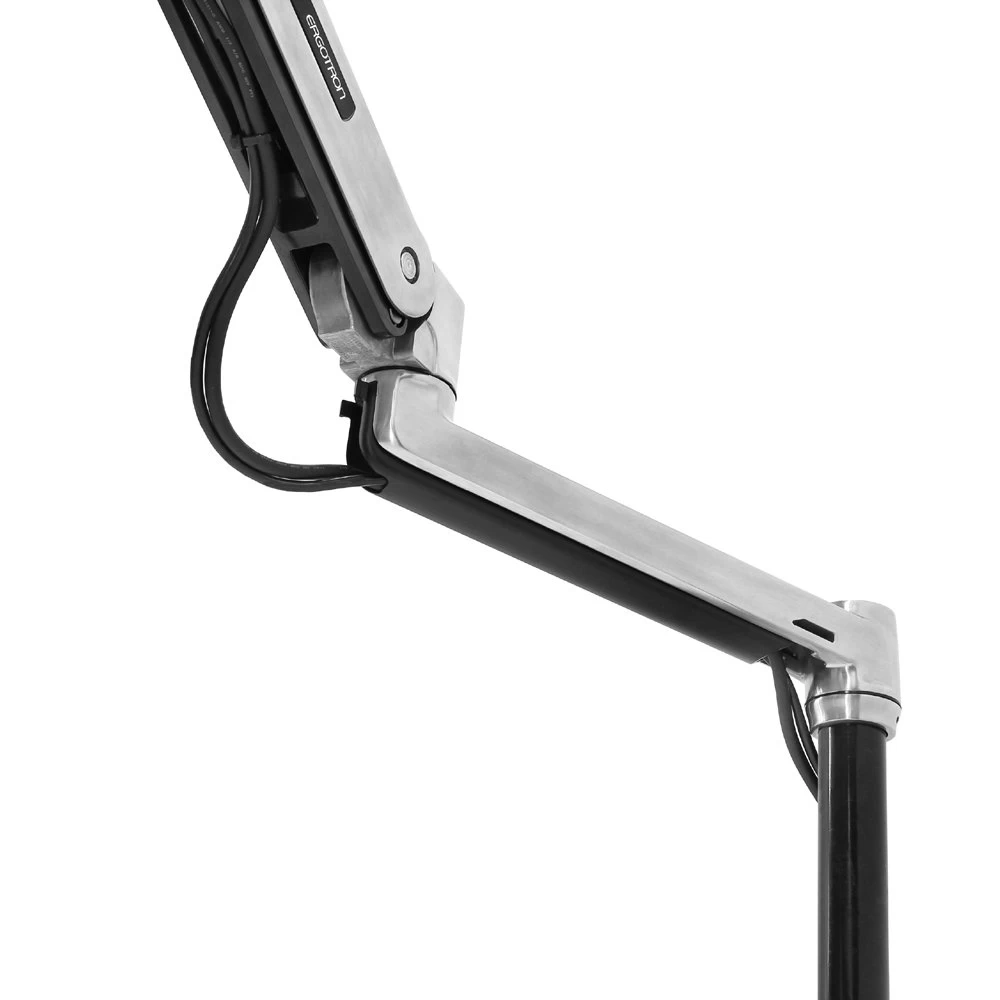

| Cable Management | Clips on the underside of the arm route and hide cords |
| Product Weight | 30 lbs (14 kg) |
| Shipping Dimensions | 23.3″ x 19.8″ x 10.3″ (59 x 50 x 26 cm) |
| Shipping Weight | 35 lbs (16 kg) |
| Warranty | Five (5) years |
Benefits
- Easily extend or retract the arms for precise control of the distance between the keyboard and screen
- Modular design allows you to configure the system to suit your specific requirements
- Compact footprint – fits in tight spaces including corner desks
- Focal distance is easily changed, making it well suited for use with larger monitors
- Cable management features route cables under the arms, out of the way
- Stable data-entry platform
- Patented CF motion technology provides premium ease-of-use display adjustment
- Durable polished aluminum and steel construction
- Proven durability: Passes Ergotron’s 10,000-cycle motion test
| Model | 45-405-026 |
| Manufacturer | Ergotron |
| Part Number | 45-405-026 |
| UPC | 698833042955 |
| Color | Polished aluminum |
| Monitor Size | Up to 42″ |
| Weight Capacity | Monitor arm = 7 to 25 lbs (3.2 to 11.3 kg); keyboard arm up to 5 lbs (2.2 kg) |
| Lift | (50.8 cm) 20 in |
| Tilt | Up 70 degree and down 5 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Keyboard Tray Dimensions | 18.3″ x 8.9″ (46 x 23 cm) |
| Mouse Tray Dimensions | 8″ x 8″ (20 x 20 cm) |
| Weight | 30 lbs (14 kg) |
| Shipping Dimensions | 23.3″ x 19.8″ x 10.3″ (59 x 50 x 26 cm) |
| Shipping Weight | 35 lbs (16 kg) |
| Warranty | Five (5) years |
| Side-to-side Movement | 62″ (157 cm) |
| Monitor Arm Types | 1 Monitor |
| Monitor Arm Types | Sit-Stand Workstation |
| Monitor Arm Types | 2 Monitors |
| Mounting Pattern | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY) |
| Price | $600 – $699 |
