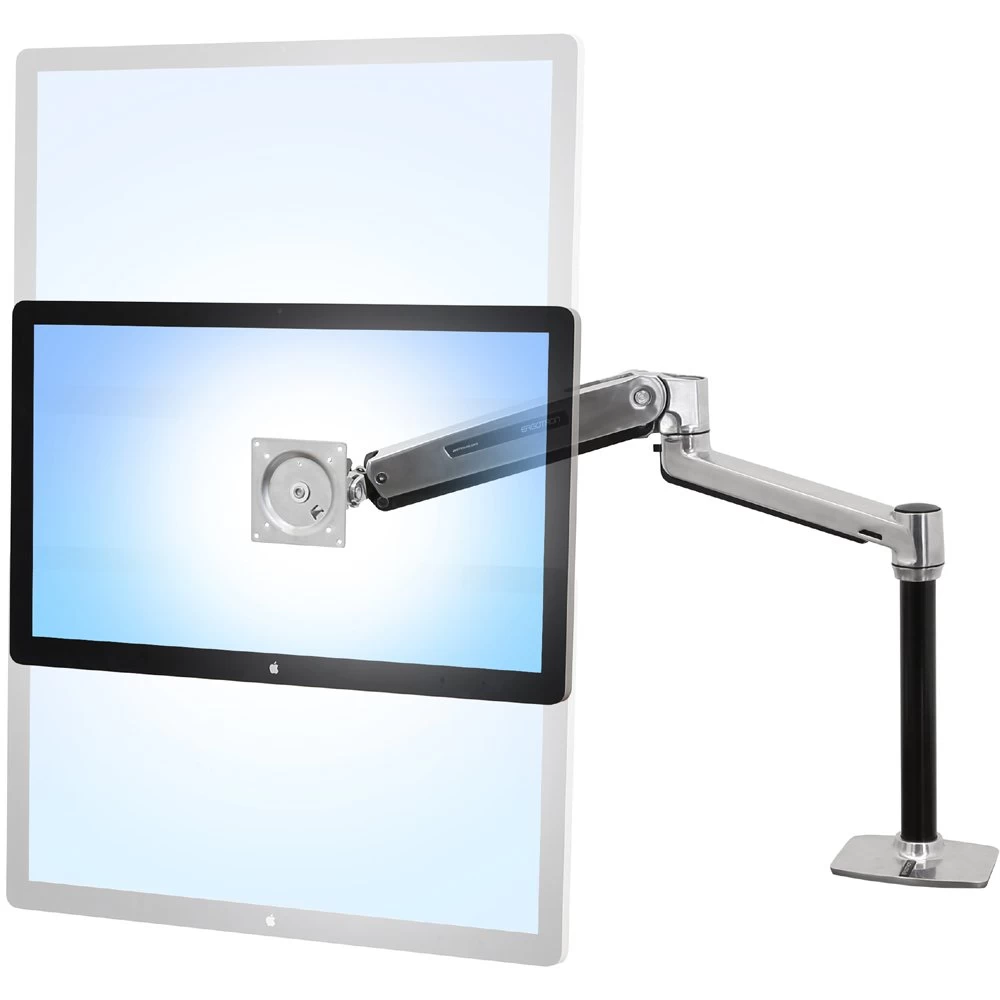

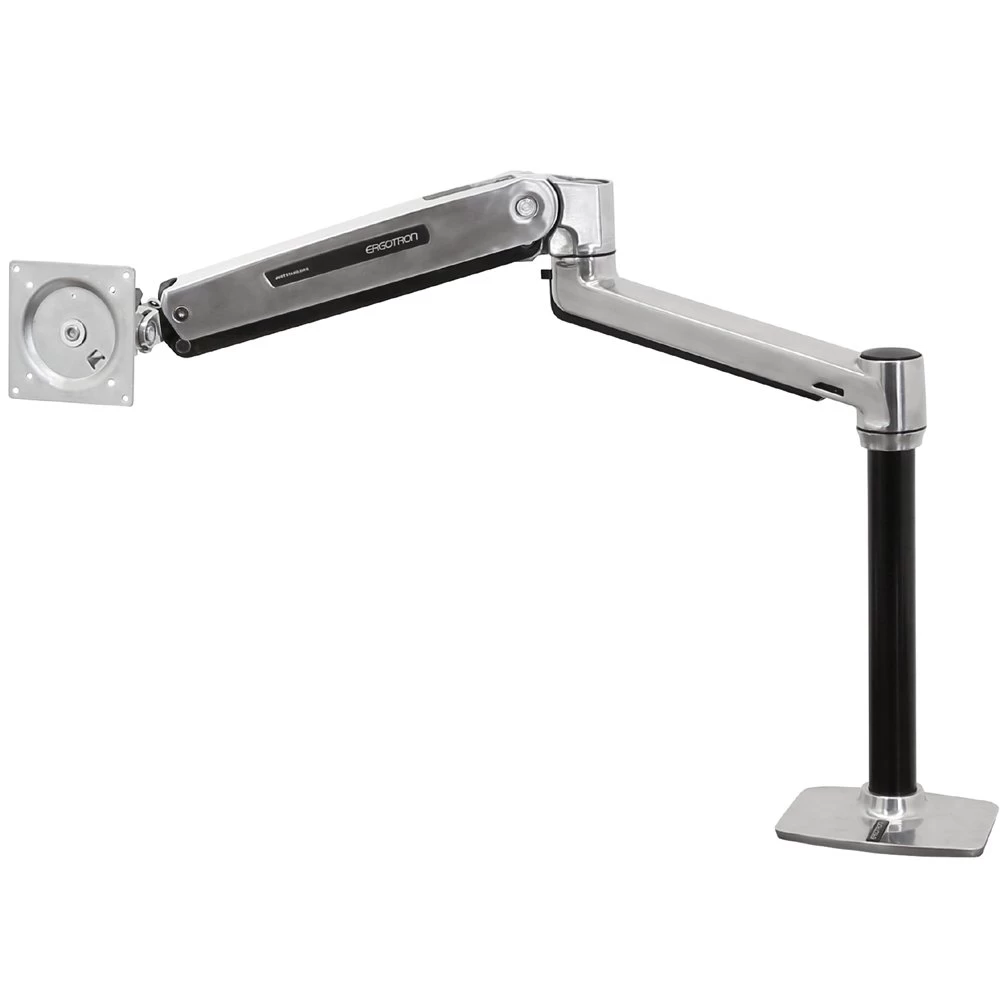

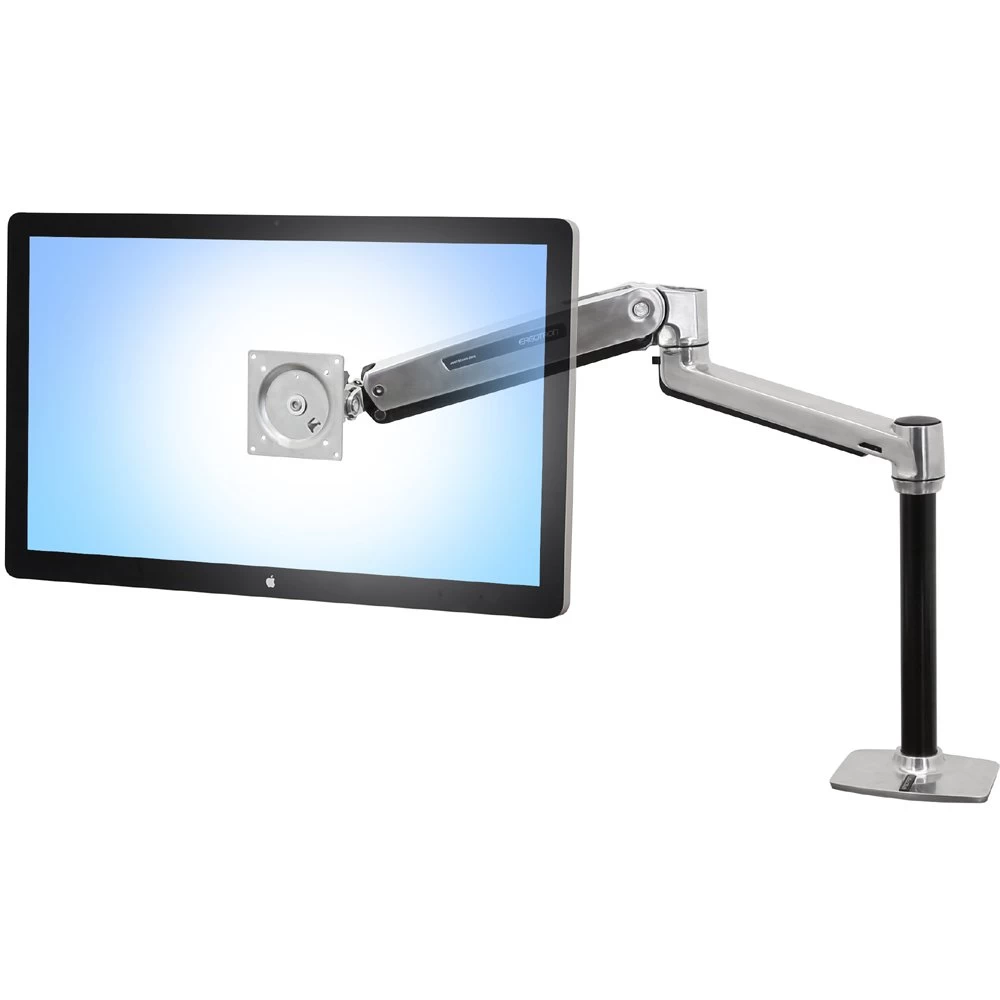

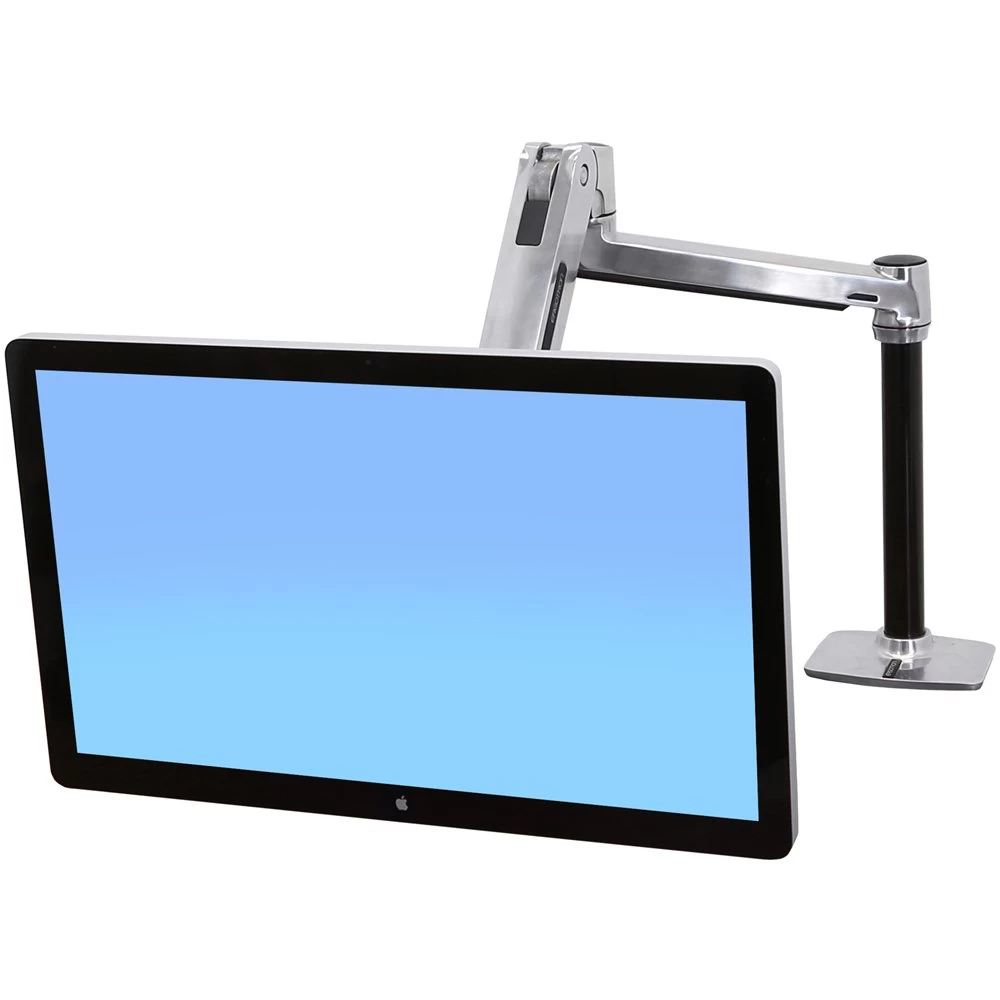

The Ergotron 45-384-026 is a versatile arm. Use it in your office to mount a large monitor to analyze data or mount a mid-sized TV for digital signage in a retail store weighing up to 30 lbs (13.6 kgs)

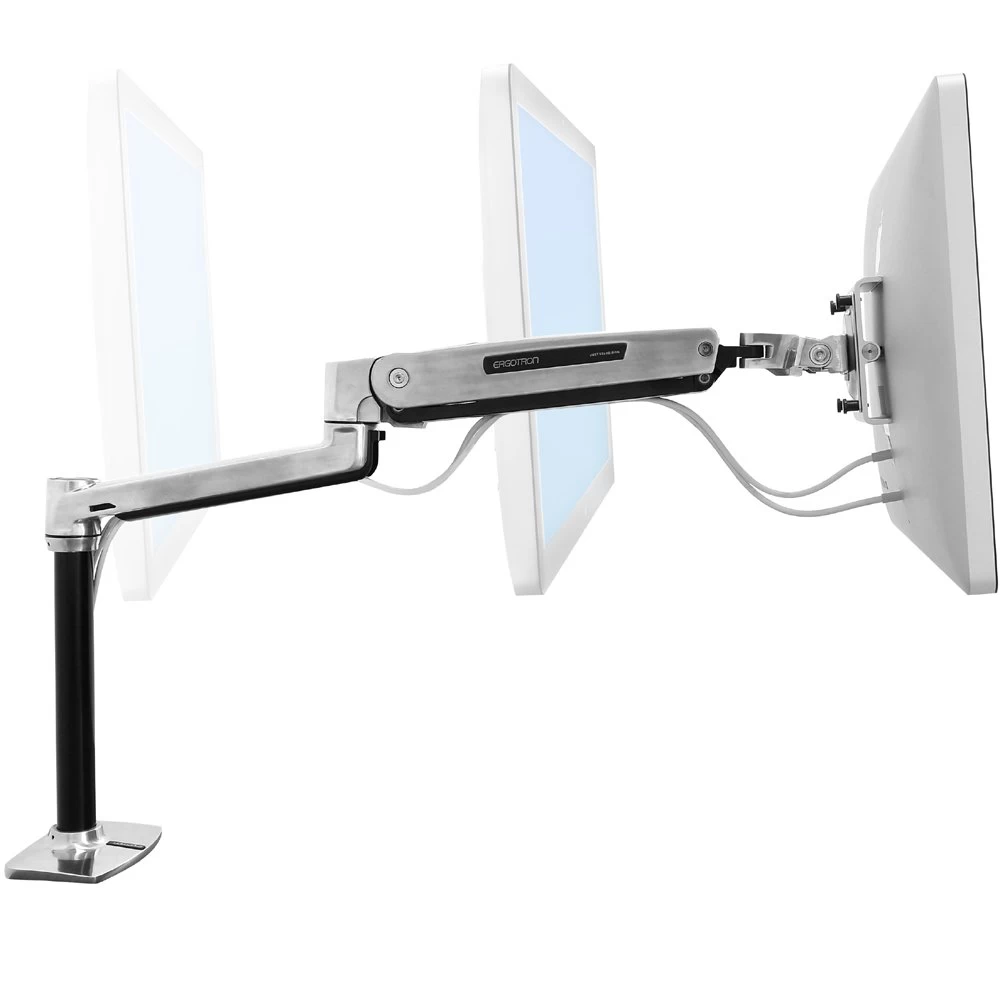

The LX provides unparalleled range of motion, being able to accommodate a user’s sitting or standing posture. Features include 20 inches (51 cm) of vertical adjustment and 62 inches (157 cm) of side-to-side motion.

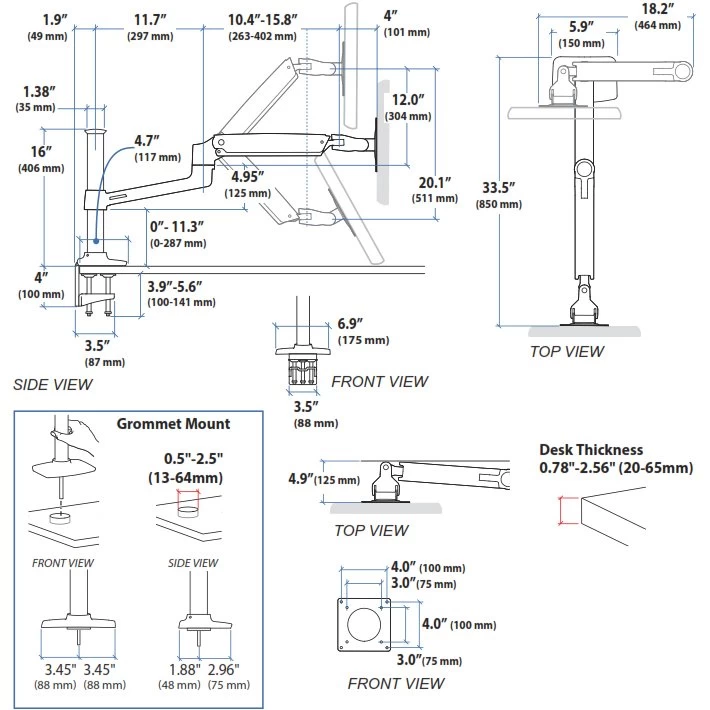

Technical Drawing
Technical Specifications

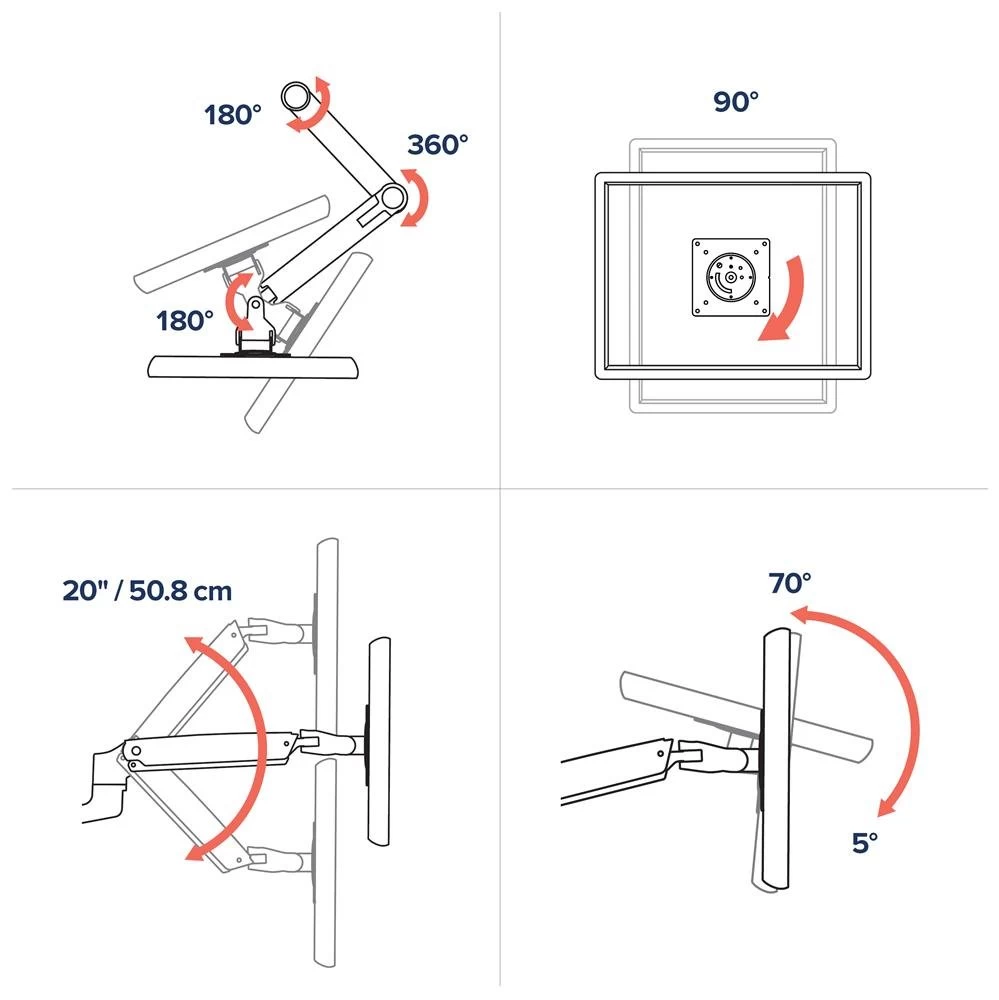

| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 49″ | 14 – 30 lbs 6.4 – 13.6 kg | 20″ 50.8 cm | 75° | 360° | 90° | MIS-D/E/F |
Product Information
| Part Number | 45-384-026 |
| LX HD Sit-Stand Desk Mount LCD Arm (polished aluminum) | |
| Includes |
|
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Weight Capacity | 14 to 30 lbs (6.4 to 13.6 kg). Monitor depth may affect weight capacity |
| Monitor Tilt | 70° up and 5° down |
| Mounting Standards | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |

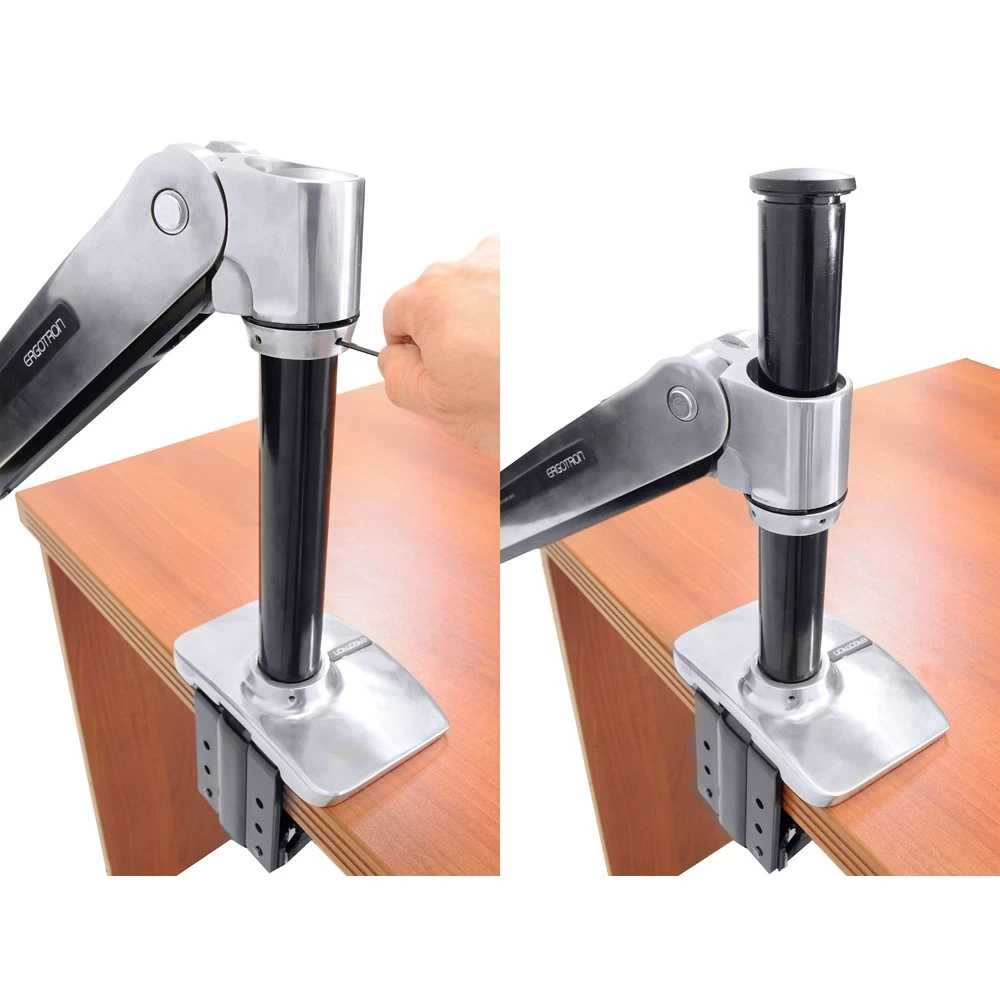

| Locking Connections | Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts |
| Mounting Options | Desk clamp attaches to edge up to 2.5″ (65 mm) thick; grommet mount attaches through hole 0.5″ to 2.5″ (7–65 mm) wide and up to 2.5″ (65 mm) thick |

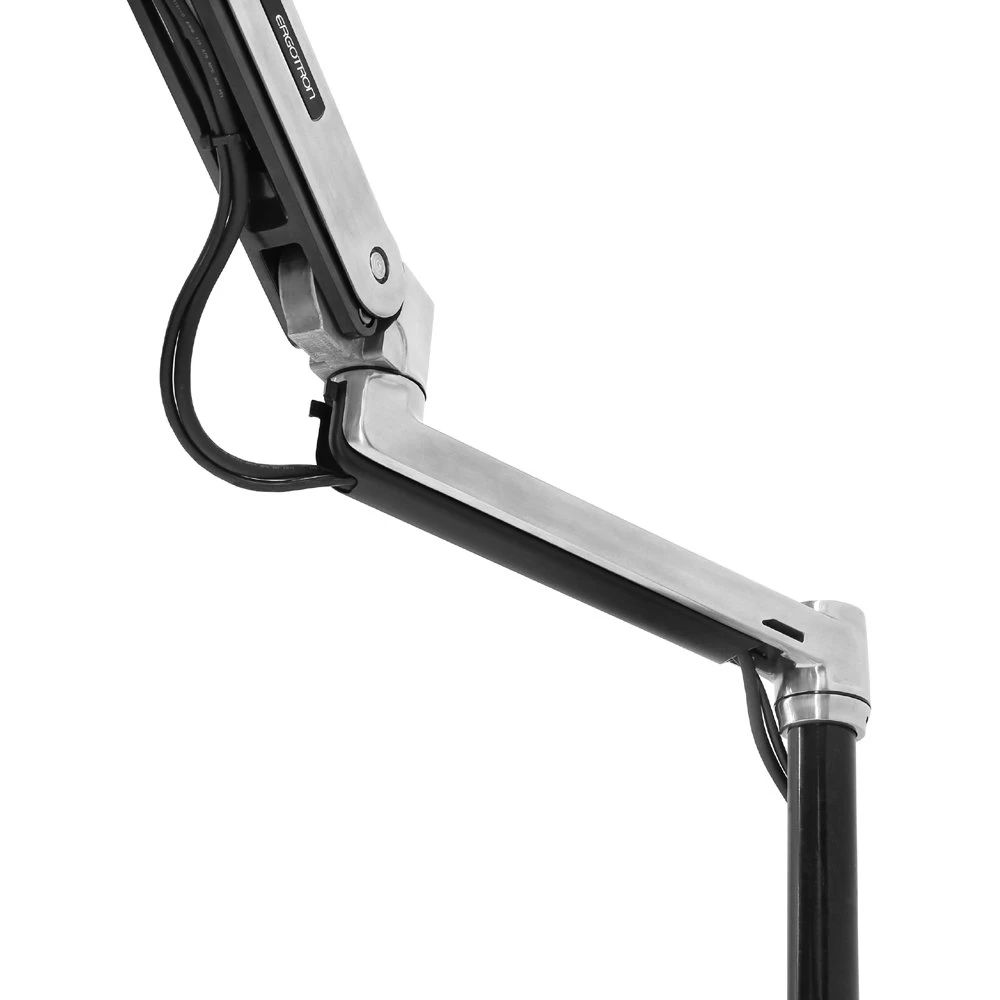

| Cable Management | Clips on the under side of the arm route and hide cords |

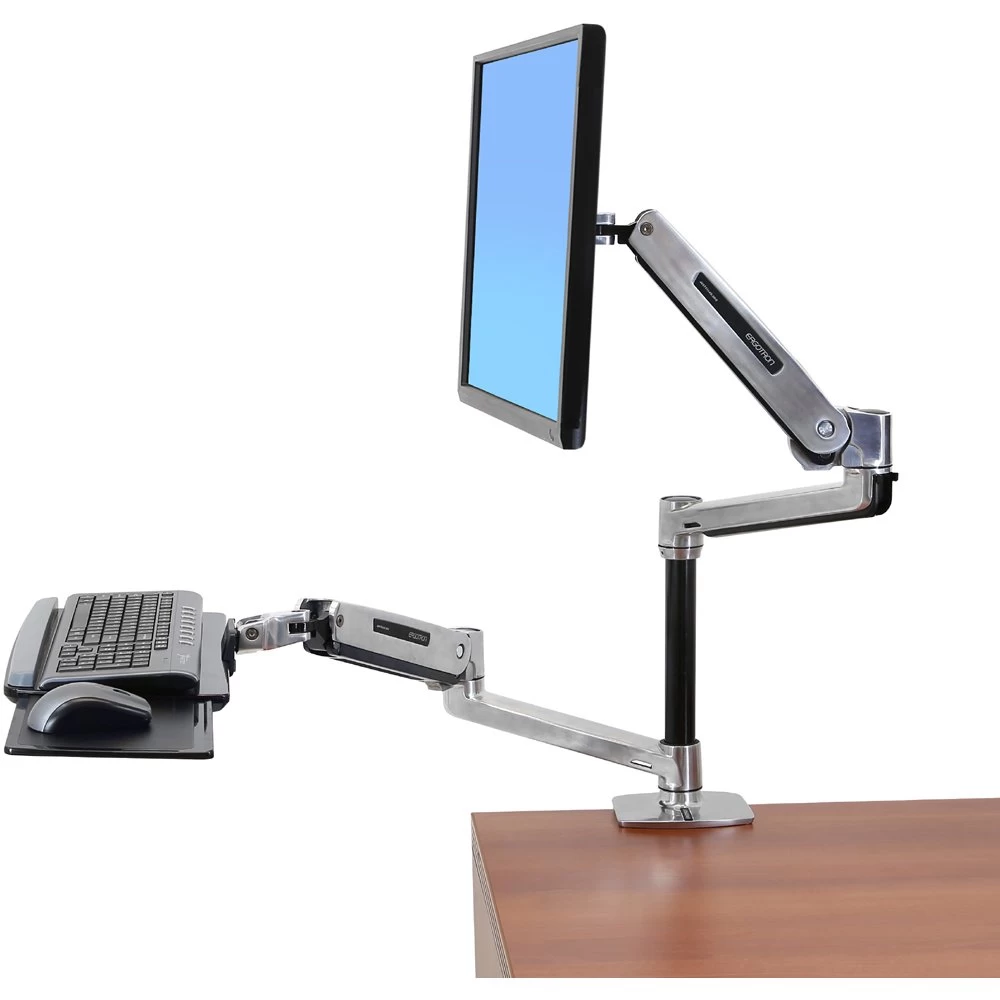

| LX Sit-Stand Keyboard Arm | To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm’s wall-mount base unused. |
| NOTE | Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights |
| Product Weight | 17.5 lbs (8 kg) |
| Shipping Dimensions | 25″ x 14.75″ x 7.5″ (64 x 38 x 19 cm) |
| Shipping Weight | 20 lbs (9.1 kg) |
| Warranty | Ten (10) years |
Benefits
- 20″ height adjustability allows users to alternate between sitting and standing positions while working on the display

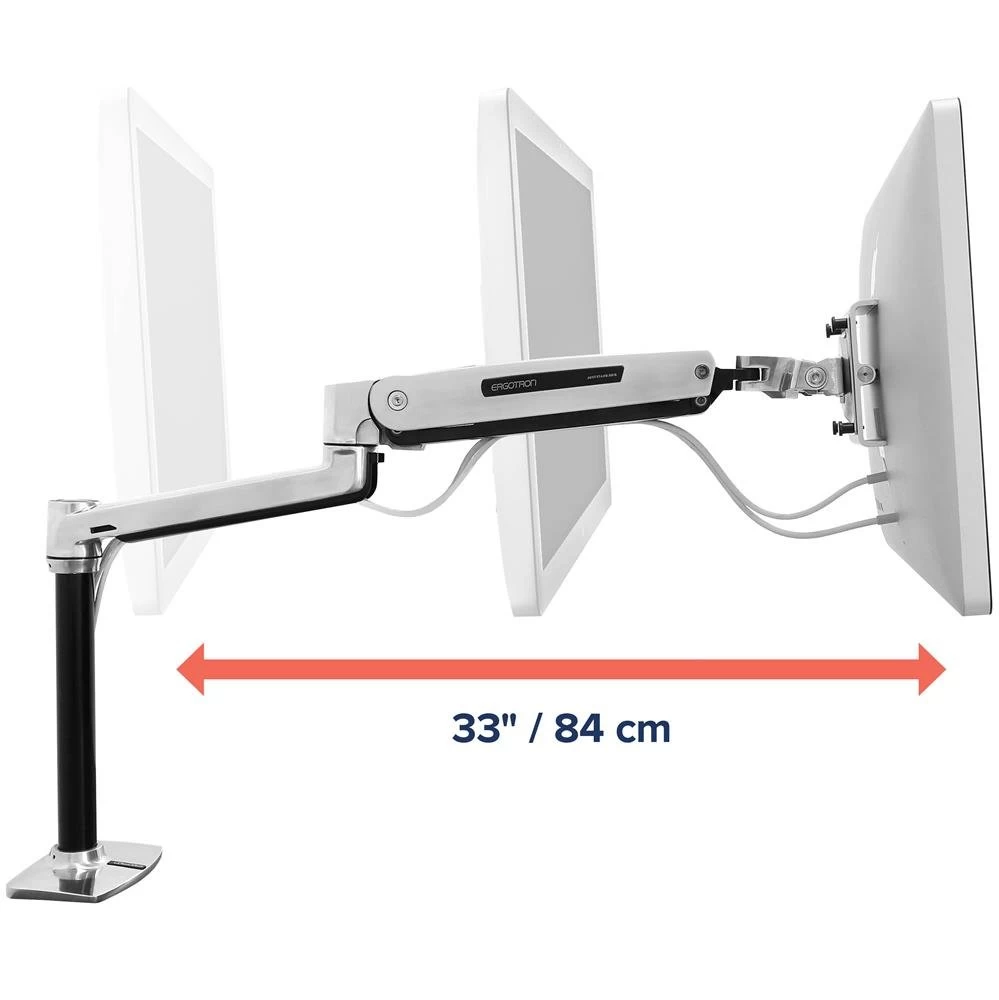

- Extends LCD up to 33″ and pushes display out of the way when not in use
- Vertical, horizontal adjustability provides ergonomic relief and relieves stress on the back, shoulder and neck
- Increase viewing comfort – help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF motion technology provides premium ease-of-use adjustment
- Cable management clips on the under side of the arm route and hide cords
- Ideal for space-constrained spaces – folds to within 4.5″ (12 cm) of back of desk in storage position
- Secure installation – locking connections between arm, extension and base
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
| Model | 45-384-026 |
| Manufacturer | Ergotron |
| Part Number | 45-384-026 |
| UPC | 698833040098 |
| Color | Polished aluminum |
| Monitor Size | Up to 49 |
| Weight Capacity | 14–30 lbs (6.4–13.6 kg) |
| Adjustments | 20 |
| Tilt | Up 70 degree and down 5 degree |
| Pan | 360 degree |
| Rotation | 90 degree |
| Mounting Pattern | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY) |
| Weight | 17.5 lbs (8 kg) |
| Shipping Dimensions | 25 |
| Shipping Weight | 20 lbs (9.1 kg) |
| Warranty | Ten (10) years |
| Mounting Options | Desk |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Price | $300 – $399 |
