Sale!
Original price was: $389.00.$95.99Current price is: $95.99.
Highlights
- Wall mounting LX monitor arm
- 20″ height adjustability: Provides sit-stand capability
- 14-30 lbs weight: Holds large monitors or mid-sized TVs weighing up to 30 lbs
- 49″ screen size: Carries displays up to 49″ in screen size
- 33″ horizontal extension: Extends display pushing it out of the way when not in use
- 62″ side-to-side adjustment: Makes this arm suitable for digital signage

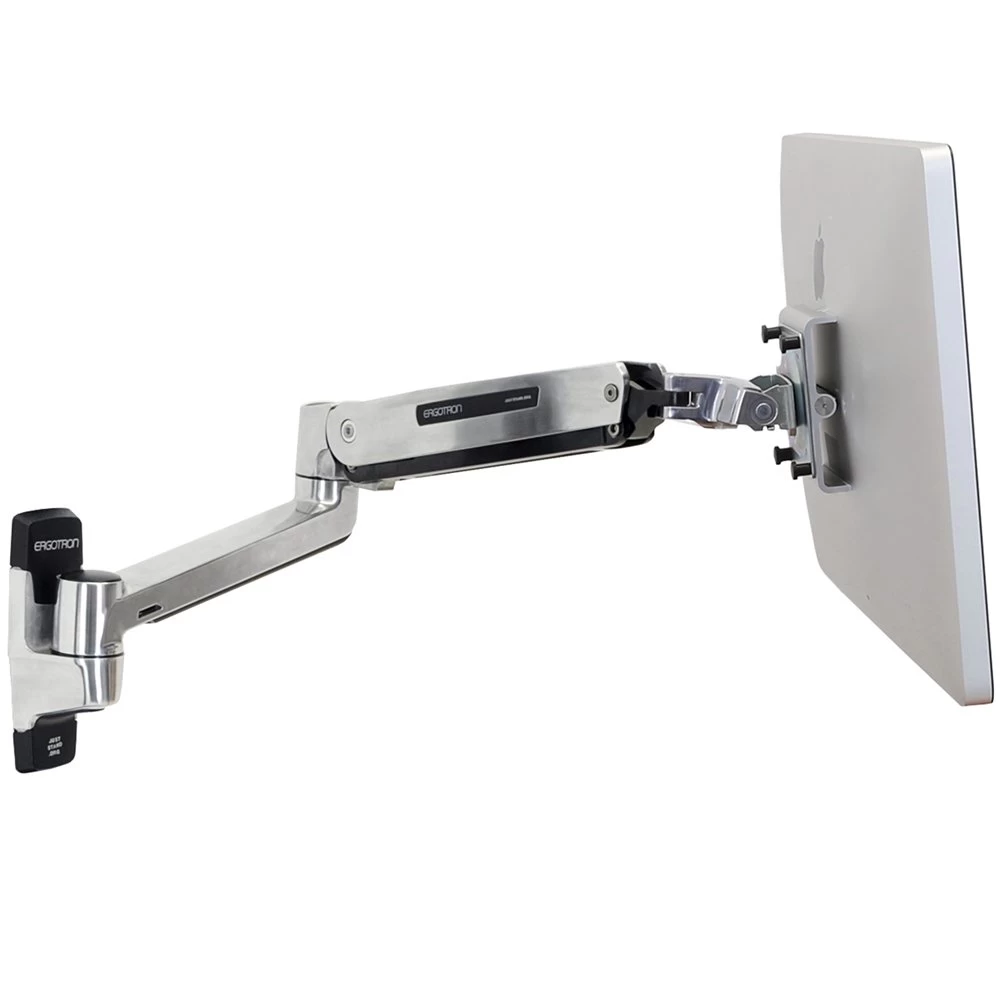

- Apple compatibility: Can mount 27″ 2013 iMac with a built-in VESA adapter
- Do you want to mount a lighter display?
- Discover a world of quality products.
- Have the best deals
- Free Shipping Worldwide
- There are quality problems, free return and exchange

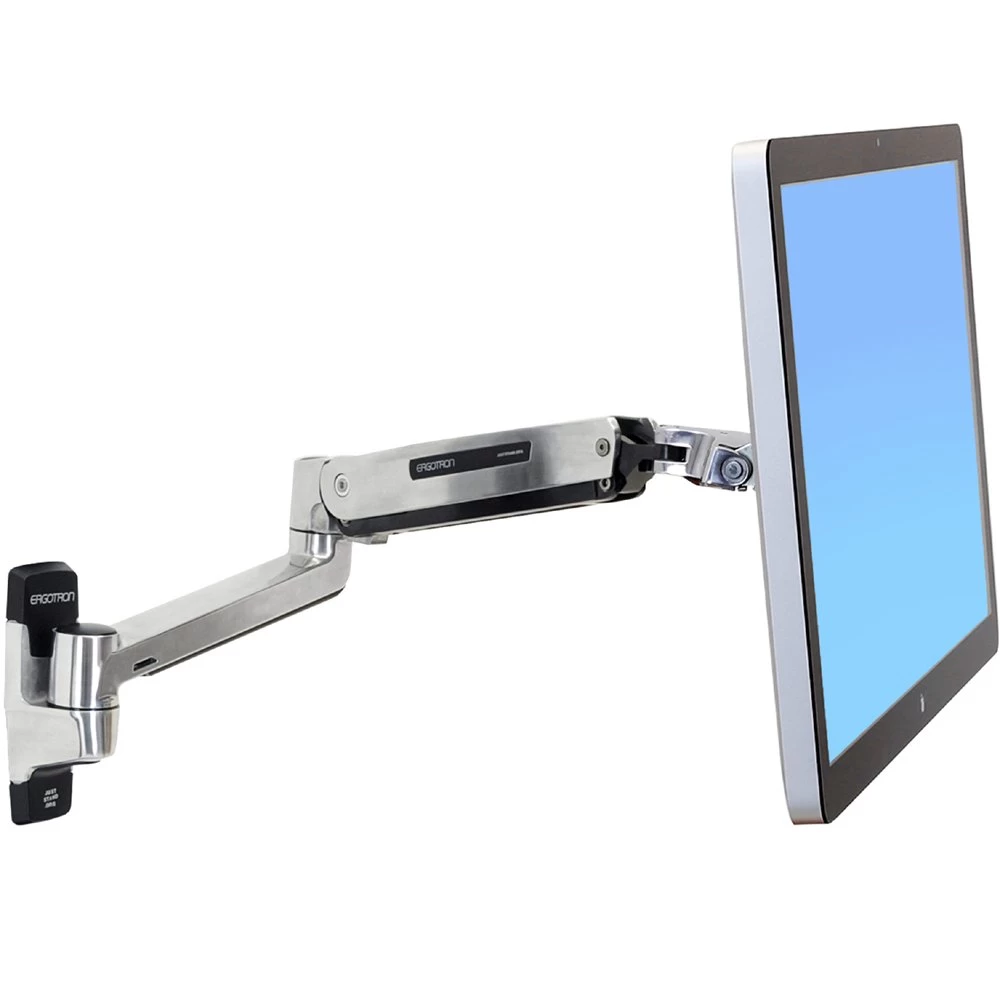

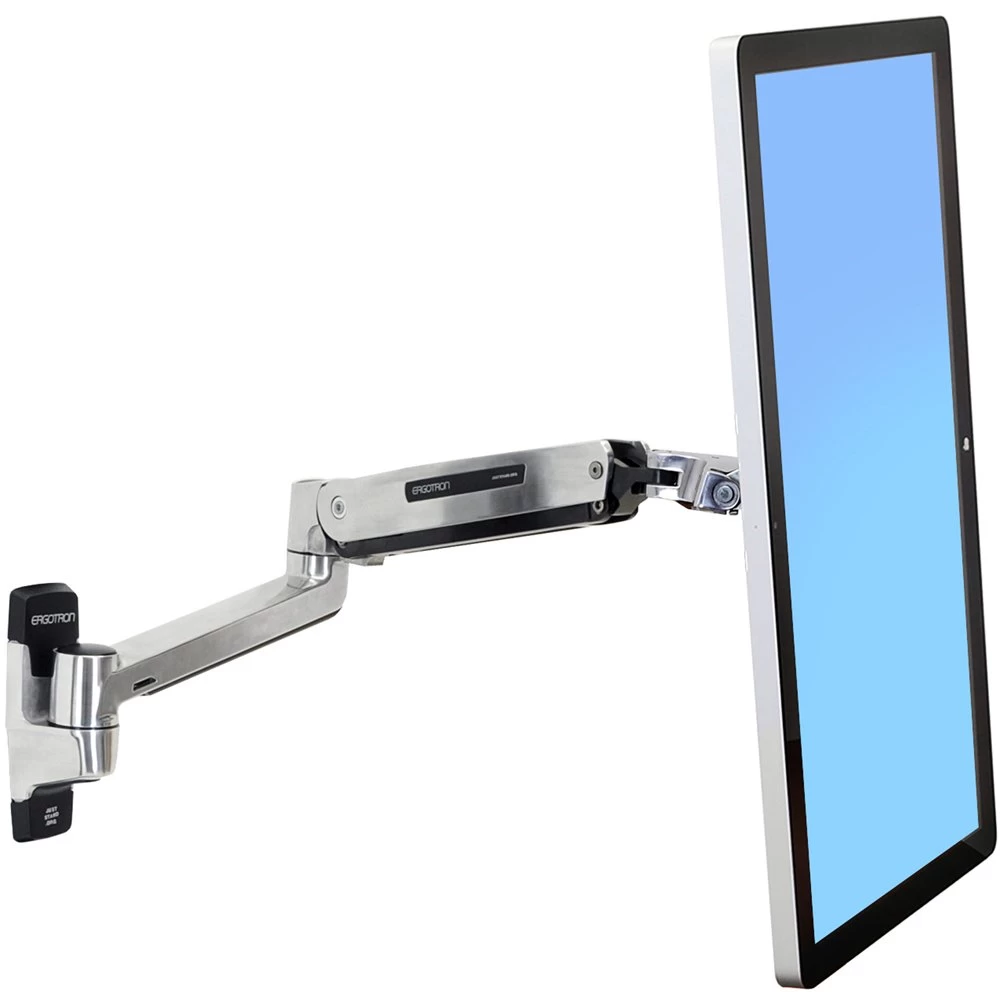

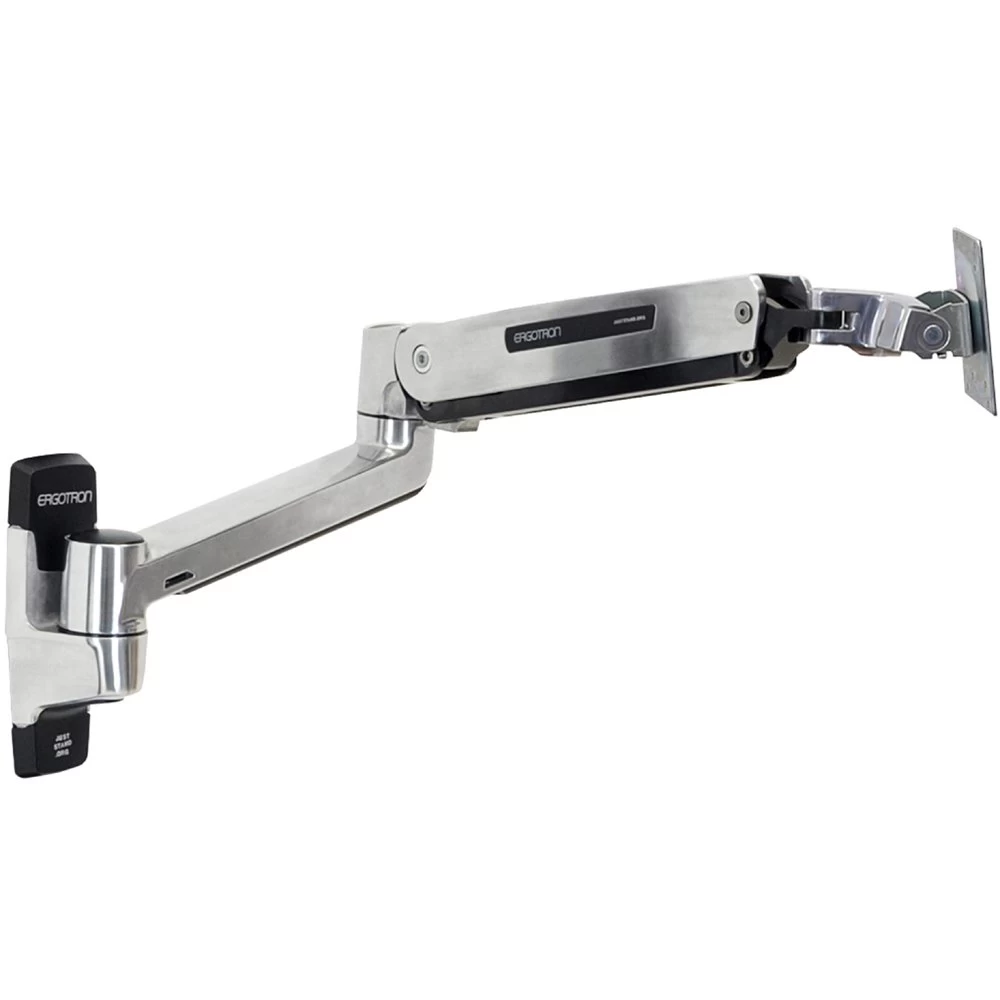

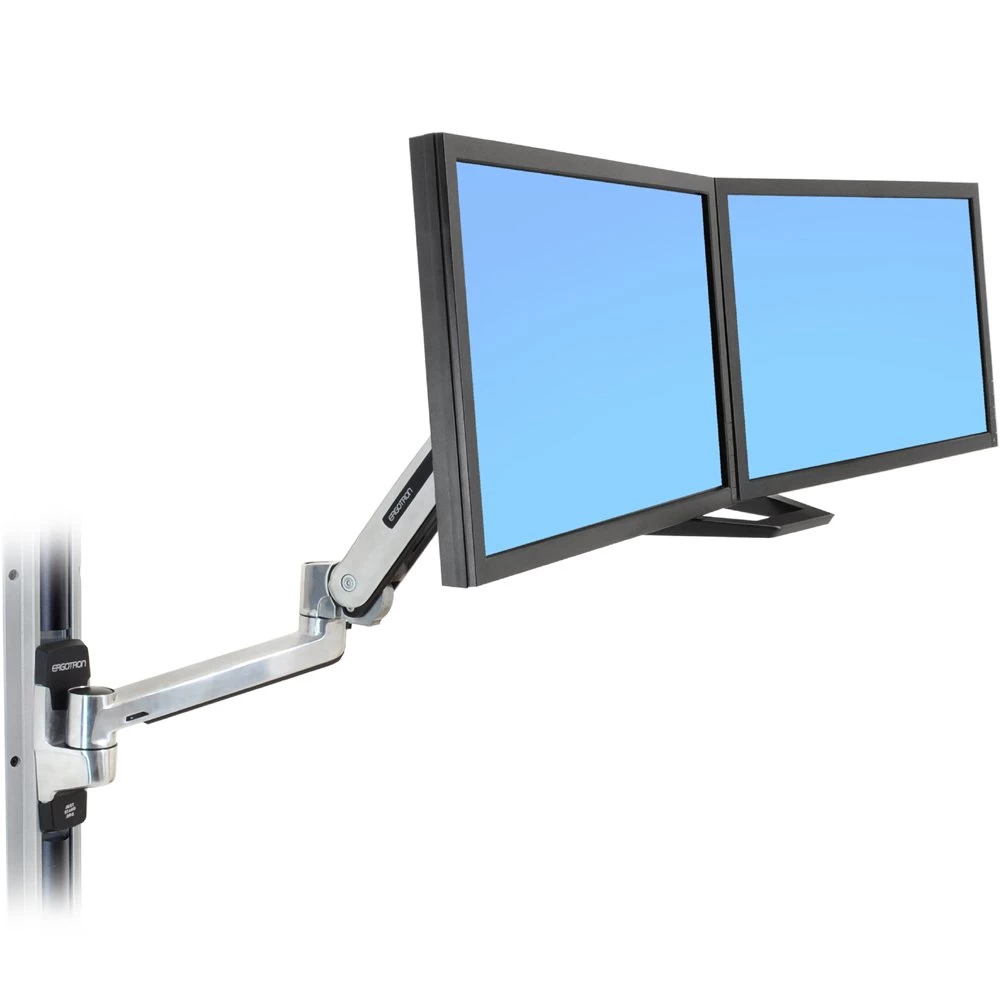

The Ergotron 45-383-026 is a versatile arm. Install it on a manufacturing floor to quickly access data or mount a mid-sized TV for digital signage in a restaurant!

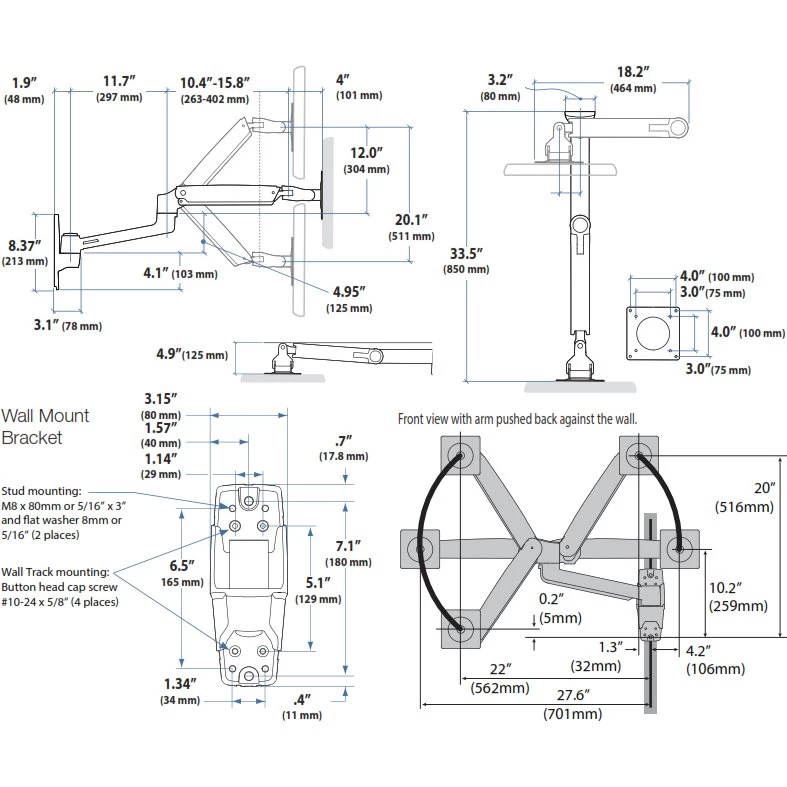

Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 49″ | 14 – 30 lbs 6.4 – 13.6 kg | 20″ 50.8 cm | 75° | 360° | 360° | MIS-D/E/F |
Product Information
| Part Number | 45-383-026 |
| LX HD Sit-Stand Wall Mount LCD Arm (polished aluminum) | |
| Includes |
|
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Weight Capacity | 14 to 30 lbs (6.4 to 13.6 kg). Monitor depth may affect weight capacity |
| Monitor Tilt | 75° up and 5° down |
| Mounting Standards | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
| Locking Connections | Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts |
| Mounting Options | Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately) |
| Cable Management | Clips on the under side of the arm route and hide cords |
| Base | Includes theft-deterrent anchor holes for cable locks |
| NOTE | Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights |
| Product Weight | 13.5 lbs (6.1 kg) |
| Shipping Dimensions | 22″ x 11″ x 7.5″ (56 x 28 x 19 cm) |
| Shipping Weight | 13.5 lbs (6.1 kg) |
| Warranty | Ten (10) years |
Benefits
- 20″ height adjustability allows users to alternate between sitting and standing positions while working on the display

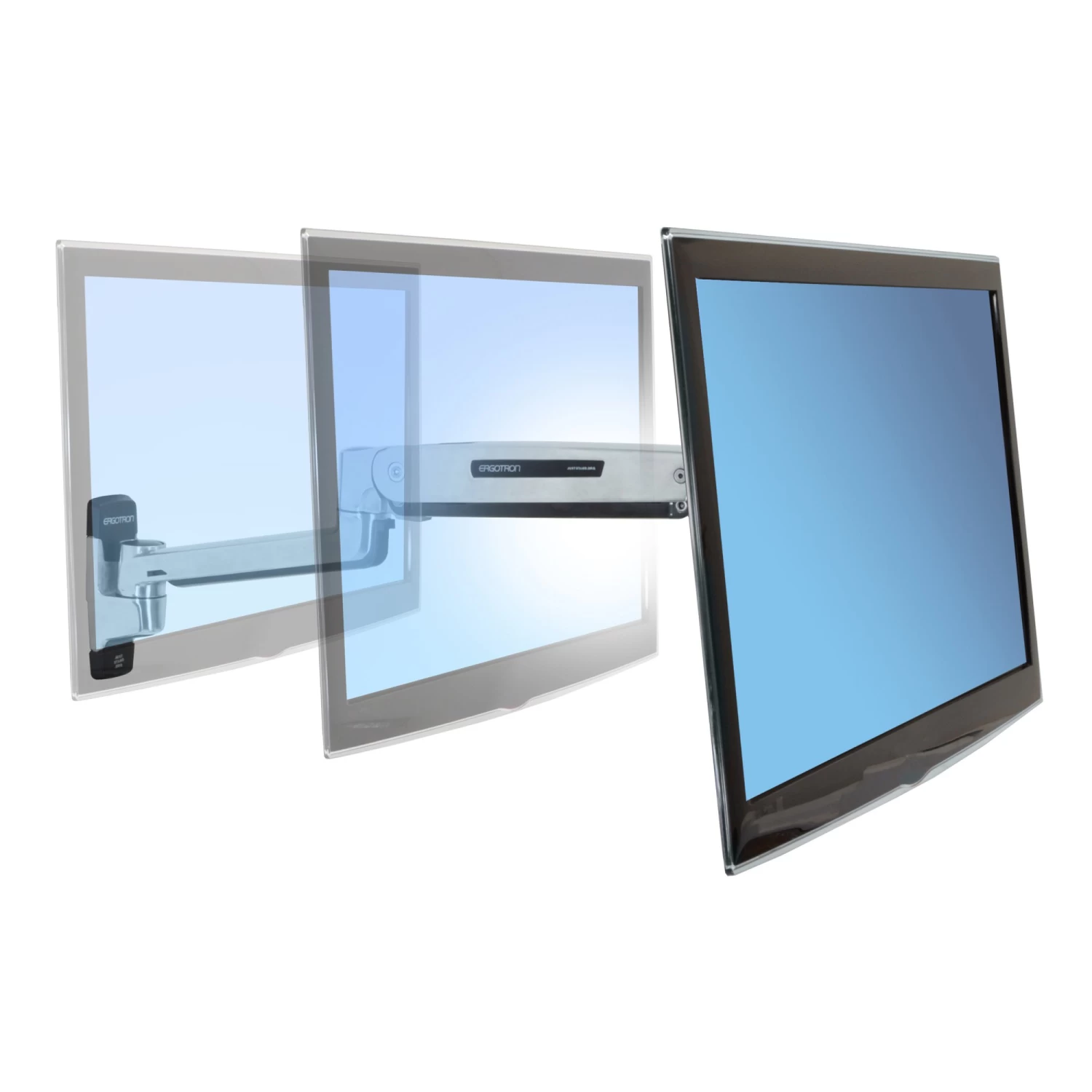

- Extends LCD up to 33″ and pushes display out of the way when not in use
- Vertical, horizontal adjustability provides ergonomic relief and relieves stress on the back, shoulder and neck
- Suitable for tight areas as it folds up to within 4.5″ of the back of the wall
- Increase viewing comfort – help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF motion technology provides premium ease-of-use adjustment
- Cable management clips on the under side of the arm route and hide cords
| Model | 45-383-026 |
| Manufacturer | Ergotron |
| Part Number | 45-383-026 |
| UPC | 698833040104 |
| Color | Polished aluminum |
| Monitor Size | Up to 49″ |
| Weight Capacity | 14 to 30 lbs (6.4 to 13.6 kg) |
| Adjustments | 20″ (50.8 cm) of vertical adjustment and 62″ (157 cm) of side-to-side adjustment |
| Tilt | Up 75 degree and down 5 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA MIS-D, 75/100 (100 x 100 mm & 75 x 75 mm), MIS-E (200 x 100 mm), MIS-F (200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
| Weight | 13.5 lbs (6.1 kg) |
| Shipping Dimensions | 22″ x 11″ x 7.5″ (56 x 28 x 19 cm) |
| Shipping Weight | 13.5 lbs (6.1 kg) |
| Warranty | Ten (10) years |
| Mounting Options | Wall |
| Monitor Arm Types | 1 Monitor |
