Sale!
Original price was: $359.00.$99.99Current price is: $99.99.
Highlights
- Desk mount Monitor arm
- 20″ height adjustability: Provides sit-stand capability
- 62″ side-to-side adjustability
- 7-25 lbs weight: Can hold displays weighing from 7-25 lbs
- 42″ screen size: Carries displays up to 42″ in screen size
- Adding Dual Monitor Kit: Please note that 97-783 kit “decreases” total weight capacity to 19 lbs for this arm. Also the outside width of the monitors should be between 14″ to 24.5″. Monitors greater than 24.5″ are not compatible and monitors with less than 14″ in outside width will have a gap between the two monitors.

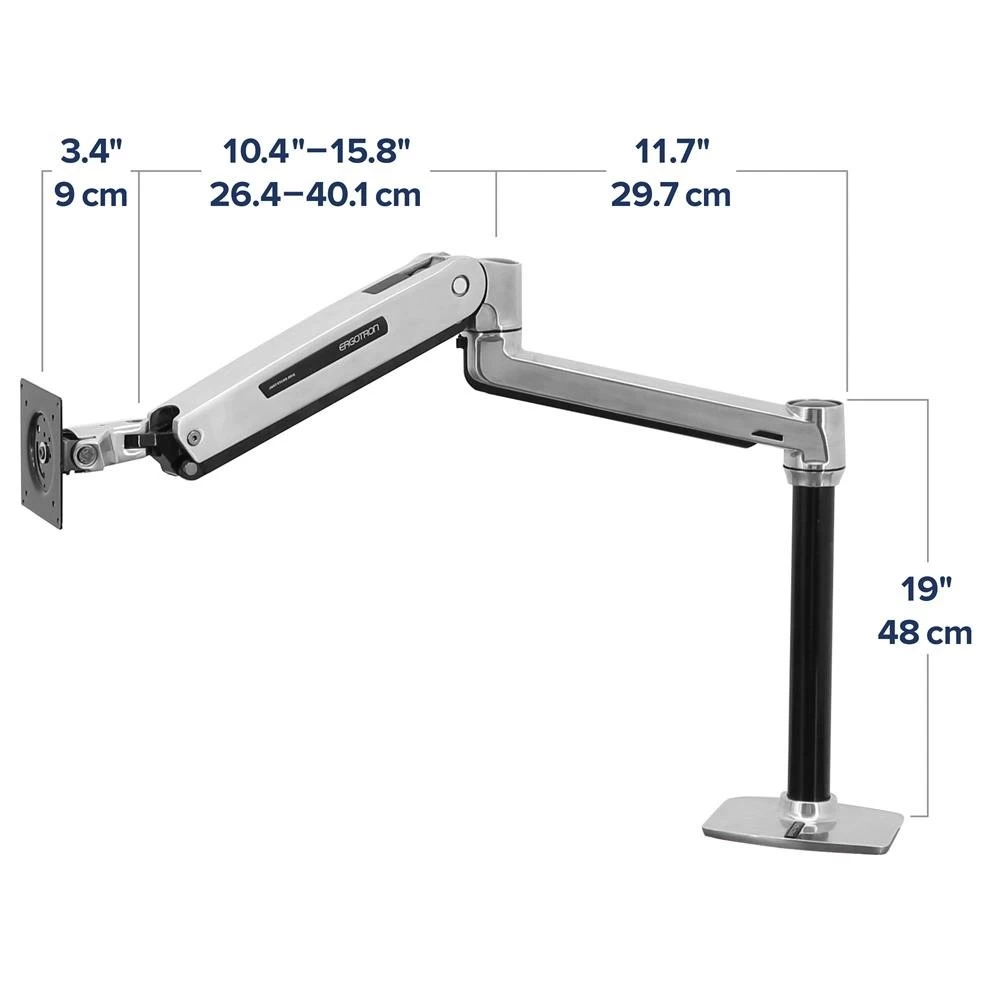

- 33″ horizontal extension: Extends display and pushes it out of the way when not in use
- Apple compatibility: Can mount 21.5″ 2013 iMac with built-in VESA adapter
- Please see, if your display is larger and heavier
- Discover a world of quality products.
- Have the best deals
- Free Shipping Worldwide
- There are quality problems, free return and exchange

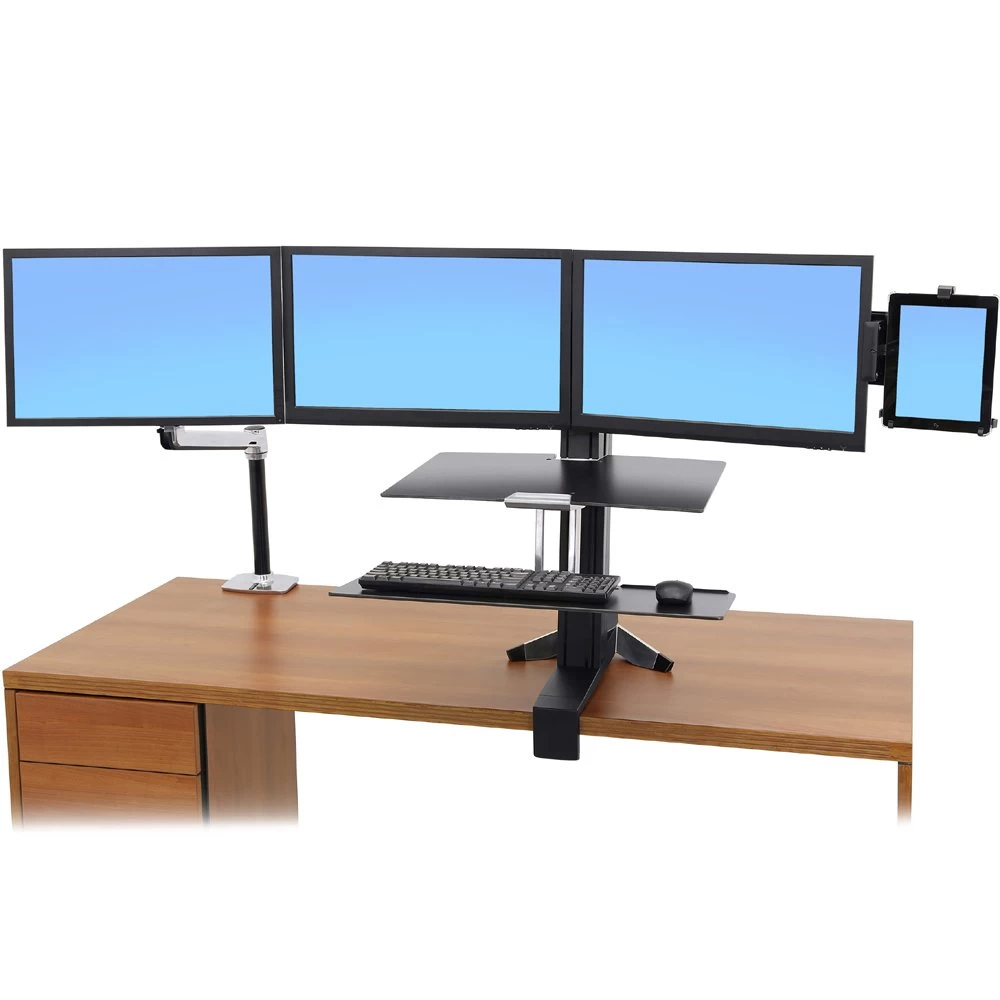

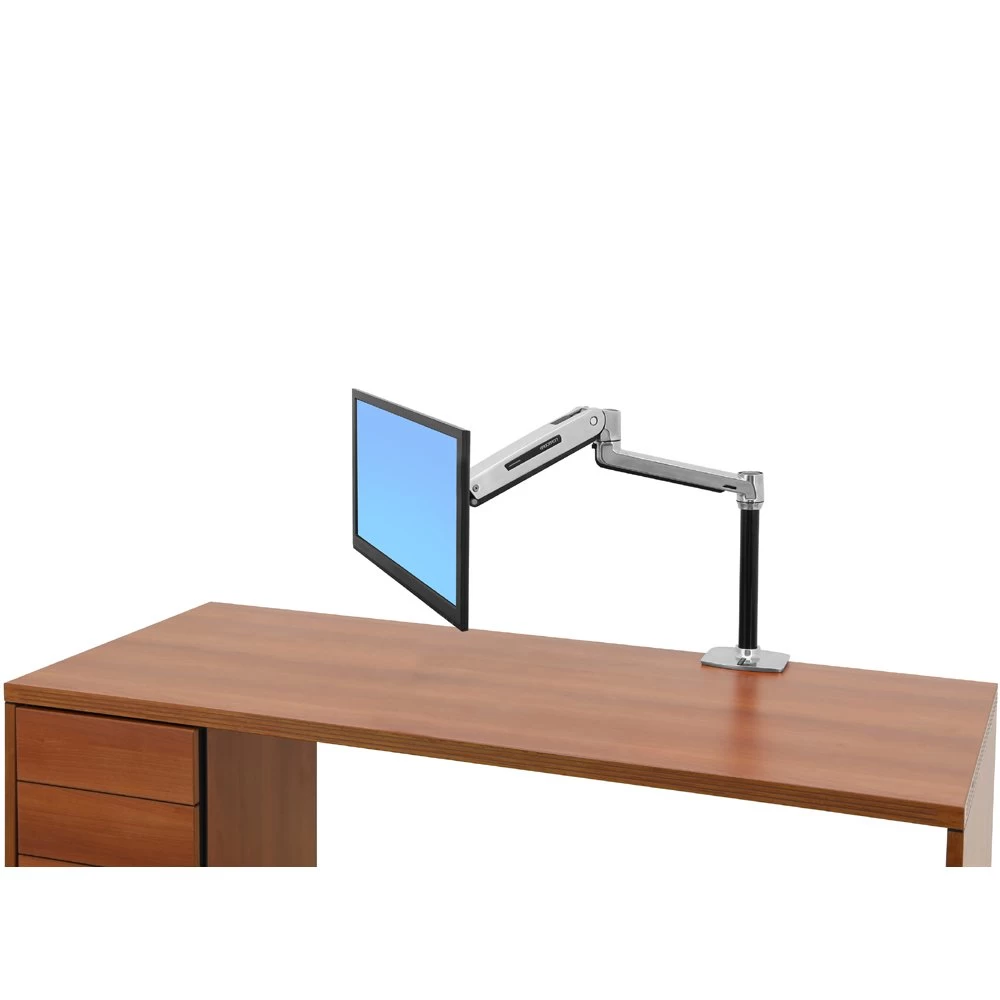

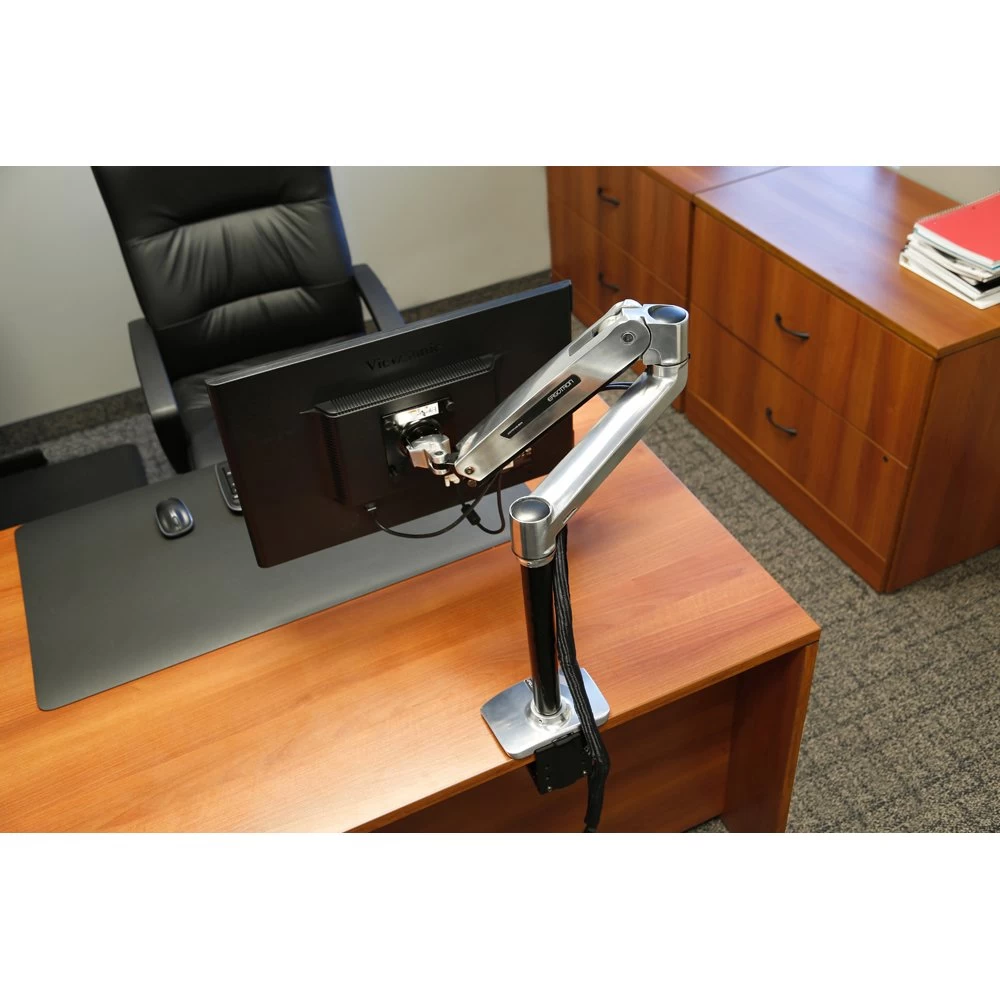

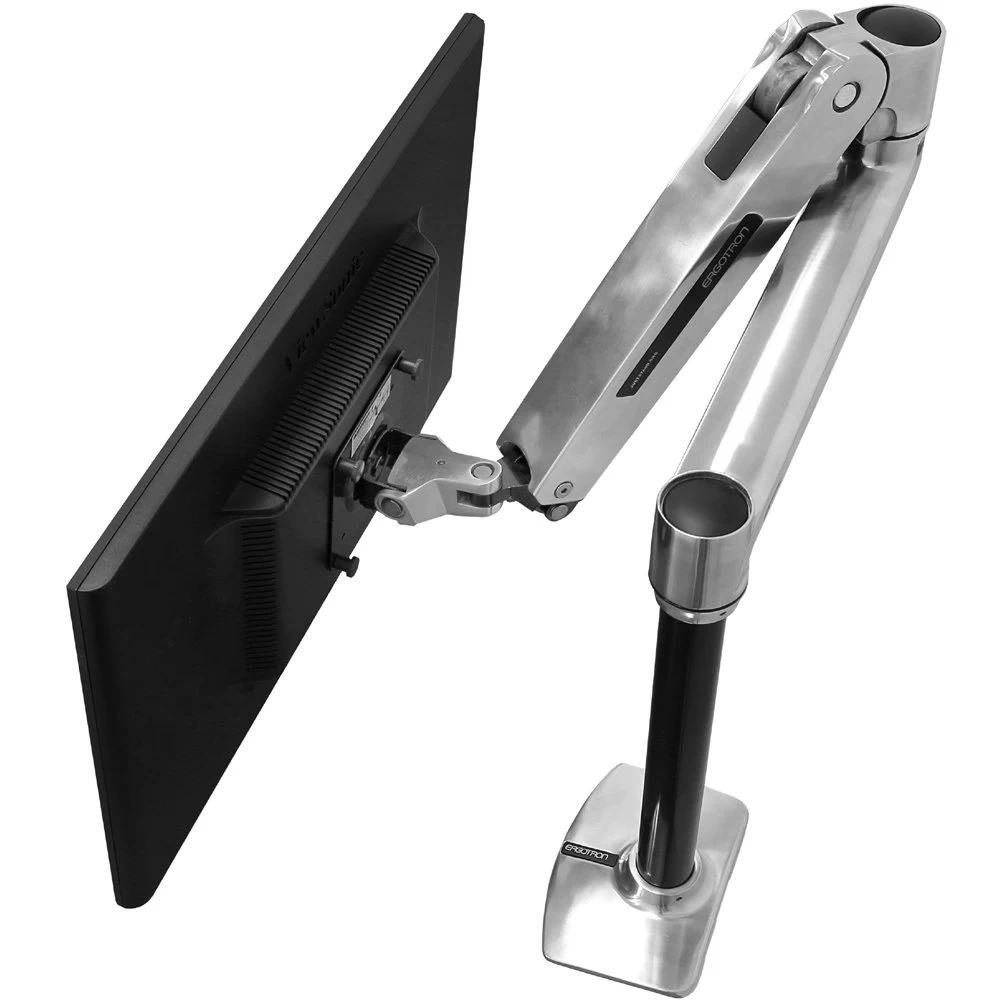

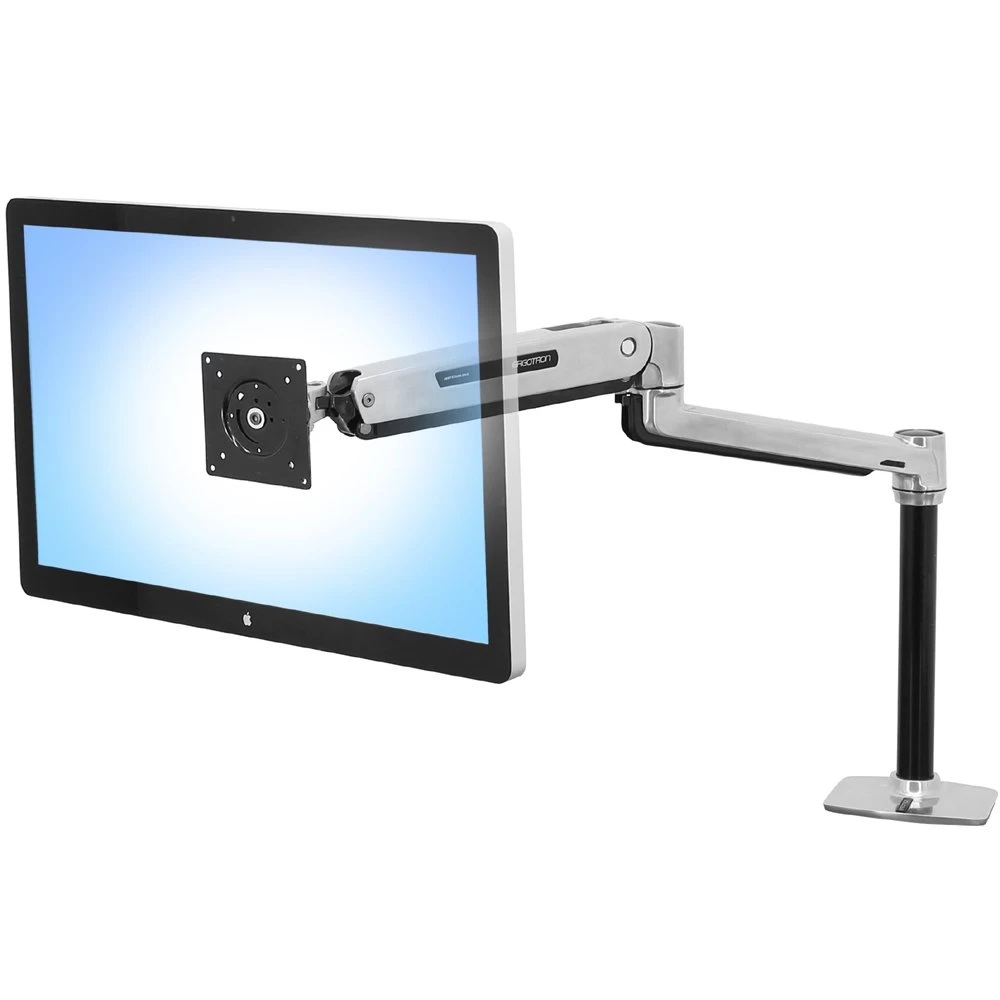

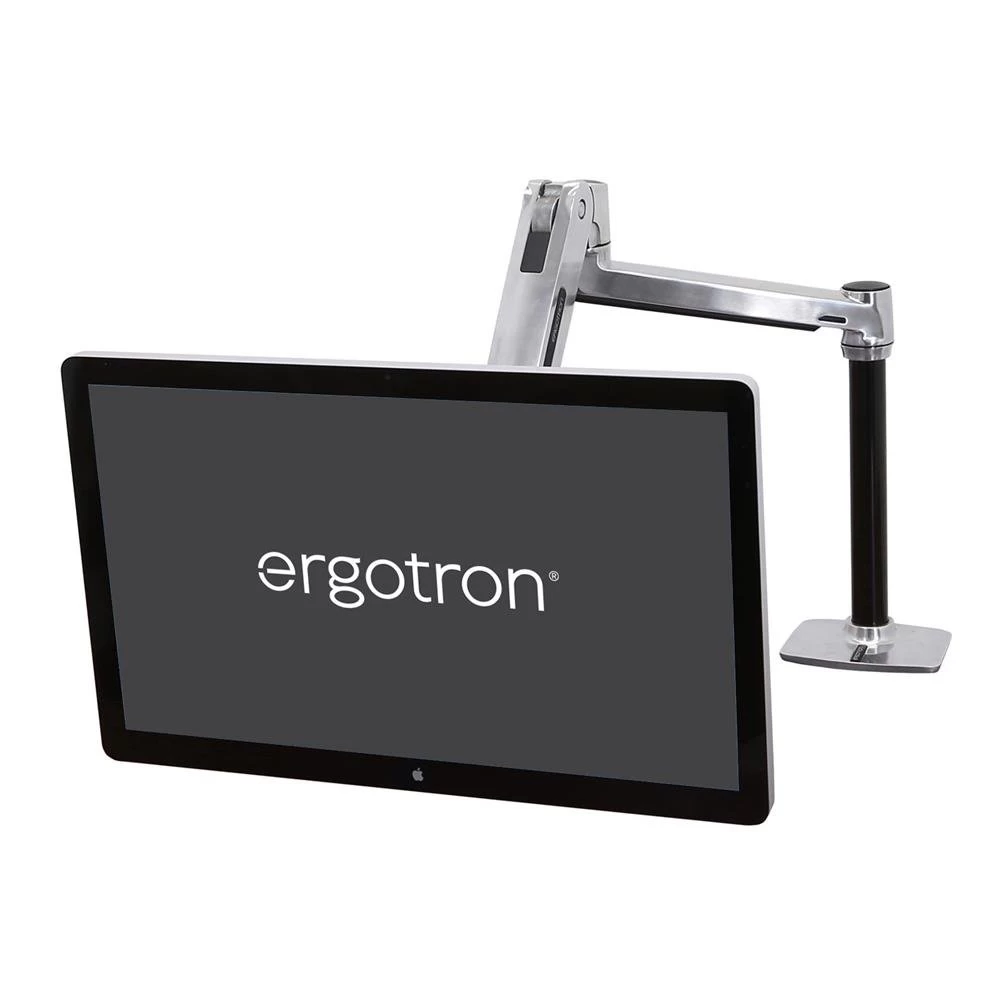

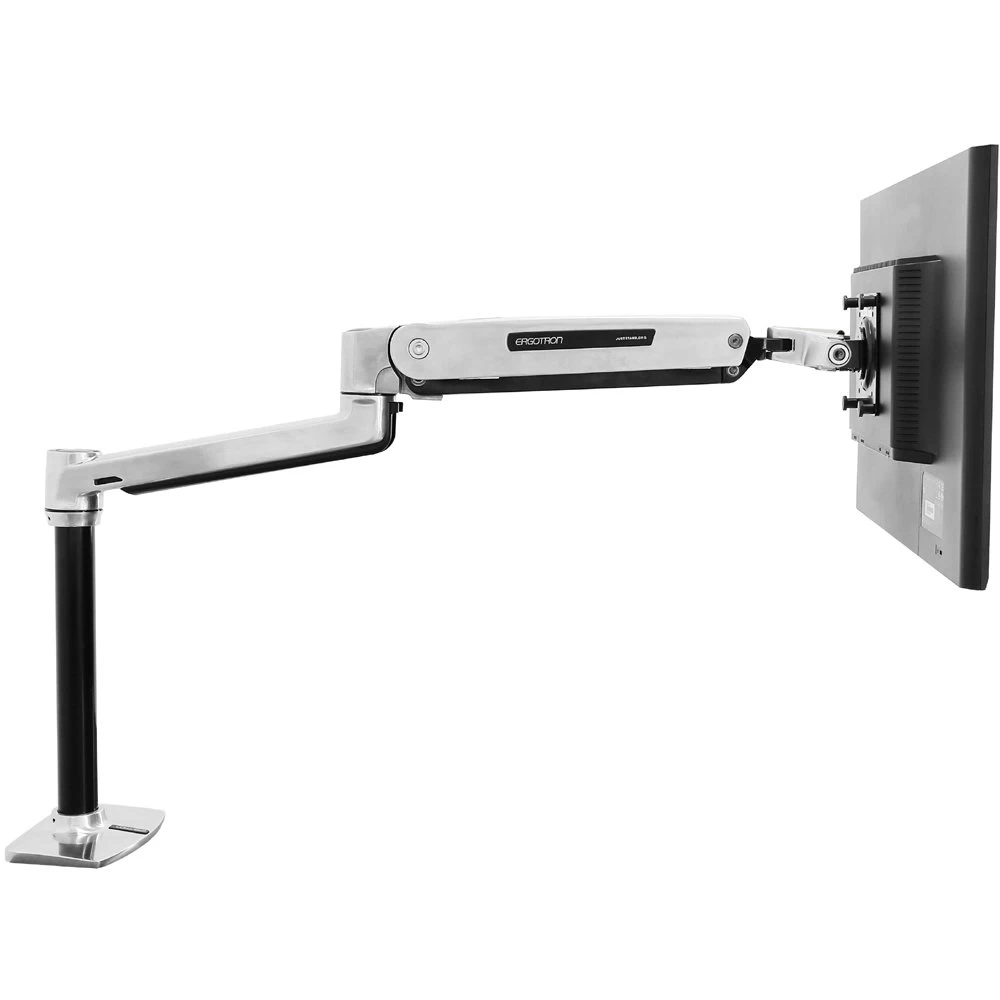

The Ergotron 45-360-026 is a versatile arm. Use it to mount a second monitor within a sit-stand workstation or mount a large monitor or TV where you want!

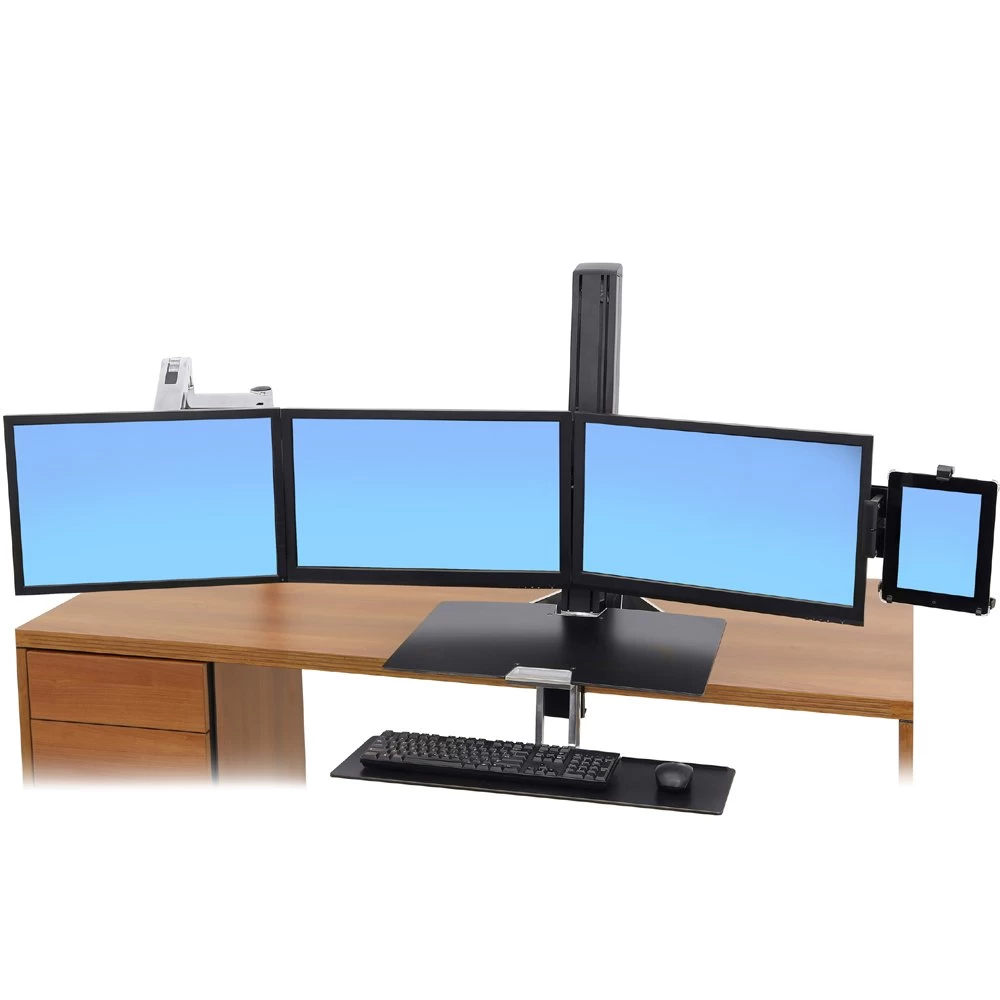

This versatile arm can be used in a variety of applications: attach a smaller monitor for use within a sit-stand workstation or position a large display up to 25 lbs (11.3 kg) wherever you want it.

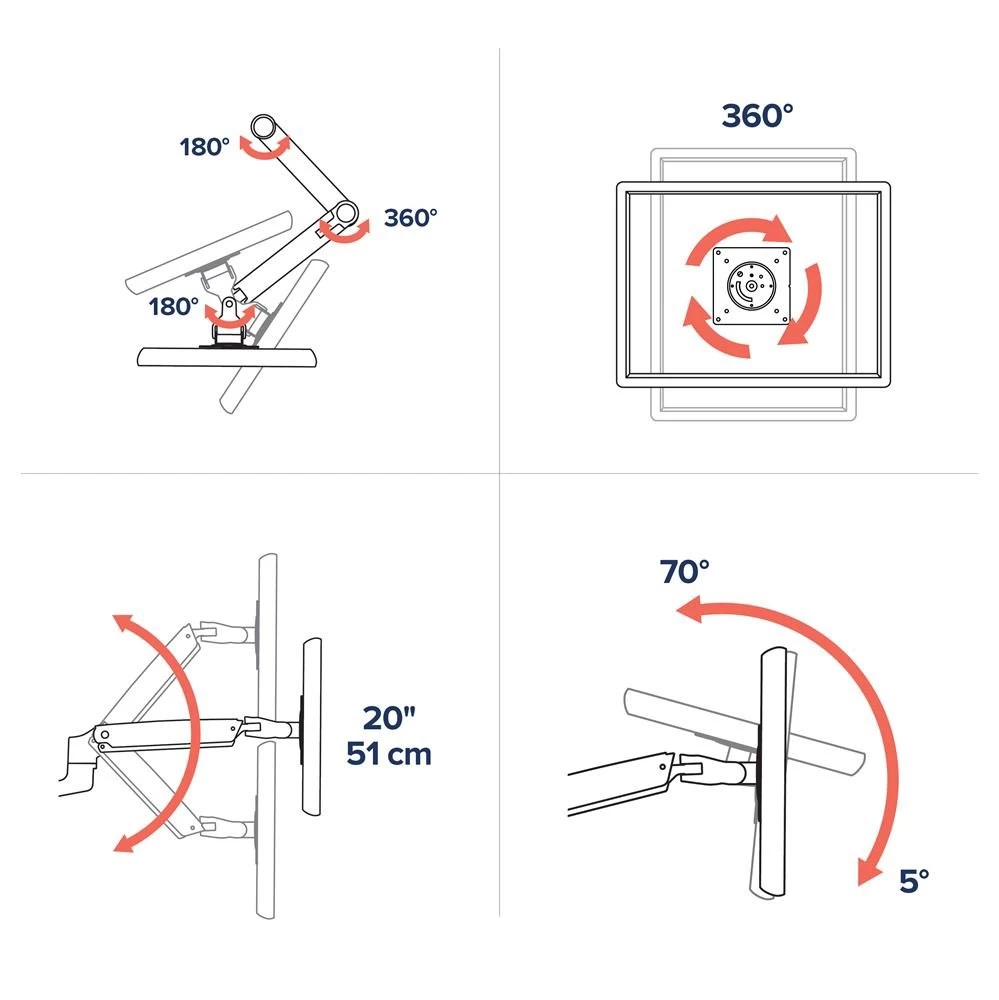

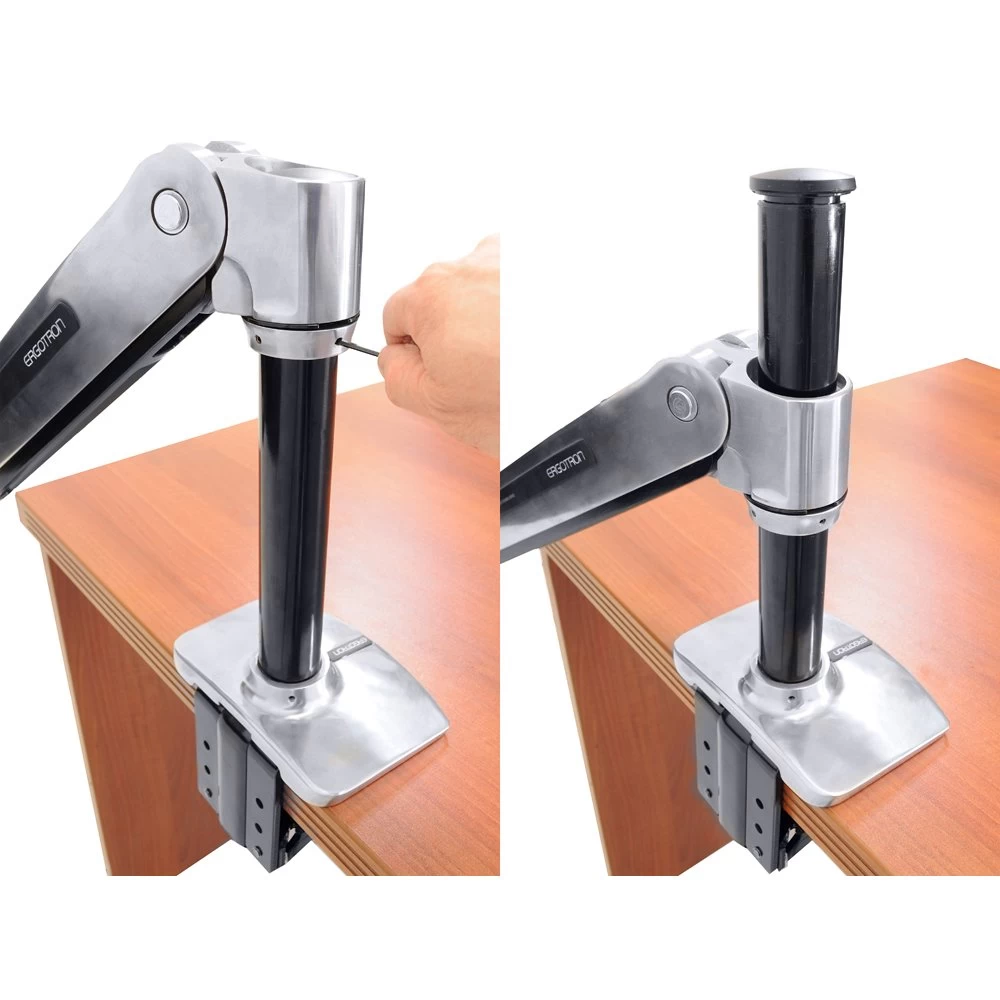

The LX provides unparalleled range of motion, being able to accommodate a user’s sitting or standing posture. Features include 20 inches (51 cm) of vertical adjustment and 62 inches (157 cm) of side-to-side motion.

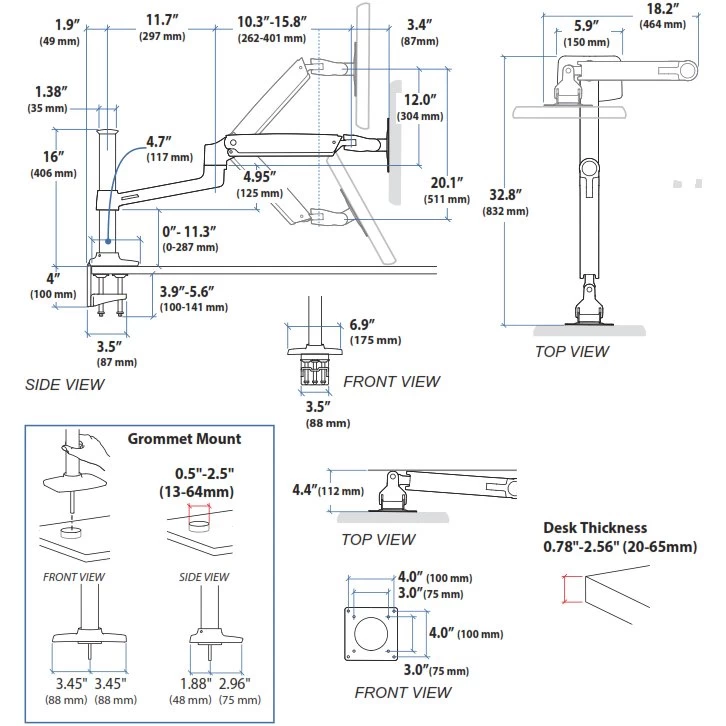

Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 42″ | 7 – 25 lbs 3.2 – 11.3 kg | 20″ 50.8 cm | 75° | 360° | 360° | MIS-D/E/F |
Product Information
| Part Number | 45-360-026 |
| LX Sit-Stand Desk Mount LCD Arm (polished aluminum) | |
| Includes |
|
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Weight Capacity | 7 to 25 lbs (3.2 to 11.3 kg). Monitor depth may affect weight capacity |
| Monitor Tilt | 70° up and 5° down |
| Mounting Standards | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
| Locking Connections | Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts |
| Mounting Options | Desk clamp attaches to edge up to 2.5″ (65 mm) thick; grommet mount attaches through hole 0.5″ to 2.5″ (7–65 mm) wide and up to 2.5″ (65 mm) thick |

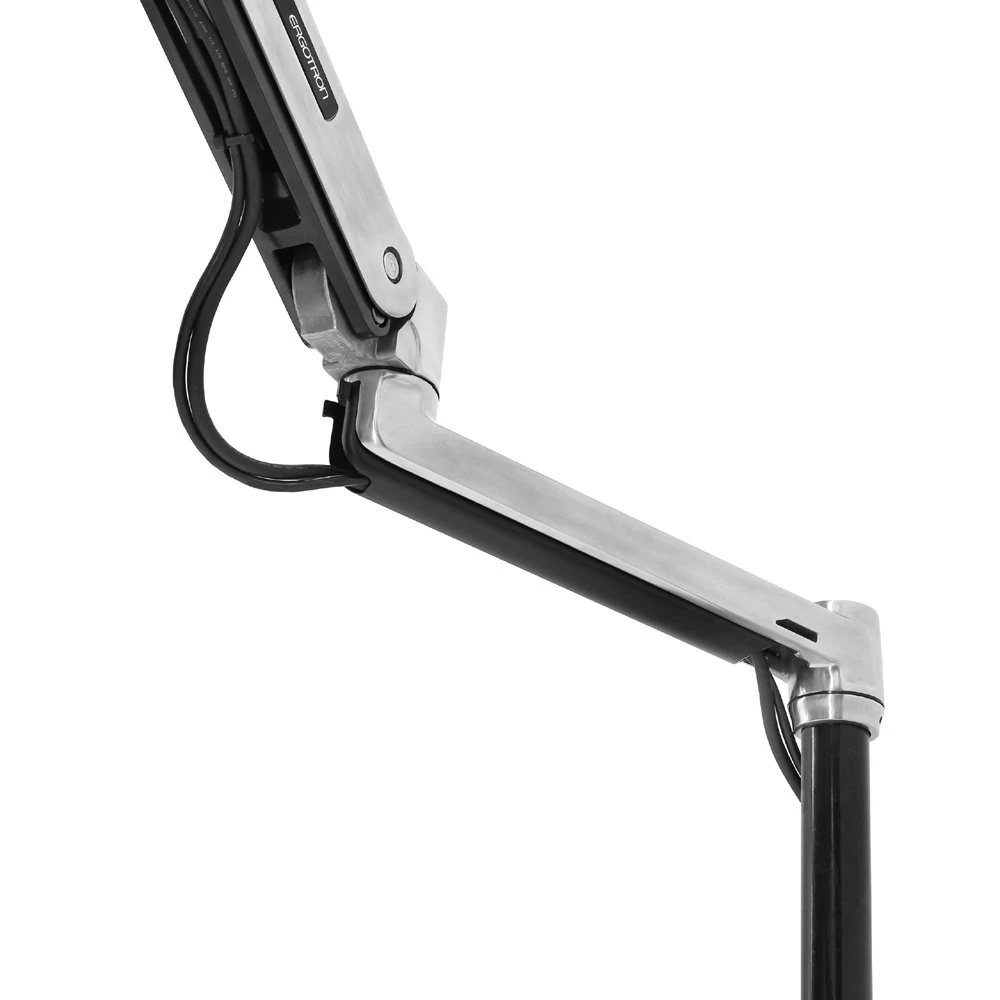

| Cable Management | Clips on the under side of the arm route and hide cords |

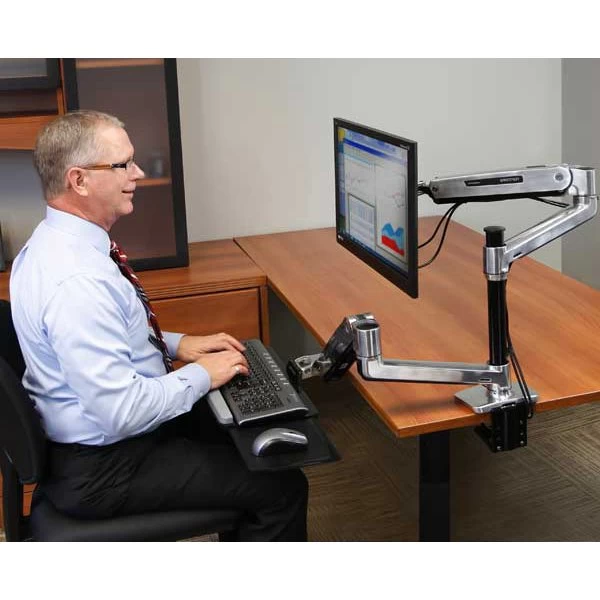

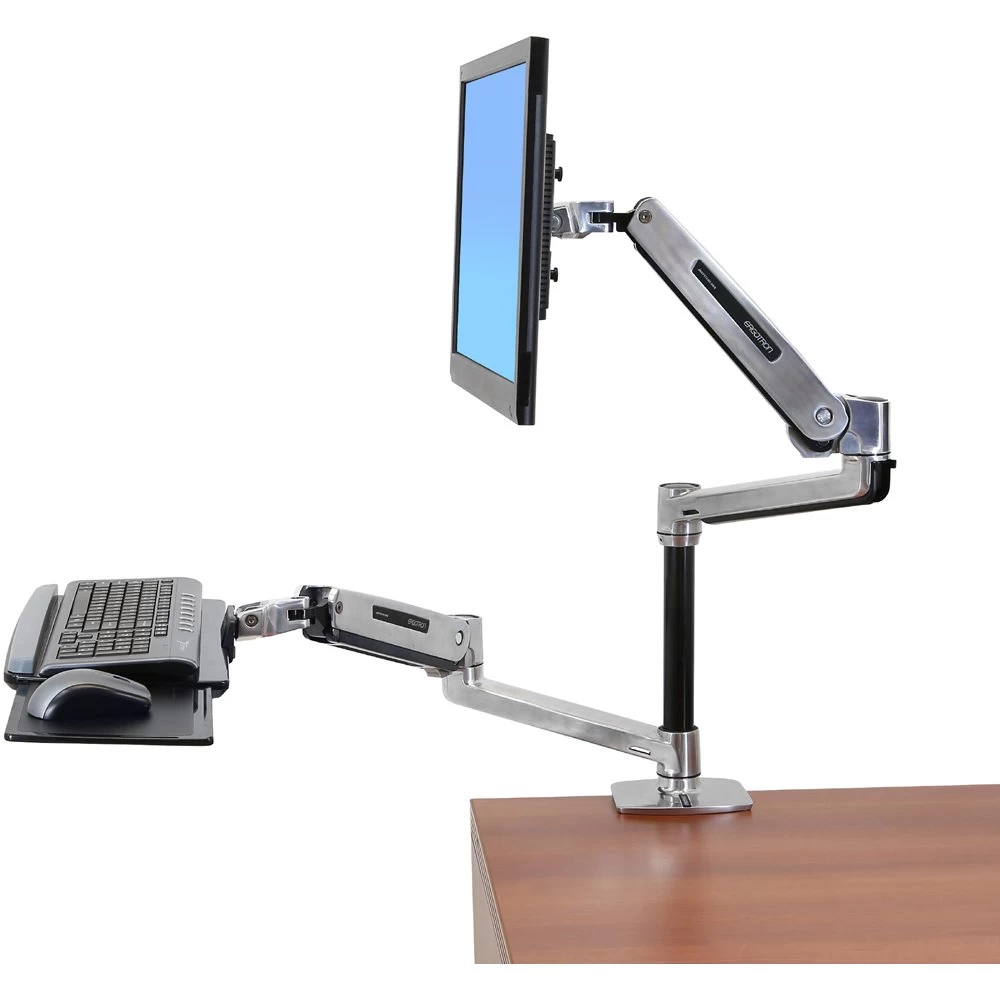

| LX Sit-Stand Keyboard Arm | To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm’s wall-mount base unused |
| NOTE | Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights |
| Product Weight | 19.5 lbs (8.9 kg) |
| Shipping Dimensions | 25″ x 14.75″ x 7.5″ (64 x 38 x 19 cm) |
| Shipping Weight | 22 lbs (10 kg) |
| Warranty | Ten (10) years |
Benefits
- 20″ height adjustability allows users to alternate between sitting and standing positions while working on the display
- Extends LCD up to 33″ and pushes display out of the way when not in use
- Vertical, horizontal adjustability provides ergonomic relief and relieves stress on the back, shoulder and neck
- Increase viewing comfort – help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF motion technology provides premium ease-of-use adjustment
- Cable management clips on the under side of the arm route and hide cords
- Ideal for space-constrained spaces – folds to within 4.5″ (12 cm) of back of desk in storage position
- Secure installation – locking connections between arm, extension and base
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
| Model | 45-360-026 |
| Manufacturer | Ergotron |
| Part Number | 45-360-026 |
| UPC | 698833033984 |
| Color | Polished aluminum |
| Monitor Size | Up to 42 |
| Weight Capacity | 7 to 25 lbs (3.2 to 11.3 kg) |
| Adjustments | 20 |
| Tilt | Up 70 degree and down 5 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). |
| Weight | 19.5 lbs (8.9 kg) |
| Shipping Dimensions | 25 |
| Shipping Weight | 22 lbs (10 kg) |
| Warranty | Ten (10) years |
| Mounting Options | Desk |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Price | $300 – $399 |
