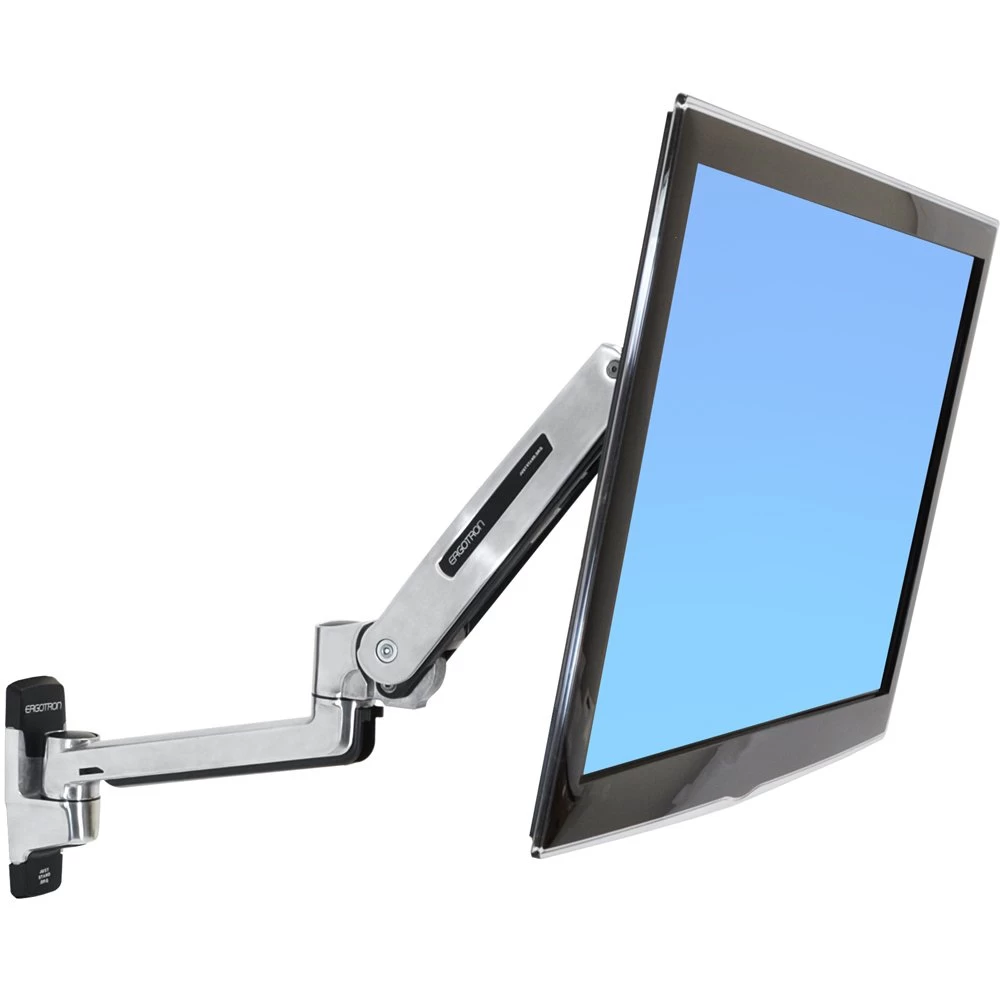

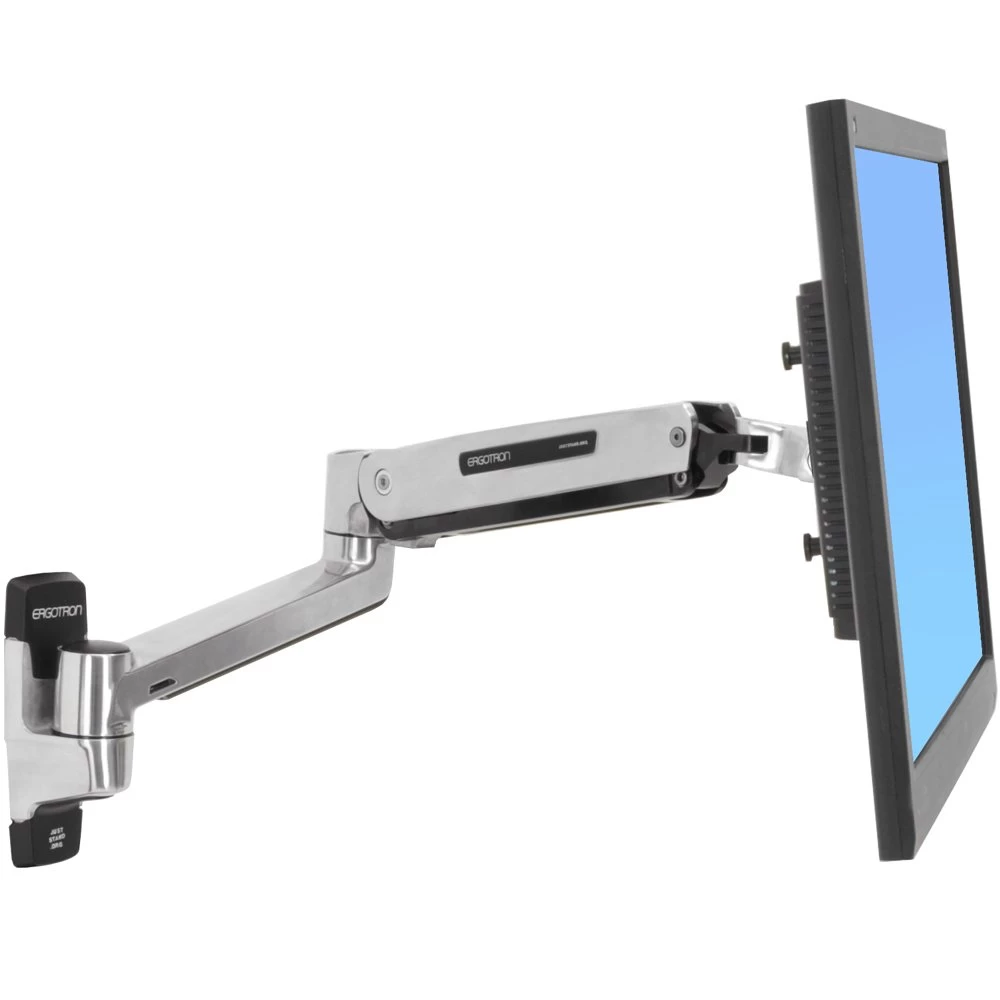

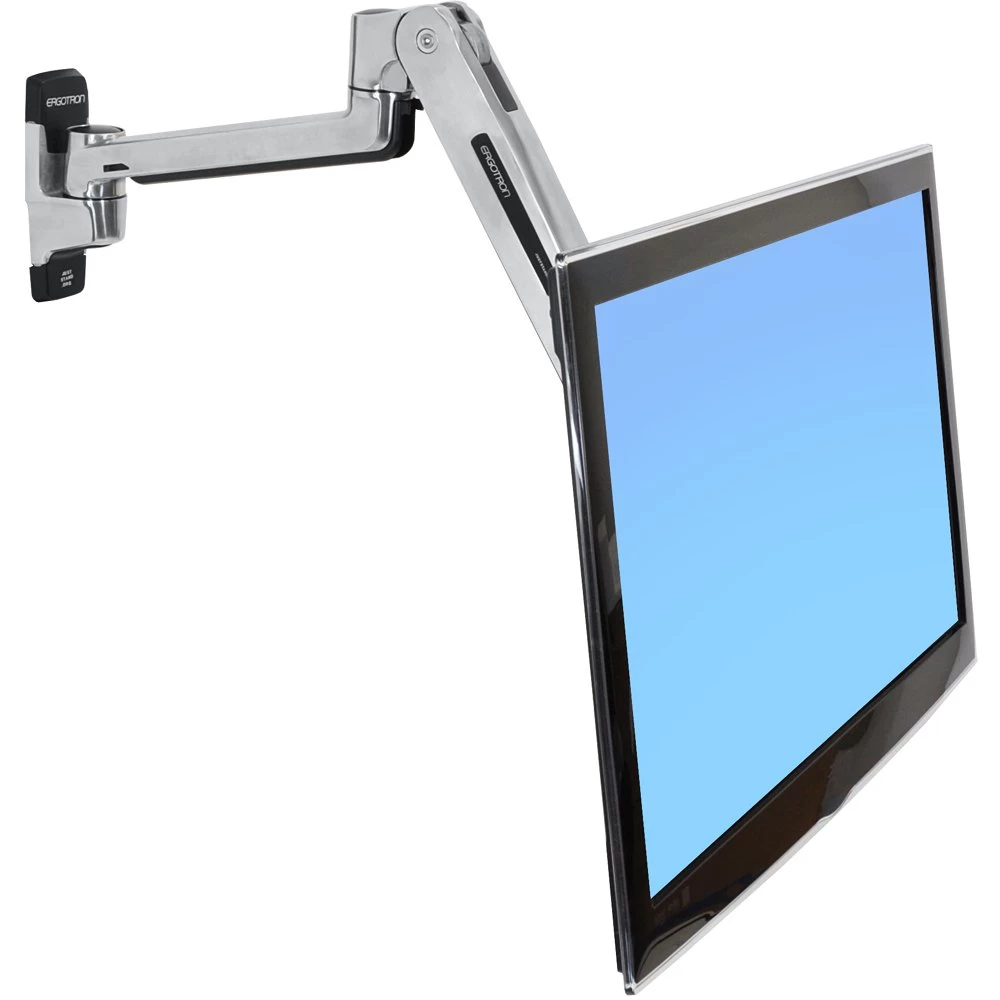

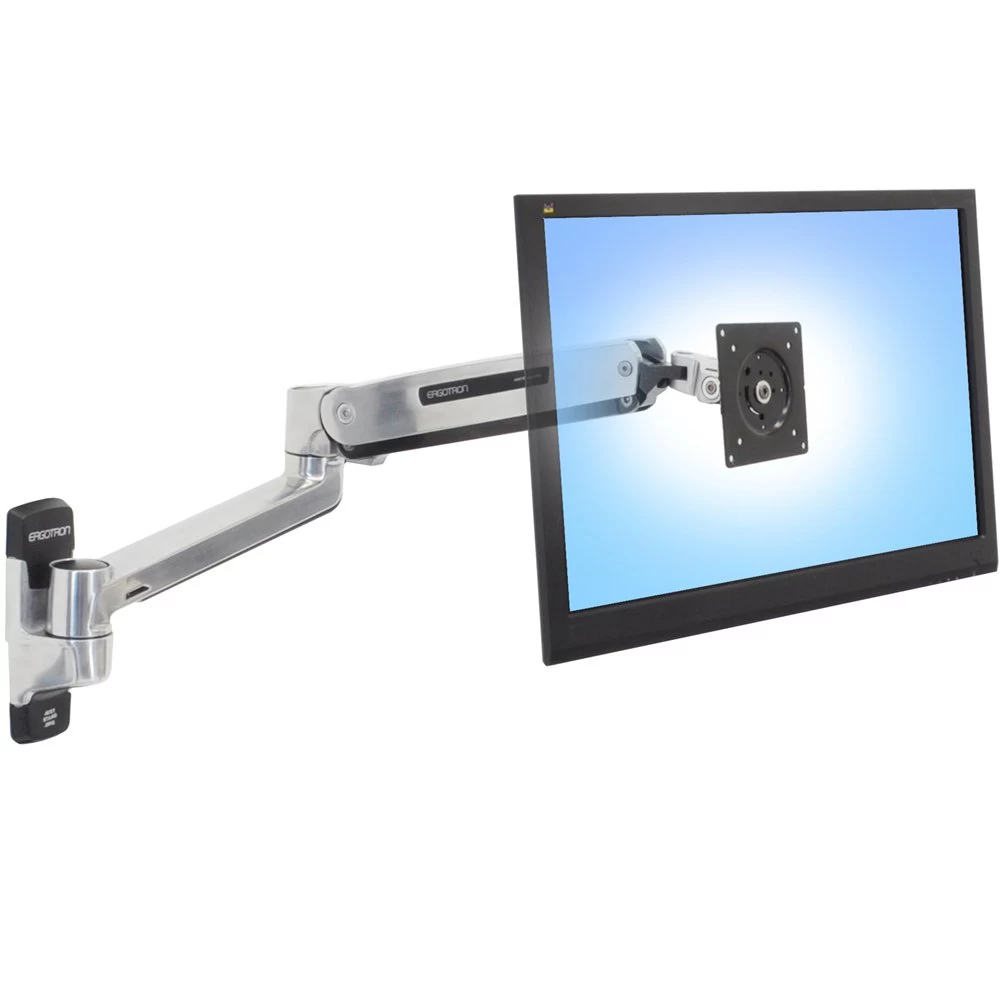

The Ergotron 45-353-026 versatile arm can be used in many different ways – install a small monitor for use within a sit-stand workstation or add a large display up to 25 lbs for digital signage. With a 33″ extension, 20″ vertical adjustment and 62″ side-to-side motion, this arm allows a wide range of mobility to the monitor.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 42″ | 7 – 25 lbs 3.2 – 11.3 kg | 20″ 50.8 cm | 75° | 360° | 360° | MIS-D/E/F |
Product Information
| Part Number | 45-353-026 |
| LX Sit-Stand Wall Mount LCD Arm (polished aluminum) | |
| Includes |
|

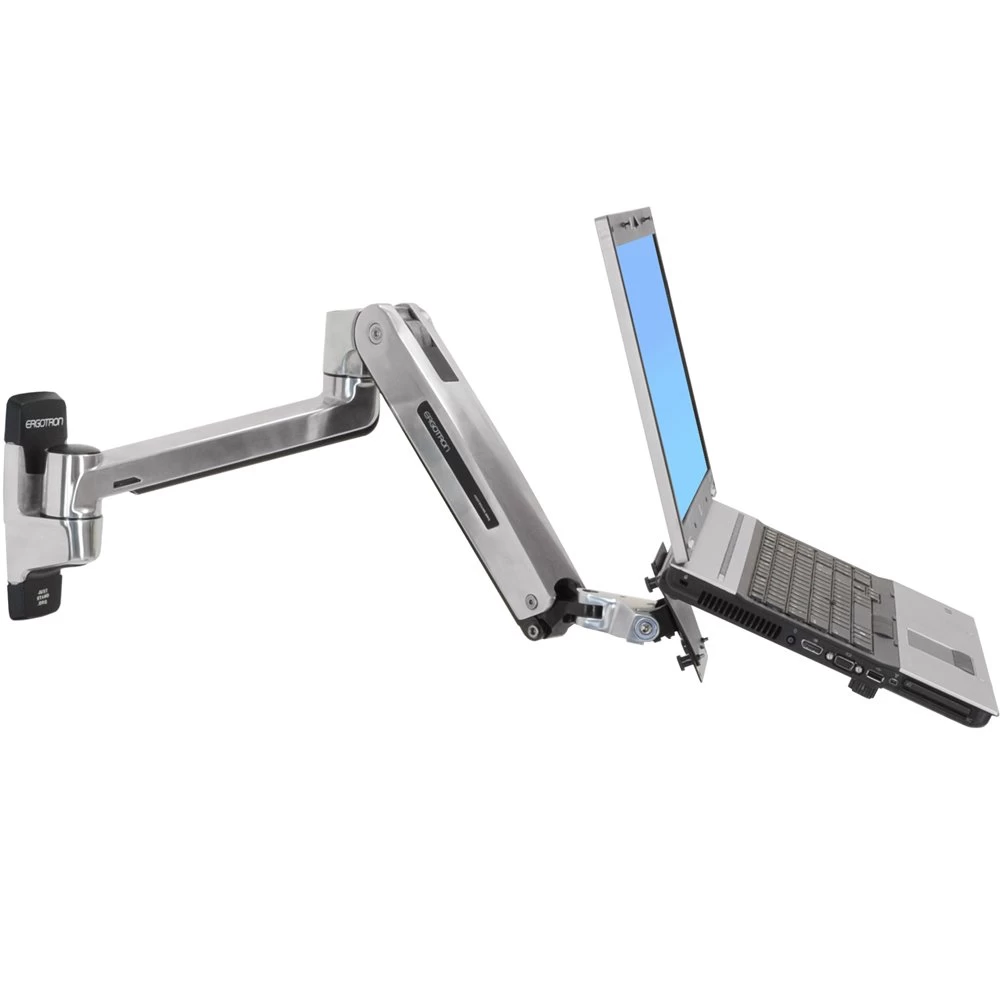

| Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200) |
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Weight Capacity | 7 to 25 lbs (3.2 to 11.3 kg). Monitor depth may affect weight capacity |
| Tilt | Monitor tilts 70° up and 5° down |
| Rotation Stop | Rotation Stop on wall-mount base limits turn of extension-base connection to 180°, preventing extension from contacting wall |
| Locking Connection | Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts |
| Mounting Standards | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
| Mounting Options | Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately) |
| Base | Includes theft-deterrent anchor holes for cable locks |
| NOTE | Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights |
| Product Weight | 11 lbs (5 kg) |
| Shipping Dimensions | 22.1″ x 10.9″ x 7.3″ (56 x 28 x 19 cm) |
| Shipping Weight | 12.6 lbs (5.7 kg) |
| Warranty | Ten (10) years |
Benefits

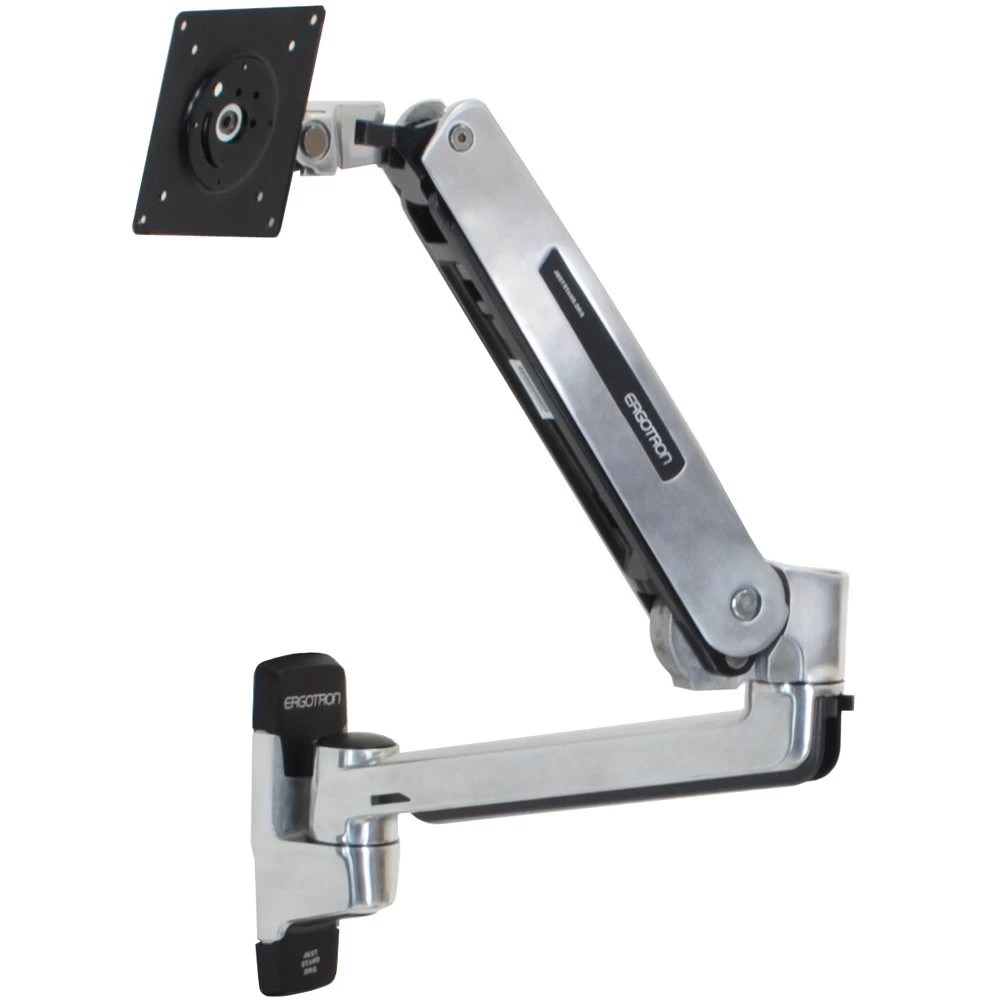

- This LX Arm has a 20-inch (51 cm) height adjustment allowing you to alternate between sitting and standing positions.

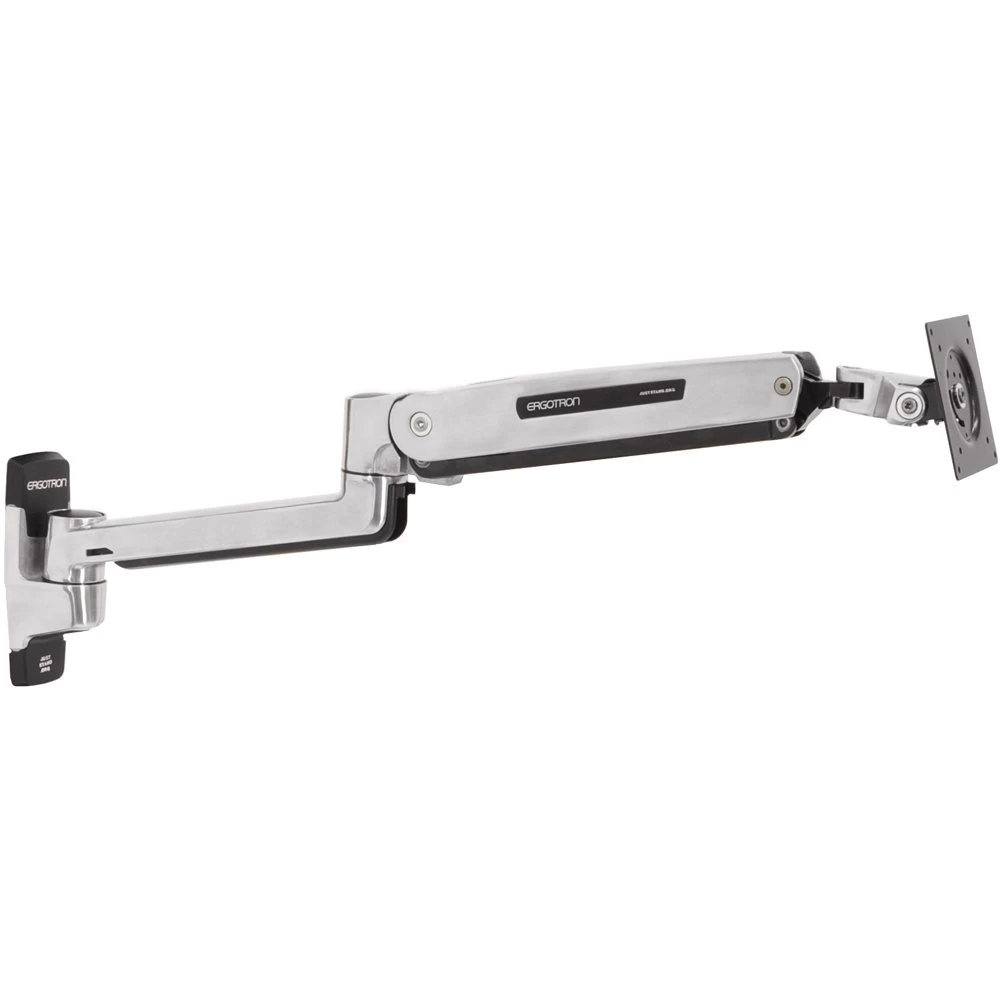

- The arm extends the LCD up to 33″ (84 cm) pushing your display out of the way when not in use
- This wall mounting LX Arm is ideal for space-constrained areas as it folds to within 4.5″ (12 cm) of the wall in storage position
- By adjusting the display to the user`s comfort, this LX Arm provides ergonomic relief
- Increase viewing comfort – help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF motion technology provides premium ease-of-use adjustment

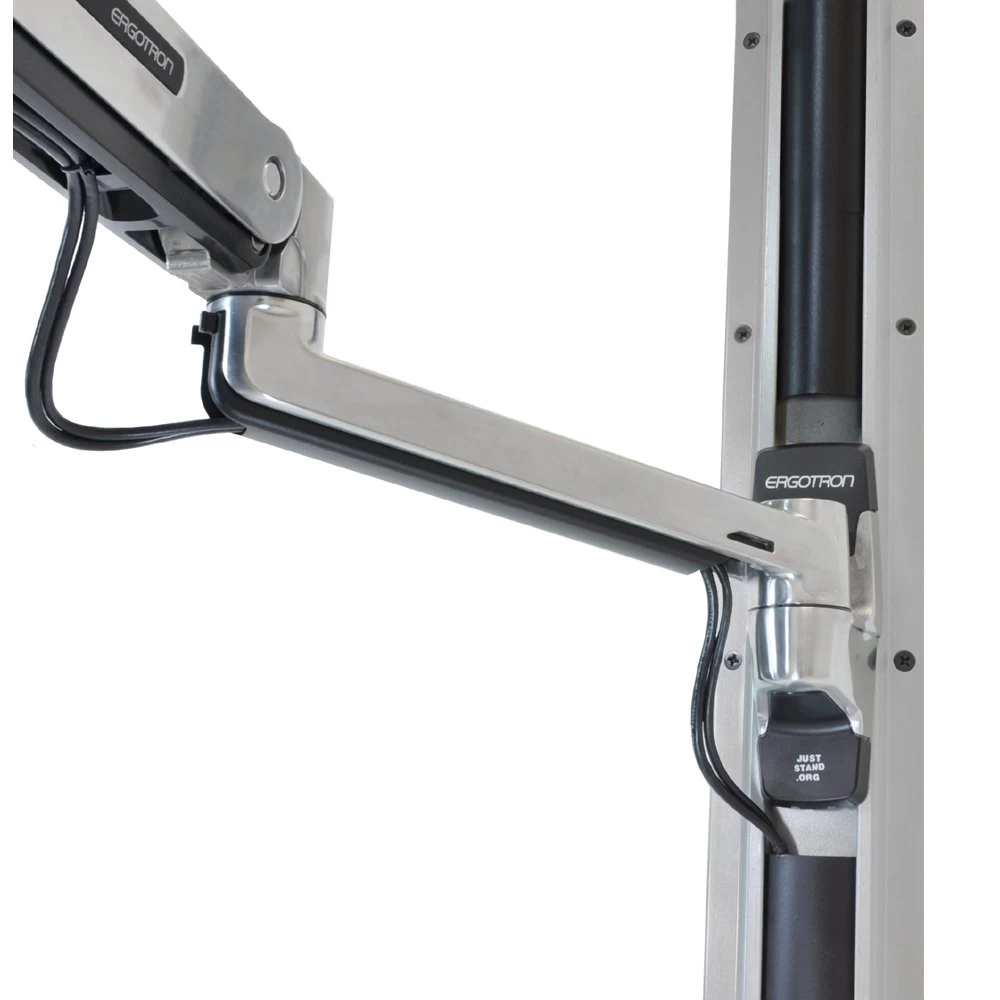

- Cable management feature routes cables under the arm, out of the way
- Secure installation – locking connections between arm, extension and base
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
| Model | 45-353-026 |
| Manufacturer | Ergotron |
| Part Number | 45-353-026 |
| UPC | 698833028492 |
| Color | Polished aluminum |
| Monitor Size | Up to 42″ |
| Weight Capacity | 7 to 25 lbs (3.2 to 11.3 kg). Monitor depth may affect weight capacity |
| Tilt | Up 70 degree and down 5 degree |
| Pan | 360 degree |
| Rotation | 360 degree |

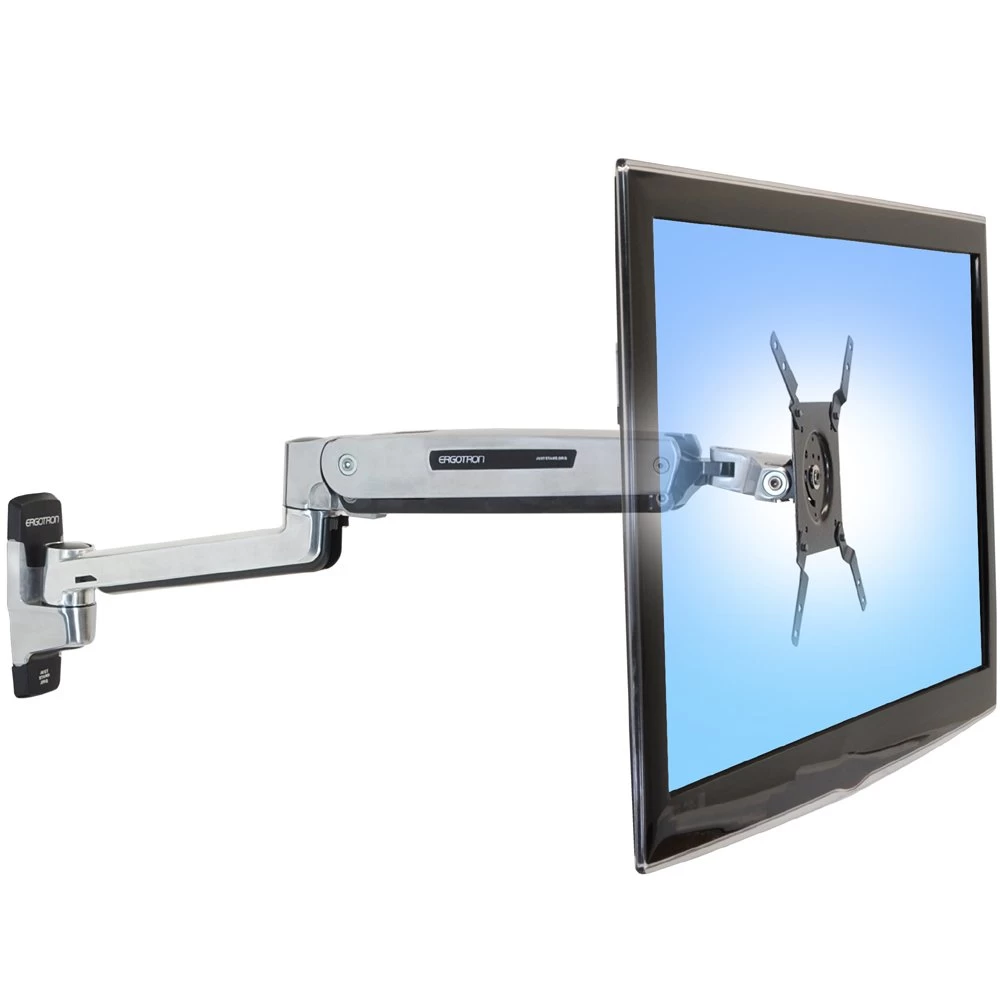

| Mounting Pattern | VESA MIS-D, 75/100 (100 x 100 mm & 75 x 75 mm), MIS-E (200 x 100 mm), MIS-F (200 x 200 mm ONLY). Optional VESA Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |

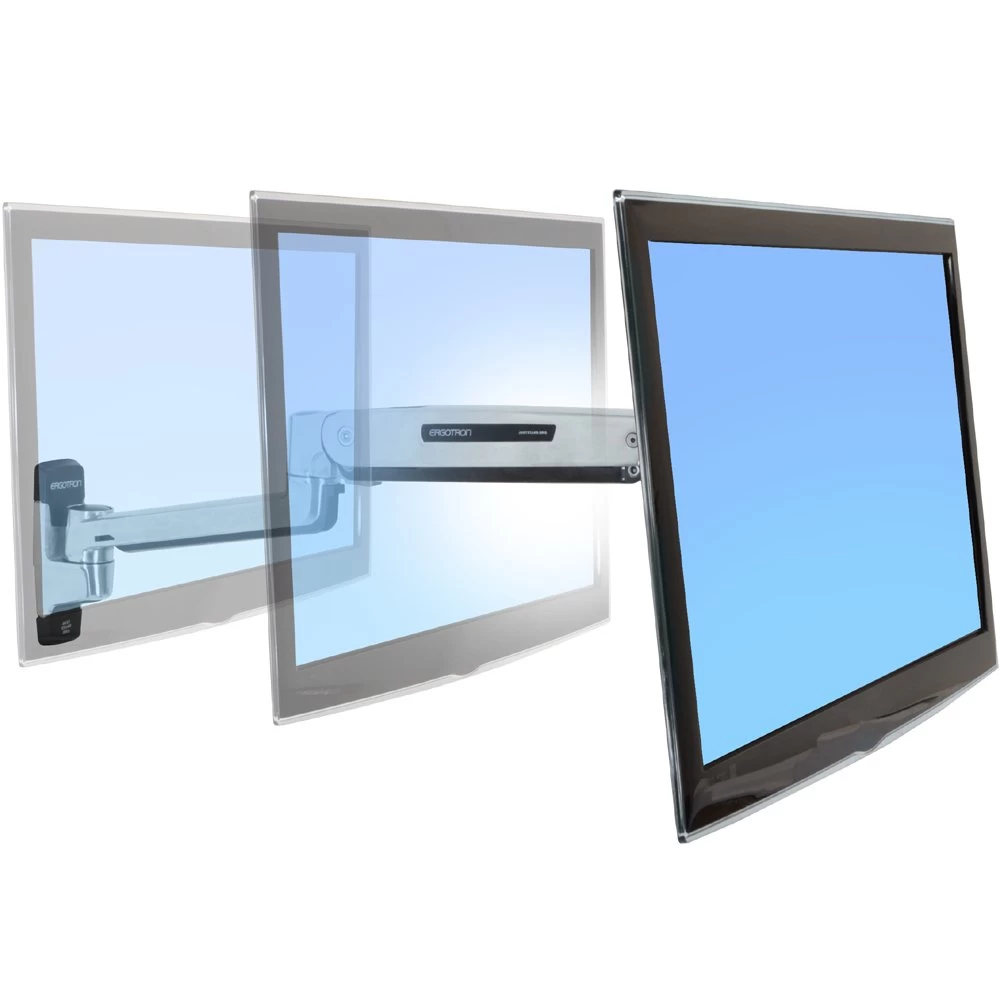

| Adjustments | 20″ (50.8 cm) of vertical adjustment and 62″ (157 cm) of side-to-side adjustment |
| Extension | Extends LCD up to 33″ (84 cm) |
| Weight | 11 lbs (5 kg) |
| Shipping Dimensions | 22.1″ x 10.9″ x 7.3″ (56 x 28 x 19 cm) |
| Shipping Weight | 12.6 lbs (5.7 kg) |
| Warranty | Ten (10) years |
| Mounting Options | Wall |
| Monitor Arm Types | 1 Monitor |
