Original price was: $165.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Have the best deals
- Free Shipping Worldwide
- There are quality problems, free return and exchange
Give your iPad or a similar tablet more flexibility. Just
snap it into the cradle to free your hands: use a Bluetooth keyboard for
intensive computing; position your tablet within your digital workflow
by locating it alongside your main workstation monitor; move the screen
where you can easily reference instructions or recipes.
Turn, rotate, extend or retract your tablet with just a touch; push the
arm’s side button to raise or lower it through an 8″ (20 cm) height
range. Place your tablet exactly where you want it.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 10″ | Up to 2.5 lbs 1.1 kg | 8″ 20.3 cm | 180° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-306-101 |
| Neo-Flex Desk Mount Tablet Arm (black) | |
| Includes |
|
| Allowable Tablet Dimensions | Minimum = 5.5″ x 8″ (14 x 20 cm); maximum = 8″ x 9.75″ (20 x 25 cm). Depth of tablet must be ≤ 0.75″ (19 mm). If case is used, be sure to account for its space requirements |
| LCD Monitor | If cradle is not used, an LCD monitor with screen size up to 22″ may be attached to the arm |
| Tablet Weight | Maximum tablet weight = 2.5 lbs (1.1 kg). If tablet cradle is not used, an LCD monitor weighing up to 18 lbs (8.2 kg) may be attached to the arm |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). Tablet cradle attaches to arm using the 100 x 100 mm hole pattern. If cradle is not used, a VESA-compliant monitor may be attached to the arm |

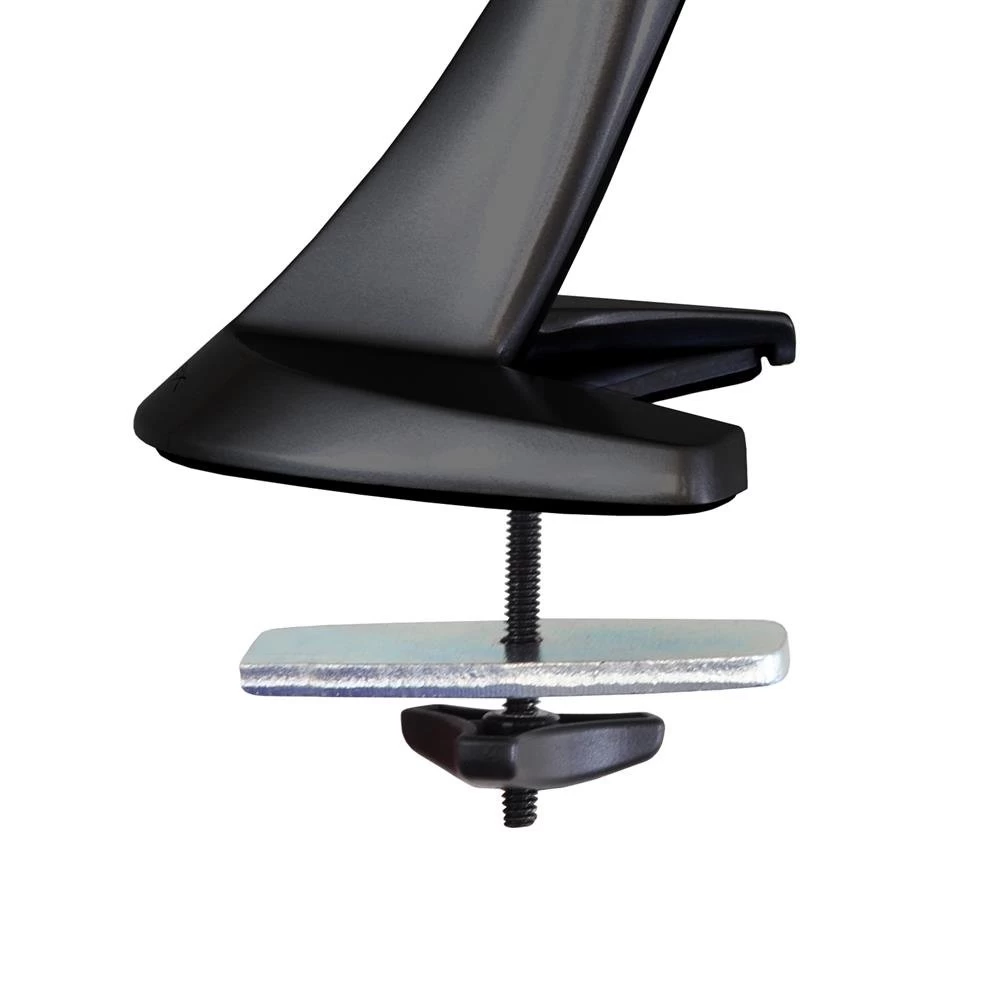

| Mounting Options | Desk Clamp attaches to surface edge up to 1.8″ (46 mm) thick; Grommet Mount attaches through hole 3/8″ to 2″ (51 mm) wide and up to 1-3/4″ (44 mm) deep |
| Height of Tablet | To change height of tablet, depress button on side of arm while positioning screen at desired height |
| Product Weight | 7.3 lbs (3.3 kg) |
| Shipping Dimensions | 18″ x 14.5″ x 6.5″ (462 x 370 x 159 mm) |
| Shipping Weight | 9.5 lbs (4.2 kg) |
| Warranty | Three (3) years |
Benefits
-
Works with many tablets and eReaders, including Apple iPad,
Barnes & Noble Nook and Amazon Kindle -

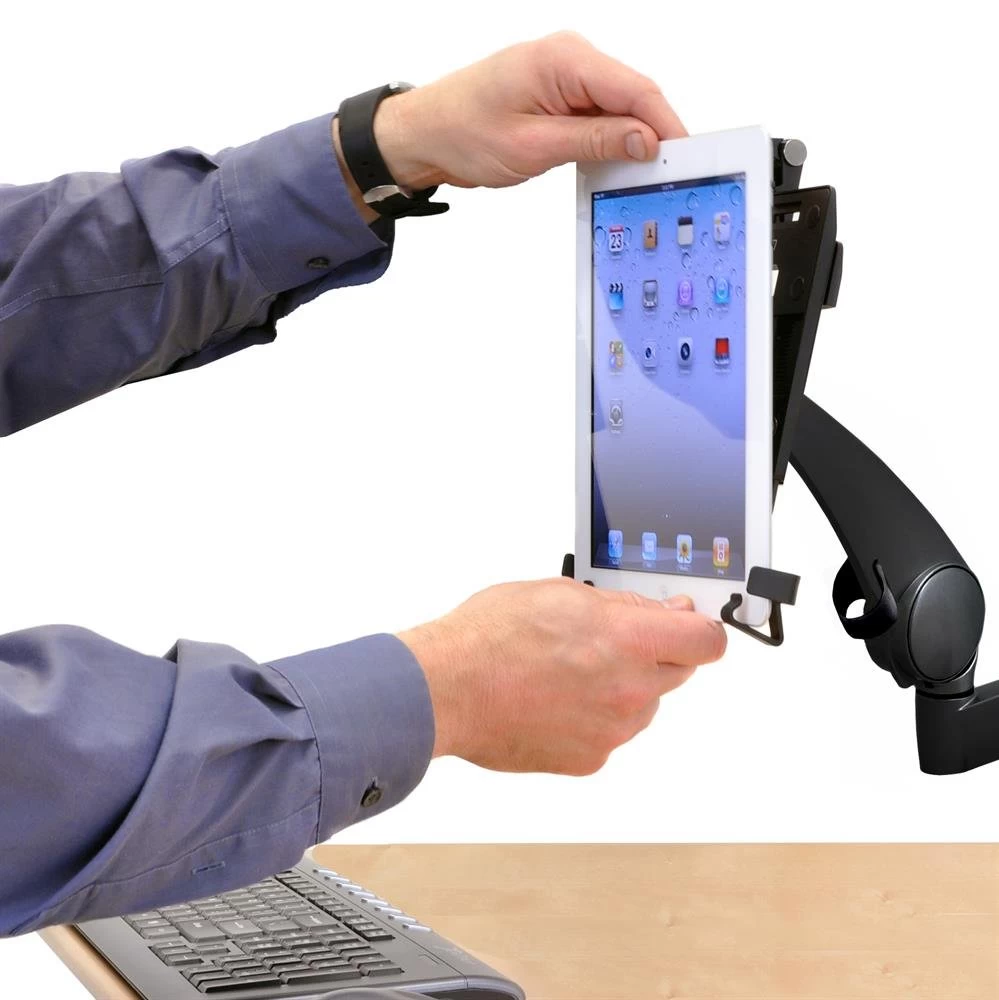

Easily remove the tablet from the cradle when you need to go
mobile -
The cradle’s adjustable contact points keep ports free
-
Sliding brackets allow adjustment to a variety of tablet sizes,
with or without case -
The cradle firmly grasps tablet with latch for secure placement
-
The arm’s sturdy design maintains touch-screen stability
-
View tablet in portrait or landscape mode; easily rotate from
one mode to the other -
Arm can extend the tablet out up to 19.3″ (49 cm) to the point
of need -
Robust construction dampens shock and vibration
-
Can be used to hold an LCD monitor when the tablet cradle is
removed
| Model | 45-306-101 |
| Manufacturer | Ergotron |
| Part Number | 45-306-101 |
| UPC | 698833022254 |
| Monitor Size | Up to 10″. Allowable Tablet Dimensions: minimum = 5.5″ x 8″ (14 x 20 cm); maximum = 8″ x 9.75″ (20 x 25 cm); if cradle is not used, an LCD monitor with screen size up to 22″ may be attached to the arm. |
| Weight Capacity | Up to 2.5 lbs (1.1 kg). If tablet cradle is not used, an LCD monitor weighing up to 18 lbs (8.2 kg) may be attached to the arm. |
| Lift | (20 cm) 8 in |
| Tilt | 180 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Options | Desk |
| Shipping Dimensions | 18″ x 14.5″ x 6.5″ (462 x 370 x 159 mm) |
| Shipping Weight | 9.5 lbs (4.2 kg) |
| Warranty | Three (3) years |
| Color | Black |
| Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). Tablet cradle attaches to arm using the 100 x 100 mm hole pattern. If cradle is not used, a VESA-compliant monitor may be attached to the arm |
| Device | Apple |
| Device | Other |
| Monitor Arm Types | Tablet |
| Weight | 7.3 lbs (3.3 kg) |
