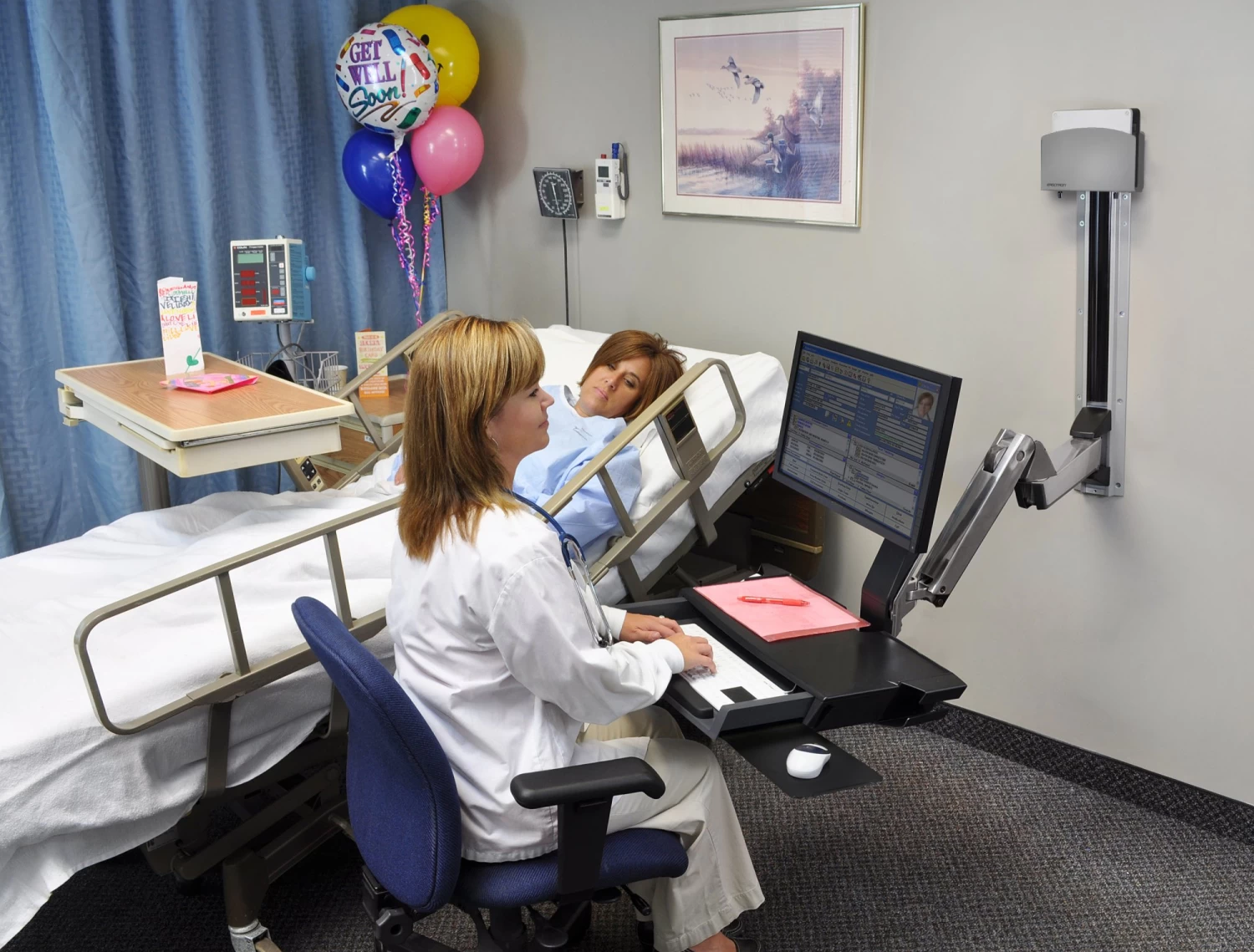

Ergotron 45-270-026 is designed for healthcare environment in mind.

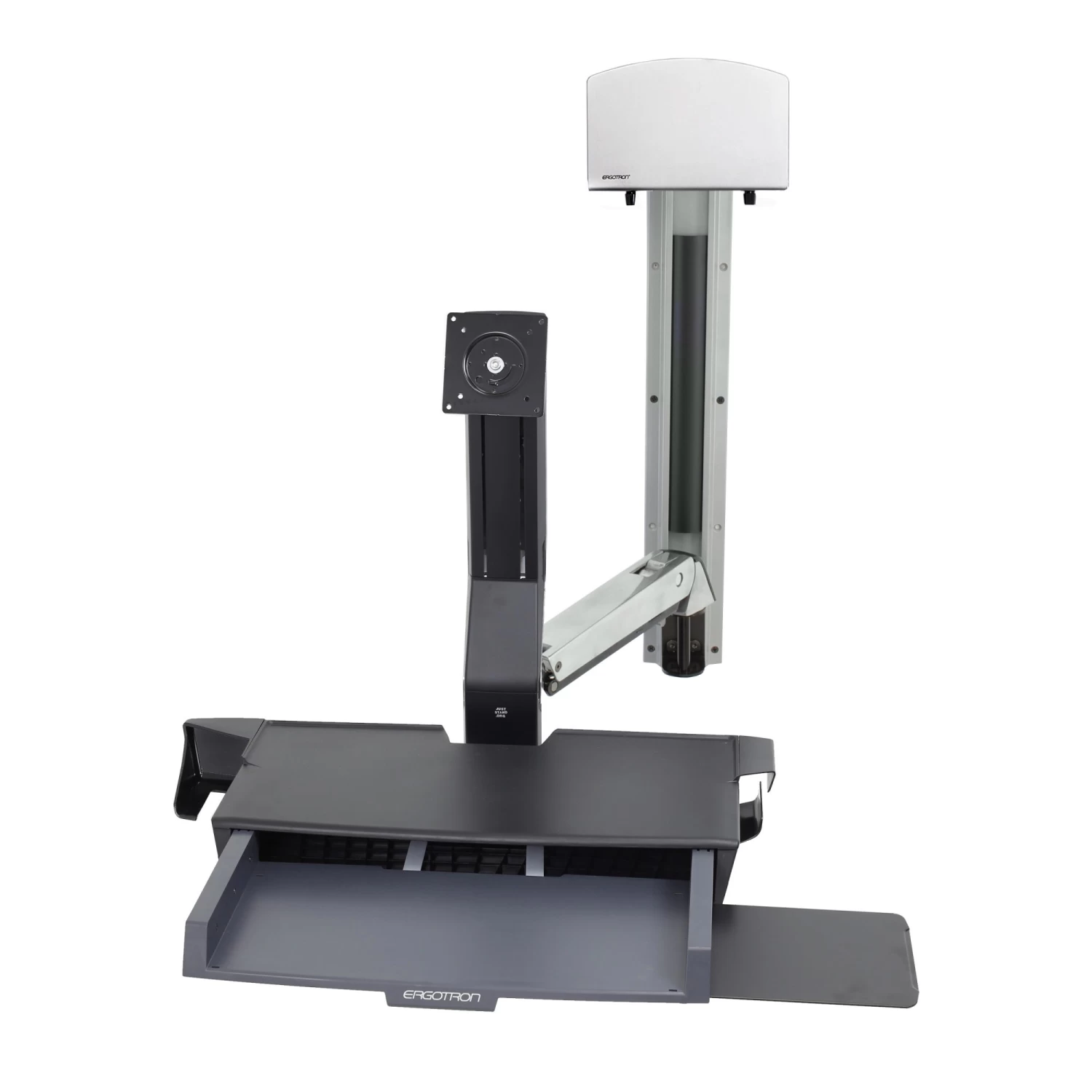

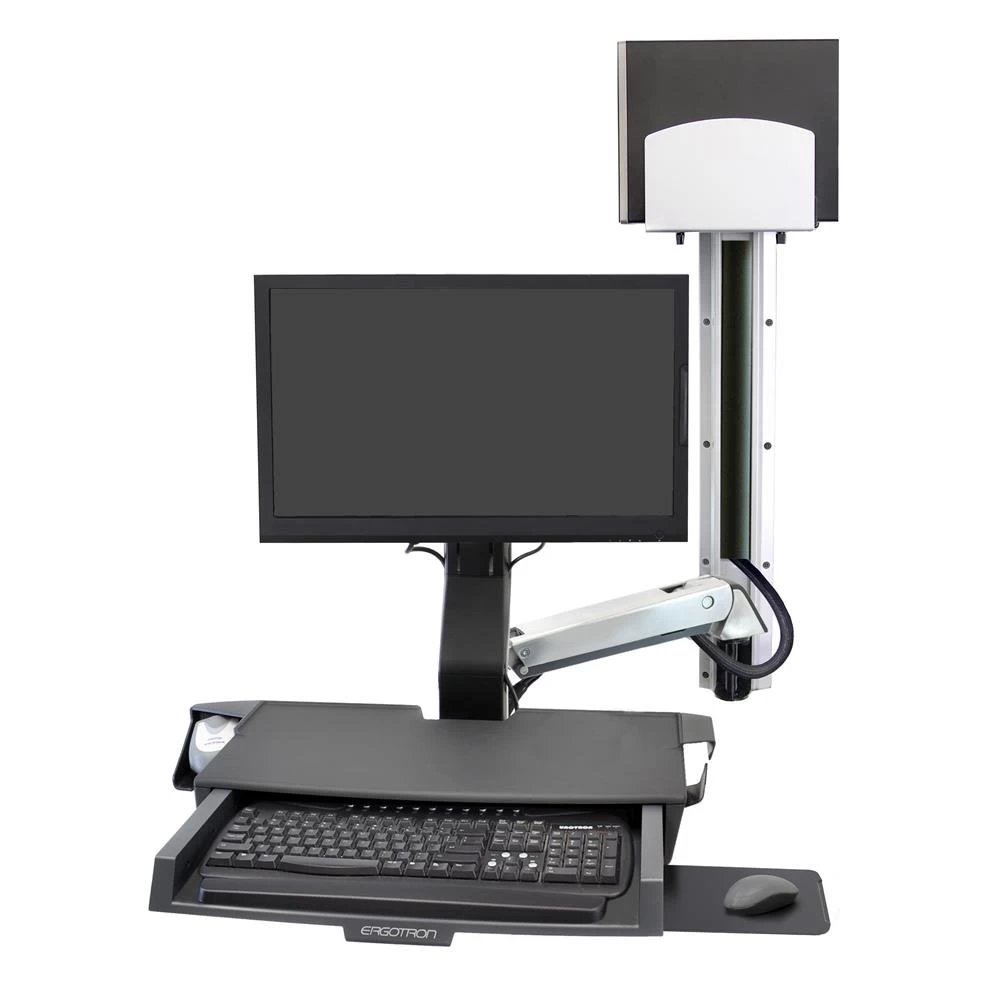

This complete workstation with an Arm to hold the monitor, keyboard
tray, barcode scanner, mouse tray and a worksurface, comes with a medium
CPU holder. The high level of vertical and side to side adjustability
allows the workstation to be used sitting or standing. The combo system
is mounted on a wall track and moves in one single motion.
It comes with medium silver CPU holder. This complete system provides
easy re-positioning of your entire workstation – move your display,
keyboard, mouse and barcode scanner in a single motion.
Durable polished aluminum construction. Also features a worksurface with
pull-out keyboard tray, which facilitates caregiver workflow. Work
sitting or standing with the arm’s ergonomic 25″ (64 cm) LCD height

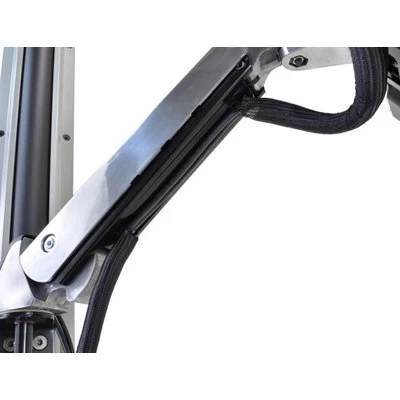

adjustment range. A unique cable management system conceals and
organizes cords, making cleaning easy.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 24″ | Up to 32 lbs 14.5 kg | 25″ 63.5 cm | 30° | 360° | 90° | MIS-D |
Product Information
| Part Number | 45-270-026 |
| StyleView Sit-Stand Combo System with Worksurface and Medium CPU Holder (polished aluminum) | |
| Includes |
|
| Exterior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic |
| Weight Capacity | Display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18.2 kg) |
| Lift Range | LCD and keyboard adjusts 20″ (51 cm) in tandem with single-motion; LCD adjusts 5″ (13 cm) independently; maximum LCD height adjustment = 25″ (64 cm) |
| Tilt | Monitor up/down tilt = +25°/-5° |
| CF Technology | Patented CF lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Mouse and Barcode Scanner Holder | Integrated mouse and barcode scanner holder provide easy access |
| Worksurface/Keyboard Tray | Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75″W x 10.6″D (57.8 x 26.9 cm). Keyboard tray is 18.6″W x 9″D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35″ (34 mm) |
| Keyboard Tray | Back-tilt keyboard tray adjustable from 0° to -10° |
| CPU Size Range | 3-3/8″ to 8″ (9 to 20 cm) wide; CPUs down to 2″ (5 cm) wide can be accommodated by installing the included CPU spacer within the holder |
| CPU Holder | Includes fasteners for locking the holder’s width |
| Extender | Optional Extender (45-261-026) increases range of motion for even greater reach |
| Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200) |
| Product Weight | 41 lbs (19 kg) |
| Shipping Dimensions | 37.1″ x 26.1″ x 10″ (942 x 662 x 254 mm) |
| Shipping Weight | 51 lbs (23 kg) |
| Warranty | Five (5) years |
Benefits
-
Support workflow needs with sturdy worksurface: 22.75″W x
10.6″D (57.8 x 26.9 cm) -
Handle-contact surfaces and Wrist Rest are treated with Agion
Antimicrobial for product protection -
Flexible, open-architecture design is scalable for future
computer equipment -
Comfortable, ergonomic data entry – work sitting or standing
with 20″ (51 cm) single-motion lift adjustment -
Five-inch (12.7 cm) independent LCD height adjustment
ergonomically accommodates individual users -
Easy-to-clean features promote superior infection control
-
Barcode scanner holder provides easy access to hand-held
scanner -

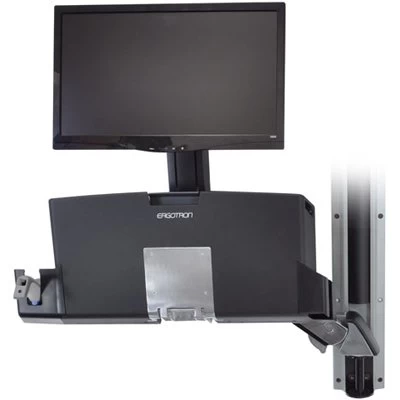

Extend LCD and keyboard up to 43″ (109 cm) from wall; fold
equipment back out of the way when not in use. With
worksurface/keyboard in storage position, system depth is as little as
8″ (20.3 cm) -

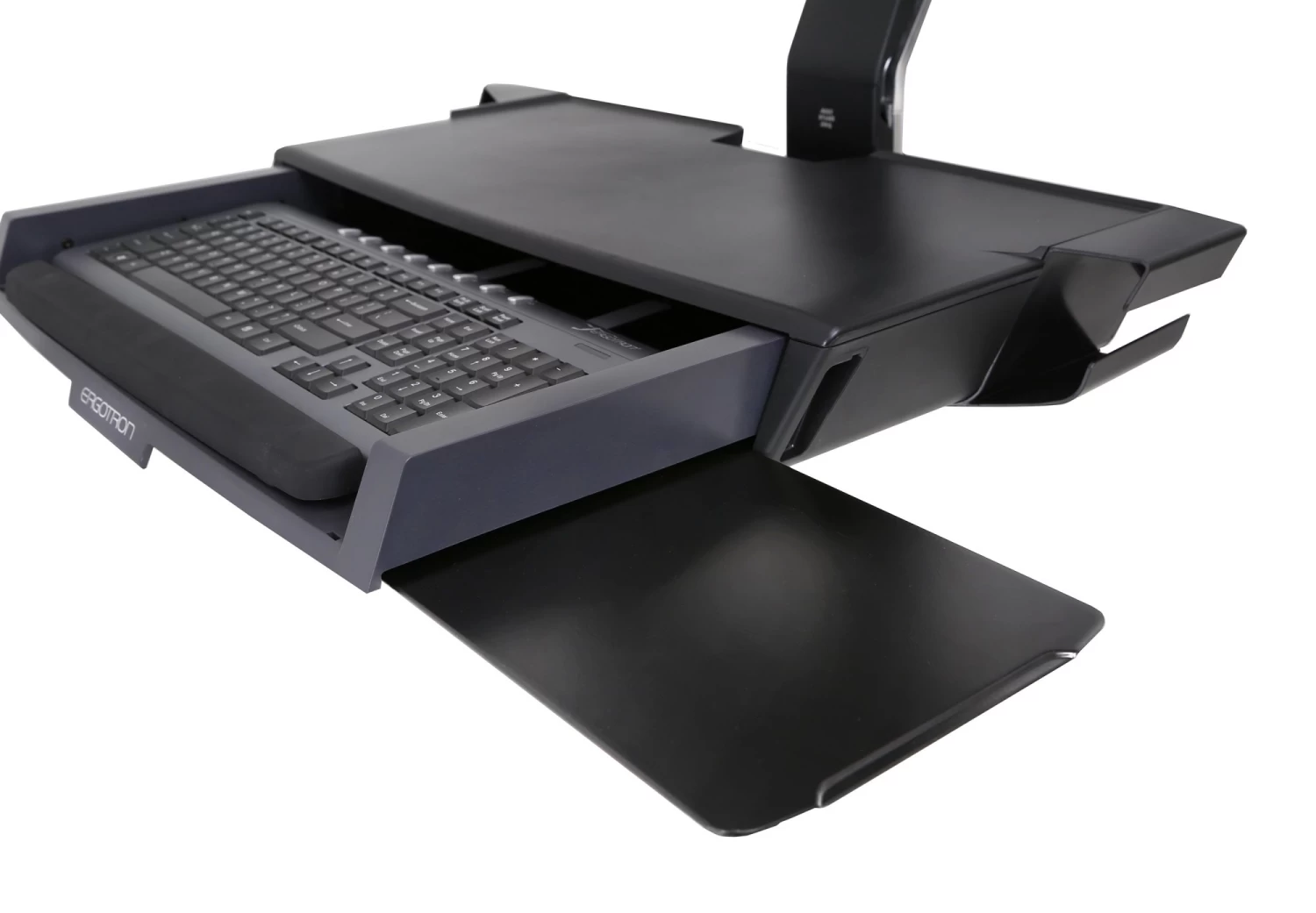

Ergonomic back-tilt keyboard tray ensures wrists remain in a
neutral position during data entry; keyboard tray pulls out when
needed and stows inside worksurface -
Maintains the relative position of screen and keyboard
throughout full range of motion -
Clean, concealed and neat routing of cables through the
expansive cable management system
| Model | 45-270-026 |
| Manufacturer | Ergotron |
| Part Number | 45-270-026 |
| UPC | 698833018165 |
| Color | Polished Aluminum/Black |
| Weight Capacity | Display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18.2 kg) |
| Lift | (64 cm) 25 in |
| Tilt | Up +25 degree/ Down -5 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Shipping Weight | 51 lbs (23 kg) |
| Shipping Dimensions | 37.1″ x 26.1″ x 10″ (942 x 662 x 254 mm) |
| Warranty | Five (5) years |
| Pan | 360 degree |
| Rotation | 90 degree |
| Worksurface Dimensions | 22.75″W x 10.6″D (57.8 x 26.9 cm) |
| Keyboard Tray Dimensions | 18.6″W x 9″D (47.2 x 22.8 cm) |
| CPU Dimension | 3-3/8″ to 8″ (9 to 20 cm) wide; CPUs down to 2″ (5 cm) wide can be accommodated by installing the included CPU spacer within the holder. |
| Monitor Size | Up to 24″ |
| Weight | 41 lbs (19 kg) |
