Original price was: $345.00.$95.99Current price is: $95.99.
Highlights
- Wall Mount Combo Arm: Holds monitor, bar code scanner, keyboard tray, wrist rest, mouse
- 24″ screen size: Mounts monitors up to 24″ in screen size
- 6-18 lbs weight: Carries a monitor in the weight range 6-18 lbs
- 5″ height adjustment: Monitor adjusts 5″ vertically, keyboard height is fixed
- 39″ extension: keyboard extends 39″ horizontally
- Please see, if you want this arm in black color
- Discover a world of quality products.
- Have the best deals
- Free Shipping Worldwide
- There are quality problems, free return and exchange
Attach your LCD and keyboard to the 200 Combo and free up space. This
wall unit solution features 3-point telescoping motion, providing
greater reach to bring the system to where it’s needed.
Ergotron 45-230-216 accommodates monitor, bar-code scanner, keyboard,
wrist rest and mouse. A unique cable management system conceals and
organizes cords, making cleaning a snap.

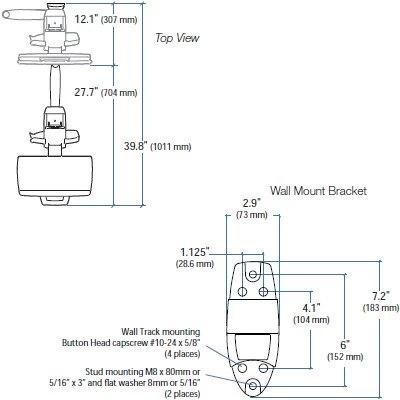

Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 24″ | 6 – 18 lbs 2.7 – 8.2 kg | 5″ 12.7 cm | 30° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-230-216 |
| 200 Series Combo Arm (white) | |
| Includes |
|
| Weight Capacity | Display = 6-18 lbs (2.7-8.2 kg); keyboard, mouse and barcode scanner = 5 lbs (2.3 kg) |
| Monitor Depth | Monitor depth greater than 2″ (5 cm) may diminish capacity |
| Height of Display | Height of display adjusts 5″ (13 cm); height of keyboard tray is fixed |
| Tilt | Monitor up/down tilt = +25°/-5 |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Mouse and Scanner Holder | Integrated mouse and barcode scanner holder provide easy access |
| Keyboard Tray |
|
| Exterior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder-coated painted steel |
| Mounting Options | Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. Separately ordered Wall Track or Wall Plate accessory is recommended to strengthen installation by distributing weight over a larger surface area |
| Shipping Dimensions | 12.4″H x 20″W x 23.6″D (315 x 508 x 605 mm) |
| Shipping Weight | 22.7 lbs (10.3 kg) |
| Warranty | Five (5) years |
Benefits
-
Easily position flat panel monitor and keyboard for maximum
comfort and productivity -
Distance between screen and keyboard is adjustable
-
Five-inch (13 cm) LCD height adjustment
-
Rugged steel construction
-
Extremely easy to clean; promotes infection control
-
Barcode scanner holder provides easy access to hand-held
scanner -
Extends keyboard out up to 39″ (99 cm); fold equipment back
out of the way when not in use. With the keyboard folded up, total
system depth is as little as 12.1″ (31 cm) -
Ergonomic negative-tilt keyboard tray with left or right
mouse tray ensures wrists remain in a neutral position during data
entry -
Constant Force, patented lift technology provides fluid,
one-touch adjustment of LCD -
Clean, concealed and neat routing of cables through the
expansive cable management system
| Model | 45-230-216 |
| Manufacturer | Ergotron |
| Part Number | 45-230-216 |
| UPC | 698833010572 |
| Weight | lb(s) |
| Color | White |
| Weight Capacity | Display = 6-18 lbs (2.7-8.2 kg); keyboard, mouse and barcode scanner = 5 lbs (2.3 kg). Monitor depth greater than 2″ (5 cm) may diminish capacity. |
| Monitor Size | Up to 24″ |
| Lift | (12.7 cm) 5 in |
| Tilt | Up +25 degree/down -5 degree |
| Shipping Weight | 22.7 lbs (10.3 kg) |
| Shipping Dimensions | 12.4″H x 20″W x 23.6″D (315 x 508 x 605 mm) |
| Warranty | Five (5) years |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Mounting Options | Wall |
| Monitor Arm Types | Monitor/Keyboard |
