Original price was: $249.00.$98.99Current price is: $98.99.
Highlights
- Wall Mount Monitor Arm
- 42″ Screen size: Holds monitors, displays up to 42″ screen size
- 14-30 lbs weight capacity: Carries monitors, displays in the weight range 14-30 lbs
- 5″ Vertical Adjustability: Provides 5″ vertical adjustment
- 17″ Horizontal Reach: 17″ Extension, retraction possible
- Please see, if you want a desk mounting monitor arm
- Discover a world of quality products.
- Have the best deals
- Free Shipping Worldwide
- There are quality problems, free return and exchange

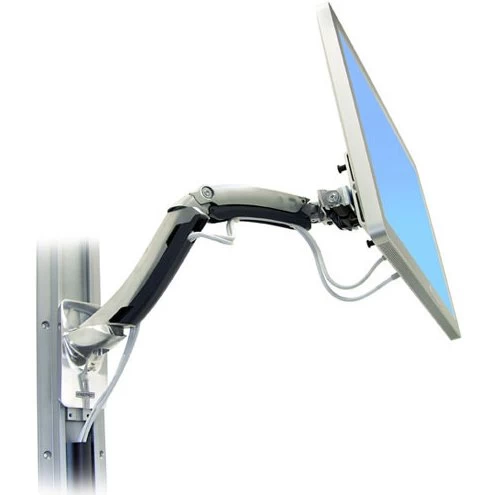

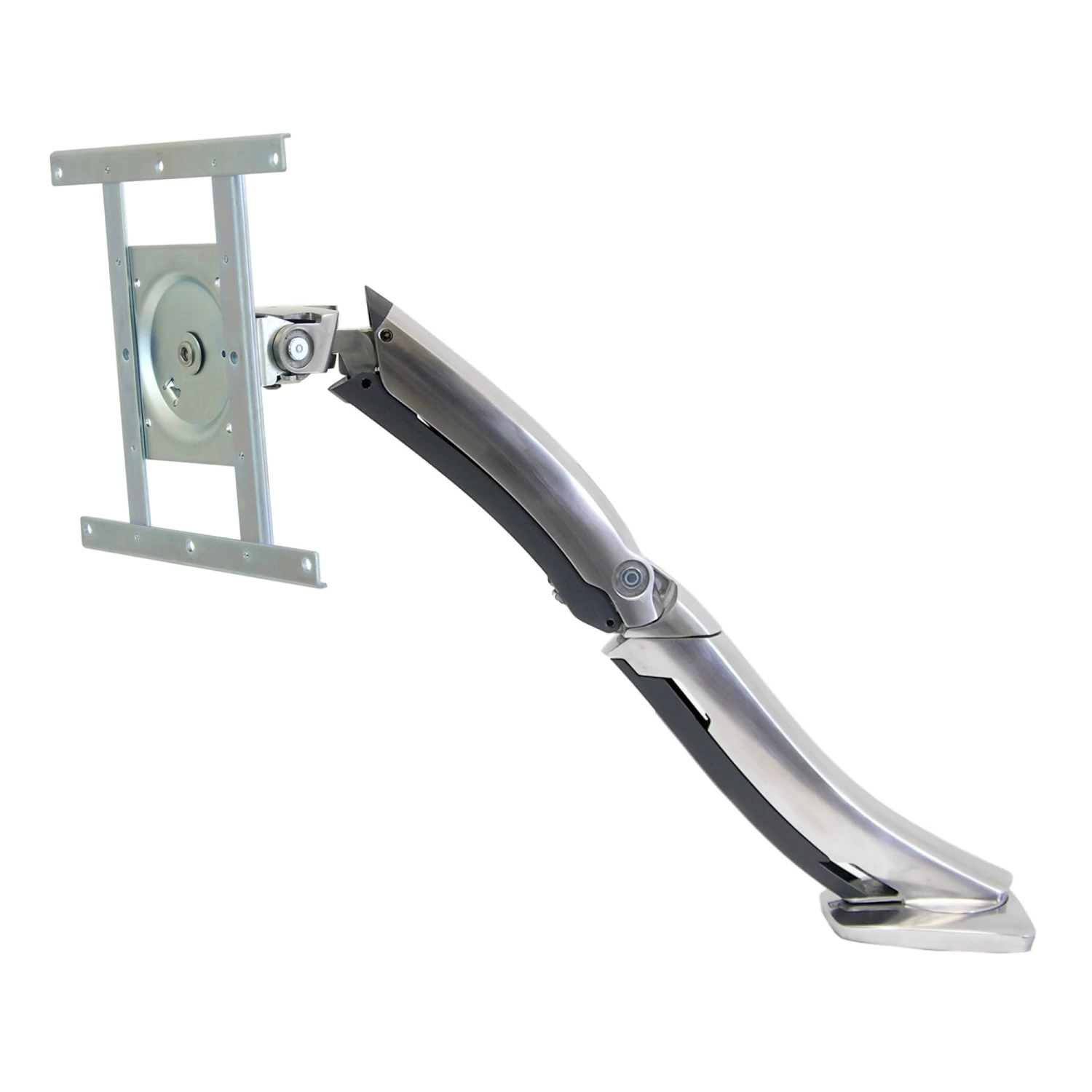

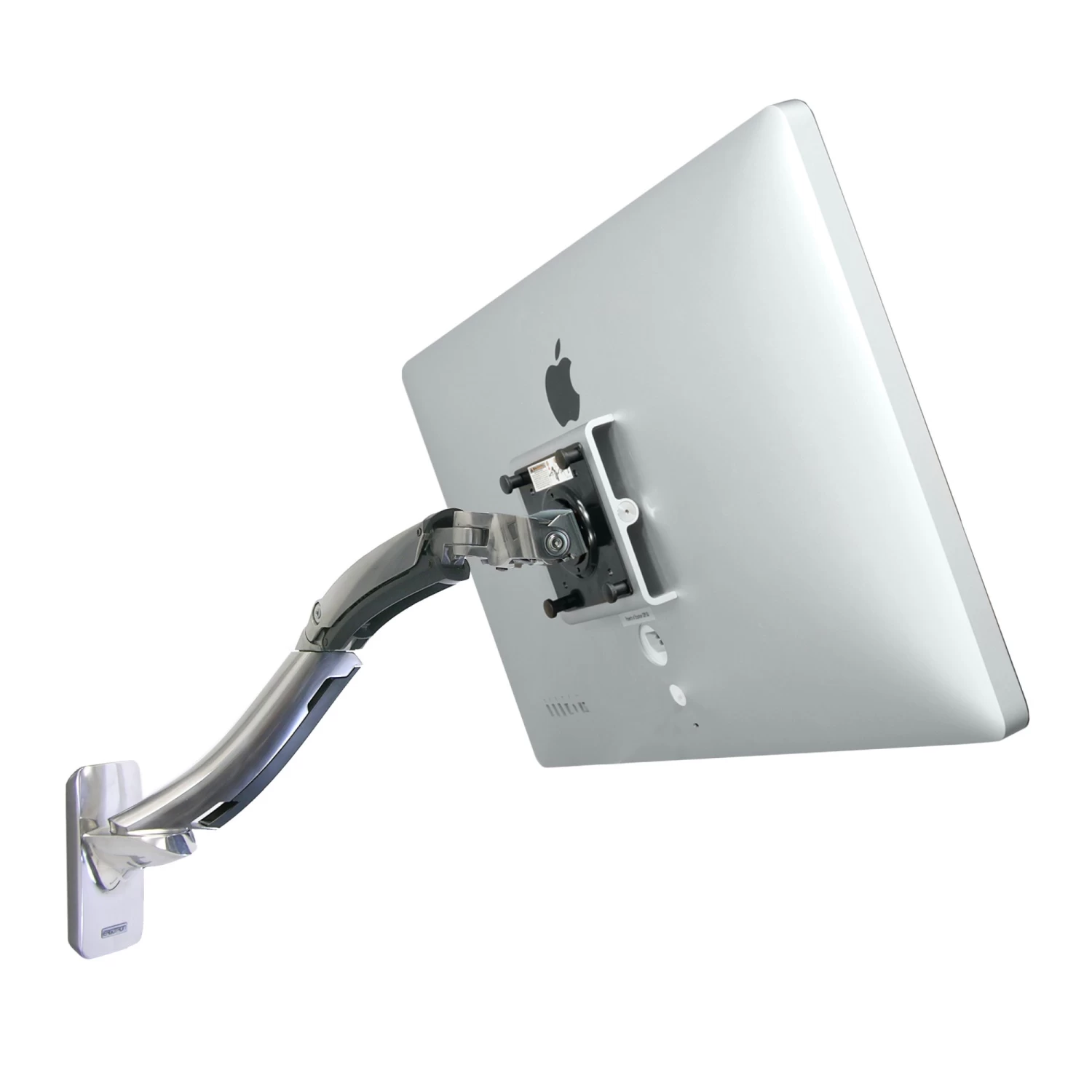

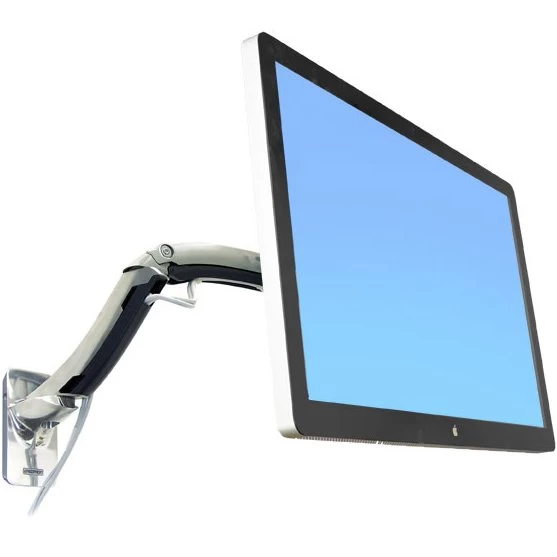

Ergotron 45-228-026 is a wall mounting arm that can carry
medium-sized displays and computer monitors weighing up to 30 lbs (13.6
kgs) for digital display purposes. Ideal in a retail or public
environment too like a library or a hospital, the 45-228-026 provides 5″
height adjustment, 17″ horizontal reach and retraction and also
portrait/landscape rotation.
Note: It is recommended that this arm be installed no higher than 60″
(152 cm) above the floor
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 42″ | 14 – 30 lbs 6.4 – 13.6 kg | 5″ 12.7 cm | 80° | 360° | 90° | MIS-D/E/F |
Product Information
| Part Number | 45-228-026 |
| MX Wall Mount LCD Monitor Arm (polished aluminum) | |
| Includes |
|
| Weight Capacity | 14 to 30 lbs (6.3 to 13.6 kg). Monitor depth greater than 4″ (102 mm) may diminish capacity. Contact Ergotron for more information |
| Tilts | Monitor tilts 75° up and 5° down |
| Pan | Pan at base = 180°; pan at extension = 360°; pan at monitor = 180° |
| Portrait/Landscape | Portrait/landscape rotation includes position lock |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately |
| Recommended Installation Height | Upper mounting hole of base should be placed no higher than 60″ (152 cm) above floor |
| Cable Management | Internal cable management |
| Product Weight | 8.1 lbs (3.7 kg) |
| Shipping Dimensions | 29.25″ x 10.5″ x 6.5″ (745 x 265 x 160 mm) |
| Shipping Weight | 10.25 lbs (4.65 kg) |
| Warranty | Ten (10) years |
Benefits
-
Stylish design and super sturdy construction; steel and
polished aluminum exterior -
Position your display for maximum ergonomic comfort to relieve
eye, neck and back strain -
Pre-assembled arm offers monitor/TV theft deterrence
-
Easy to use, simple installation and effortless operation
-
Cable management system conceals and routes cables under the
arm, out of the way -
Upgrade LCD monitors and TVs with improved ergonomic adjustment
-
Rotate screen for portrait viewing of photos and pages –
eliminate scrolling -
Extends/retracts up to 16.7″ (42 cm); push your display out of
the way when not in use -
Patented CF motion technology provides premium ease-of-use
display adjustment
| Model | 45-228-026 |
| Manufacturer | Ergotron |
| Part Number | 45-228-026 |
| UPC | 698833010466 |
| Weight | lb(s) |
| Color | Polished Aluminum |
| Weight Capacity | 14-30 lbs (6.3-13.6 kg). Monitor depth greater than 4″ (102 mm) may diminish capacity. Contact Ergotron for more information. |
| Lift | (13 cm) 5 in |
| Tilt | Up 75 degree and down 5 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (200 x 100 mm); VESA FDMI, MIS-F, C (200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm, VESA Adaptor Kit (97-759) can be ordered separately |
| Shipping Dimensions | 29.25″ x 10.5″ x 6.5″ (745 x 265 x 160 mm) |
| Shipping Weight | 10.25 lbs (4.65 kg) |
| Warranty | Ten (10) years |
| Monitor Size | Up to 42″ |
| Pan | 360 degree |
| Rotation | 90 degree |
| Extend/Retract Range | Up to 16.7″ (42 cm), push your display out of the way when not in use |
| Mounting Options | Wall |
| Monitor Arm Types | 1 Monitor |
| Weight | 8.1 lbs (3.7 kg) |
