Sale!
Original price was: $235.00.$97.99Current price is: $97.99.
Highlights
- Desk mount Monitor Arm
- 14-30 lbs weight capacity: Holds mid-size displays and monitors weighing up to 30 lbs
- Up to 30″ screen size: Carries displays up to 30″ in size
- 5″ height adjustment: Provides 5″ vertical adjustment to the monitor
- 16.7″ horizontal extension: Extends, retracts display pushing it out of the way when not in use
- For more vertical adjustment, see Ergotron LX Desk Mount LCD Arm
- Discover a world of quality products.
- Have the best deals
- Free Shipping Worldwide
- There are quality problems, free return and exchange

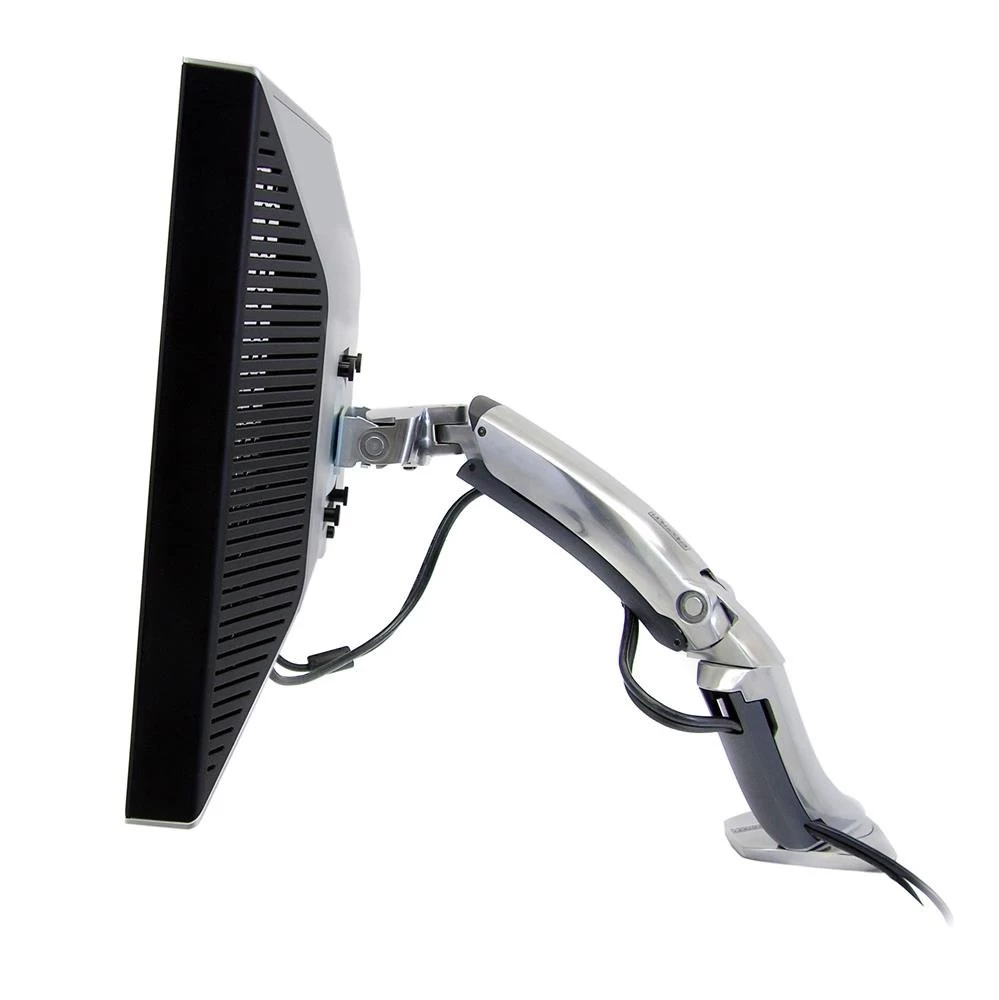

Ergotron 45-214-026, the MX LCD Arm, accommodates TVs as well as monitors weighing up to 30 lbs (13.6 kg) and up to 30″ in screen size. Vertical adjustment of 5″, horizontal extension and retraction of 16.7″ and movement from portrait to landscape provide ergonomic flexibility to the user.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 30″ | 14 – 30 lbs 6.4 – 13.6 kg | 5″ 12.7 cm | 80° | 360° | 90° | MIS-D/E/F |
Product Information
| Part Number | 45-214-026 |
| MX Desk Mount LCD Monitor Arm (polished aluminum) | |
| Includes |
|

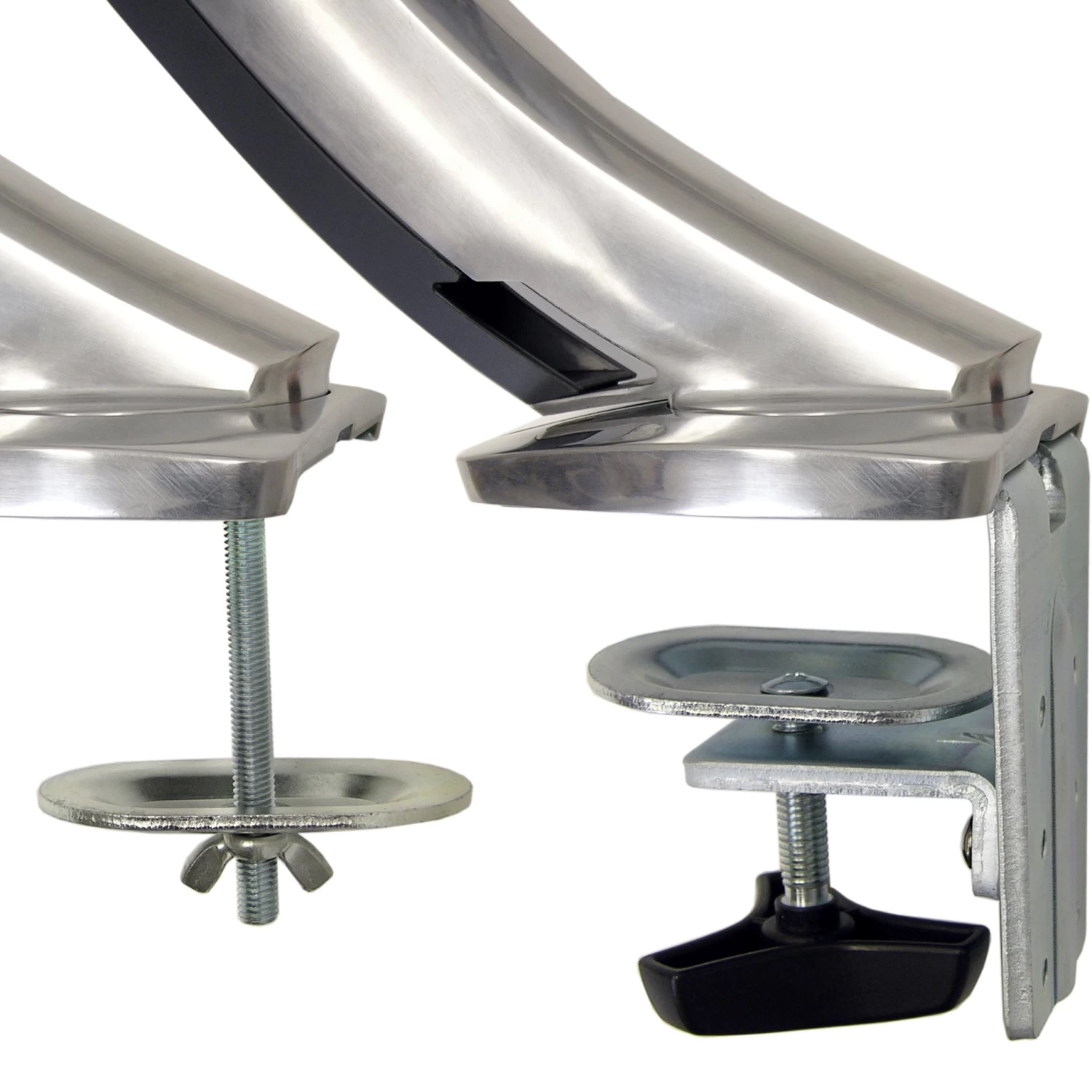

| Mounting Options | Desk clamp attaches to surface edge 2.6″ (66 mm) thick; grommet mount attaches through surface holes .31″ to 2.0″ (8 to 51 mm) wide and up to 3″ (80 mm) thick |
| Weight Capacity | 14 to 30 lbs (6.4 to 13.6 kg). Monitor depth greater than 4″ (102 mm) may diminish capacity. Contact Ergotron for more information |
| Pan | Pans at base 180°; rotates at extension 360°; pans at monitor 180° |
| Tilt | Monitor tilts 75° up and 5° down |
| Extend/Retracts | LCD up to 16.7″ (424 mm) |
| Note | Motion range may be limited when using larger displays and/or by the position of the VESA hole pattern on the back of the display |
| Portrait/Landscape Rotation | Includes position lock. |
| Portrait Mode | Is incompatible with 30″ displays |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately |
| Cable Management | Internal cable management |
| Shipping Dimensions | 25.6″ x 7.3″ x 6.3″ (650 x 185 x 160 mm) |
| Shipping Weight | 9 lbs (4.2 kg); actual product weight: 7.7 lbs (3.5 kg) |
| Warranty | Ten (10) years |
Benefits
- Accommodates mid-size displays and all-in-one computers weighing up to 30 lbs (13.6 kg).
- Position your display for maximum ergonomic comfort to relieve eye, neck and back strain.
- Free up your table or desktop to increase your workspace.
- Upgrade LCD monitors and TVs with improved ergonomic adjustment.
- Pre-assembled arm offers monitor/TV theft deterrence.
- Rotate screen for portrait viewing of photos and pages – eliminate scrolling.
- Cable management feature conceals and routes cables under the arm, out of the way.
- Extends/retracts LCD up to 16.7″ (424 mm); push your display out of the way when not in use.
- Patented CF motion technology provides premium ease-of-use display adjustment.
- Easy-to-use, simple installation and effortless operation.
| Model | 45-214-026 |
| Manufacturer | Ergotron |
| Part Number | 45-214-026 |
| UPC | 698833009378 |
| Color | Polished aluminum |
| Extend/Retract Range | Extends/retracts LCD up to 16.7 |
| Monitor Size | Up to 30 |
| Weight Capacity | 14-30 lbs (6.4-13.6 kg). Monitor depth greater than 4 |
| Lift | (12.7 cm) 5 in |
| Tilt | Up 75 degree and down 5 degree |
| Pan | 360 degree |
| Rotation | 90 degree |
| Mounting Options | Desk |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). |
| Shipping Dimensions | 25.6 |
| Shipping Weight | 9 lbs (4.2 kg) |
| Warranty | Ten (10) years |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Weight | 7.7 lbs (3.5 kg) |
| Number of Monitors | 2 Monitors |
| Price | $200 – $299 |
