Ergotron 33-387-085 has a robust hinge mechanism that provides an
incredible 115 degrees of tilt adjustment while simultaneously

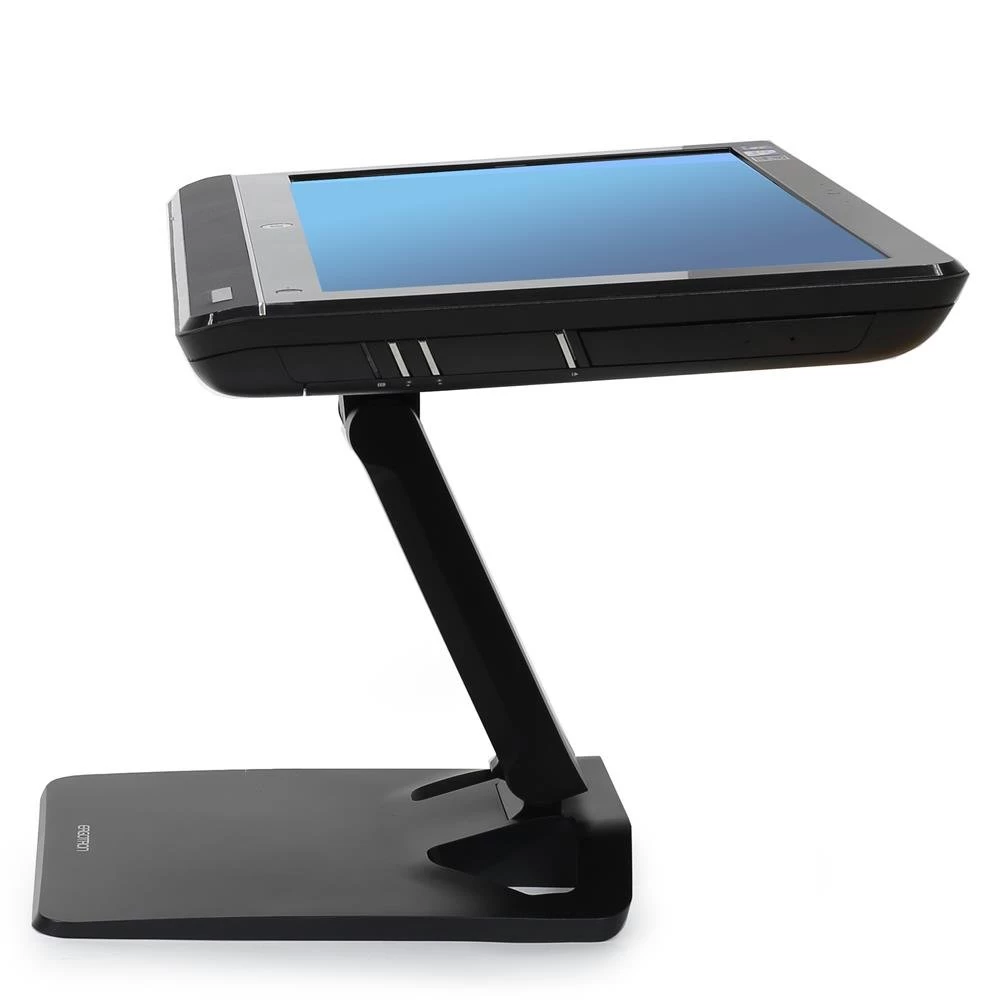

controlling monitor height. This flexibility allows the screen to be
moved parallel with the desktop – perfect for touchscreen applications.
This stand’s strength and heavy-duty design also make it well suited for
use with all-in-one PCs and hefty displays.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 27″ | 14 – 23.7 lbs 6.4 – 10.8 kg | 6.5″ 16.5 cm | 115° | 360° | – | MIS-D |
Product Information
| Part Number | 33-387-085 |
| Neo-Flex Touchscreen Stand (black) | |
| Includes |
|
| Larger Screens | Larger screens may contact the worksurface when moved to the lower position with the screen perpendicular to desktop: height-adjustment range may be limited |
| Tilt Range | +25°/-90°; 115° total |

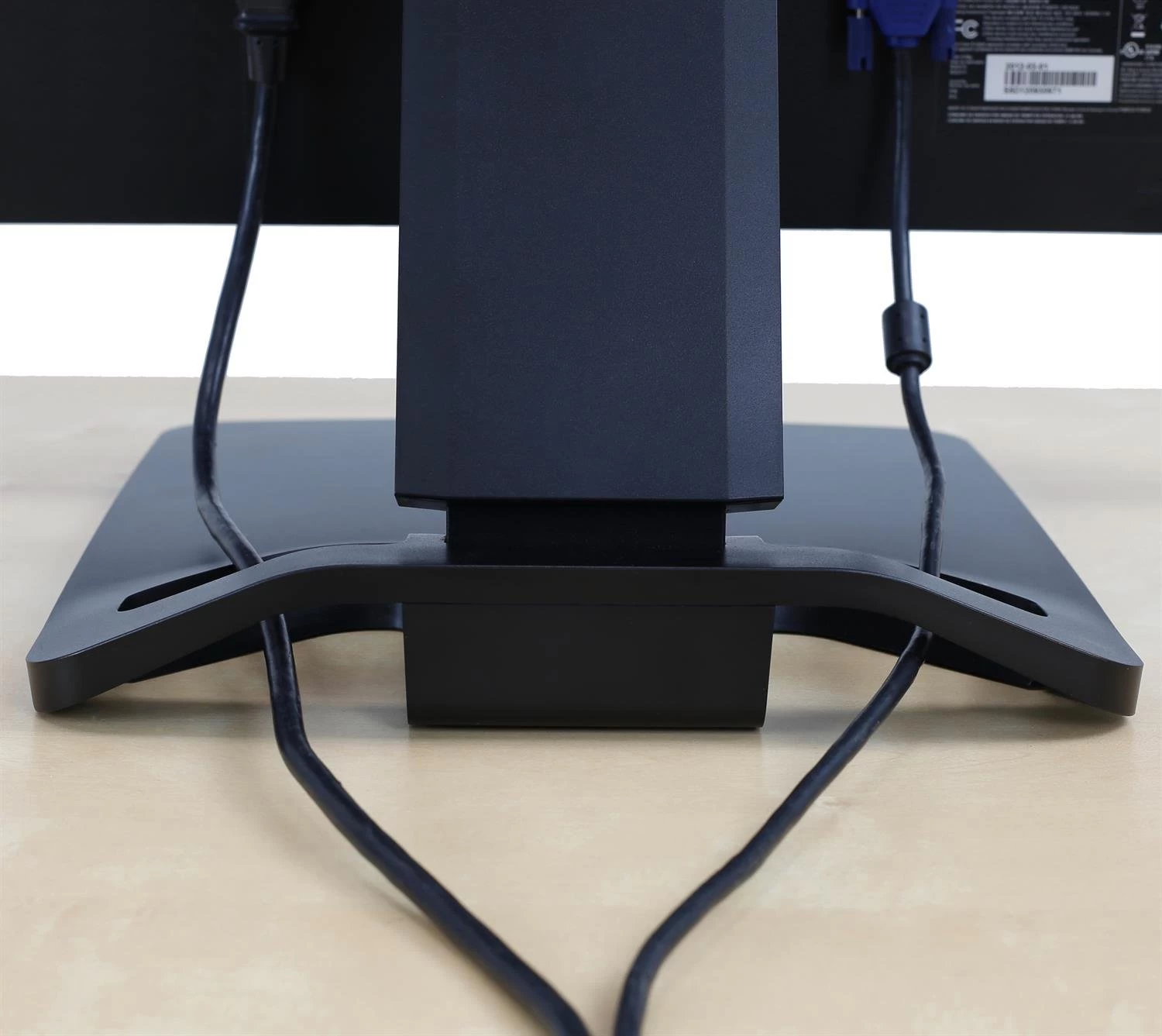

| Cable Management | Simple cable management feature routes cords |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately |
| Shipping Dimensions | 16″ x 13.5″ x 9″ (40.6 x 34.3 x 23 cm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Warranty | Three (3) years |
Benefits
-

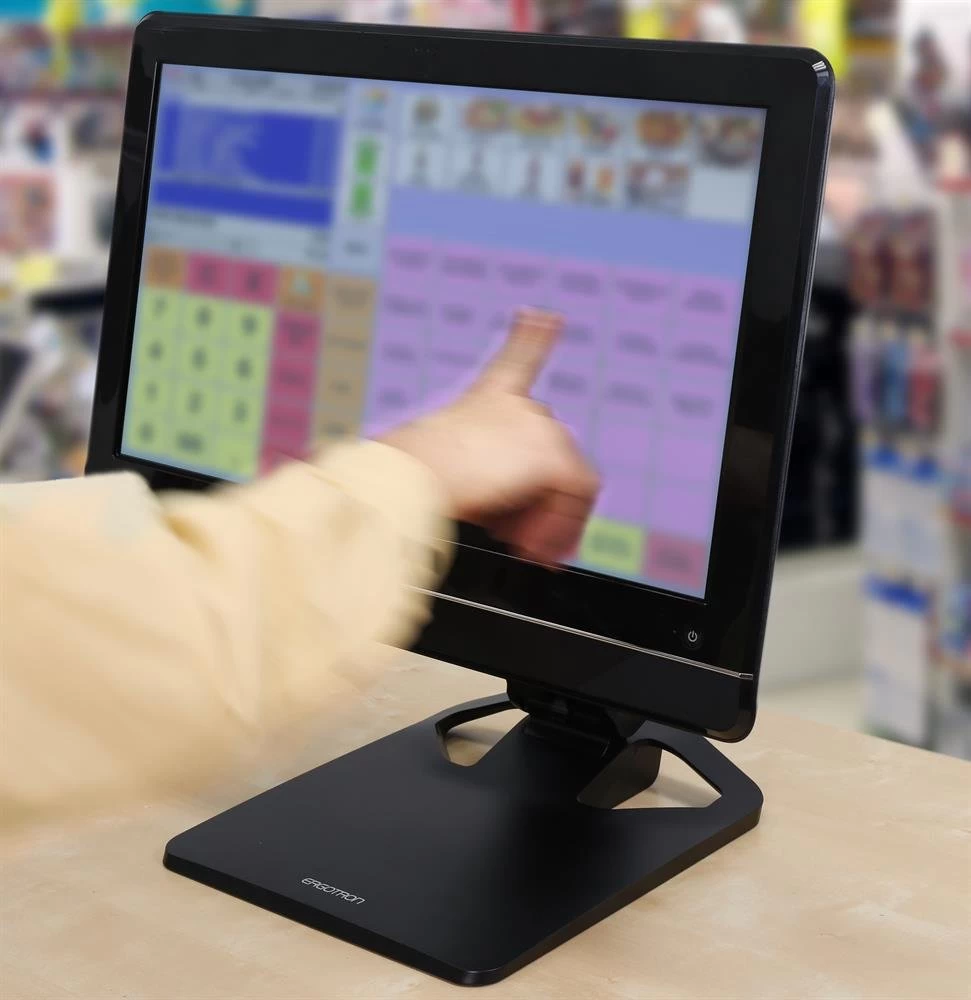

Ideal for touchscreen and all-in-one PC applications
-
Solid platform: screen remains stable when touched
-
Easy adjustment, easy installation
-
Up to 6.5 inches (17 cm) of height adjustment for customized,
ergonomic viewing of the screen -

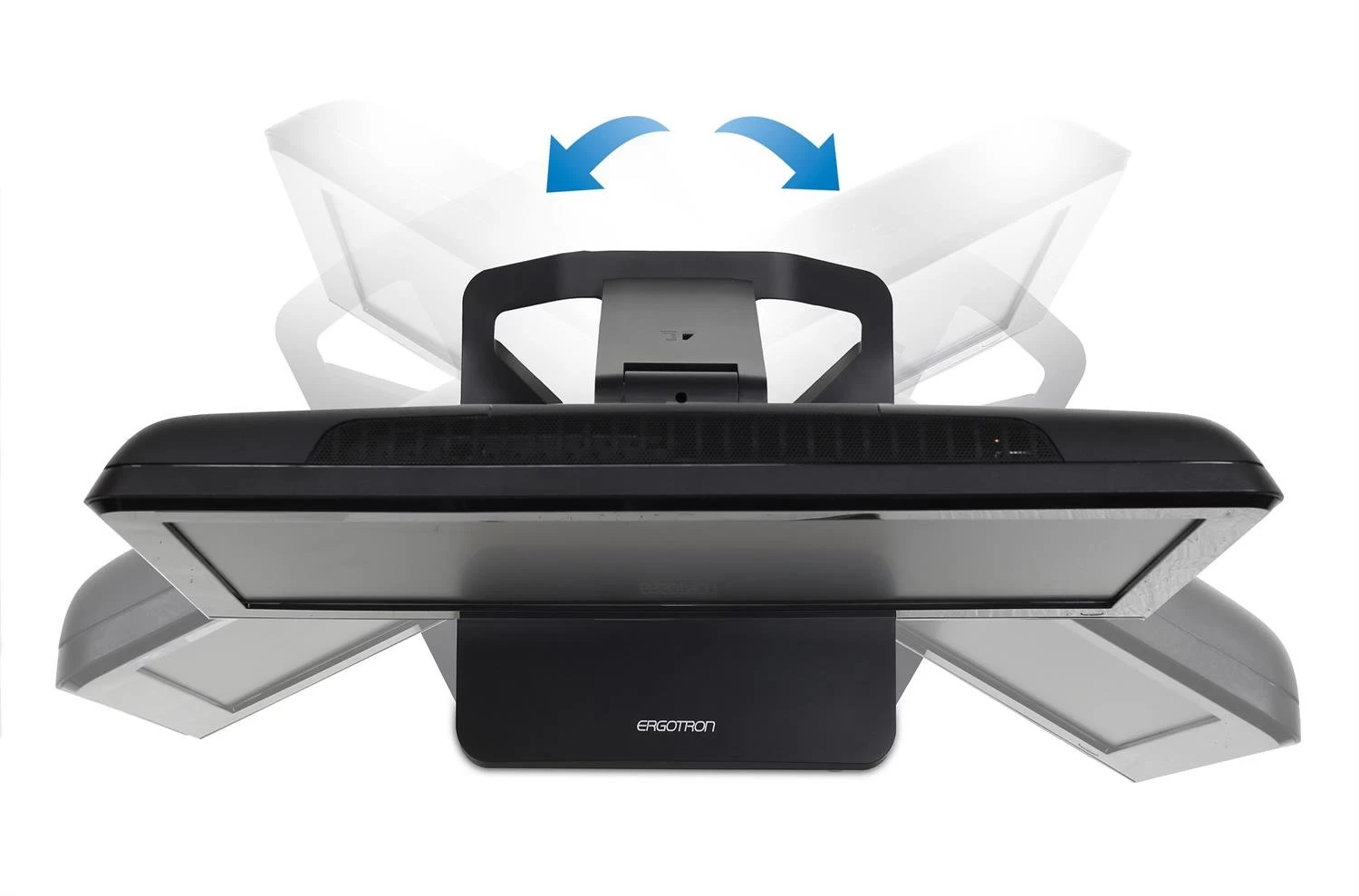

Full 360-degree rotation, which allows effortless screen
sharing with others -
A great solution for bi-focal viewing when screen is lowered
and tilted upward -
Heavy-duty design and extra capacity make it the perfect
monitor stand for hefty displays or all-in-one computers -
A visual indicator on back of stand lets you know when the
proper counter-balance tension is achieved during setup, ensuring
optimum motion adjustment
| Model | 33-387-085 |
| Manufacturer | Ergotron |
| Part Number | 33-387-085 |
| UPC | 698833040920 |
| Color | Black |
| Monitor Size | Up to 27″ |
| Weight Capacity | 14–23.7 lbs (6.5–10.8 kg) |
| Lift | (17 cm) 6.5 in |
| Tilt | +25 degree/-90 degree; total 115 degree |
| Pan | 360 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately |
| Shipping Dimensions | 16″ x 13.5″ x 9″ (40.6 x 34.3 x 23 cm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Warranty | Three (3) years |
| Mounting Options | Desk Stand |
| Monitor Arm Types | 1 Monitor |
