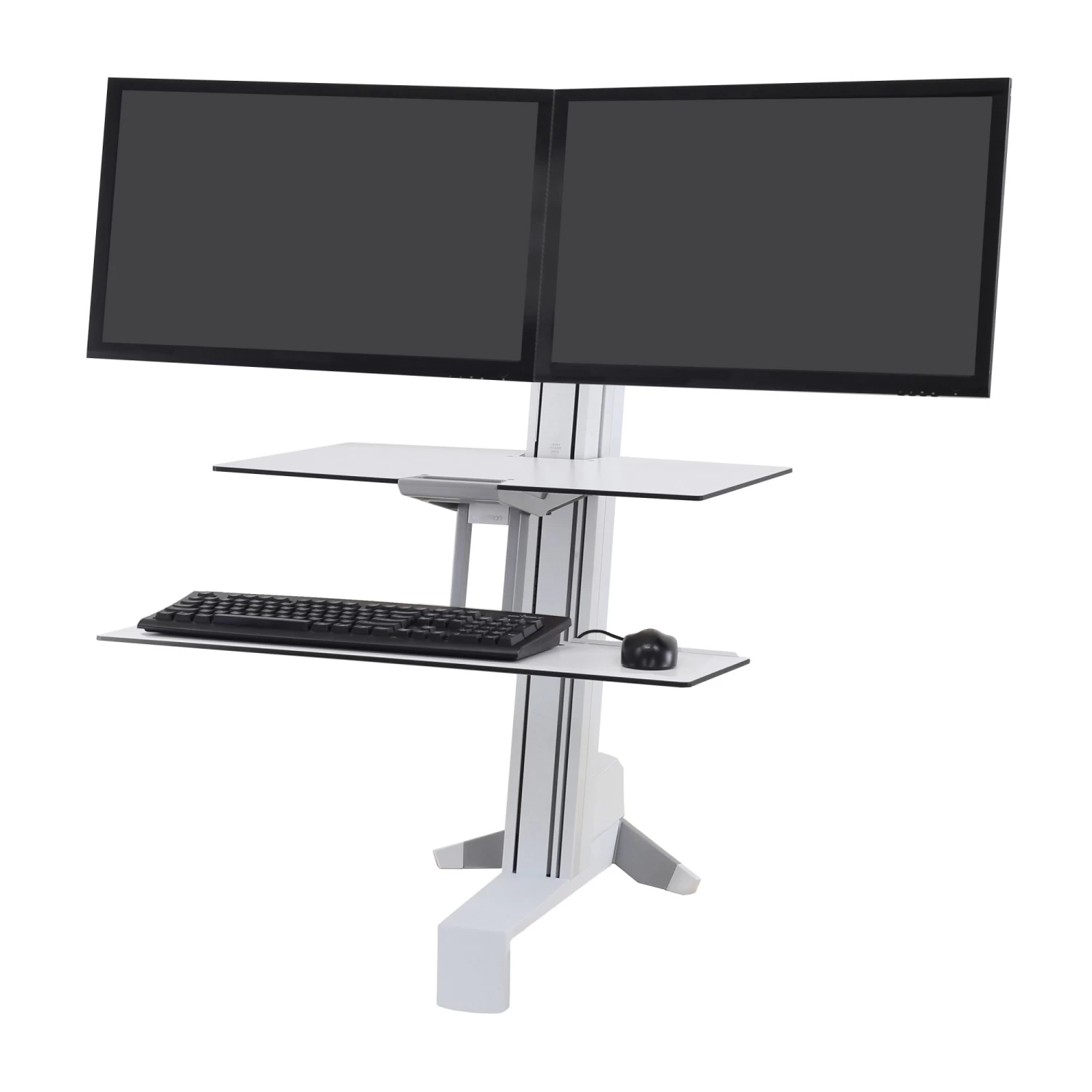

Convert any surface into an adjustable-height standing desk with the
attachment of the WorkFit-S. Make computing comfortable for prolonged
periods – stand up whenever you want.
Ergotron 33-349-211 sit-stand workstation is extraordinarily simple to
use. With the push or pull of a hand, you can instantly raise or lower
your keyboard and display in one easy motion, yet all the while the
system will remain stable throughout your work routine. Premium
ergonomic benefits include keyboard placement below desktop height when
sitting and independent monitor positioning.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 24″ | Up to 25 lbs 11.3 kg | 22.8″ 57.9 cm | – | – | 360° | MIS-D |
Product Information
| Part Number | 33-349-211 |
| WorkFit-S Sit-Stand Workstation for Dual Displays, with Worksurface and Large Keyboard Tray (white) | |
| Includes |
|
| Note |
|
| Maximum Outside Width of Display | 24.5″ (62 cm) when display is 2″ (5 cm) thick. Accommodates most displays with screen-size up to 24″ as well as some displays with screens as large as 26″. Actual allowable width of displays will vary slightly depending on display thickness |
| Weight Capacity | Maximum total load on height-adjustment assembly = 25 lbs (11.4 kg). LCD weight = 6–12 lbs (2.7–5.5 kg) each, worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 5 lbs (2.3 kg). For proper operation the total weight of components when added together should not exceed 25 lbs (11.4 kg) |
| Lift Range | LCD and keyboard adjust 18″ (46 cm) in tandem; LCD adjusts 4.8″ (12.2 cm) independently; maximum LCD height adjustment = 22.8″ (58 cm). The worksurface restricts the vertical travel range of the LCD lift pivot; height adjustment of LCD without worksurface is 5″ (13 cm) |
| Install | Displays at 3° or 8° upward angle for optimized viewing conditions |
| Desk Clamp | Attaches to surface edge .47″ to 2.4″ (1.2 to 6 cm) thick |
| Keyboard Tray |
|
| Worksurface Dimensions | 0.25″H x 23″W x 15″D (6 x 585 x 380 mm) |
| Keyboard Tray Dimensions | 0.25″H x 27″W x 9″D (6 x 685 x 226 mm) |
| Exterior | Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Certified | This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds) |
| Shipping Dimensions | 8″H x 23″W x 44″D (20 x 58 x 115 cm) |
| Shipping Weight | 44 lbs (20 kg) |
| Warranty | Five (5) years |
Benefits
Premium Ergonomics
-
Install keyboard tray at focal distance that is right for you:
closer or farther; left, right or centered -
When sitting, lower your keyboard below desktop height to proper
ergonomic position -
Independent monitor screen adjustment
-
Easily and simultaneously lift keyboard and monitor to your height
for unsurpassed comfort -
Counterbalanced adjustment points using patented Constant Force
technology allow instantaneous, tool-free re-positioning while you
work
For Computer Users
-
Improve your energy and productivity by standing or sitting as you
work, and then switch positions whenever you choose. This work style
encourages healthy movement throughout the day -
Promote fitness and comfort as you compute, reducing potential
back and neck pain by adding movement into your work routine in a
truly ergonomic workstation -
Double your view – and move it too! With two monitors you can save
time by using multiple applications at once – eliminate toggling back
and forth between documents and programs -
Burn more calories by choosing to stand for periods of your
work-day; periodic standing also promotes greater bone density and
better sleep at night. WorkFit-S counteracts an increasingly sedentary
workstyle
For IT and Facilities Staff
-
IT deployment friendly – convert most work areas into a productive
and complete computer workstation in minutes -
Modify existing office spaces or cubes by simply clamping a
WorkFit-S on an existing worksurface, without the cost of expensive
professional installers -
Safe and neat routing of cables
-
Flexible, open-architecture design is scalable for future computer
equipment
For HR/Risk Management and Company Cost Savings
-
Manage the cost of healthcare premiums by promoting wellness in
the daily work routine -
Provide standing work platforms for employees without having to
buy expensive height-adjustable chairs -
Comfortable computing offers provable ROI on investment –
healthcare costs associated with unhealthy computing and missed time
are reduced while productivity increases -
Standing supports healthy neck and back conditions. According to
the 2007 OE Medicine Journal, back and neck pain are cited as the most
costly conditions affecting employees -
Studies show an average productivity increase of 20–30% when using
two displays instead of one -
Studies in office ergonomics show productivity increases 12%–18%
following an ergonomic intervention where employees are provided with
well-designed ergonomic furniture
| Model | 33-349-211 |
| Manufacturer | Ergotron |
| Part Number | 33-349-211 |
| UPC | 698833050370 |
| Monitor Size | Up to 24″ |
| Weight Capacity | Up to 25 lbs (11.3 kg) |
| Lift | (58 cm) 22.8 in |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Color | White |
| Desktop Thickness Range | 0.47″ to 2.4″ (1.2 to 6 cm) thick |
| Worksurface Dimensions | 0.25″H x 23″W x 15″D (6 x 585 x 380 mm) |
| Keyboard Tray Dimensions | 0.25″H x 27″W x 9″D (6 x 685 x 226 mm) |
| Shipping Dimensions | 8″H x 23″W x 44″D (20 x 58 x 115 cm) |
| Shipping Weight | 44 lbs (20 kg) |
| Warranty | Five (5) years |
| Price | $500 – $599 |
