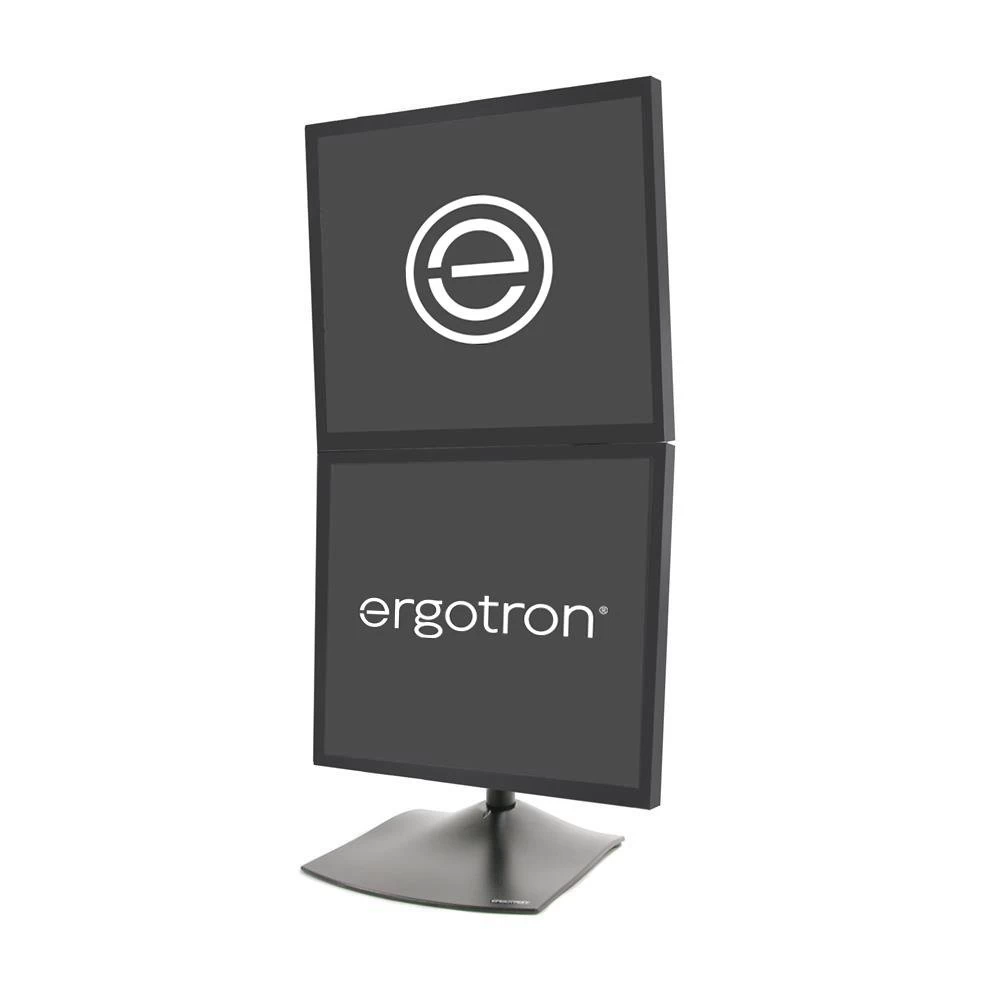

Ergotron 33-091-200 conserves desk space by suspending two flat panels on a single base. Easily adjust the height and position of both screens to a comfortable, ergonomically appropriate position. DS100’s modular design allows customization to fit your needs.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 27″ | Up to 46 lbs 20.9 kg | – | 180° | 180° | 360 ° | MIS-D |
Product Information
| Part Number | 33-091-200 |
| DS100 Dual-Monitor Desk Stand, Vertical (black) | |
| Weight Capacity | 23 lbs (10.4 kg) per pivot; 46 lbs (20.9 kg) total |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Shipping Dimensions | 28″ x 16″ x 7.5″ (711 x 406 x 191 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Warranty | Five (5) years |
Benefits
- Position the height and angle of your monitors for maximum comfort and productivity.
- Cable management system organizes and routes cables.
- Patented friction system provides long-life adjustment while maintaining touch-screen stability.
- Low-profile base saves desk space.
- Accommodates various LCD sizes; slide displays into place so screen edges align.
| Model | 33-091-200 |
| Manufacturer | Ergotron |
| Part Number | 33-091-200 |
| UPC | 698833000801 |
| Color | Black |
| Monitor Size | Up to 27″ |
| Weight Capacity | 23 lbs (10.4 kg) per pivot; 46 lbs (20.9 kg) total |
| Tilt | 180 degree |
| Pan | 180 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Shipping Dimensions | 28″ x 16″ x 7.5″ (711 x 406 x 191 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Warranty | Five (5) years |
| Mounting Options | Desk Stand |
| Monitor Arm Types | 2 Monitors |
| Maximum Monitor Size | 27″ |
| Monitor Placement | Stacked One Over the Other |
