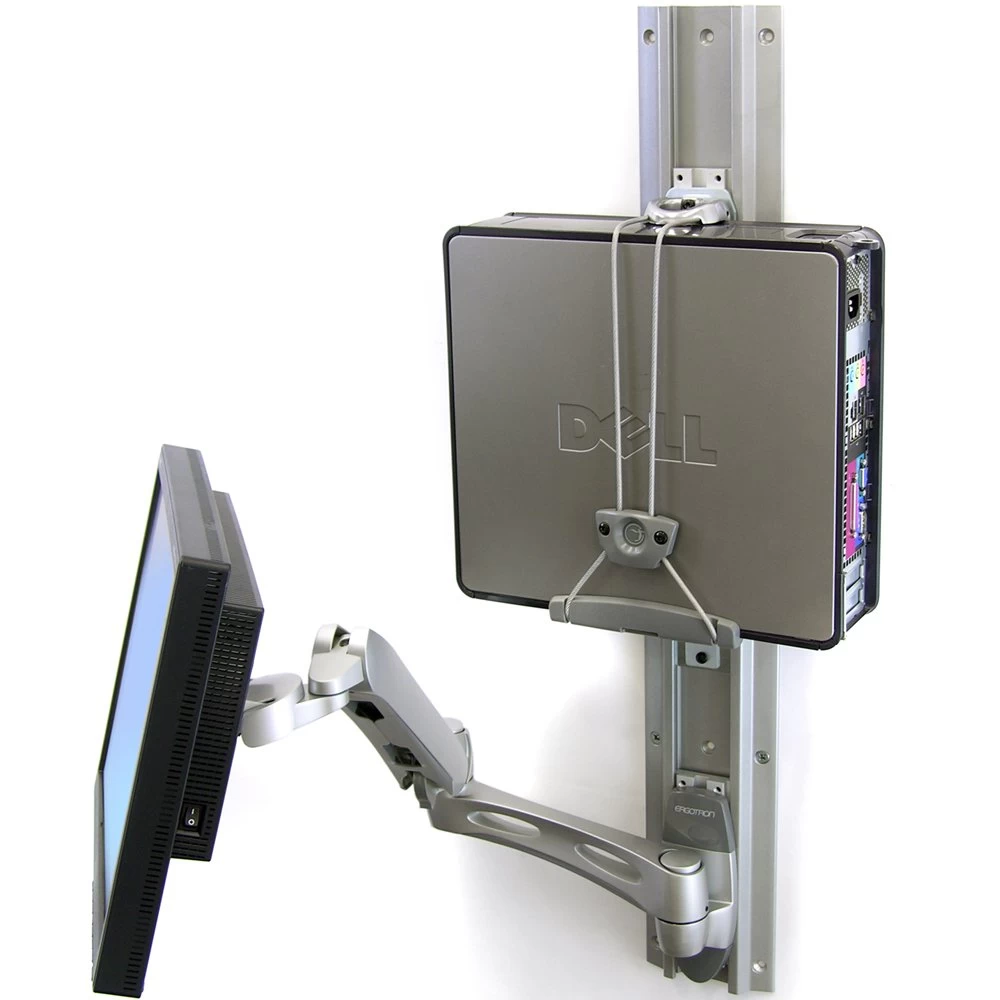

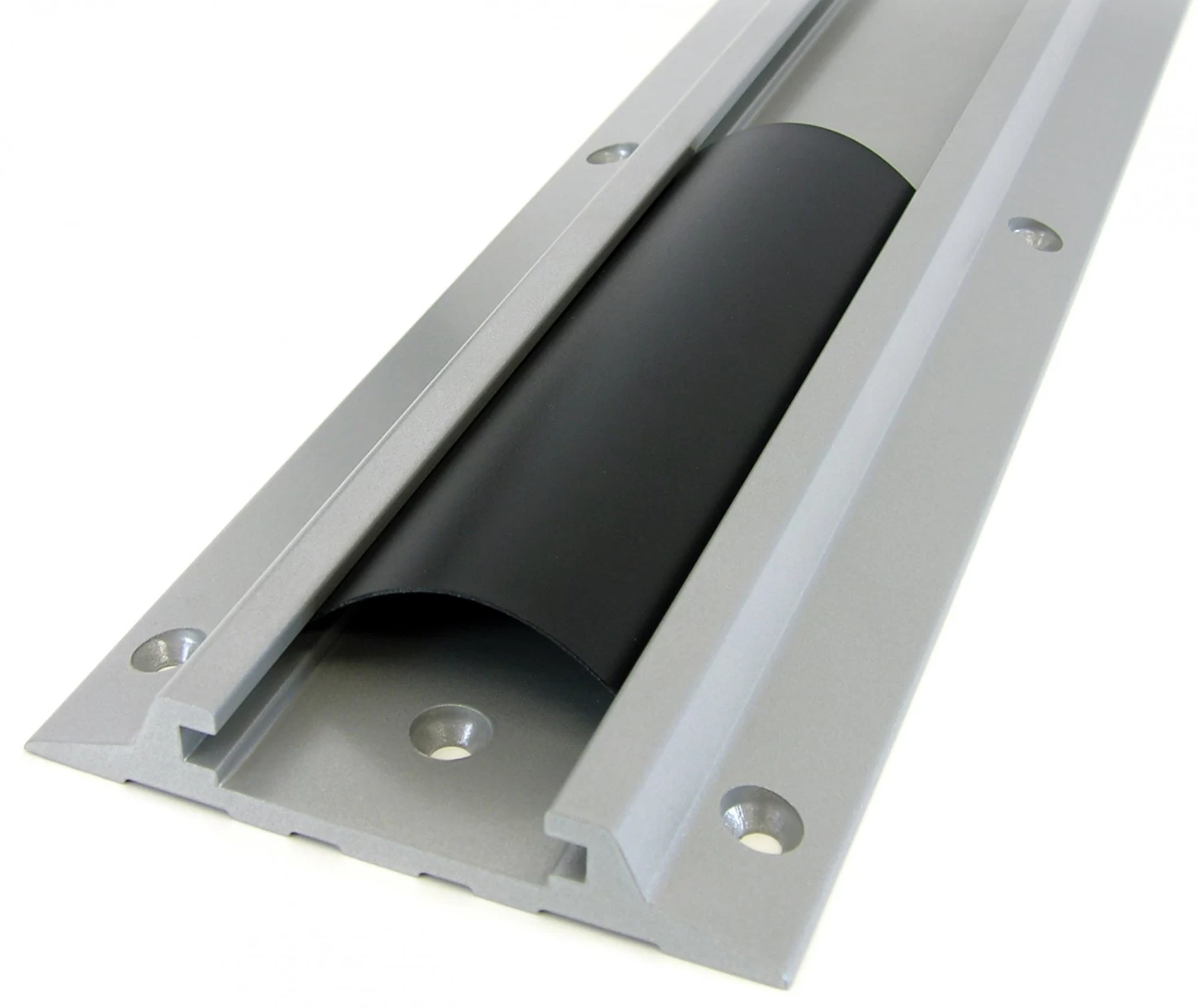

Ergotron 31-018-182 Wall Track is a low-cost, zero-footprint mounting
system that attaches to most vertical surfaces. It accommodates an
entire computer workstation. Brackets are required to attach components
to Wall Track (order separately). The height of components can be
adjusted by loosening set-screws on these brackets.

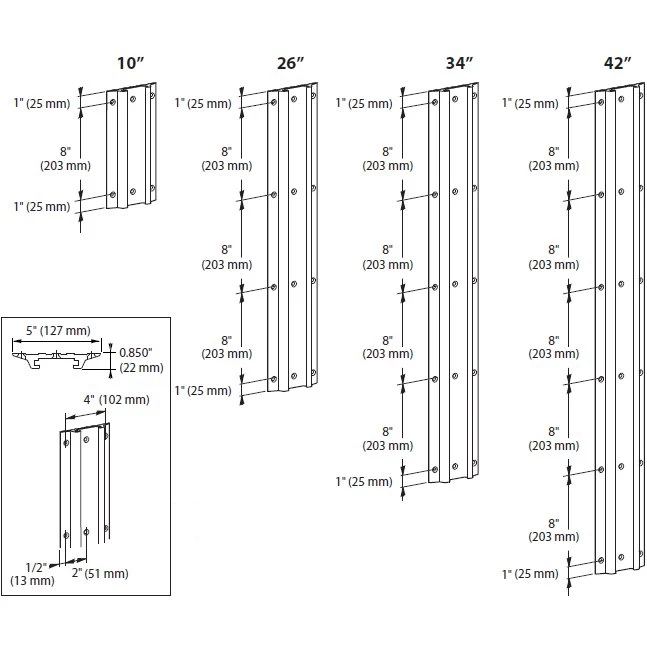

Technical Drawing
Product Information
| Part Number | 31-018-182 |
| 34″ Wall Track with cable management channel covers | |
| Not Include | Does not include mounting hardware |
| Dimensions | 34″ x 5″ x .87″ (864 x 127 x 22 mm) |
| OSHPD | Pre-approval Number OPA-0620 |
| Fasteners | For attaching track to wall can be purchased separately: part number 97-531 for metal or wood studs; part number 90-011 for hollow walls |
| Requires | Brackets to attach Ergotron components. Order separately: part number 97-091 for LX, HX & MX Arms, 400, 200 and 100 Series Arms and Pivots, and Universal CPU Holder; part number 60-156 for Medium and Small CPU Holders |
| Product Weight | 5.4 lbs |
| Shipping Dimensions | 37″ x 6″ x 1″ (940 x 152 x 25 mm) |
| Shipping Weight | 6.9 lbs |
| Warranty | Five (5) years |
Benefits
-
Acts as a common interface for Wall Mount Arms and CPU
Holders; accommodates an entire computer system. -
Strengthens installation by distributing weight over a larger
surface area. -
Sturdy, extruded aluminum construction.
-
OSHPD pre-approved for California hospital requirements.
-
Includes channel covers that conceal and route cables.
| Model | 31-018-182 |
| Manufacturer | Ergotron |
| Part Number | 31-018-182 |
| UPC | 698833002515 |
| Dimensions | 34″ x 5″ x .87″ (864 x 127 x 22 mm) |
| Shipping Dimensions | 37″ x 6″ x 1″ (940 x 152 x 25 mm) |
| Shipping Weight | 6.9 lbs |
| Warranty | Five (5) years |
| Color | Silver |
| Weight | 5.4 lbs |
